Thecus N299 Bedienungsanleitung

Thecus N299

User’s Manual

Thecus and other names of Thecus products are registered trademarks of Thecus

Technology Corp. Microsoft, Windows, and the Windows logo are registered

trademarks of Microsoft Corporation. Apple, iTunes and Apple OS X are registered

trademarks of Apple Computers, Inc. All other trademarks and brand names are

the property of their respective owners. Specifications are subject to change

without notice.

About This Manual

All information in this manual has been carefully verified to ensure its correctness.

In case of an error, please provide us with your feedback. Thecus Technology

Corporation reserves the right to modify the contents of this manual without

notice.

Product name: Thecus N299

Manual Version: 1.1

Release Date: November 2007

Limited Warranty

Thecus Technology Corporation guarantees all components of Thecus N299 are

thoroughly tested before they leave the factory and should function normally

under general usage. In case of any system malfunctions, Thecus Technology

Corporation and its local representatives and dealers are responsible for repair

without cost to the customer if the product fails within the warranty period and

under normal usage. Thecus Technology Corporation is not responsible for any

damage or loss of data deemed to be caused by its products. It is highly

recommended that users conduct necessary back-up practices.

Chapter 1: Introduction

Overview

Thank you for choosing the Thecus N299 IP Storage Server. The Thecus N299 is

an easy-to-use storage server that allows a dedicated approach to storing and

distributing data on a network. Data reliability is ensured with RAID features that

provide data security and recovery. Two Gigabit Ethernet ports enhance network

efficiency, allowing the N299 to take over file management functions. The N299’s

user-friendly GUI supports multiple languages, and its built-in media server and

optional wireless connectivity via USB dongles allow users to share and enjoy

their digital media in virtually any room of the house.

Product Highlights

File Server

First and foremost, the N299 allows you to store and share files over an IP

network. With a Network Attached Storage (NAS) device, you can centralize your

files and share them easily over your network. With the easy-to-use web-based

interface, users on your network can access these files in a snap.

To learn about the Web User Interface, go to Chapter 5: Using the N299 >

Web User Interface.

Media Server

The N299 can also act as a convenient media server, allowing you to enjoy and

share photos, music, and movies via the uPnP AV streaming protocol.

To set up the Media Server, refer to Chapter 4: Additional Feature Setup >

Media Server.

FTP Server

With the built-in FTP Server, friends, clients, and customers can upload and

download files to your N299 over the Internet with their favorite FTP programs.

You can create user accounts so that only authorized users have access.

To set up the FTP Server, refer to Chapter 4: Additional Feature Setup > FTP

Server.

iTunes® Server

Digital music is one of the hottest trends, and with the built-in iTunes® server,

you can share your digital music files with every iTunes-equipped PC on your

network. The iTunes Server is also incredibly easy to set up!

To set up the iTunes Server, refer to Chapter 4: Additional Feature Setup >

iTunes Server.

Photo Gallery

Got a lot of photos? Share them effortlessly with the N299’s built-in Photo Gallery.

Users can create albums and upload photos in a snap, and the N299 will even

auto-create thumbnails.

To find out how to share photos with the N299, refer to Chapter 5: Using the

N299 > Using Photo Gallery.

Backup Server

Don’t leave precious data to chance. With advanced backup capabilities, you can

easily upload mission critical files to the N299, and even automate your backup

tasks for true peace-of-mind.

To find out how to backup your files with the N299, refer to Chapter 5: Using

the N299 > File Backup.

Download Manager

Tired having downloads take up all of your bandwidth when you need it most?

With the N299’s Download Manager, you can let the N299 complete your BT,

HTTP, and FTP during off-peak hours. With the N299 lower power requirements,

you can even save money off your monthly power bill.

To set up the Download Station, refer to Chapter 4: Additional Feature Setup

> Download Manager.

Printer Server

With the N299’s Printer Server, you can easily share an IPP printer with other PCs

connected to your network.

To set up the Printer Server, refer to Chapter 4: Additional Feature Setup >

Printer Server.

IP Cam Surveillence Server

Keep an eye on things with the built-in IP Cam Surveillence Server. Just plug in a

compatible webcam and the N299 can send snapshots to an account that you

specify. Best of all, your PC doesn’t even have to be turned on!

To set up the IP Cam Surveillence Server, refer to Chapter 4: Additional

Feature Setup > IP Cam Surveillence.

Package Contents

Your N299 package should contain the following items:

•Thecus N299 NAS Device

•Accessory Pack:

oPower cord ble

oRJ-45 Ethernet ca

ohard disk screws

rews

ohard disk tray sc

oInstallation CD Guide

oQuick Installation

Warranty card

Please check to see if your package is complete. If you find that some items are

missing, contact your dealer.

Front Panel

The N299’s front panel displays the unit’s array of status LEDs, and is also where

you’ll find the power button and USB port. See the table below for a detailed

explanation of each:

Item Description

Power LED •Solid blue: N299 is powered on

System Status LED

•Blinking orange: system is starting up

•Blinking red: system error

•Off: system startup complete; system operating normally

•Solid blue: HDD 1 detected

•Blinking blue: Active HDD 1 data transfer

•Solid red : HDD 1 error detected

HDD1 LED

•Blinking red: HDD 1 capacity is nearly full (90% or more)

* If RAID is configured, capacity is based on the entire RAID

system.

•Solid blue: HDD 2 detected

•Blinking blue: Active HDD 2 data

HDD2 LED transfer

is configured, capacity is based on the entire RAID

•Solid red : HDD 2 error detected

•Blinking red: HDD 2 capacity is nearly full (90% or more)

* If RAID

system.

One-Button USB

Copy •rt

time

One-Button Copy

Push once to copy entire USB volume to the N299. A sho

beep will sound to acknowledge that files are now being

copied. Files are stored in a folder named by current

stamp: (YearMonthDayHHM

WAN LED ctivity

•Solid green: network link

•Blinking green: network a

•Solid green: network link

LAN LED

•Blinking green: network activity

USB LED •Uo

LED

SB Device Connection

Blinking blue (5 seconds): USB device connected

successfully.

*For universal USB memory card readers, the USB

will blink blue when one or more card is mounted

successfully.

Rear Panel

he rear panel of the N299 houses the USB and Ethernet connections, as well as

wer connector. See the table below for descriptions of each:

the po

Item Description

Power Connector •ded power cord to this connectorConnect the inclu

WAN Port •WAN port for connecting to an Ethernet network through a

switch or router

LAN Port •LAN port for connecting to an Ethernet network through a switch

or router

USB Ports

•USB 2.0 ports for storage expansion

on failure

•D

SB device read/write error

oBlinking red (5 seconds): USB device connecti

ata Transfer

oBlinking blue: Active data transfer

oBlinking red: U

SB Port •USB 2.0 port for USB storage expansion.

Power Button •Power on/off N299

There are two USB ports at the back panel

of N299, you can use either one, but not

two at the same time.

NOTE

Chapter 2: Getting Started

Overview

Your N299 is designed for complete ease-of-use. To help you get started, the

following chapter will help you get your N299 up and running in no time. Please

read it carefully to prevent damaging your unit during installation.

Before You Begin

Before you begin, be sure to take the following precautions:

1. Read and understand the Safety Warnings outlined in the beginning of

the manual.

2. If possible, wear an anti-static wrist strap during installation to prevent

static discharge from damaging the sensitive electronic components on the

N299.

3. Be careful not to use magnetized screwdrivers around the N299’s

electronic components.

4. The N299 uses its chassis to dissipate heat. Please leave your N299 in a

well-ventilated area to prevent overheating.

Hard Disk Installation

The N299 supports standard 3.5” (SATA) hard disks. To install a hard disk into

the N299, follow the steps below:

1. Remove two screws located on the back of the unit using a Philips

screwdriver.

2. Unscrew four mounting screws.

3. Lift up the hard disk tray by pulling up the top panel of the N299.

4. Carefully insert a standard 3.5” SATA hard disk into the tray, and secure

the hard disk with screws from the included accessory pack.

5. If you are installing two hard disks, please insert the second hard disk at

the bottom of the tray and secure it with screws from the included

accessory pack.

6. Carefully lower the hard disk tray back into the N299.

7. After making sure the tray is in place and the connectors are aligned,

secure the hard disk tray with screws.

NOTE

If your hard disk was previously part of a RAID 1 array, it will automatically rebuild.

If you replace all the drives with higher capacity drives, you need to go to the

Administrator login and format the drives.

Cable Connections

Make the following connections on the Thecus N299 and then power up the unit:

1. Connect an Ethernet cable from your network to the WAN port on the

back panel of the N299.

2. Connect the provided power cord into the universal power socket on the

back panel. Plug the other end of the cord into a surge protected socket.

3. Press the power button on the front panel to power on the N299.

4. Make sure system is running properly by checking all front panel LEDs for

any error indications.

Installation Wizard

The handy Thecus Setup Wizard makes configuring N299 a snap. To configure the

N299 using the Setup Wizard, perform the following steps:

1. Insert the installation CD into your CD-ROM drive (the host PC must be

connected to the network).

2. The Setup Wizard should launch automatically. If not, please browse your

CD-ROM drive and double click on Setup.exe.

NOTE

For MAC OS X users, double click on Thecus Setup Wizard 1.1.6.dmg

3. Complete the Setup Wizard

a. Device Discovery

The Setup Wizard will start and automatically detect all Thecus Storage

devices on your network.

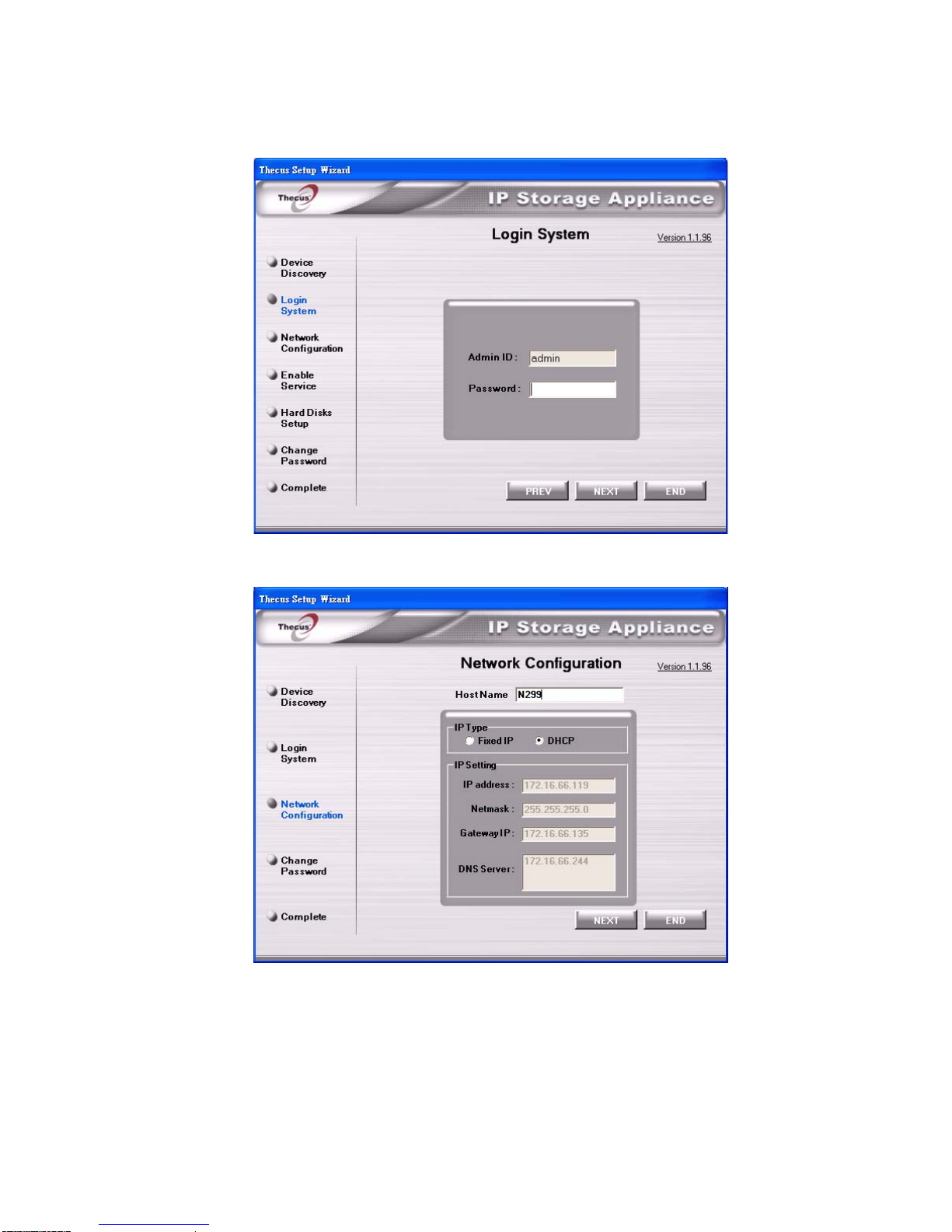

b. Login

c. Network Setting

Name your N299 system and configure the network IP address. You

can choose either fixed IP or DHCP.

d. Change Admin Password

e. Start Browser

Access the current N299 administrator Web User Interface pressing the

“Start Browser” button.

Andere Handbücher für N299

Inhaltsverzeichnis

Andere Thecus Netzwerkspeicherserver Handbücher

Thecus

Thecus N4310 Series Bedienungsanleitung

Thecus

Thecus 1U4500R Bedienungsanleitung

Thecus

Thecus Thecus N199 Bedienungsanleitung

Thecus

Thecus N5500 Bedienungsanleitung

Thecus

Thecus N420 Bedienungsanleitung

Thecus

Thecus N16000 series Bedienungsanleitung

Thecus

Thecus N2200 Bedienungsanleitung

Thecus

Thecus N7700SAS Bedienungsanleitung

Thecus

Thecus N2520 series Bedienungsanleitung

Thecus

Thecus N2200 Bedienungsanleitung

Thecus

Thecus 8900 series Bedienungsanleitung

Thecus

Thecus N8800 IP Bedienungsanleitung

Thecus

Thecus N299 Bedienungsanleitung

Thecus

Thecus N4100+ Bedienungsanleitung

Thecus

Thecus N0503 Bedienungsanleitung

Thecus

Thecus N4800 Bedienungsanleitung

Thecus

Thecus N16000 series Bedienungsanleitung

Thecus

Thecus 1U4600 Bedienungsanleitung

Thecus

Thecus N12000 series Bedienungsanleitung

Thecus

Thecus i8500 Bedienungsanleitung

Thecus

Thecus N0503 Bedienungsanleitung

Thecus

Thecus N8900 series Bedienungsanleitung

Thecus

Thecus N3200 Bedienungsanleitung

Beliebte Netzwerkspeicherserver Handbücher anderer Marken

HP NetStorage 6000 Bedienungsanleitung

Seagate

Seagate U10 ST320423A Bedienungsanleitung

Synology

Synology RackStation RS816 Handbuch

D-Link

D-Link ShareCenter Pro DNS-1200-05 Bedienungsanleitung

Avid Technology

Avid Technology VideoRAID ST Sicherheitsleitfaden

Western Digital

Western Digital My Cloud Home Duo Bedienungsanleitung

PrimeArray

PrimeArray 4xxx Bedienungsanleitung

Buffalo

Buffalo TeraStation WSS WSH5010N6 Bedienungsanleitung

Planex

Planex MZK-NAS01SG Bedienungsanleitung

Intel

Intel SS4000-E - Entry Storage System NAS Server Bedienungsanleitung

Synology

Synology RS2212+ Bedienungsanleitung

Allnet

Allnet ALL69000 Bedienungsanleitung

Adaptec

Adaptec 5325301580 Bedienungsanleitung

Motorola

Motorola EXORdisk II Bedienungsanleitung

Sony

Sony XDAAI1PK Bedienungsanleitung

Cisco

Cisco Linksys NAS200 Original Betriebsanleitung

Sans Digital

Sans Digital MR4UT6G Bedienungsanleitung

AIC

AIC FB128-LX Bedienungsanleitung
