Eective for all Thermann electric storage

water heaters manufactured and sold after

1st May 2013.

OWNER’S

MANUAL

& INSTALLATION GUIDE

80L - 400L Electric Storage Water Heaters

STANDARD MODELS:

80THM136 | 125THM118 | 125THM136 | 160THM124

160THM136 | T2F136S | T3F136S | T4F136S

HARD-WATER MODELS:

80THM136H | 125THM118H | 125THM136H

160THM124H | 160THM136H | T2F136SH | T3F136SH

For advice, repairs and service

call: 1800 080 055

Carefully remove all packaging

and transit protection from

the heater before installation.

Dispose of the packaging

responsibly using re-cycling

facilities where they exist.

Installation Details

Owner’s Information

Warranty

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Installation Details 1

Plumbing Connections 3

Electrical Connection 5

Speciﬁcations 6

Operating Instructions 8

Safety Information 9

Service Information 10

Troubleshooting 11

Warranty 13

Contents

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Installation Details

Installation Requirements

This water heater must be installed

by a licensed tradesperson, and in

accordance with:

• AS/NZS3500.4 "Plumbing and

Drainage - Heated Water Services".

• AS/NZS3000.

• Local authority regulations.

• Outside Australia, please refer to

local plumbing and building codes

and regulations.

• Notice to Victorian customers from

the Victorian Plumbing Industry

Commission – this water heater

must be installed by a licensed

person as required by the Victorian

Building Act (1993). Only a licensed

person will give you a compliance

certiﬁcate, showing that the work

complies with all the relevant

Standards. Only a licensed person

will have insurance protecting their

workmanship for 6 years. Make sure

you use a licensed person to install

this water heater and ask for your

Compliance Certiﬁcate.

Water Supply Pressure

This water heater is designed for

direct connection to water supply

pressures of:

All models - 800kPa

Where the mains pressure can exceed

or ﬂuctuate beyond the pressure

shown above, a pressure limiting

device (complying with AS1357)

must be ﬁtted in the cold water inlet

supply. This device must be installed

after the isolating valve and set below

the pressure shown above. Note that

during periods of lower demand, water

pressure may increase.

Caution: This water heater delivers

hot water at temperatures exceeding

50°C. Refer to AS/NZS3500 and

local regulations regarding the need

for additional hot water delivery

temperature control.

Pool Heating

This water heater must not be used for

pool heating.

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Installation Details

Location

The water heater should be located

as close as possible to the most

frequently used hot water outlet.

Adequate access must be made for

service to the element(s), thermostat,

relief valve and anode. Ensure that the

data plate and associated warnings are

clearly visible.

Note: All models are equipped with a

sacriﬁcial anode, accessible through

the top cover. Allow 50% of the height

of the water heater for clearance

above to replace the anode.

The product must be installed on a

ﬂat, solid supporting surface.

A properly drained overﬂow tray must

be used where property damage could

occur from water spillage. (See

AS/NZS3500.4 for further details.)

When installing this water heater in

a roof area as a mains pressure unit,

refer to local regulations.

Note: The warranty does not cover

damage due to leakage of the

water heater.

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Plumbing Connections

Pressure & Temperature Relief Valve

The Pressure & Temperature Relief

Valve is supplied loose with the water

heater. The valve rating is:

All models = 1000kPa

The PTR valve must be installed directly

into the top socket marked “RELIEF

VALVE”. The drain line from this valve

must run in a continuously downward

direction in a frost-free ambient

position with the discharge end left

open to atmosphere permanently.

The PTR Valve is not intended to enable

connection of the water heater to

supplementary energy sources such as

solar panels or slow combustion stoves

(refer AS/NZS 3500.4 for guidance on

these types of installations).

After the cold water has been

connected, open the PTR Valve for

approximately 10 seconds by lifting

the lever on the valve to ensure water

is relieved to waste through the relief

drain pipe. Lower lever gently and

check that it closes correctly.

The PTR Valve must not be tampered

with or removed. The water heater

must not be operated unless this valve

is ﬁtted and in working order.

The PTR Valve should be checked for

adequate performance or replaced at

intervals not exceeding 5 years, or less

in areas where local regulations apply.

Important: The PTR Valve and its drain

outlet pipe must not be sealed or

blocked. It is normal for the PTR valve

to leak a small amount of water during

heating cycles.

Danger

Failure to operate the relief valve

easing lever at least once every six (6)

months may result in a problem with

the water heater and in some cases the

tank may explode.

Warning: A separate drain line must

be run for this relief valve. It is not

permitted to couple drain lines from

relief valves into a single common

drain line.

Cold Water Connection

An approved isolating valve, non

return valve, line strainer (optional but

recommended), and union must be

ﬁtted between the supply main and the

RP¾/20 socket marked INLET at the

bottom of the water heater. All ﬁttings

must be approved by the relevant

Authority. See the diagram on page 4

for details.

Note for S.A. and W.A.: It is a state

requirement that an expansion control

valve be ﬁtted on the cold water

supply line between the non return

valve and the water heater. See the

diagram on page 4 for details.

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Plumbing Connections

Hot Water Connection

The hot water pipe should be

connected to the RP¾/20 socket

marked OUTLET at the top of the unit.

For the most economical operation of

the water heater, it is recommended

that all hot water lines are insulated.

Hot water pipes installed outdoors

should be insulated with UV stabilized

insulation.

Please check local regulations

regarding the use of hot water supply

pipework that is not made of copper.

Note: a combined isolating valve/non-return valve/line strainer may be used.

Expansion control valve only required where local regulations demand.

Union

Connection

Non-return

Valve

Line

Strainer

Cold Water

Inlet

Drain

Expansion

Control Valve

Isolating Valve

(Spindle Vertical)

Inlet Connections

Temperature Protection

Water heaters can produce very hot

water. To reduce the risk of scald

injury, it is mandatory under the

requirements of Australian Standard

AS/NZS3500.4 that a suitably

approved temperature control device

be ﬁtted to the hot water supply to

outlets used primarily for personal

hygiene. This valve should be checked

at regular intervals to ensure its

operation and settings remain correct.

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Electrical Connection

This water heater is designed for

single phase 240V A.C supply only.

The electrical connection must

comply with Local Supply Authority

Regulations and AS/NZS3000.

Connections are made at the terminal

block inside the water heater, and

a means for disconnection must be

incorporated in accordance with the

wiring rules.

Entry to the connection area is

through the hole beneath the electrical

cover, designed to accept a 20mm

conduit. The electrical cover may be

removed by undoing the two screws

on the cover and sliding the cover

downwards to disengage the top

edge. Ensure that the conduit entry

is well sealed to achieve correct

weatherprooﬁng.

Note: This water heater is ﬁtted

with a thermostat and over-

temperature energy cut-out. Under

no circumstances should the water

heater be operated without both

these devices being in the circuit.

Replacement must be carried out

only by a licensed tradesperson or the

manufacturer.

Danger: The operation of the thermal

cut-out indicates a possibly dangerous

situation. Do NOT reset the thermal

cutout until the water heater has been

serviced by a licensed tradesperson.

Caution: Water heater must be ﬁlled

with water before turning on the

electricity supply.

Electrician: Press the reset button

on thermostat to ensure over-

temperature cut-out is set.

When supply wiring has been

connected, supply wires must be kept

lower than the terminal block.

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Specifications - 80L to 160L

Speciﬁcations

Tank Size 80L 125L 160L

Storage Capacity (L) 88 130 165

Hot Water Delivery (L) 80 125 160

Net Weight Empty (kg) 41 51 61

Element(s) Sizes (kW) 3.6 1.8, 3.6 2.4, 3.6

Relief Valve:

Pressure (kPa) 1000 1000 1000

Temperature (°C) 99 99 99

Power Rating (kW) 10kW 10kW 10kW

Nominal Dimensions

Tank Size 80L 125L 160L

Total Height (A) 925 1090 1345

Total Diameter (B) 490 530 530

Outlet Height (C) 735 865 1120

Inlet Height (D) 160 190 190

Electrical Entry (E) 85 100 100

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

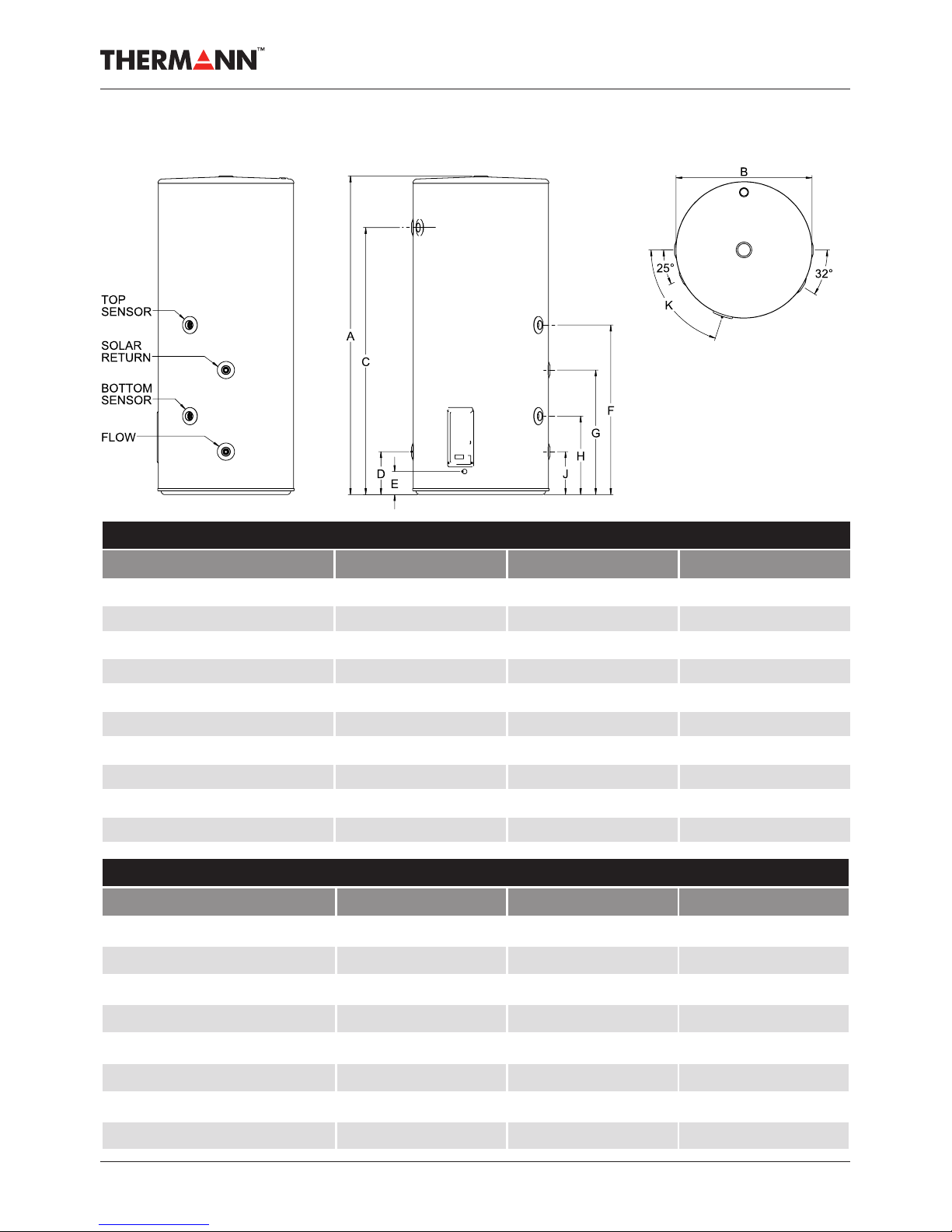

Nominal Dimensions

Tank Size 250L 315L 400L

Total Height (A) 1445 1765 1705

Total Diameter (B) 620 620 705

Outlet Height (C) 1210 1530 1445

Inlet Height (D) 195 195 220

Electrical Entry (E) 105 105 130

Top Sensor (F) 770 865 830

Solar Return (G) 565 555 545

Bottom Sensor (H) 355 350 350

Flow (J) 195 195 220

Element Angle (K) 70° 70° 70°

Specifications - 250L to 400L

Speciﬁcations

Tank Size 250L 315L 400L

Storage Capacity (L) 259 321 415

Hot Water Delivery (L) 250 315 400

Net Weight Empty (kg) 72 93 115

Element(s) Sizes (kW) 3.6 3.6 3.6

Relief Valve:

Pressure (kPa) 1000 1000 1000

Temperature (°C) 99 99 99

Power Rating (kW) 10kW 10kW 10kW

THM0421 026512 Rev. E

Thermann Owner’s Manual

80L to 400L Electric Storage Water Heaters

Safety

This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

Children and animals should be

supervised to ensure that they do not

interfere with the appliance.

Filling The Water Heater

Open all hot water taps. Open isolating

valve at the cold water inlet slowly and

allow water heater to ﬁll until water

ﬂows through the system. Close each

hot water tap after the air is expelled

from its line. As noted previously

power is not to be turned on until the

water heater is ﬁlled with water.

Water Quality

Your Thermann water heater has been

manufactured to suit water conditions

of most Australian metropolitan

supplies. Please note that harsh water

supplies can have a detrimental

eect on the water heater and its life

expectancy. If you are unsure about

your water quality you can obtain

information from your local water

supply authority.

The water heater is designed for use in

areas where the Total Dissolved Solids

(TDS) content of the water supply

is less than 2500 mg/L. In areas

where the TDS exceeds 600mg/L it

is possible that the magnesium alloy

anode (supplied in the heater) may

become over-reactive. To alleviate this,

a hard-water model is recommended

or the magnesium alloy anode should

be replaced with an aluminium

alloy anode.

Water can also be very corrosive, the

measure of this is the saturation index.

If the water saturation index is greater

than 0.40, an expansion control

valve should be ﬁtted. If the index

is greater than 0.80, the electrical

heating element in the water heater

should be replaced with a low power

density Incoloy heating element.

Please consult our Customer Service

Department for advice if required.

Caution

If the water heater is left in an

operating condition and unused for

two weeks or more, a quantity of

hydrogen (which is highly ﬂammable)

may accumulate in the top of the

water cylinder. To dissipate this gas

safely it is recommended that a hot

tap be turned on for several minutes

at a sink, basin or bath, but not a

dishwasher, clothes washer or other

appliance. During this procedure

there must be no smoking, open

ﬂame or any other electrical appliance

operating nearby. If hydrogen is

discharged through the tap it will

probably make an unusual sound as

with air escaping.

Where the water heater is not installed

in accordance with the listed advice, the

water heater will not be covered by the

Terms of Warranty.

Operating Instructions

Andere Handbücher für 80THM136

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Thermann Boiler Handbücher

Thermann

Thermann 26NG50C Bedienungsanleitung

Thermann

Thermann 25W124 Fehlerbehebungshandbuch

Thermann

Thermann TH32END5L Benutzerhandbuch

Thermann

Thermann 26NG50C Benutzerhandbuch

Thermann

Thermann TH32END5N Bedienungsanleitung

Thermann

Thermann 16NG50-6 Bedienungsanleitung

Thermann

Thermann 135THM4N Programmierhandbuch

Thermann

Thermann TH50ECR6N Benutzerhandbuch

Thermann

Thermann 26NG50C Bedienungsanleitung

Thermann

Thermann TH26ENG5L Benutzerhandbuch

Thermann

Thermann 25THMS124P Benutzerhandbuch

Thermann

Thermann TIHP300 Bedienungsanleitung

Thermann

Thermann 16NG50-6 Bedienungsanleitung

Thermann

Thermann X Hybrid 220 Benutzerhandbuch

Thermann

Thermann 25THMS124P Bedienungsanleitung

Thermann

Thermann TH50ECS Series Bedienungsanleitung

Thermann

Thermann TH26ENG5N Bedienungsanleitung

Thermann

Thermann 250L Fehlerbehebungshandbuch

Thermann

Thermann G16NG50 Bedienungsanleitung

Thermann

Thermann 16NG50/16LP50 Bedienungsanleitung

Thermann

Thermann 80THMB136 Benutzerhandbuch

Thermann

Thermann 16NG50 Bedienungsanleitung

Thermann

Thermann 80THM136 Bedienungsanleitung

Thermann

Thermann 80THMB136 Bedienungsanleitung

Beliebte Boiler Handbücher anderer Marken

Kenmore

Kenmore 153.582400 Bedienungsanleitung

Applimo

Applimo Edel AIR Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Bedienungsanleitung

clage

clage E-Mini Series Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-180 Bedienungsanleitung

Bradford White

Bradford White EF Series Bedienungsanleitung

Eccotemp

Eccotemp 40-H Bedienungsanleitung

Dimplex

Dimplex ECSd125-580 Leitfaden

Dux

Dux 32FCR6N Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Fehlerbehebungshandbuch

Noritz

Noritz N-132M Gebrauchsanweisung

TESY

TESY GCV7/4S 10047 Technisches Datenblatt

A.O. Smith

A.O. Smith Gphe 50 Bedienungsanleitung

Koryo

Koryo KWHZF15Y Bedienungsanleitung

Pentair

Pentair PSC-14-4-02 Bedienungsanleitung

GE 40M06AAG Montageanleitung

Thermor

Thermor AEROMAX SPLIT 2 Bedienungsanleitung

American Hometec

American Hometec AHQ-B03X Bedienungsanleitung
