Thrustmaster T.FLIGHT STICK X Bedienungsanleitung

All manuals and user guides at all-guides.com

all-guides.com

1/12

User Manual

TECHNICAL FEATURES

1. USB selector (PC / PS3) 6. Sliding thumb throttle

2. PC and PlayStation® 3 USB connector 7. LED

3. ultidirectional “Point Of View” hat-switch 8. PRESET button

4. 12 action buttons (to select programming)

5. Rudder function via twisting handle 9. Handle resistance

with locking screw adjustment dial

All manuals and user guides at all-guides.com

2/12

INSTALLATION ON C

1. Set your joystick’s USB selector (1) to the “ C” position.

2. Connect the USB connector (2) to one of your computer’s USB ports. Windows XP or

Vista will automatically detect the new device.

3. The drivers are installed automatically.

Follow the on-screen instructions to complete the installation.

4. Click Start/Settings/Control anel and then double-click Game Controllers.

The Game Controllers dialog box displays the joystick’s name with OK status.

5. In the Control anel, click roperties to configure your joystick.

Test device: Lets you test and view all of your joystick’s functions.

You are now ready to play!

IM ORTANT NOTES FOR C

- Your joystick’s USB selector (1) must always be set to the “ C” position before connecting

your joystick.

- When connecting your joystick: Leave the handle and rudder centered and do not move

them (to avoid any calibration problems).

All manuals and user guides at all-guides.com

3/12

“AUTOMATIC RESET” CONFIGURATION - C

“AUTO ATIC PRESET” diagram on PC

RED LED

This preset corresponds to the default configurations for most aerial simulation games on

PC.

It will therefore allow you to start playing your game right away, without having to reconfigure

your joystick.

All manuals and user guides at all-guides.com

4/12

LAYSTATION® 3

INSTALLATION ON LAYSTATION® 3

1. Set your joystick’s USB selector (1) to the “ S3” position.

2. Connect the USB connector (2) to one of your console’s USB ports.

3. Switch on your console.

4. Launch your game.

You are now ready to play!

USING THE “HOME / S” BUTTON

Your joystick’s “Home / PS” button allows you to exit your games, access menus and directly

switch off your PlayStation®3 system.

IM ORTANT NOTES FOR LAYSTATION® 3

- Your joystick’s USB selector (1) must always be set to the “ S3” position before connecting

your joystick.

- In “1 Player” mode: If your official gamepad is on, you must switch it to “controller port 2” in

order for your joystick to be functional.

- On PlayStation® 3, the joystick is only compatible with PlayStation® 3 games (and will not

function with PlayStation® 2 games).

- When connecting your joystick: Leave the handle, rudder and throttle centered and do not move

them (to avoid any calibration problems).

All manuals and user guides at all-guides.com

5/12

“AUTOMATIC RESET” CONFIGURATION - LAYSTATION® 3

“AUTO ATIC PRESET” diagram on PlayStation® 3

RED LED

This preset corresponds to the default configurations for most aerial simulation games on PlayStation® 3.

It will therefore allow you to start playing your game right away, without having to reconfigure your

joystick.

The 4 handle directions: Correspond to the 4 directions on your gamepad’s left mini-stick.

The throttle (6): Corresponds to the Up/Down directions on your gamepad’s right mini-stick.

The rudder (5): Corresponds to the Left/Right directions on your gamepad’s right mini-stick.

MA ING button: Simultaneously press SELECT (SE) + START (ST).

HOME / S button: Simply press the button.

All manuals and user guides at all-guides.com

all-guides.com

6/12

GETTING TO KNOW YOUR JOYSTICK

Adjustable handle resistance

Depending on your gaming style, you may prefer to have an ultra-sensitive joystick, which

responds to the slightest movement, or a firmer joystick, which offers a certain resistance

when you use it.

Your joystick’s handle resistance is adjustable, in order to adapt to all gamers. To adjust it,

use the handle resistance adjustment dial (9) located under your joystick’s base.

Throttle

The throttle is in the form of a thumb slider (6), easily accessible with your left hand resting

on the base of your joystick.

Rudder function

Your joystick features a rudder function, which in a plane corresponds to the pedals used by

the pilot to turn the steering, allowing the plane to pivot around its vertical axis (therefore

making the plane turn left or right). This rudder function is accessible on your joystick by

rotating the handle to the left or right.

If you are not using the rudder function in your games (or if you have programmed it onto

action buttons), you can disable handle rotation thanks to the locking screw (5) located on

the handle’s base.

Use a flat head screwdriver to change the screw’s position and thus lock/unlock the rudder

function.

Multidirectional “ oint Of View” hat-switch

Your joystick features a “Point Of View” hat-switch (3) which, as its name indicates, allows

you (in games which permit) to instantly view everything that’s going on around your plane.

To do so, simply go to your game’s configuration menu and program the different views (rear

view, left view, right view, and also external views) onto the directions of the “Point Of View”

hat-switch.

Of course, you can also use the “Point Of View” hat-switch for other functions instead (firing,

etc.).

All manuals and user guides at all-guides.com

7/12

2 ROGRAMMING MODES

The RESET button (8) and LED (7) allow you to view the type of programming selected:

AUTO ATIC (preprogrammed) or ANUAL (programmed by yourself).

A single press of this button will allow you to switch from one programming mode to the

other, even during the course of a game.

•AUTOMATIC RESET: RED LED

This represents the default programming: the axes, positions of the buttons and of the hat-

switch are preprogrammed.

PLEASE REFER TO THE “AUTO ATIC PRESET” CONFIGURATION DIAGRA S.

•MANUAL RESET: GREEN LED

This represents your own person programming:

- The buttons, axes and the hat-switch can be switched between themselves.

- You can modify the programming to suit your taste and whenever you like.

- Programming is automatically saved in your joystick (even when it is disconnected).

- When your “ ANUAL PRESET” is blank, it is identical to the “AUTO ATIC PRESET”.

ROGRAMMING / MA ING

You can program your joystick using the APPING button.

Attention: This button is not located in the same position on PC and PS3 (please refer to

the diagrams):

-On PC: Directly press the button in question.

-On PS3: Simultaneously press START (ST) + SELECT (SE).

•Examples of possible applications:

- Switching the positions of buttons.

- Switching axes between themselves = directions of the handle, of the throttle or of the

rudder (In this case, you must map the 2 directions of the first axis to those of the

second.)

- Switching the 2 directions of the same axis.

- Switching buttons with a direction of an axis or of the hat-switch.

•Exception:

On PlayStation® 3, the START (ST) and SELECT (SE) buttons also correspond to the

APPING button (and therefore may not be reprogrammed).

All manuals and user guides at all-guides.com

8/12

ROGRAMMING ROCEDURE

Steps Action LED

1 Enable ANUAL PRESET (8)

by pressing the button. GREEN

2 Press and release the APPING button. OFF

3 Press and release the button or direction to program. FLASHES GREEN

4 Press and release the button or direction onto which you

wish to place your function. GREEN

Your “ ANUAL PRESET” is now enabled and up to date

(with your programming carried out).

EE ROM MEMORY

•Your joystick features an internal chip which saves all of your “ ANUAL PRESET”

programming in memory (even when the joystick is switched off or unplugged for a long

period of time).

•You can save a different “ ANUAL PRESET” for each platform used (one for PC and one

for PlayStation® 3).

ERASING A “MANUAL RESET”

Steps Action LED

1 Enable your ANUAL PRESET (8). GREEN

2 Press and hold the APPING button

for 2 seconds.

FLASHES GREEN

2 SECONDS

Your “ ANUAL PRESET” is now blank

(and once again identical to the “AUTO ATIC PRESET”).

RETURNING TO “FACTORY SETTINGS”

You can erase all of your programming or settings carried out on both PC and

PlayStation® 3 with a single step:

Step Action LED

1 Simultaneously press the buttons

MA ING + 11 (SE) + 12 (ST)

FLASHES GREEN/RED

2 SECONDS

All of your “ ANUAL PRESETS” (PC + PS3) or settings are now blank.

Note: This operation will completely restart your joystick

(on PC, we therefore recommend that you do this outside of games).

All manuals and user guides at all-guides.com

9/12

TROUBLESHOOTING AND WARNING

•My joystick doesn’t function correctly or appears to be improperly calibrated:

- Switch off your computer or your console, disconnect your joystick, reconnect your joystick

and then re-launch your game.

- When connecting your joystick: Leave the handle, rudder and throttle centered and do not

move them (to avoid any calibration problems).

- Exit your game, disconnect your joystick, verify that the USB selector (PC / PS3) (1) is set

to the proper position, then reconnect your joystick.

•I can’t configure my joystick:

- In your game’s “Options / Controller / Gamepad or Joystick” menu: Select the most

appropriate configuration or completely reconfigure the controller options.

- Please refer to your game’s user manual or online help for more information.

- You can also use your joystick’s “ APPING” function to resolve this type of problem.

•My joystick is too sensitive or not sensitive enough:

- Your joystick self-calibrates on its own after you have made a few movements on the

different axes.

- In your game’s “Options / Controller / Gamepad or Joystick” menu: Adjust the sensitivity or

dead zones for your controller (if this option is available).

- Adjust the handle resistance using the dial (9) located under your joystick’s base.

All manuals and user guides at all-guides.com

Andere Handbücher für T.FLIGHT STICK X

Inhaltsverzeichnis

Sprachen:

Andere Thrustmaster Videospiel-Controller Handbücher

Thrustmaster

Thrustmaster FireStorm Gebrauchsanweisung

Thrustmaster

Thrustmaster TCA Quadrant Add-On Airbus Edition Bedienungsanleitung

Thrustmaster

Thrustmaster dual trigger Bedienungsanleitung

Thrustmaster

Thrustmaster universal challenge Gebrauchsanweisung

Thrustmaster

Thrustmaster T500RS Bedienungsanleitung

Thrustmaster

Thrustmaster T.Flight Hotas One Bedienungsanleitung

Thrustmaster

Thrustmaster TCA Sidestick X Airbus Edition Bedienungsanleitung

Thrustmaster

Thrustmaster RUN'N'DRIVE WIRELESS 3-IN-1 Bedienungsanleitung

Thrustmaster

Thrustmaster eSwap X Pro Bedienungsanleitung

Thrustmaster

Thrustmaster FERRARI 488 GT3 WHEEL ADD-ON Bedienungsanleitung

Thrustmaster

Thrustmaster F/A-18C HORNET Bedienungsanleitung

Thrustmaster

Thrustmaster Score-A Bedienungsanleitung

Thrustmaster

Thrustmaster ADVANCE WIRELESS DUAL TRIGGER Bedienungsanleitung

Thrustmaster

Thrustmaster FORZA MOTORSPORT 5 Bedienungsanleitung

Thrustmaster

Thrustmaster GPX LightBack Bedienungsanleitung

Thrustmaster

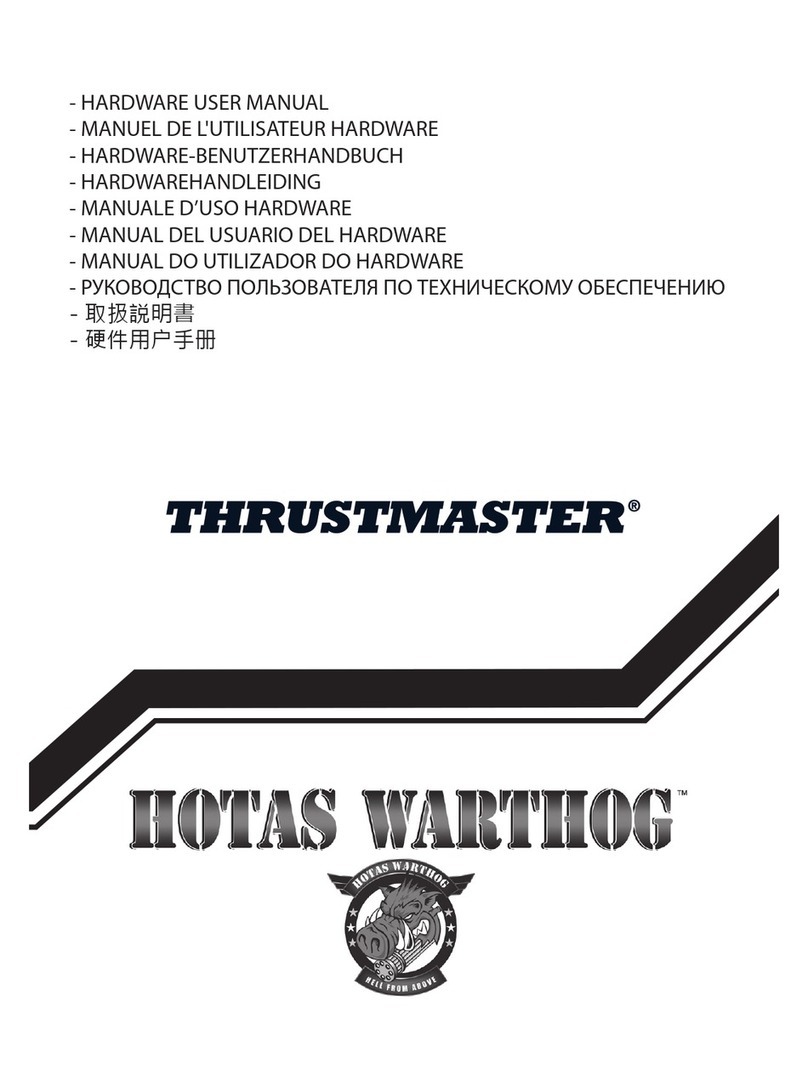

Thrustmaster HOTAS WARTHOG Gebrauchsanweisung

Thrustmaster

Thrustmaster T80 Ferrari 488 GTB Edition Bedienungsanleitung

Thrustmaster

Thrustmaster TS-XW RACER Sparco P310 Competition Mod Bedienungsanleitung

Thrustmaster

Thrustmaster FERRARI WIRELESS GT COCKPIT 430 scuderia... Bedienungsanleitung

Thrustmaster

Thrustmaster T-WIRELESS 3-IN-1 Bedienungsanleitung

Thrustmaster

Thrustmaster Ferrari Bedienungsanleitung

Thrustmaster

Thrustmaster T248 Bedienungsanleitung

Thrustmaster

Thrustmaster eSwap Pro Bedienungsanleitung

Thrustmaster

Thrustmaster TX Servo Base Bedienungsanleitung

Beliebte Videospiel-Controller Handbücher anderer Marken

Wasp

Wasp SL-6610 Bedienungsanleitung

JKG

JKG JKG2022A Bedienungsanleitung

Marvo

Marvo MG08 Bedienungsanleitung

Belkin

Belkin F8GBPC001 Bedienungsanleitung

GameSir

GameSir Z2 Bedienungsanleitung

Laser

Laser PCO-AGAMEC-BK Bedienungsanleitung

Cortex

Cortex VEXnet Bedienungsanleitung

Gioteck

Gioteck HF-1 Bedienungsanleitung

Nacon

Nacon DAIJA ARCADE STICK Bedienungsanleitung

SHAKS

SHAKS S1+ Bedienungsanleitung

YCCTEAM

YCCTEAM Joy Con Bedienungsanleitung

Hyperkin

Hyperkin Smartboy Bedienungsanleitung

Nerf

Nerf DuraGrip Bedienungsanleitung

MoveMaster

MoveMaster MoveMaster Bedienungsanleitung

WinWing

WinWing Super Libra J1 Bedienungsanleitung

ECCI

ECCI Trackstar 6000 Series Bedienungsanleitung

Logitech

Logitech 963291-0403 - Attack 3 Joystick Bedienungsanleitung

Pelican

Pelican Afterglow PL-678 Bedienungsanleitung
