XBOX SERIES X|S — XBOX ONE — PC

User Manual

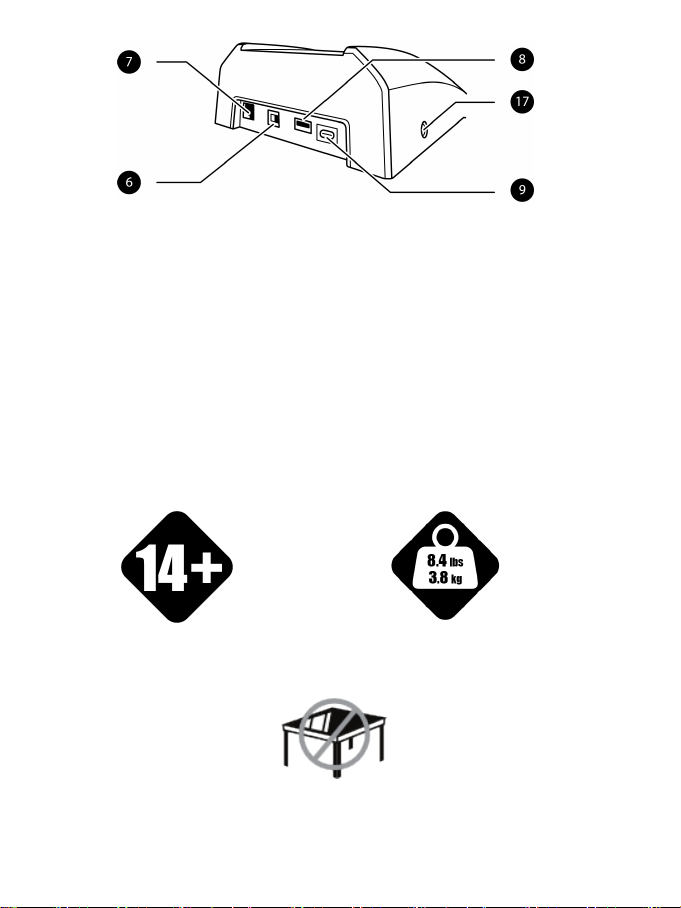

TECHNICAL FEATURES

2/20

TECHNICAL FEATURES

1. Roll axis

2. 8-way “point of view” hat

3. 18 action buttons

4. Mini-stick controller with button

5. Tablet/smartphone support stand slot

6. Xbox/PC selector switch

7. RJ12 connector for TFRP rudder (sold

separately)

8. USB connector (type A) for TCA

Quadrant Boeing Edition or TPR

rudder (both sold separately)

9. USB connector (type C)

10. Landing gear

11. Dual metal mounting screws

12. Access to force spring mechanism

13. Dual throttle axes

14. Pitch axis

15. Xbox button + LED

16. View, Share and Menu buttons

17. 1/8-inch / 3.5-mm stereo

microphone jack for headset (not

included)

Product to be handled only by users

14 years of age or older

HEAVY PRODUCT

Be careful not to drop the product on

yourself or on anyone else!

Do not use with a glass table or desk

3/20

XBOX SERIES X|S / XBOX ONE

INSTALLATION ON XBOX SERIES X|S / XBOX ONE

1. Set the selector switch (6) to Xbox before connecting the USB cable.

2. Connect the USB connector (9) to a USB port on the console using the included USB cable.

3. Power on the console.

4. The yoke’s LED lights up in white.

5. Start up a compatible game (supporting Flight Stick mode).

You are now ready to play!

LIST OF COMPATIBLE XBOX SERIES X|S / XBOX ONE GAMES

On Xbox Series X|S / Xbox One, TCA Yoke Boeing Edition:

- is only compatible with games supporting Flight Stick mode;

- is recognized in games as a real joystick (and not as a gamepad), allowing for maximum

responsiveness and precision, as well as access to the joystick options available in these

games.

A list of Xbox Series X|S / Xbox One games compatible with the yoke is available at

https://support.thrustmaster.com, in the Joysticks/ TCA Yoke Boeing Edition section.

This list will be added to regularly with the arrival of new Xbox Series X|S / Xbox One games

compatible with TCA Yoke Boeing Edition.

4/20

GETTING TO KNOW YOUR TCA YOKE BOEING EDITION

EXCLUSIVE PRECISION TECHNOLOGY

H.E.A.R.T: HALLEFFECT ACCURATE TECHNOLOGY AND PENDUL_R

TCA Yoke Boeing Edition features technologies providing it with a level of precision currently

unrivaled in the world of joysticks/gaming yokes, incorporating:

- 3D (Hall effect) magnetic sensors on the roll and pitch axes, with 16-bit resolution (i.e.

65,536 x 65,536 values);

- a magnet, avoiding any friction and ensuring outstanding precision that won’t decrease

over time;

- firm, linear and super-smooth tension which can be adjusted by way of the removable

springs on the pitch axis (please refer to the PITCH AXIS TENSION ADJUSTMENT

PROCEDURE section on page 13).

THROTTLE

Your yoke features two throttle axes (13), which you can use to easily control the engine

thrust.

MICROPHONE JACK FOR HEADSET (NOT INCLUDED)

Your yoke features a 1/8-inch / 3.5-mm female microphone jack (17), allowing you to use a

headset with a microphone for an even more immersive experience.

TCA YOKE BOEING EDITION CONNECTIVITY

TCA Yoke Boeing Edition features 6 axes, but allows you to directly connect a throttle and a

rudder (both sold separately) at the back of the yoke. A second throttle (sold separately) can

also be connected at the back of TCA Quadrant Boeing Edition (also sold separately),

allowing the yoke to access up to 9 additional axes.

On Xbox Series X|S / Xbox One, compatible Thrustmaster devices connected via the type A

USB connector will be merged with the TCA Yoke Boeing Edition device.

The only devices compatible with Xbox Series X|S / Xbox One are TCA Quadrant Boeing

Edition, plus the TPR and TFRP rudder systems (all sold separately).

5/20

USING TCA QUADRANT BOEING EDITION*, TPR* OR TFRP*

RUDDER SYSTEMS WITH TCA YOKE BOEING EDITION

(* sold separately)

Throttle:

TCA Quadrant Boeing Edition (sold separately) can be connected directly to the yoke.

1. Connect the quadrant’s USB connector to the female type A USB connector (8) located at

the back of the yoke.

2. Connect the yoke’s type C USB connector (9) to one of the USB ports on your PC or

Xbox.

Rudder:

3 axes are reserved for the TPR or TFRP rudder systems (both sold separately).

The TFRP rudder system can be connected directly to the yoke.

1. Connect the rudder pedals’ male RJ12 connector to the female RJ12 connector (7)

located at the back of the yoke.

2. Connect the yoke’s type C USB connector (9) to one of the USB ports on your PC.

The TPR rudder system can be connected directly to the yoke or the quadrant (if TCA

Quadrant Boeing Edition is already connected).

1. Connect the rudder pedals’ USB connector to the female type A USB connector (8)

located at the back of the yoke.

2. Connect the yoke’s type C USB connector (9) to one of the USB ports on your PC.

Important notes regarding the automatic calibration of axes:

- Always leave the rudder pedals’ axis perfectly centered when connecting the rudder

system to the yoke. Never place your feet on the rudder pedals when doing so.

- The rudder pedals’ 3 axes automatically calibrate themselves after a few movements,

and once the physical stops for the rudder’s axis and the 2 differential brake axes have

been reached.

6/20

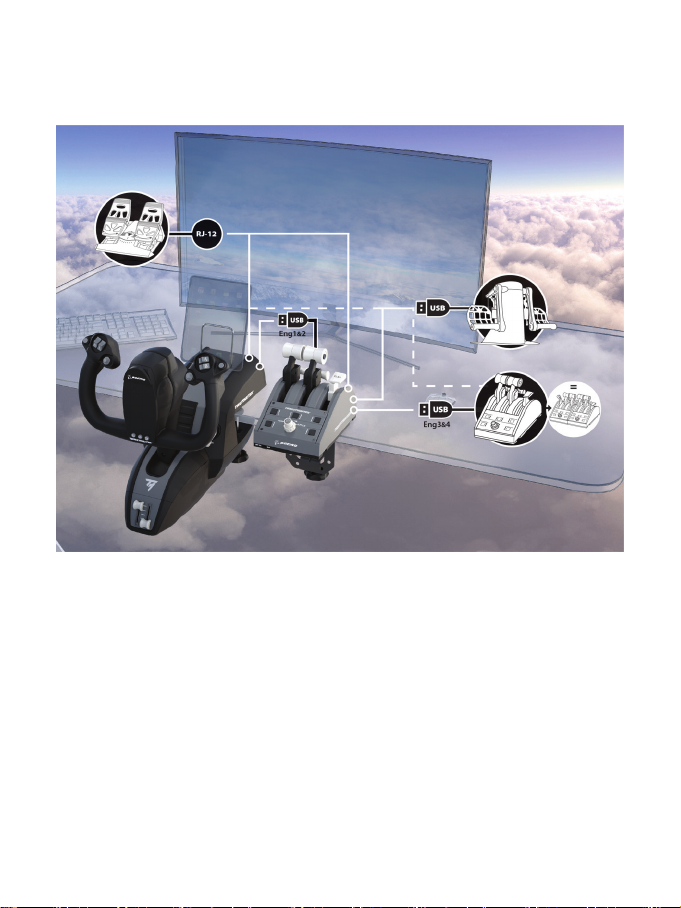

CONNECTING TCA YOKE BOEING EDITION TO TCA QUADRANT

BOEING EDITION* AND TPR* OR TFRP* RUDDER SYSTEMS*

(* sold separately)

7/20

XBOX MAPPING FOR THE 18 BUTTONS AND 6 AXES

8/20

USING A RUDDER SYSTEM CONNECTED TO THE YOKE

9/20

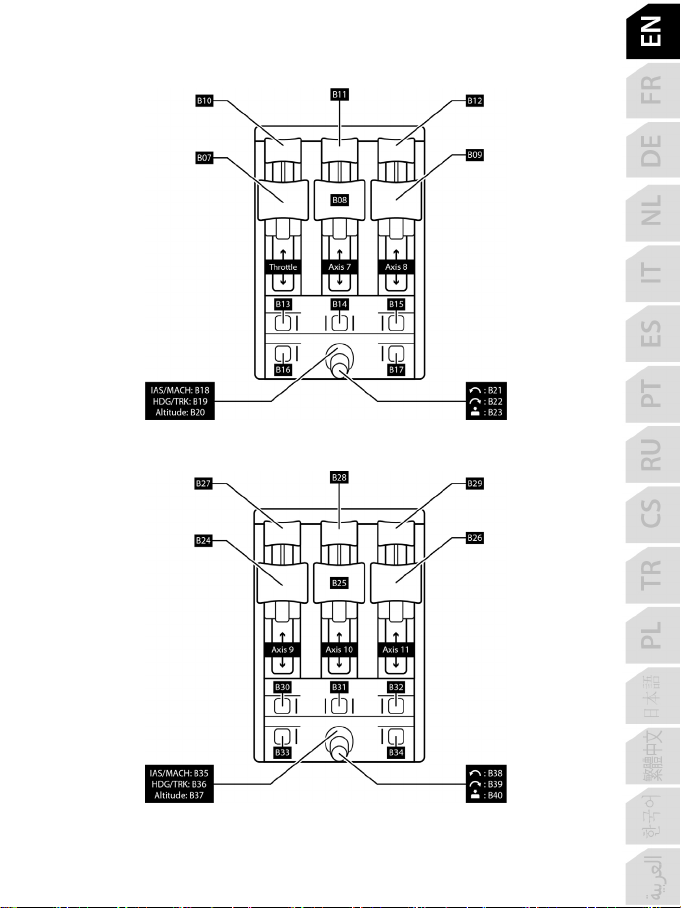

USING TCA QUADRANT BOEING EDITION CONNECTED TO THE

YOKE

USING A SECOND TCA QUADRANT BOEING EDITION CONNECTED

TO THE FIRST QUADRANT
