Thule TB60 Bedienungsanleitung

TOP-TRACKS WITH BOLTS

SWEDEN

CAR RACK SYSTEMS

PARTS INCLUDED

TOOLS REQUIRED (NOT INCLUDED)

5/16" wrench/

tape measure/

electric drill/

fine tip marker/

safety glasses/

part/ description/

screw M5 x 40mm/

locking hex nut M5/

self adhesive washer M5/

steel washer M5/

acorn cap/

screw end protector/

7⁄32" drill bit/

1⁄8" drill bit/

3mm hex key/

silicone sealant/

track/glissière

vinyl roof protector/

track end cap/

part

924-0540-20

938-0500-11

853-5367

951-0520-11

853-5364

853-5373

853-5369-02

853-5369-03

853-0947

853-5374

853-5359-03

853-5360-03-97

853-5361

description part number qty.

A B C

D E F

• Place the tracks on the shell, making sure they are parallel and equal distance

from the front edge of the shell.

• Installation of Top-Tracks™ requires drilling the roof and permamently installing parts.

• Only install track on fiberglass shells. Not for use on shells manufactured from any

other material.

• Tools and some mechanical skills are required. If concerned about installation, have

tracks installed by professional installer.

• Not for off road use.

• Do not install if roof has had bodywork.

• Do not install on vehicles with sunroofs.

• Do not install on vehicles with factory racks.

COMPATIBILITY AND

RESTRICTIONS

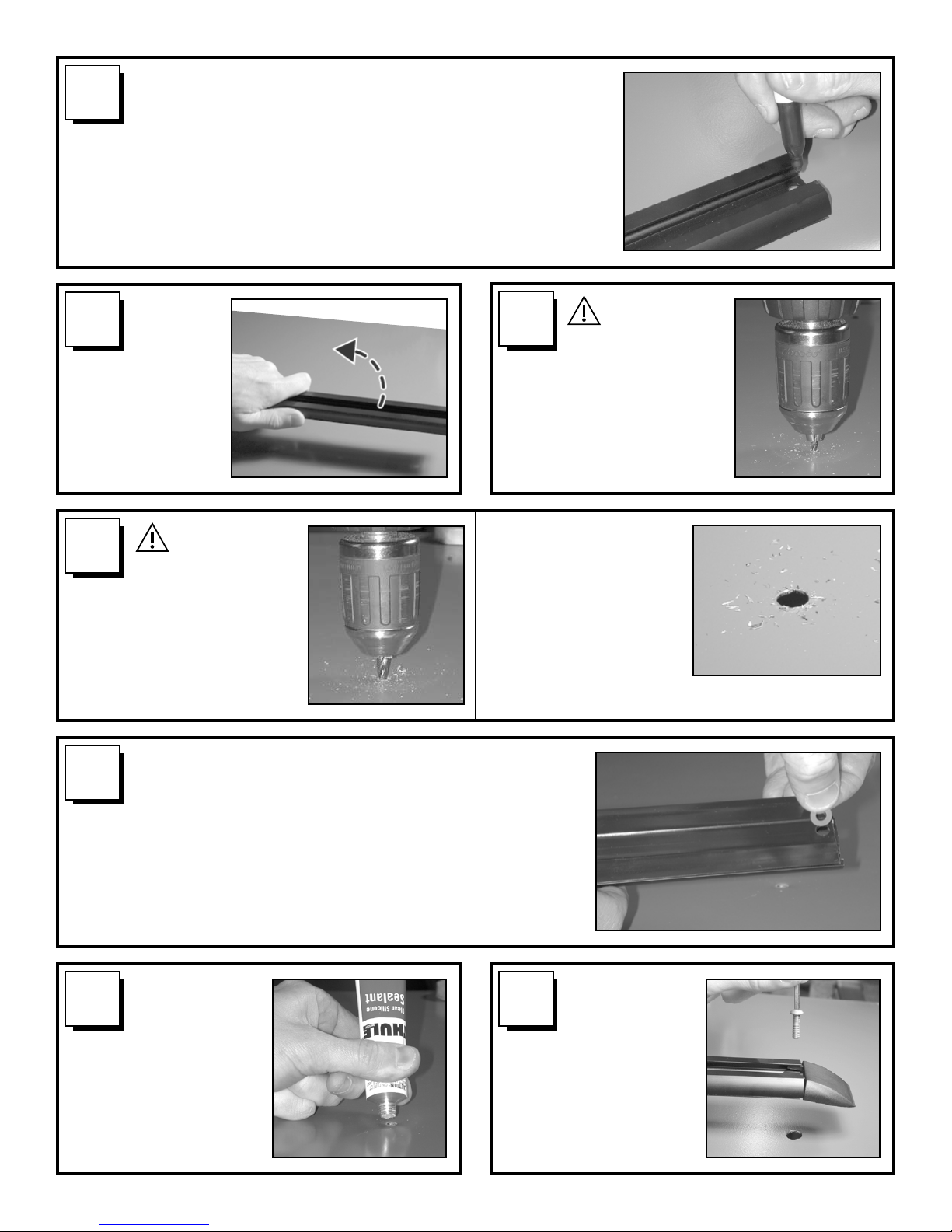

•Starting at either end of the track, mark the end hole using a fine tip marker, and continue to

mark every other hole on the track.

•Remove the tracks

from the roof.

•Using the 7⁄32" drill bit supplied, drill

a hole into each of the pilot holes.

•Carefully blow away debris.

•Remove backing from the self adhesive washers and apply to the bottom of the track.

Only place washers on holes that line up with the holes drilled in the roof.

•Using the 1⁄8" drill bit supplied, drill a

pilot hole in the center of each of the

marks.

•Apply silcone into each hole.

•With end caps inserted into

track, position track over the

holes and install screws at front

and rear.

Wear safety glasses

during installation.

Wear safety glasses

during installation.

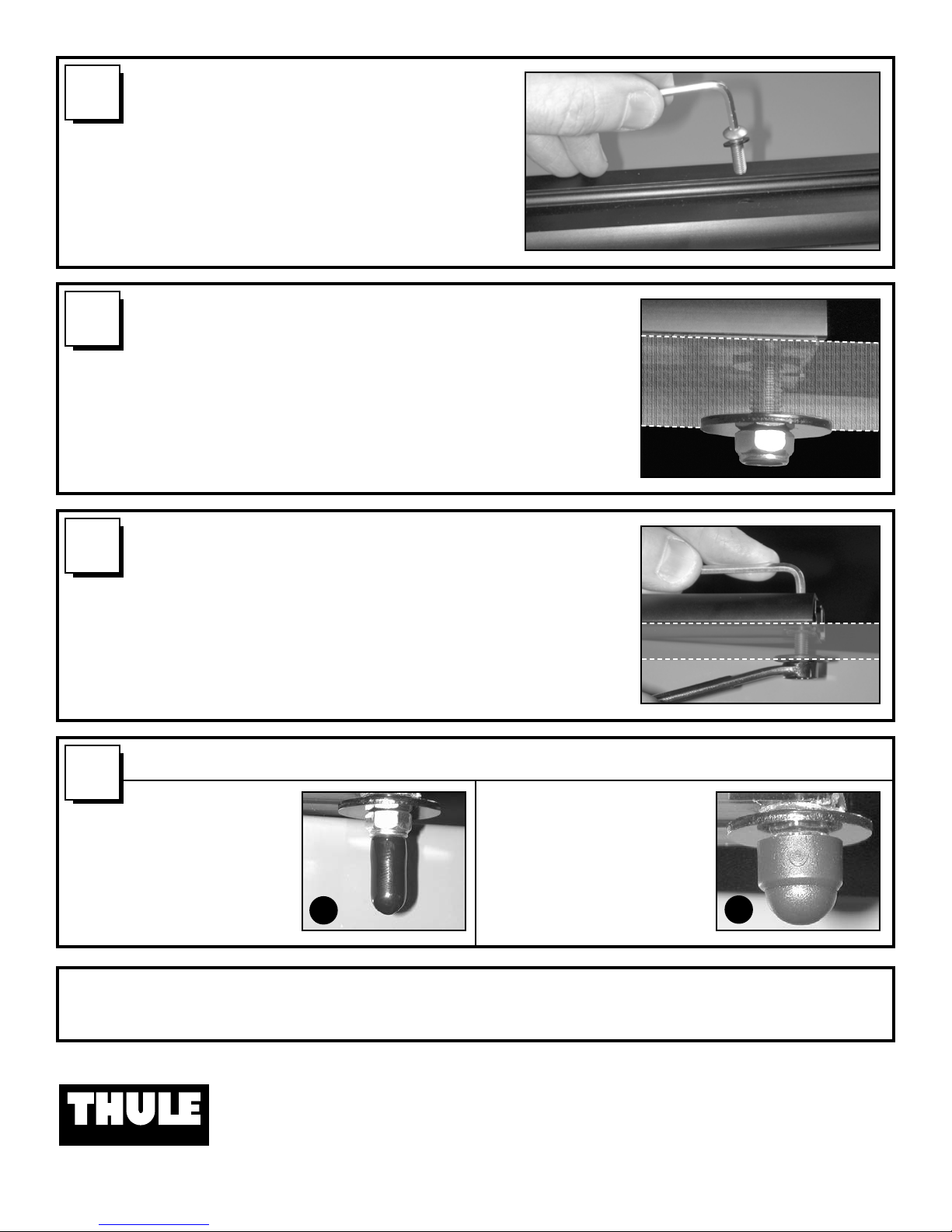

•Put self adhesive washers on to remaining screws and install them in to

the remaining holes.

•Inside the shell, place the steel washer and locking hex nut onto the screw.

ROOF/TOIT

•Tighten all screws using a 5⁄16" wrench and the supplied 3mm hex key.

• Two people are required for proper installation.

ROOF/TOIT

To finish the installation there are two options.

•Attach a screw end protector onto

each screw. • Cut off the bolt excess length and

place an acorn cap onto the nut.

Note: For mounting TK1 bases (not included), use all hardware (thick washer, thin washer, spacer) included with TK1.

SWEDEN

CAR RACK SYSTEMS
