THUNDER TIGER Catherine Bedienungsanleitung

No.5300/5301L/5301G/5302

The Majestic

Length: 21" (533mm)

Beam: 7.8"(198mm)

Height: 14.5"(370mm)

Motor : 550 included

King Fisher

Length: 21.65" (550mm)

Beam: 8.1"(205mm)

Height: 18.5"(470mm)

Motor : 550 included

Lobmaster

Length: 21.65" (550mm)

Beam: 8.1"(205mm)

Height: 18.5"(470mm)

Motor : 550 included

Catherine

Length: 23.6"(600mm)

Beam: 8.7"(220mm)

Height: 20.9"(530mm)

Motor: 550 installed

Specifications

Scale Fishing Boat

Assembly Instructions

INTRODUCTION

All of us at Thunder Tiger want to thank you for choosing the Scale Fishing Boat. These boats are full

equipped with radio, servos, and forward/backward 50A ESC, 4.5A6V battery and wall charger that will

provide lots of scale boating fun.

Never control your boat without doing frequency and range check.

Do not intend to touch the propeller as it may cause serious injury.

Do not run in the creek, river, stream or any running water.

Safety is always the first issue, make sure the area is safe.

Do not swim or jump into water to get back your boat in case the boat is out of control

or stop by any case in the water.

Always check the inside of the hull and make sure there is no water.

Try to keep it dry after boating, this will keep electric devices last longer.

Do not ever run the boat if there is a big wave. Strongly recommend to run the boat in

still water.

Thunder Tiger guarantees that you should enjoy many hours of trouble free use from our R/C products.

Thunder Tiger products have been sold worldwide through the authorized distributors that are supported

directly and rapidly from Thunder Tiger. You may find that Thunder Tiger is always pursuing to explore

new items creatively with highest quality. To update the latest product information and to get the best

technical support , please feel free to contact your local hobby shops or Thunder Tiger authorized

distributor.

Thoroughly read this assembly instruction manual is strongly recommended. This is to familiarize

yourself with the product and all devices.

Warranty: The Scale Fishing Boat is guaranteed to be free from defects in material and workmanship

at the date of purchase . It does not cover any damage caused by use or modification. The warranty

does not extend beyond the product itself and is limited only to the original cost of the kit. By the act of

assembling or controlling this boat, the user accepts all resulting liability for damage caused by this

product. If the buyer is not prepared to accept this liability, it can be returned new and unused to the

place of purchase for a refund.

Notice: Adult Supervision Required: This is not a toy. Assembly and running of this product requires

adult supervision. Read through this book completely and become familiar with the assembly and

control of this boat. Inspect all parts for completeness and damage. Contact Thunder Tiger authorized

agent if you find any problem or need tech support.

Caution:

Open the box and check that you have all the parts as shown below.

If anything is missing please contact your dealer.

CONTENTS

Transmitter x 1

Receiver x1

4.5A 6V Pb-Acid Battery

Wall Charger

Velcro x 2

Radio Instruction Manual

Boat Instruction Manual

Replacement Parts

PJ6042 Drive Shaft( Catherine)

PJ6045 Drive Shaft( Lobmaster, King Fisher)

PJ6046 Drive Shaft( The Majestic)

PJ6044 Propeller

PJ6043 Joiner

PJ6047 550 Motor

No.26254.5A6V Pb-Acid Battery

No.2630 110V 2P Wall Charger

No.2631 230V 2P Wall Charger

No.2632 230V 3P Wall Charger

No.8023 F/B 50A ESC

PJ6040 Fisher Crew PJ6041 Tire Set

Optional Part

Step1:Open box and take out the boat carefully. Step2:Remove the tight band and all wraps, place

the boat on wood stand.

Follow the manual step by step. The boat name is indicated in each photo as the manual is written for all

scale fishing boats. There are some steps may vary,you may skip the steps if manual does not mention.

Step3:Do not trash the box as there is a small

box which contains master, rigging and

sails. This will be assembled later.

Step4:Locate Transmitter, Receiver, Battery, Wall

Charger and BatteryCord.

Step5:Remove the deck from the hull by loosening

two retainers

Step6:Install Receiver in place as shown.

Step7:Plug the rudder servo connector at CH1

and ESC connector at CH2.

Step8:Secure battery with furnished Velcro in the

hull as shown. Connect Battery to ESC with

the Battery Cord.

Note: Red to Red and Black to Black.

Well organize the wires and make sure the all

wires do not contact the drive shaft. .

Step9:Refer to furnished radio manual and set up your radio. Always switch transmitter on first,

ESC last. Turn off ESC first and transmitter last. Make sure Throttle and Steering are at neutral

pos ition and in correct direction.

Please see ESC manual at page14.

Step10:Make sure rudder is perpendicular to

the pushrod. Adjust it by threading in or

out of the clevis if necessary.

Step11:Tread the antenna wire through the deck

as shown then secure the deck with the

two retainers.

CH CH

Down

counter clockwise

clockwise

Right

Left

Right Turn

Left Turn

Tread the antenna wire through the hatch cover.

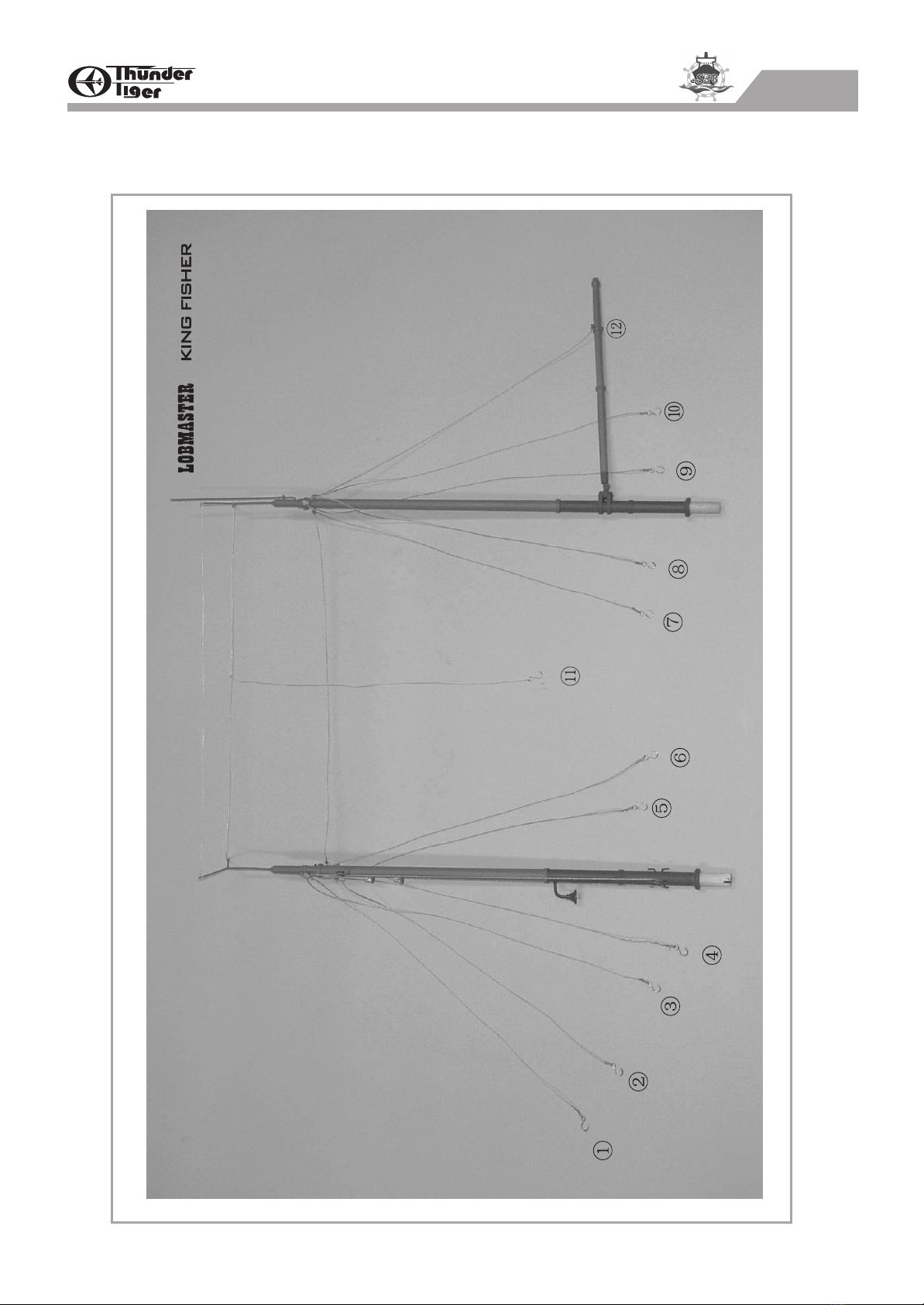

Step12:Carefully remove the masts from the box. As all riggings are factory knotted,please be patient to separate

all riggings as shown. Install two masts then hook up all riggings in place as indicated.

Make sure two masts are vertical and parallel to each

other. You may twist the rigging (counter clockwise) to

get good tension before you hook up. Route the antenna

along with the mast.
