Topfield TF 5050 CI Bedienungsanleitung
TOPFIELD
TF 5050 CI HDMI
User Guide
Digital Satellite Receiver
Common Interface

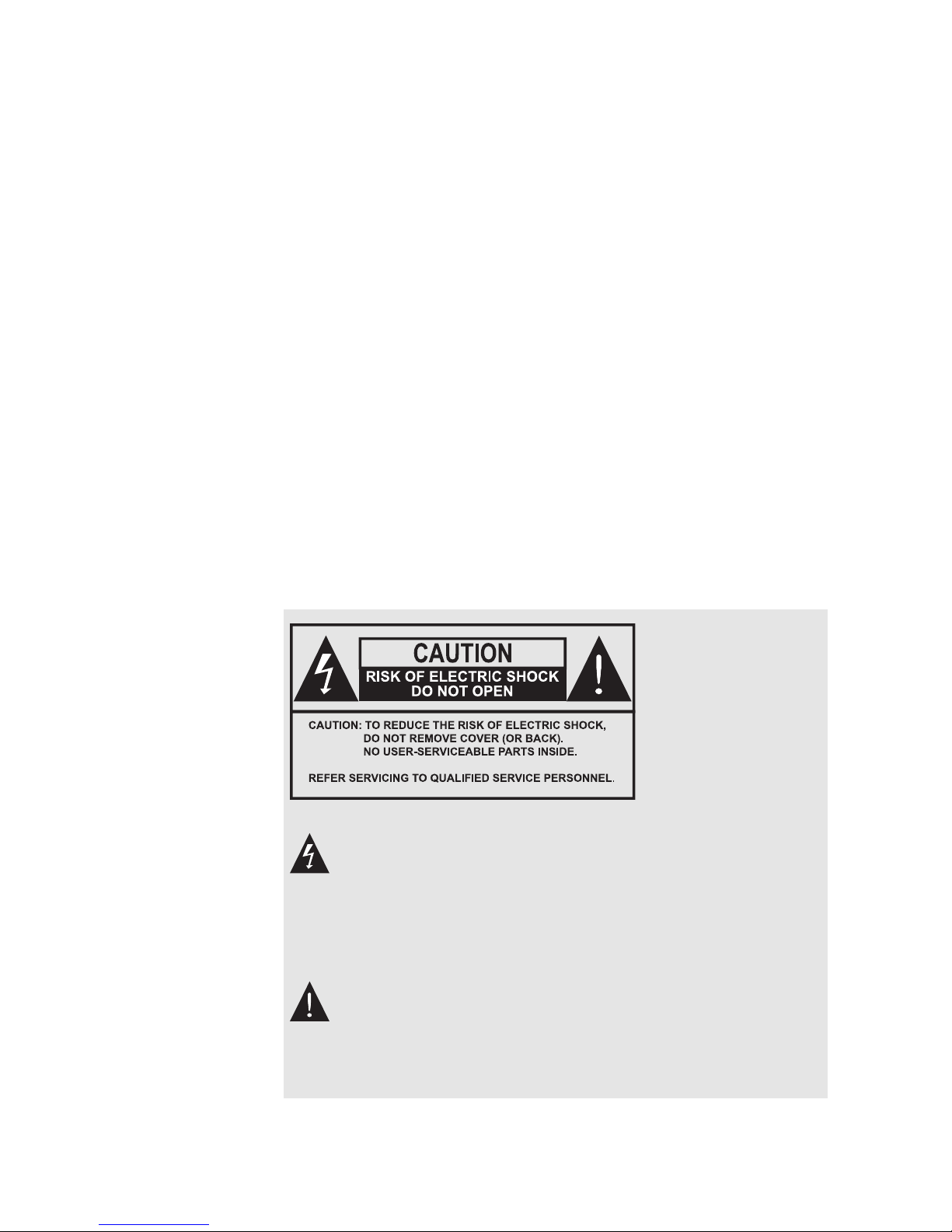

The lighting flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
iv Contents
Contents
Contents iv
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
1.3 What is common interface? .................... 6
2 Setup 7
2.1 Unpacking .............................. 7
2.2 Safety precautions ......................... 7
2.3 Rear panel connections ....................... 9
2.4 Connecting up your digital receiver ............... 10
2.4.1 Connecting the antenna .................. 10
2.4.2 Connecting to your television set ............ 11
2.4.3 Connecting to your video cassette recorder ....... 13
2.5 Inserting batteries in the remote control ............. 13
2.6 Switching on for the first time ................... 14
2.6.1 Powering on and checking picture ............ 14
3 Preference Settings 15
3.1 Language settings .......................... 15
3.2 Video and audio settings ...................... 16
3.2.1 Television standard .................... 16
Contents v
3.2.2 Colour model ........................ 17
3.2.3 Video cassette recorder .................. 17
3.2.4 Television aspect ratio ................... 18
3.2.5 High definition television ................. 19
3.2.6 Video scaling ........................ 19
3.2.7 Audio mode ........................ 20
3.3 Local time setting .......................... 20
3.4 Parental control ........................... 21
3.5 Adjusting the On-Screen Display ................. 23
4 Service Search 24
4.1 Searching broadcasting services .................. 24
4.1.1 Configuring LNB settings ................. 24
4.1.2 Configuring DiSEqC 1.2 settings ............. 27
4.1.3 Configuring USALS settings ............... 28
4.1.4 Searching services ..................... 29
4.2 Editing the transponder list .................... 32
4.3 Resetting to factory settings .................... 33
5 Daily Usage 34
5.1 Volume control ........................... 34
5.2 Watching television ......................... 34
5.2.1 The services list ....................... 34
5.2.2 Watching on multi-picture screens ............ 36
5.2.3 The favourite services list ................. 36
5.2.4 Viewing programme information ............ 37
5.2.5 Selecting audio tracks ................... 38
5.2.6 Selecting subtitle tracks .................. 38
5.2.7 Viewing teletext ...................... 39
5.3 Viewing electronic programme guide .............. 39
5.4 Watching multifeed programme ................. 40
5.5 Making timer events ........................ 40
6 Listing Services 43
6.1 Editing the services list ....................... 43
6.2 Editing the favourite list ...................... 45
vi Contents
6.3 How to use on-screen keyboard .................. 47
6.4 Transferring receiver data ..................... 47
7 Firmware Update 49
7.1 Checking the firmware information ............... 49
7.2 From your computer via RS-232 port ............... 51
7.3 From another digital receiver via RS-232 port .......... 52
7.4 Over the air ............................. 53
Index 54
1
Chapter 1
Introduction
The TF 5050 CI HDMI digital receiver is fully compliant with
the international Digital Video Broadcasting (DVB) standard,
and thus is able to receive digital broadcasts of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 5050 CI HDMI digital receiver has the following fea-
tures:
2 Introduction
•
Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-
ALS.
• Can store up to 5000 television and radio services.
• You can edit the services list.
•
You can create favourite lists of your favourite services.
•
You can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
lamp lights up whenever you press a button on the
remote control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
Front display
displays the current time in standby mode,
and displays the current service in operation mode.
Pull the right edge of the front panel to open the flap. You have
to insert your subscription card into the front slot to watch pay
services.
4 Introduction

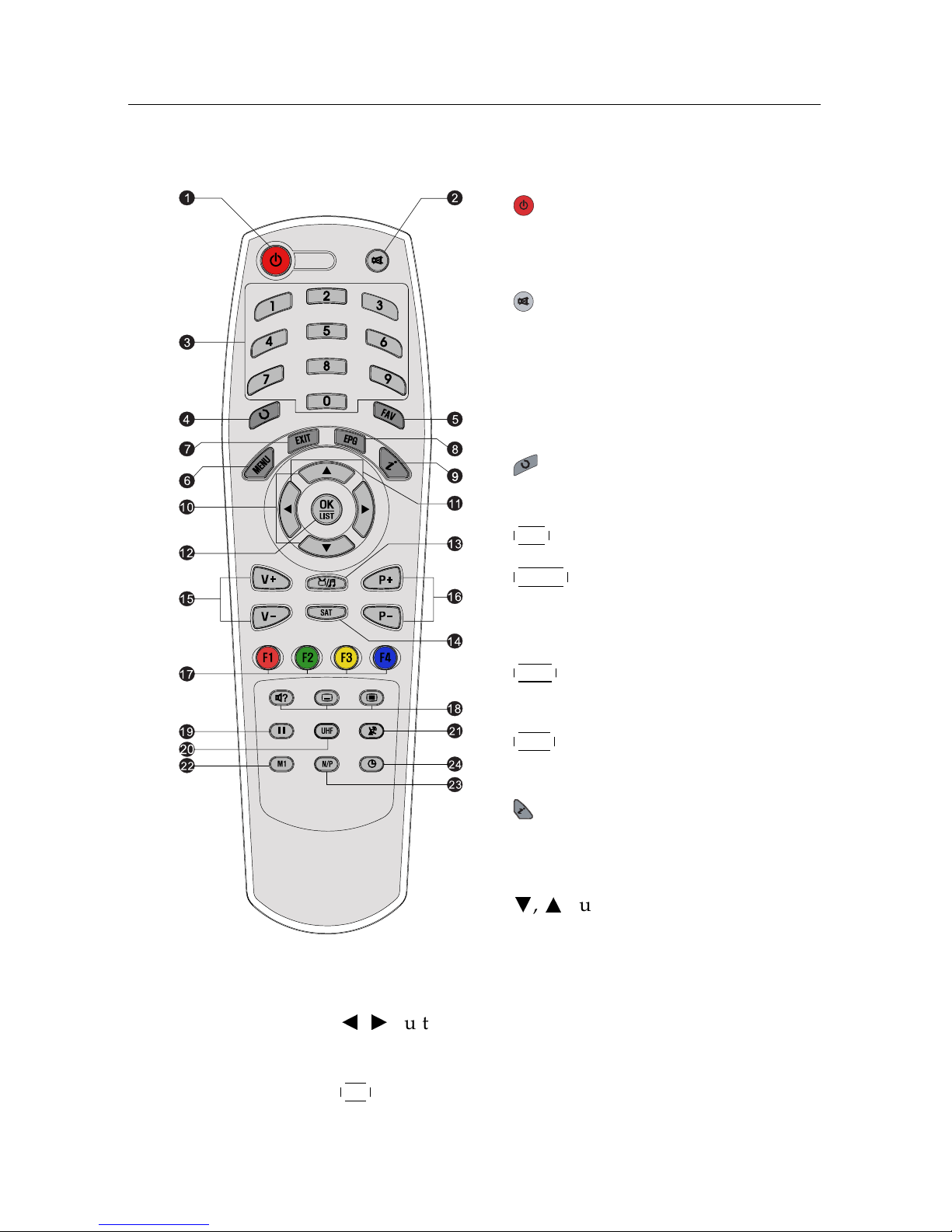

1.2.2 The remote control
1
button switches the digital re-
ceiver between standby mode and
operation mode.
2
mutes the sound. Press again to
switch it back on.
3
Numeric buttons are used to enter a
service number for service change or
to specify values for menu options.
4
switches between the current ser-
vice and the previously viewed one.
5
FAV displays the favourite lists.
6
MENU
displays the main menu. It is
also used to return to the previous
menu from a submenu.
7
EXIT
is used to exit a menu or to hide
on-screen info.
8
EPG
displays the electronic pro-
gramme guide.
9
displays the service information
box. It is also used to display more
information about a programme.
10
c
,
a
buttons switch to previous or
next service. They are also used to
navigate in menus and interactive
screens.
11
b
,
d
buttons decrease or increase the volume. They are
also used to change values for menu options.
12
OK
displays the services list. See
§
5.2.1 for more details.
