Toro 03614 Bedienungsanleitung

FormNo.3411-852RevB

OperatorGolfBallGuard

Reelmaster®3100/3500/5010orGroundsmaster®3500/4300Series

TractionUnit

ModelNo.03614

InstallationInstructions

WARNING

CALIFORNIA

Proposition65Warning

ThisproductcontainsachemicalorchemicalsknowntotheStateofCalifornia

tocausecancer,birthdefects,orreproductiveharm.

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

DescriptionQty.Use

Nopartsrequired–Preparethemachine.

Guardassembly1

Leftmountingbracket1

Rightmountingbracket1

Strap4

Carriagebolt—3/8x4-1/2inch(Reelmaster

3555/3575Seriestractionunitonly)4

Carriagebolt—3/8x3-1/2inch(allexcept

Reelmaster3555/3575Seriestractionunit)4

Flangenut14

Carriagescrew(3/8x7/8inch)8

Shoulderbolt2

Spacer2

Installtheguard.

PreparingtheMachine

Parkthemachineonalevelsurface,engagethe

parkingbrake,shutofftheengine,andremovethe

keyfromthekeyswitch(Figure1).

g037695

Figure1

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.Toro.com.OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved*3411-852*B

InstallingtheGuard

InstallingtheGuardona

Reelmaster3100/3500Series

orGroundsmaster3500Series

TractionUnit

1.Looselymountthebracketstotherollbaras

showninFigure2.

g198449

Figure2

1.Rightmountingbracket4.Mountstrap(4)

2.Leftmountingbracket5.Carriagebolt—3/8x3-1/2

inch(4)

3.Flangenut(4)6.Frontofthemachine

2.Swingtheguardwingsforwardasshownin

Figure3.

g198197

Figure3

1.Guardwing—initial

position

2.Guardwing—nalposition

3.Usethe2shoulderbolts,2spacers,and2

angenutstoattacheachlatch-armlinktoeach

guardwing(Figure4).

g198332

Figure4

1.Shoulderbolt3.Spacer

2.Latch-armlink4.Flangenut

4.Installtheguardassemblytothebracketsas

showninFigure5.

Note:Ensurethattheguardiscentered.Use

theholesintheguardframethatalignwithholes

inthebrackets.

g198626

Figure5

1.Shortcarriagescrew(8)3.Flangenut(8)

2.Guardassembly

5.Tightentheangenutstosecurethebracketsto

therollbar(Figure2).

6.Checktheclearancebetweenthehoodofthe

machineandtheguardassembly.Ifthehoodof

themachinecontactstheguardassemblywhen

youopenthehood,movetheguardassembly

higherontherollbaruntilthehoodnolonger

contactstheguardassembly.

7.Ensurethatallfastenersaretight.

InstallingtheGuardona

Reelmaster3555/3575Series

TractionUnit

1.Looselymountthebracketstotherollbaras

showninFigure6.

g198449

Figure6

1.Rightmountingbracket4.Mountstrap(4)

2.Leftmountingbracket5.Carriagebolt—3/8x4-1/2

inch(4)

3.Flangenut(4)6.Frontofthemachine

2.Swingtheguardwingsforwardasshownin

Figure7.

g198197

Figure7

1.Guardwing—initial

position

2.Guardwing—nalposition

3.Usethe2shoulderbolts,2spacers,and2

angenutstoattacheachlatch-armlinktoeach

guardwing(Figure8).

g198332

Figure8

1.Shoulderbolt3.Spacer

2.Latch-armlink4.Flangenut

4.Installtheguardassemblytothebracketsas

showninFigure9.

Note:Ensurethattheguardiscentered.Use

theholesintheguardframethatalignwithholes

inthebrackets.

g198626

Figure9

1.Shortcarriagescrew(8)3.Flangenut(8)

2.Guardassembly

5.Tightentheangenutstosecurethebracketsto

therollbar(Figure6).

6.Checktheclearancebetweenthehoodofthe

machineandtheguardassembly.Ifthehoodof

themachinecontactstheguardassemblywhen

youopenthehood,movetheguardassembly

higherontherollbaruntilthehoodnolonger

contactstheguardassembly.

7.Ensurethatallfastenersaretight.

InstallingtheGuardona

Reelmaster5010Seriesor

Groundsmaster4300-DSeries

TractionUnit

1.Looselymountthebracketstotherollbaras

shownFigure10.

g211694

Figure10

1.Rightmountingbracket4.Mountstrap(4)

2.Leftmountingbracket5.Carriagebolt—3/8x3-1/2

inch(4)

3.Flangenut(4)6.Frontofthemachine

2.Swingtheguardwingsforwardasshownin

Figure11.

g198197

Figure11

1.Guardwing—initial

position

2.Guardwing—nalposition

3.Usethe2shoulderbolts,2spacers,and2

angenutstoattacheachlatch-armlinktoeach

guardwing(Figure12).

g198332

Figure12

1.Shoulderbolt3.Spacer

2.Latch-armlink4.Flangenut

4.Installtheguardassemblytothebracketsas

showninFigure13.

Note:Ensurethattheguardiscentered.Use

theholesintheguardframethatalignwithholes

inthebrackets.

g211695

Figure13

1.Shortcarriagescrew(8)3.Flangenut(8)

2.Guardassembly

5.Tightentheangenutstosecurethebracketsto

therollbar(Figure10).

6.Checktheclearancebetweenthehoodofthe

machineandtheguardassembly.Ifthehoodof

themachinecontactstheguardassemblywhen

youopenthehood,movetheguardassembly

higherontherollbaruntilthehoodnolonger

contactstheguardassembly.

7.Ensurethatallfastenersaretight.

Operation

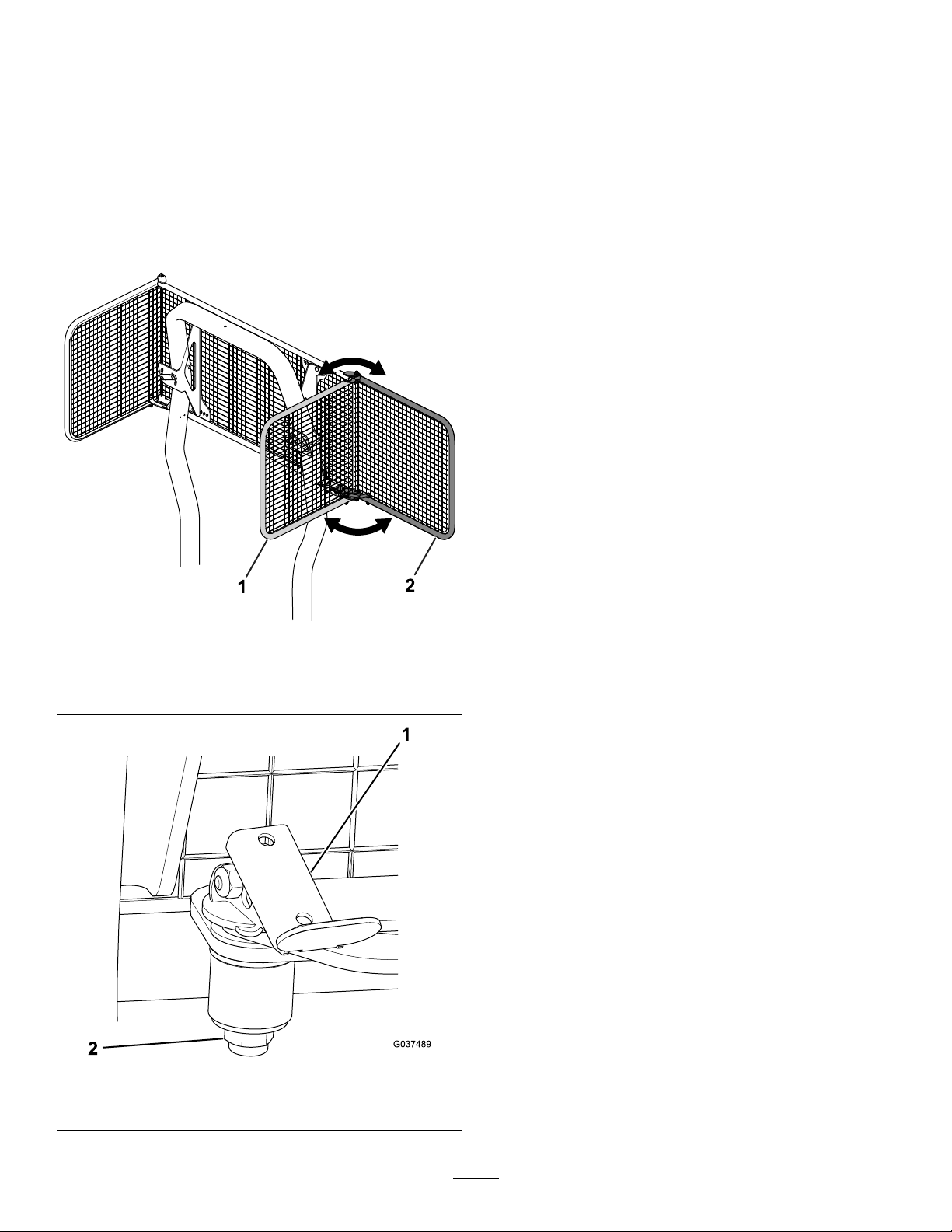

UsingtheGuard

Youcanretracttheguardwingstoalloweasyaccess

totheoperatorplatform.Usethelatchestosecurethe

sidesintheopenorclosedposition(Figure14).

Note:Ifthelatchisnottightenough,tightenthenut

onthelatch(Figure15).

g198219

Figure14

1.Guardwing—closed

position

2.Guardwing—open

position

g037489

Figure15

1.Latch2.Nut

Maintenance

CheckingtheMesh

ServiceInterval:Beforeeachuseordaily—Check

themeshfordamage.

Checkthemeshregularlytoensurethatitisnot

frayedorripped.Ifthemeshisdamagedinanyway,

replaceitimmediately.

Notes:
