Toyota DVR Bedienungsanleitung

AVANZA - MAY - 2019 - 001

DIGITAL VIDEO RECORDER (DVR)

OWNERS MANUAL

Please read this manual for proper operation and keep it for future reference.

Statements

Important notice

About highway Buddy

Introduction to the DVR

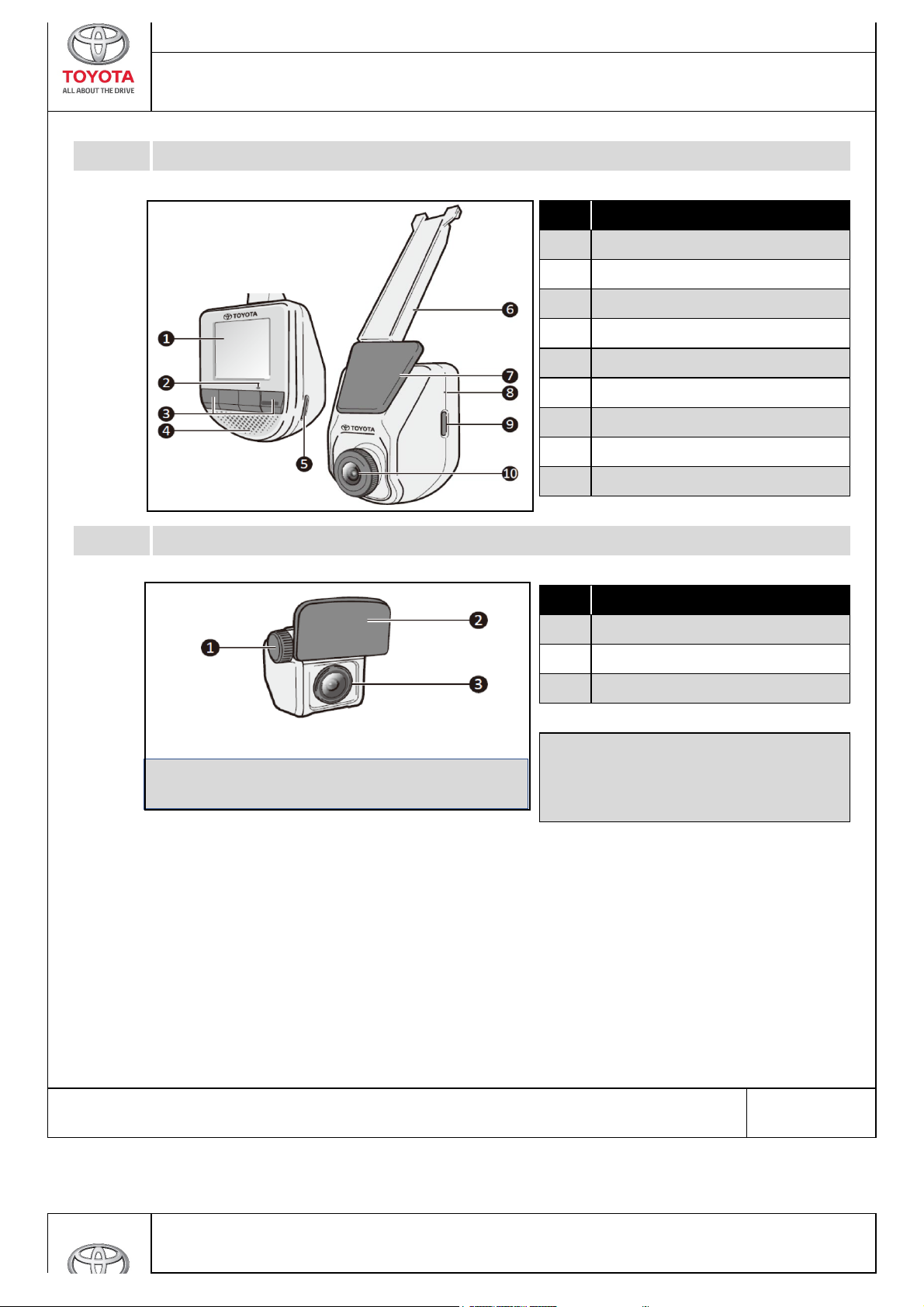

Front DVR

Rear DVR

DVR Overview

Getting Started

Installing the memory card

Formatting the memory card

About the memory card

Operating the DVR

Normal recording

Emergency recording

Parking mode

Capturing a photo

Managing files on DVR

Playing Videos

Playing Rear Videos

Highway Buddy

Lane Departure Warning System (LDWS)

Introduction to LDWS

Limitations to LDWS

Changing Setting for LDWS

Operational Condition for LDWS

Conditions in which LDWS may not operate properly

Forward Collision Warning System (FCWS)

Introduction to FCWS

Limitations to FCWS

Changing Setting for FCWS

AVANZA - MAY - 2019 - 001

TABLE OF CONTENTS

DIGITAL VIDEO RECORDER (DVR)

Section Title Page

2.0

2.1

2.2

1.0

1.1

1.2

3.2

3.3

4.0

2.3

3.0

3.1

4.4

5.0

5.1

4.1

4.2

4.3

6.1

6.1.1

6.1.2

5.2

6.0

6.2

6.2.1

6.2.2

6.1.3

6.1.4

6.1.5

6.2.3

Please read this manual for proper operation and keep it for future reference.

Operational Conditions for FCWS

Conditional in which FCWS may not operate even

when there is no possibility for collision

Conditions in which FCWS may not function

accurately

Driver Alert (DA)

Customizing the DVR

Video Recording Settings

System Settings

Product Specification

Section Title Page

6.2.4

6.2.5

AVANZA - MAY - 2019 - 001

TABLE OF CONTENTS

DIGITAL VIDEO RECORDER (DVR)

7.1

7.2

8.0

6.2.6

6.3

7.0

Please read this manual for proper operation and keep it for future reference.

AVANZA - MAY - 2019 - 001

Safety Instructions

Important notice:

About Highway Buddy

Always use your best judgment, and operate your vehicle in a safe manner.

Do not become distracted by the device while driving, and always be fully

aware of all driving conditions. Minimize the amount of time spent viewing

the device screen while driving.

Using this product does not change the requirement of the driver to take

full responsibility for his or her behavior. This responsibility includes

observing all traffic rules and regulations in order to avoid accidents,

personal injury or property damage.

Please do not attempt removal of DVR unit from windscreen – please visit

your local Toyota Service Center if removal or calibration is required.

Highway Buddy is a value-added feature that provides alerts to assist with

Lane Departure and Forward Collision warnings, but it is not a replacement

for the driver's attentiveness. The driver is still required to follow proper

driving procedure to ensure personal safety, failure to do so may result in a

serious accident, causing damage to property, serious injury or loss of life

SECTION 1.0

Statements

1.1

Please read this manual for proper operation and keep it for future reference. 1/23

AVANZA - MAY - 2019 - 001

SECTION 2 0

Front DVR

Rear DVR

2.1

No.

Description

LCD SCREEN

RECORDING INDICATOR

SECTION 2.0

Getting Started

WINDOW MOUNT

RESET BUTTON

MEMORY CARD SLOT

FUNNCTION BUTTONS

SPEAKER

WIRING SLEEVE

WINDOW MOUNT

REAR CAMERA

Note: Please do not adjust the

Rear DVR. Optimum view has

been set by the manufacturer

FRONT CAMERA

2.1

No.

Description

ADJUSTMENT BOLT

Please read this manual for proper operation and keep it for future reference. 2/23

AVANZA - MAY - 2019 - 001

SECTION 3.0

*Only applicable for car variants that

include Rear DVR camera

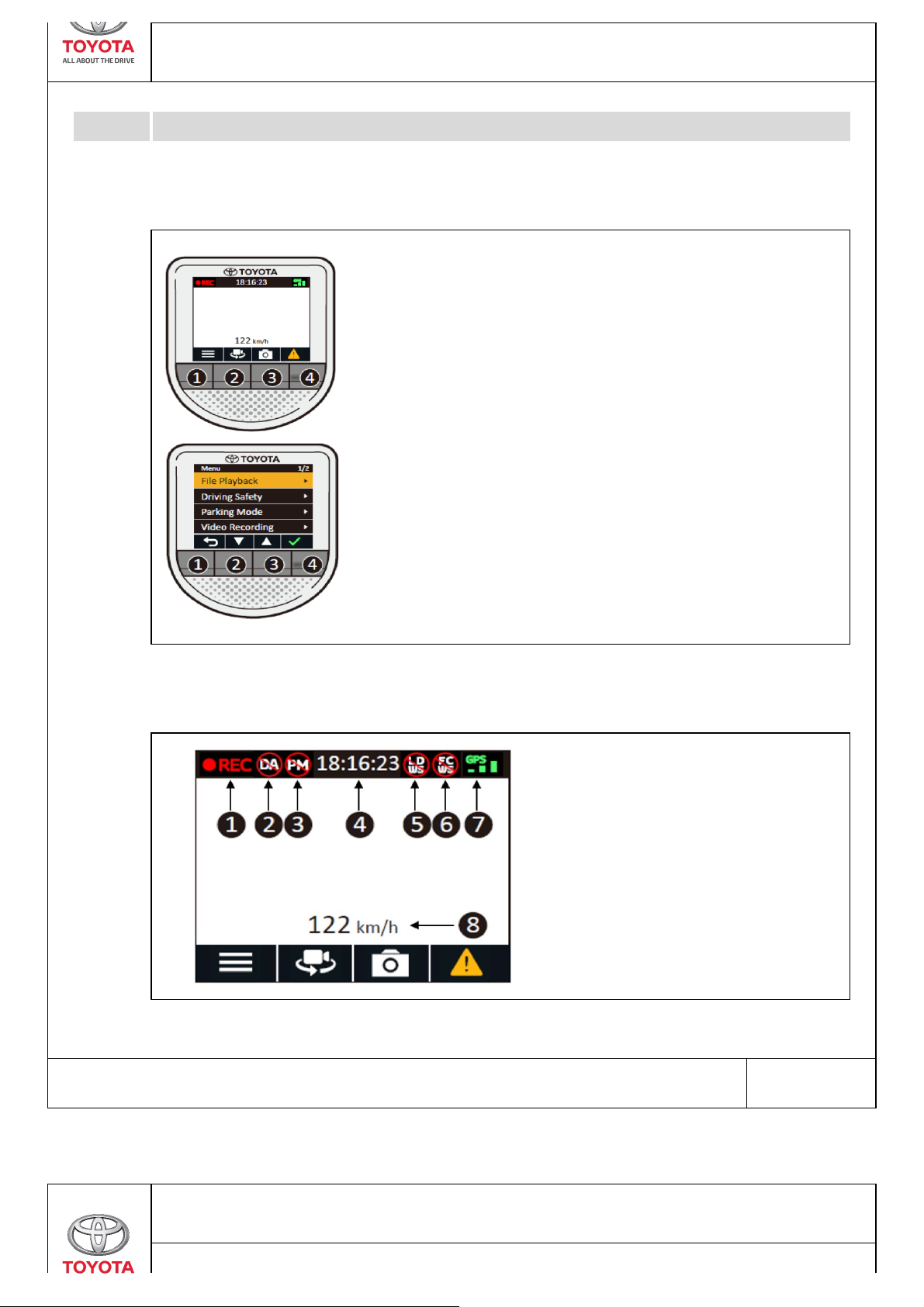

DVR Overview

Home Screen

❶

Open the Menu screen

❷

Switches view between front and rear camera

❸

Takes a photo

❹

Manually start emergency recording

Manu Screen

❶

Acts as the BACK button

❷

Moves to the previous option

❸

Moves to the next option

❹

Acts as the ENTER button

❶

Recording Indicator

❷

Driver Alert status

❸

Current time

❹

LDWS status

❺

FCWS status

❻

GPS signal

❼

Current GPS car speed

2.3

Button layout and functions: The DVR provides 4 function keys to

control the corresponding icons displayed on the LCD screen. The keys’

function may vary on different screens

System icons: Various system icons on the status bar at the top of the

screen provide the status information of your DVR. The displayed icons will

vary depending on the function availability.

Please read this manual for proper operation and keep it for future reference. 3/23

AVANZA - MAY - 2019 - 001

Getting Started

SECTION 3.0

Operating 12V-DC TYRE INFLATOR

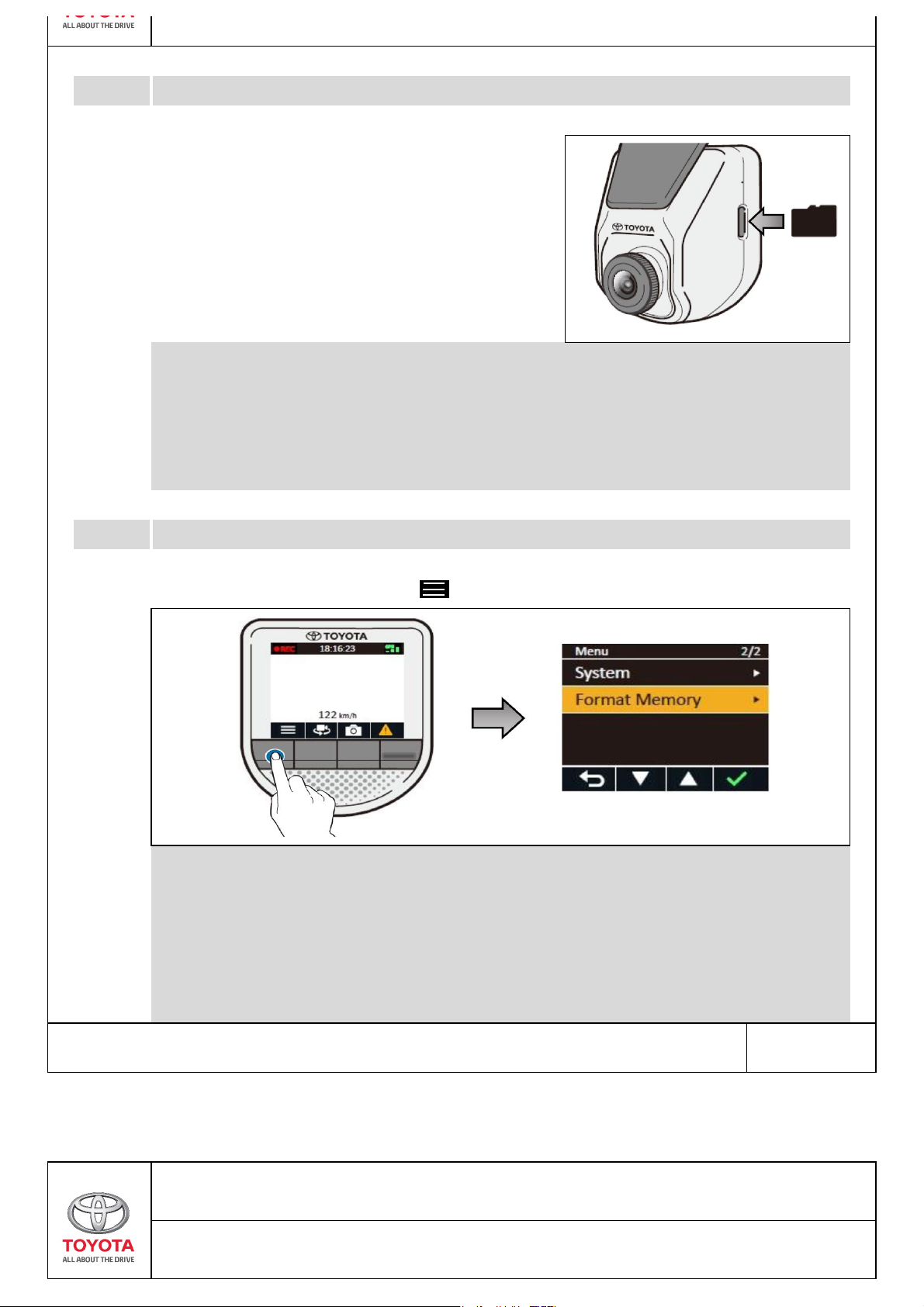

Intalling the memory card

Note:

Formatting the memory card

Note:

2. Formatting memory card while driving is not advisable. Any

cause is at your own risk.

3.2

When a memory card is installed, you will be asked to format the memory

card. Please press > Format Memory.

Formatting memory card will delete all existing files in the

memory card. It is recommended to back up files before

proceeding with formatting.

Operating 12V-DC TYRE INFLATOR

3.1

To install the memory card, Hold the card

(MicroSD) by the edges and gently insert it

into the slot until you hear a click.

To remove a card, gently push the top edge

of the card inwards to release it and pull it

out of the slot.

1.Please ensure DVR is turned off before proceeding to install or

remove memory card.

2.Installing memory card while driving is not advisable. Any cause is

at your own risk.

Please read this manual for proper operation and keep it for future reference. 4/23

AVANZA - MAY - 2019 - 001

SECTION 4.0

Product / Device Specifications

About the memory card

A memory card is required in order to enable DVR to initiate recording

This DVR supports Class 10 MicroSD Card with the capacity range

between 16GB -128GB only.

c. Do NOT apply pressure to the centre of the memory card.

d. The manufacturer does not guarantee the product’s compatibility with

memory card from all manufacturers.

e. Be sure to format the memory card using the DVR at initial stage.

Note:

>The following information is the memory card capacity and maximum

estimated recording time (Table is based on highest resolution setting

of device).

NOTE:

The values in the table provided are estimations based on brand

new SD cards as recommended by the device manufacturer.

Using a SD card with larger memory space will enable the device to

retain more video files before the device rewrites over older files

when the SD card is full.

* This device comes with a 16GB memory card

3.3

Any other memory card used besides recommended setup may

not allow DVR to function properly.

16 GB 32 GB 64 GB 128 GB

147

minutes

Normal

Recording

minutes

146

minutes

277

minutes

Emergency

Recording

minutes

Please read this manual for proper operation and keep it for future reference. 5/23

AVANZA - MAY - 2019 - 001

SECTION 4.0

Operating

Photos

262

files

542

files

1102

files

2082

files

IMPORTANT NOTICE:

1. Once the vehicle engine is started, the DVR will automatically turn

on.

2. Do not operate the DVR while driving. Any cause is at own risk.

Normal Recording

Emergency Recording

NOTE:

Parking Mode

4.1

The system will automatically begin normal recording shortly after start-up.

When normal recording is in progress, you can manually stop recording by

pressing . Press to return to HOME screen and the system will

start normal recording automatically.

The recordings may be divided into 3-minute segmented video clips;

recording will not stop between video clip segmentation. When your

memory card fills up with normal recordings, it will automatically overwrite

the oldest existing files in this category.

The normal recordings can be found in the “Normal Recording” category

on “File Playback”.

4.2

By default, if an event such as a sudden impact, high speed driving, an

aggressive turn or an accidental crash during normal recording has been

detected by the DVR, the G-sensor will automatically prompt the system to

record event under “Emergency Recording” category.

SECTION 4.0

Operating

4.3

You can change the sensitivity level of the G-sensor by

selecting > Video Recording > G-Sensor.

If you want to manually start an emergency recording while normal

recording is in progress, press the RED BUTTON on the Front DVR.

The emergency recording will save the duration from 3 seconds before the

event and 17 seconds after the event. The emergency recording can last

up to 1 minute if the sensor is triggered again during the emergency

recording.

When the memory card fills up with emergency recordings, it will

automatically overwrite the oldest existing files in this category. The

emergency recordings can be found in the “Emergency Recording”

category on “File Playback”.

Please read this manual for proper operation and keep it for future reference. 6/23

AVANZA - MAY - 2019 - 001

Your DVR supports the parking recording function. To enable the Parking

Mode function, select > Parking Mode > Detection > ON

When “Parking Mode” is enabled, the system will activate the parking

mode as soon as the vehicle is parked, and engine is turned off. During

Parking Mode, the front camera of DVR will be on standby mode as it

would only trigger recordings when there is a motion detected.

The parking mode recording will save the duration from 3 seconds before

the event and 17 seconds after the event.

The parking mode recording can last up to 1 minute if the sensor is

triggered again during the emergency recording.

When the memory card fills up with parking mode recordings, it will

automatically overwrite the oldest existing files in this category.

The parking mode recordings can be found in the “Parking

Recording” category on “File Playback”.

Capturing a photo

AVANZA - MAY - 2019 - 001

SECTION 4.0

Operating

4.2

When the recording is in progress,

NOTE : The rear camera does not support motion detection.

Please read this manual for proper operation and keep it for future reference. 7/23

Inhaltsverzeichnis

Andere Toyota Autozubehör Handbücher

Toyota

Toyota PZQ44-89100 Bedienungsanleitung

Toyota

Toyota PT427-89060 Bedienungsanleitung

Toyota

Toyota 2005 4Runner Navi_U Bedienungsanleitung

Toyota

Toyota IHF1700 Bedienungsanleitung

Toyota

Toyota IHF1700 Bedienungsanleitung

Toyota

Toyota PORTABLE TYRE PUMP Bedienungsanleitung

Toyota

Toyota REAR SEAT ENTERTAINMENT Bedienungsanleitung

Toyota

Toyota T100' Bedienungsanleitung

Toyota

Toyota PC162-0K00H Bedienungsanleitung

Toyota

Toyota RAV4 2011 Bedienungsanleitung

Toyota

Toyota PZQ22-89220 Bedienungsanleitung

Toyota

Toyota PT546-52080 Bedienungsanleitung

Toyota

Toyota PZ403-B2614-GA Bedienungsanleitung

Toyota

Toyota AUTO TAG Bedienungsanleitung

Toyota

Toyota 30-5SDK5 Bedienungsanleitung

Toyota

Toyota PZQ22-89320 Bedienungsanleitung

Toyota

Toyota PT427-48080 Bedienungsanleitung

Toyota

Toyota Bluetooth SWC Bedienungsanleitung

Toyota

Toyota PC170-0K01A Bedienungsanleitung

Toyota

Toyota Bluetooth hands-free system Bedienungsanleitung

Toyota

Toyota Verso PZ457-E8566-A0 Bedienungsanleitung

Toyota

Toyota Tundra 2014 Bedienungsanleitung

Toyota

Toyota PT922-12170 Bedienungsanleitung

Toyota

Toyota PT278-42130 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
