User Manual
For Toyota Touch2 & Entune2.0 System
The built-in vehicle machine interaction system of iPhone cooperates with the central control knob button to provide voice
command and control of phone, information, navigation, music, to operate Siri voice interaction to obtain more information;
Support wireless and wired connection Carplay.
The original ecological Android car-machine interaction system developed by Google, voice control of phone, information,
navigation, music built-in voice control system.
Smart module can decode video and can be equipped with rear-view video input . (The intelligent module can decode video and
install rear view）
Supports wired & wireless mirroring functions for iphone and Android phones.
CarPlay / Android Auto
Reversing Video Input
Mirroring
Automatic media playback function, can be directly inserted into U disk to play video and audio media.
USB Video Playback
Apple
CarPlay
Android
Auto
Screen
Mirroring
USB
Media
Advanced
Chip
Front
Camera
Bluetooth
Calling
1. Functional Statement
2. Specifications
Operating Voltage ：5V
Operating temperature ：
-30~+75℃
Power consumption ：
1A (rated) ，3A(Max)
Quiescent Current ：less than 3mA
Charging current:
≤2A, when the USB charging current>1A, the host should activate the
circuit protection function to control the current below 1.5A, to avoid
burning the product.

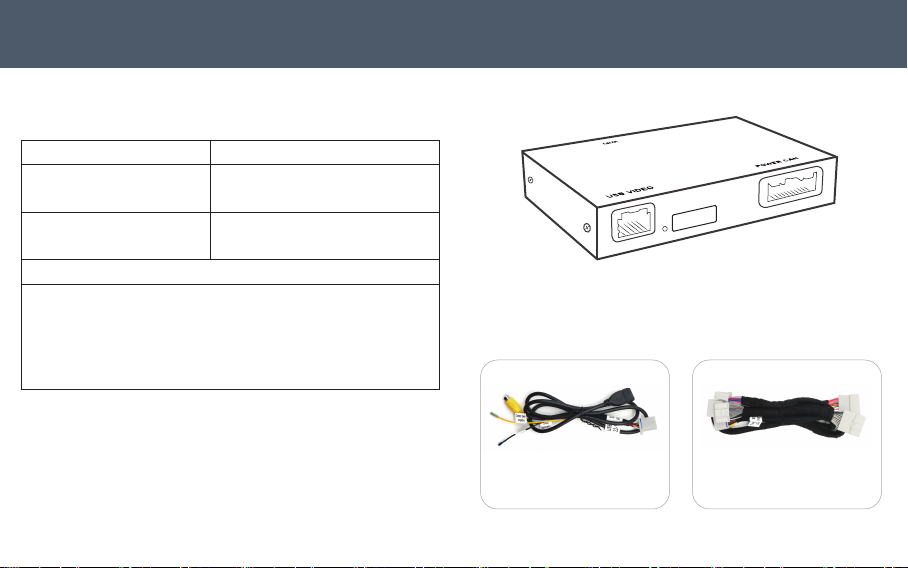

3. Product Information
USB Video Cable Power Cable
Host (Size: 128*84*25mm)
Stored temperature ：-30~+85℃
Environment humidity ：
≤98% (at45℃） 65±5% (rated）
Shutdown current ：
300mA (Clock is on）

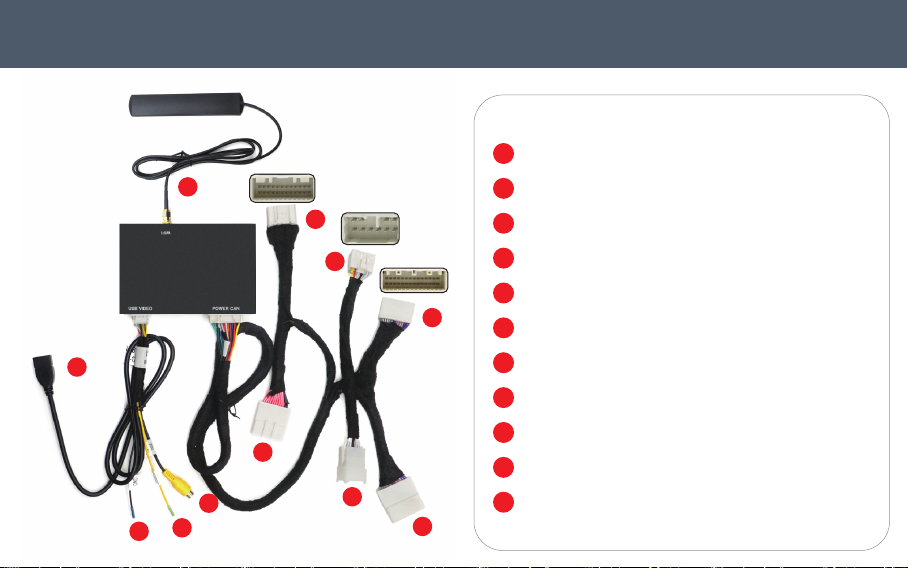

4. Connection Diagram
Connect with Original Car's Main Unit-24PIN
Connect with Original Car's Main Unit-10PIN
Connect with Original Car's Main Unit-28PIN
Connect with Original Car's Plug-28PIN
Connect with Original Car's Plug-10PIN
Connect with Original Car's Plug-24PIN
Forward Looking Input
Camera Power Supply
GND
USB Cable
WIFI Antenna
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
24PIN
10PIN
28PIN

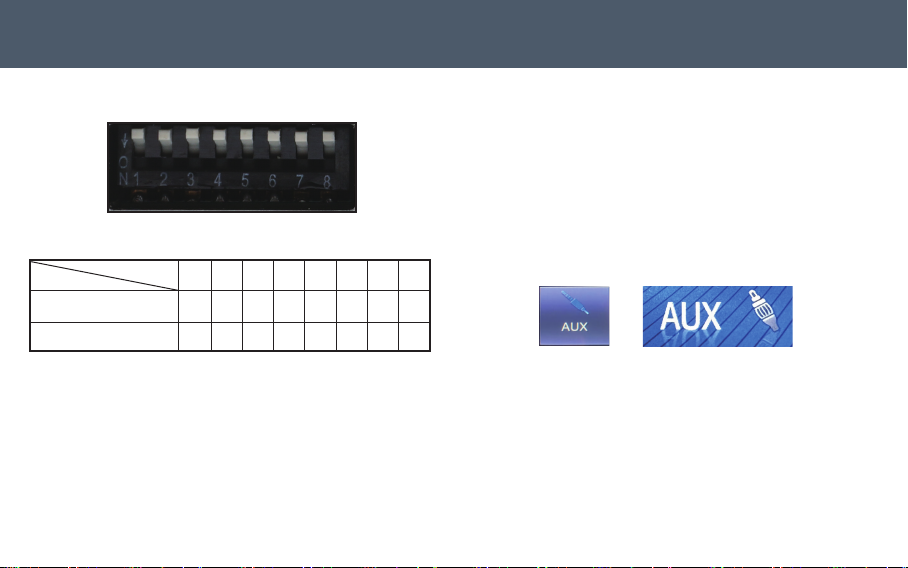

6. Switch to CarPlay System5. Vehicle Dialing Table
All OFF by default:
Applicable to Panasonic Fujitsu mainframes
5-ON：
Applicable to Pioneer mainframes
The product supports the original car system and
there are three ways to switch to CarPlay interface：
1 2 3 4 5 6 7 8
OFF OFF OFF OFF OFF OFF OFF OFFFujitsu Panasonic
Model Dialing
Pioneer OFF OFF OFF OFF ON OFF OFF OFF
1. In the original car screen:
First click on the "FM" icon,
then click on the "AUX" icon to enter：
2. In the steering wheel:
Long press the voice button to enter
3. If there is no voice button:
Press the "MODE"button to enter

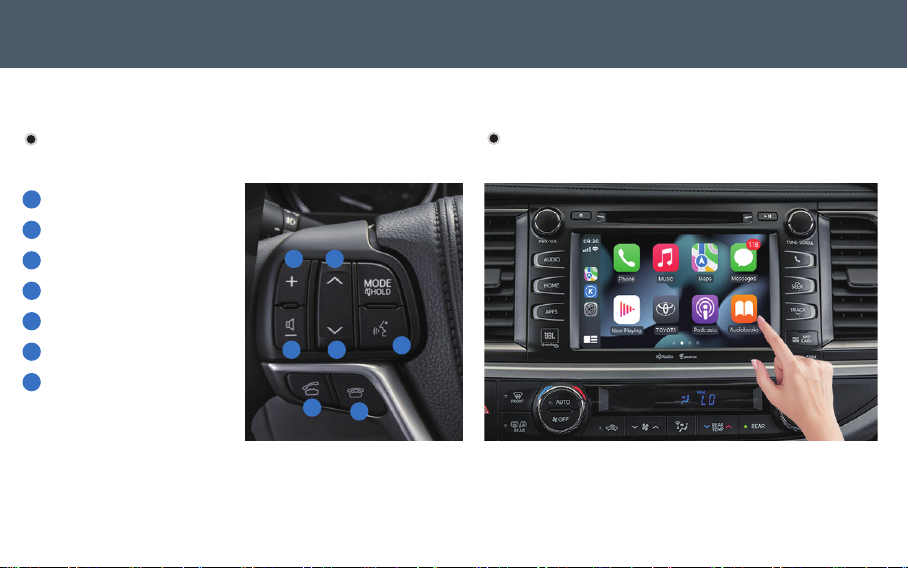

7. Control Key Operation Instructions
Volume +
Volume -
Previous song
Next song
Answer the phone
Hang up the phone
Short press to wake up Siri
1 3
4
56
7
2
1
2
3
4
5
6
7
Long press 2s to switch
CarPlay system
Support original car button control Support touch screen control

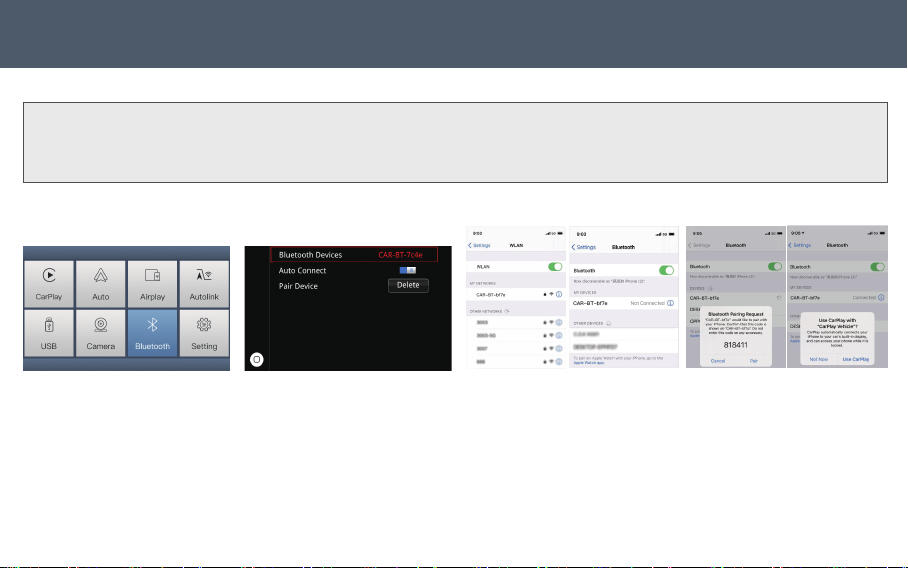

8. Wireless CarPlay Connection Method
Select “Bluetooth”
Step 1
Check the Bluetooth Device
name as “CAR-BT-xxxx"
Step 2
Turn on WIFI and keep it on,
then back to Bluetooth to
connect CarPlay
Step 3
Select Bluetooth Device name
as"CAR-BT-XXX"-Pair-Use
CarPlay while that pop up a
request window
Step 4
Wired Connection Method:
Connect the phone cable with the original car, and then Click “Use CarPlay" in the pop up window.

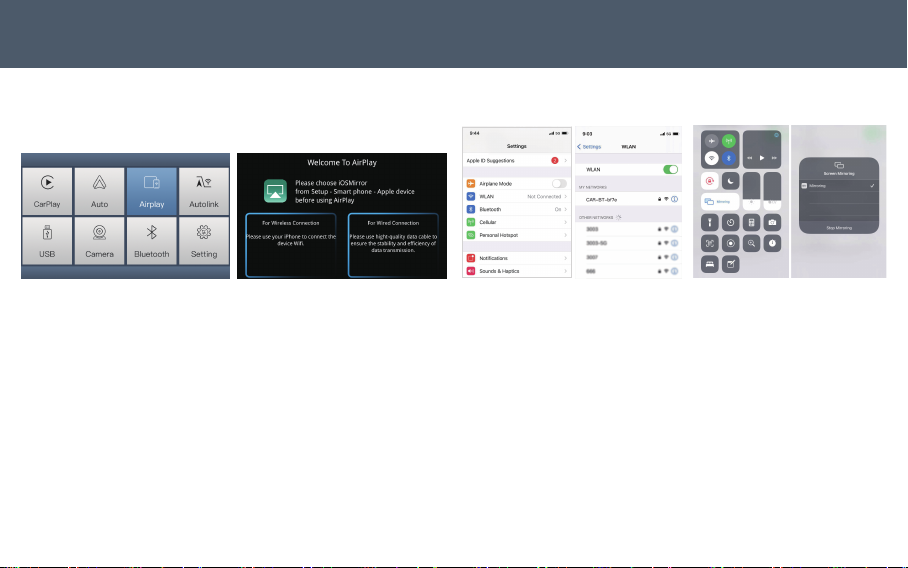

9. Apple Wireless Screen Mirroring
Select “Airplay”
Step 1
Turn on the phone, select the
“Wireless LAN" option, the
search bar will show the
“CAR-WIFI-XXX" and click the
link, the password is 66668888
Step 2
After the carplay wifi connection
is successful, return to the main
interface of phone, open the
shortcut menu page, select
“Screen Mirroring" and turn on
Step 3
After the mobile phone
“Screen Mirroring" is
turned on, select “Airplay"
to complete the wireless
Screen Mirroring
Step 4

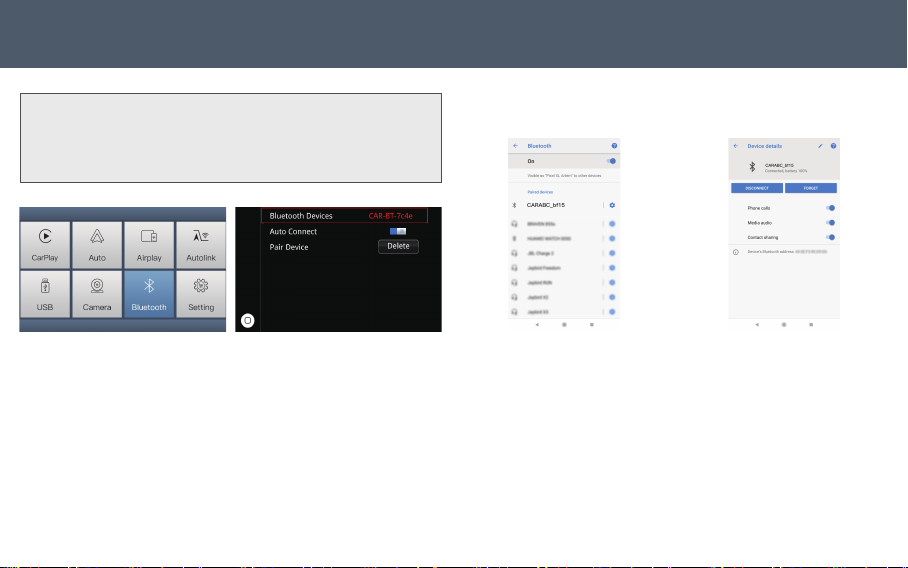

10. Wireless Android Auto Connection Method
Select the “Bluetooth”
Step 1
Check the Bluetooth name
starting with “CAR-BT-xxx" in
the Bluetooth interface
Step 2
Click on the Bluetooth name
beginning with the link
“CAR-BT-xxx", a pairing
request will pop up, just click
Pairing; after the Bluetooth
pairing is successful, the
phone will pop up a request to
enable the carplay option, just
confirm it.
Step 3
Click the Bluetooth name at
the beginning of the link
“CAR-BT-xxx" and click
pairing. Turn on the Android
auto app on the mobile
phone, and the system will
connect automatically.
Step 4
Wired Connection Method:
Connect the phone cable with the original car,
and then click “Allow" in the pop up window.

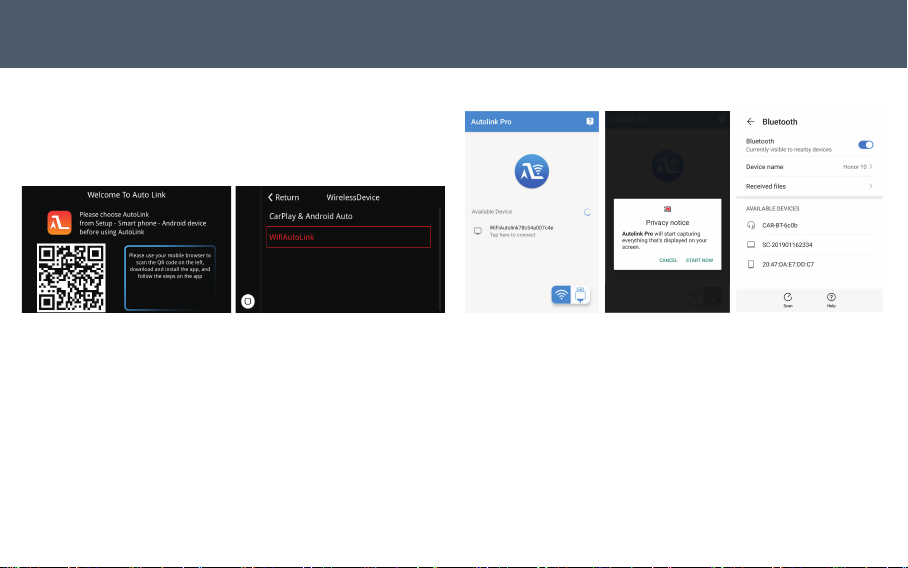

11. Android Wireless Screen Mirroring
Android phone scan and
download the Auto Link by
using the Browser.
Step 1
Switch the WifiAutoLink to
“ON” in the Settings page.
Step 2
Open the Auto link software you
downloaded, search “WiFiAu-
tolink-xxx” and connect, then
click the “START NOW” on the
phone prompt box.
Step 3
The touch reverse control
and the media sound can be
realized after the Auto Link
connection, media sound
needs to connect with
Bluetooth.
Step 4
