TP-Link GPON OLT P1200-08 Bedienungsanleitung

Configuration Guide

GPON OLT P1200-08

Version: V1.0

Specifications are subject to change without notice. is a registered trademark of

TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered

trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-Link

http://www.tp-link.com

CONTENTS

1IntendedAudience....................................................................................................................... 1

1.1 Command Conventions.................................................................................................. 1

1.2 Keyword Operation Conventions................................................................................... 1

1.3 Symbol Conventions...................................................................................................... 1

1.4 Terms Conventions ............................................................................错误!未定义书签。

1.5 Prompt................................................................................................错误!未定义书签。

2Overview of the System .............................................................................................................. 3

3System Access............................................................................................................................ 3

3.1 Overview ........................................................................................................................ 3

3.2 Console Access.............................................................................................................. 3

3.3 Telnet Access ................................................................................................................. 4

4Upgrade OLT Version.................................................................................................................. 5

5Application Example.................................................................................................................... 6

5.1 Data Plan........................................................................................................................ 7

5.2 Creating the GPON ONT profile .................................................................................... 7

5.3 Add an ONT to OLT........................................................................................................ 9

5.4 Check ONT Status........................................................................................................ 10

5.5 Configuring Bridging ONT............................................................................................ 10

5.6 Configuring service on Gateway ONT......................................................................... 12

1 Intended Audience

This document helps to learn configuration procedures of various services of TP-Link P1200-08

GPON OLT.

1.1 Command Conventions

The command conventions that may be found in this document are defined as follows.

Convention

Description

Boldface

The keywords of a command line are in boldface.

Italic

Command arguments are in italics.

[ ]

Items (keywords or arguments) in brackets [ ] are optional.

( x | y | ... )

Optional items are grouped in braces and separated by

vertical bars. One item is selected.

[ x | y | ... ]

Optional items are grouped in brackets and separated by

vertical bars. One item is selected or no item is selected.

<x-y>

One number from x to y can be selected

A line starting with the $ sign is comments.

1.2 Keyword Operation Conventions

Convention

Description

String with < >

It is key name. For example, <Enter>, <Tab>,

<Backspace>, <a>, <?> etc, it means to press the key

button

It means to press the key at same time. For example <

Ctrl+Alt+A> means to press “Ctrl”, “Alt”, “A” button together.

It means to press the first button, then release, and press

the second button. For example < Alt, F> means to press

“Alt” first, then release “Alt” button, and then press “A”

button.

1.3 Symbol Conventions

The symbols that may be found in this document are defined as follows.：

This warning symbol means danger. You are in a situation that could cause bodily

injury or broke the equipment. Before you work on any equipment, be aware of the hazards

involved with electrical circuitry and be familiar with standard practices for preventing

accidents by making quick guide based on this guide.

Indicates a hazard with a high level of risk, which if not avoided, it will result in death

or serious injury on human body.

Provides additional information to emphasize or supplement important points of

the main text.

2 Overview of the System

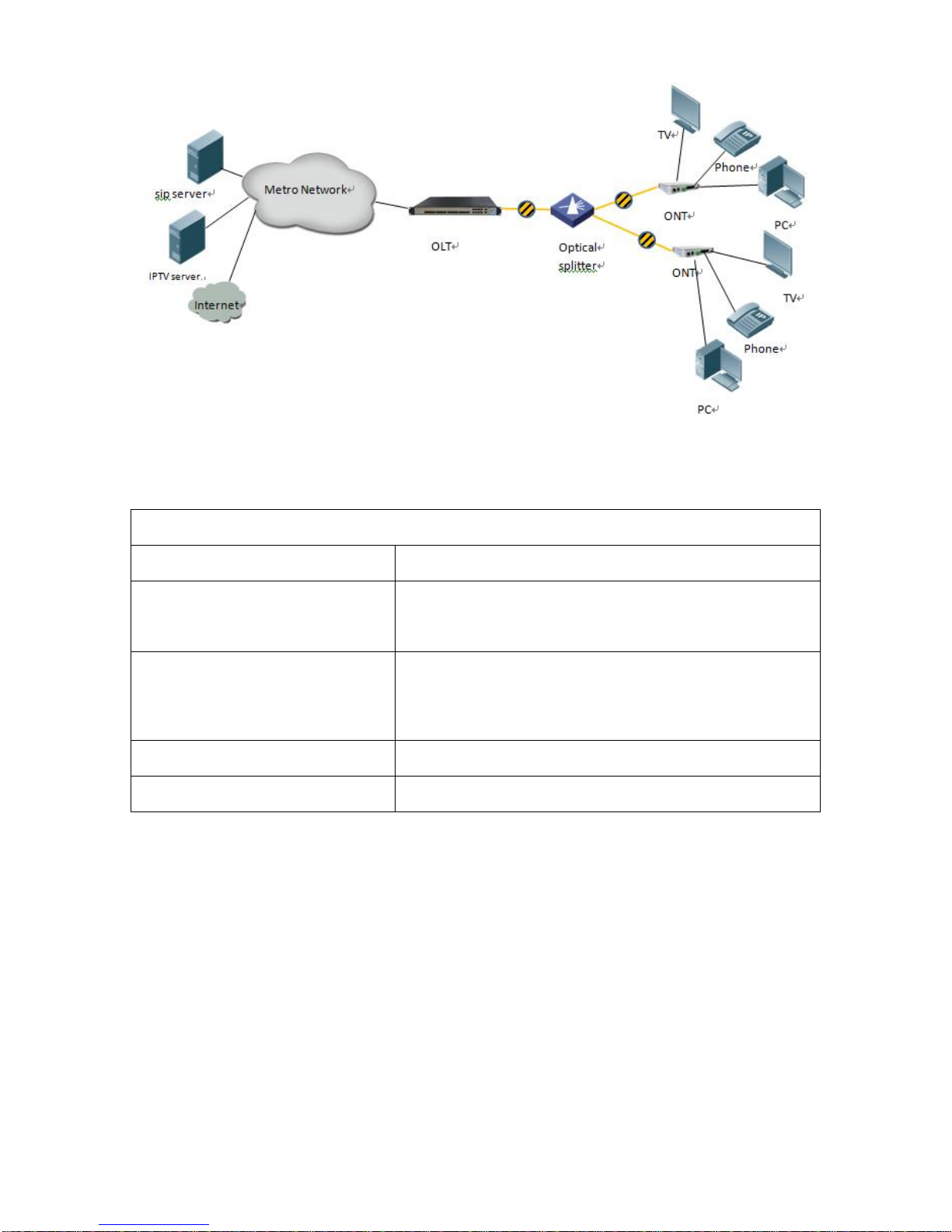

This section describes each of the devices in our GPON environment. The GPON FTTx system is

an all-optical, fiber-to-the-x system that can deliver triple-play services such as data, voice, video

to residential and business subscribers.

The GPON FTTx system consists of the following network components.

Optical Line - the optical line termination unit, located in the central office and provide GPON

interface for access service.

The model number is P1200-08

Optical Network Terminals - the optical network terminal located at the subscriber premises.

The model numbers are:

—TX-6610, GPON SFU with 1 GE port

—TX-6961, 300Mbps Wireless N GPON Router

—TX-VG1530, 300Mbps Wireless N GPON HGU with VoIP

—XR500v,AC1200 Wireless GPON HGU with VoIP

Optical passives

—PLC passive splitters

—FWDM for 1550nm video overlay GPON

3 System Access

3.1 Overview

The CLI of OLT can be used via local terminal connection or a remote session using Telnet. The

OLT supports three methods users to use CLI to do the configuration:

1、Local access to the OLT through the RS232 console port on front panel.

2、Dedicated local Telnet connection to the OLT by using the management port on OLT front

panel (outband interface).

3、Remote access over the provider’s Ethernet/IP network by using Telnet. Therefore, an inband

management channel, i.e., a specific management VLAN has to be configured.

3.2 Console Access

OLT provides a RJ45 type console interface marked as “CONSOLE”.

Console access requires:

Console cable: RJ45-to-DB9 console cable.

Terminal emulation software: HyperTerminal, or some other tools with the same function.

The console cable is connected between the serial port of the host and the console port on the

device. Most computers and notebooks no longer include built-in serial ports. If the host does not

have a serial port, you can use a USB-to-RS232 convertor to expand a serial port for your

computer.

Run a VT terminal emulation software (e.g. HyperTerminal) with the attributes

Band Rate: 9600

Data Bit:8

Parity Check: NO

Stop Bit: 1

Flow Control: NO

When the OLT start up, the terminal program will display the login prompt automatically.

Access the OLT as follows:

1、After starting the terminal session, the login prompt is displayed:

OLT>username:

2、Enter the username and the password to move into the User mode. The default username is

“root” and the default password is “admin”.

OLT>username: root

Password: (entered characters are hidden)

OLT>

3、To configure and manage the system, enter the enable mode with command enable:

OLT>enable

OLT#

3.3 Telnet Access

There are two ways for TELNET access.

Outband Interface Access ：You should configure your PC IP to 192.168.1.X (Except

192.168.1.100), connect to the MGMT port of OLT with ethernet, login the OLT with the default

OLT management IP (Default IP : 192.168.1.100). Default username is “root”and the password is

“admin”.

Inband Interface Access：You should login via console, and create a dedicated management

VLAN for inband management, assigned an IP address to this interface, add the uplink port which

the management PC is connected to this management VLAN. In the following example, the

management PC will connect to the GE9 port and access the OLT through VLAN 100.

OLT> enable

OLT# config

OLT(config)# vlan 100

OLT(config)# interface vlanif 100

OLT(interface-vlanif-100)# ip address 192.168.1.99 255.255.255.0

OLT(interface-vlanif-100)# exit

OLT(config)# interface ge

OLT(interface-ge)# vlan access 9 100

OLT(interface-ge)# exit

4 Upgrade OLT Firmware

For OLT firmware upgrade, you need a FTPserver (we useWFTPD as FTPServer in the following

example) for FW download. Connects PC with the OLT`s console port, the FTP server connects

with MGMT port. FTP default login name and password is admin/admin, FTP server IP set to

192.168.1.222.

Checks the FTP server connected well by PING FTP server through the OLT.

FTP server configuration：

Security -> User/Rights Security Dialog -> User Name (set to admin) -> Change Password (set to

admin) -> Home (choice the file folder of the upgrade software).

Use the command “load packetfile ftp server-ip-address user-name user-password filename” in

Config Mode to upgrade the OLT as below.

OLT(config)# load packetfile ftp 192.168.1.222 admin admin

P1200-08_FW_V1.0.3_151015_1420.img

Broadcast message from root:

Upgrade is in process.

File [P1200-08_FW_V1.0.3_151015_1420.img] download .......... OK

File [P1200-08_FW_V1.0.3_151015_1420.img] upgrade .......... OK

5 Application Example

This section describes basic concepts related to the fiber to the home (FTTH) solution from the

user side to the network side in FTTH networking using PON transmission.

We will give two examples of the configuration. One is layer 2 configuration, another is the layer 3

configuration.

5.1 Data Plan

The subsequent examples are configured based on the following data plan.

Data Plan

Service Classification

Data

DBA Profile

Profile ID：10

Profile Type：Type3

Assured Bandwidth：8Mbit/s

Maximum Bandwidth：20Mbit/s

ONT Line Profile

Profile ID：10

T-CONT ID：1

Internet access service GEM Port ID：11

VoIP service GEM Port ID：12

IPTV service GEM Port ID：13

ONT Service Profile

Service Profile：10

ONT Capacity：4 Eth Port, 1 POTS

Network Data

PON Port：1

ONT ID：1、2

5.2 Create the GPON ONT profile

GPON ONT profiles include the DBA profile, line profile, service profile, traffic profile.

DBA profile: A DBA profile describes GPON traffic parameters.A T-CONT is bound to a DBA

profile for dynamic bandwidth allocation, improving upstream bandwidth utilization.

Line profile:A line profile describes the binding between the T-CONT and the DBAprofile, the

QoS mode of the traffic stream, and the mapping between the GEM port and the ONT side

service.

Service profile: A service profile provides the service configuration channel for the ONT that is

managed by using optical network terminal management and control interface (OMCI).

Traffic profile: A traffic profile on GPON OLT is mainly applied to the ONU port for the port

speed limit.Applying to anACL for speed limits for a particular message. This profile can
