TP-Link VIGI NVR2016H Bedienungsanleitung

Installation Guide

Network Video Recorder

Contents

Chapter 1 Appearance——————————— 3

1.1 Front Panel..............................................................3

1.2 Rear Panel ...............................................................4

Chapter 2 Installation ——————————— 7

2.1 Package Contents ...............................................7

2.2 Safety Precautions ..............................................7

2.3 Installation T

ools...................................................10

2.4 Hard Drive Installation ........................................10

2.5 Product Installation .............................................12

Chapter 3 Hardware Connection —————— 14

Chapter 4 Conguration —————————— 15

Appendix FAQ——————————————— 18

Chapter 1 Appearance

1.1 Front Panel

The figure is for demonstration purposes only. Your device may differ in

appearance from the depicted.

■VIGI NVR2016H

The front panel of VIGI NVR2016H is shown as the following figure.

LED Indication

SYS On: System is running normally.

Off: System is running abnormally.

LAN

On: Network is working properly.

Flashing: Data is being transmitted or received.

Off: Network is malfunctioning.

HDD On: The HDD is normal.

Off: No HDD or the HDD is malfunctioning.

USB Port

For additional devices such as USB mouse, USB storage device, and USB

keyboard.

■VIGI NVR2016H-16P/VIGI NVR2016H-16MP

The front panel of VIGI NVR2016H-16P/VIGI NVR2016H-16MP is shown

as the following figure.

LED Indication

SYS On: System is running normally.

Off: System is running abnormally.

LAN

On: Network is working properly.

Flashing: Data is being transmitted or received.

Off: Network is malfunctioning.

HDD On: The HDD is normal.

Off: No HDD or the HDD is malfunctioning.

PoE Max

On: The total PoE power reaches the warning threshold.

Flashing: The total PoE power has reached the warning

threshold for more than 2 minutes.

Off: The total PoE power does not reach the warning

threshold.

USB Port

For additional devices such as USB mouse, USB storage device, and USB

keyboard.

1.2 Rear Panel

The figure is for demonstration purposes only. Your device may differ in

appearance from the depicted.

■VIGI NVR2016H

The rear panel of VIGI NVR2016H is shown as the following figure.

Grounding Terminal

The device comes with lightning protection mechanism.

Power Socket

Connect the female connector of the power cord here, and the male

connector to the AC power outlet. Make sure that the voltage of the

power supply meets the requirement of the input voltage (100–240 V~

50/60 Hz).

USB Port

Connect to additional devices such as USB mouse, USB storage device,

and USB keyboard.

eSATA

Connect to external hard drive.

HDMI

Output port for high-definition audio and video signals. Connect your

monitor to this port if it uses HDMI connection.

VGA

Output port for analog video signals. Connect your monitor to this port if

it uses VGA connection.

Audio Input/Output

Connector for audio input and output.

LAN Port

Connect to an Ethernet device (eg. router and switch).

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device

from being stolen.

■VIGI NVR2016H-16P/VIGI NVR2016H-16MP

The rear panel of VIGI NVR2016H-16P/VIGI NVR2016H-16MP is shown as

the following figure.

Grounding Terminal

The device comes with lightning protection mechanism.

Power Socket

Connect the female connector of the power cord here, and the male

connector to the AC power outlet. Make sure that the voltage of the

power supply meets the requirement of the input voltage (100–240 V~

50/60 Hz).

USB Port

Connect to additional devices such as USB mouse, USB storage device,

and USB keyboard.

eSATA

Connect to external hard drive.

HDMI

Output port for high-definition audio and video signals. Connect your

monitor to this port if it uses HDMI connection.

VGA

Output port for analog video signals. Connect your monitor to this port if

it uses VGA connection.

Audio Input/Output

Connector for audio input and output.

LAN Port

Connect to an Ethernet device (eg. router and switch).

PoE Port

Designed to connect to the device with a bandwidth of 100/10 Mbps.

The port can also provide power for PoE PDs (recommended for PoE

cameras).

Link LED

On: A device is linked to the port but no activity.

Flashing: Transmitting or receiving data.

Off: No device is linked to the corresponding port.

PoE LED

On: The port is supplying power normally.

Flashing: Overload or short circuit is detected.

Off: Not providing PoE power on the port.

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device

from being stolen.

Caution:

Please use the provided power adapter.

Chapter 2 Installation

2.1 Package Contents

Make sure that the package contains the following items. Please

contact your distributor, if any of the listed items is damaged or missing.

The figures are for demonstration only. The actual items may differ in

appearance and quantity from the depicted.

NVR

Installation Guide

Mounting Brackets, Screws

and Rubber Feet

Power Cord, HDD Power

Cables, HDD Data Cables

Mouse

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use,

you should observe the following rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap

has a good skin contact and is well grounded.

■Use only the power cord provided with the device.

■Make sure that the supply voltage matches the specifications indicated

on the rear panel of the device.

■Ensure that the device is installed in a well-ventilated environment and

its ventilation hole is not blocked.

■Do not open or remove the cover of the device.

■Before cleaning the device, cut off the power supply. Do not clean it by

the waterish cloth, and never use any other liquid cleaning method.

■Place the device with its bottom surface downward.

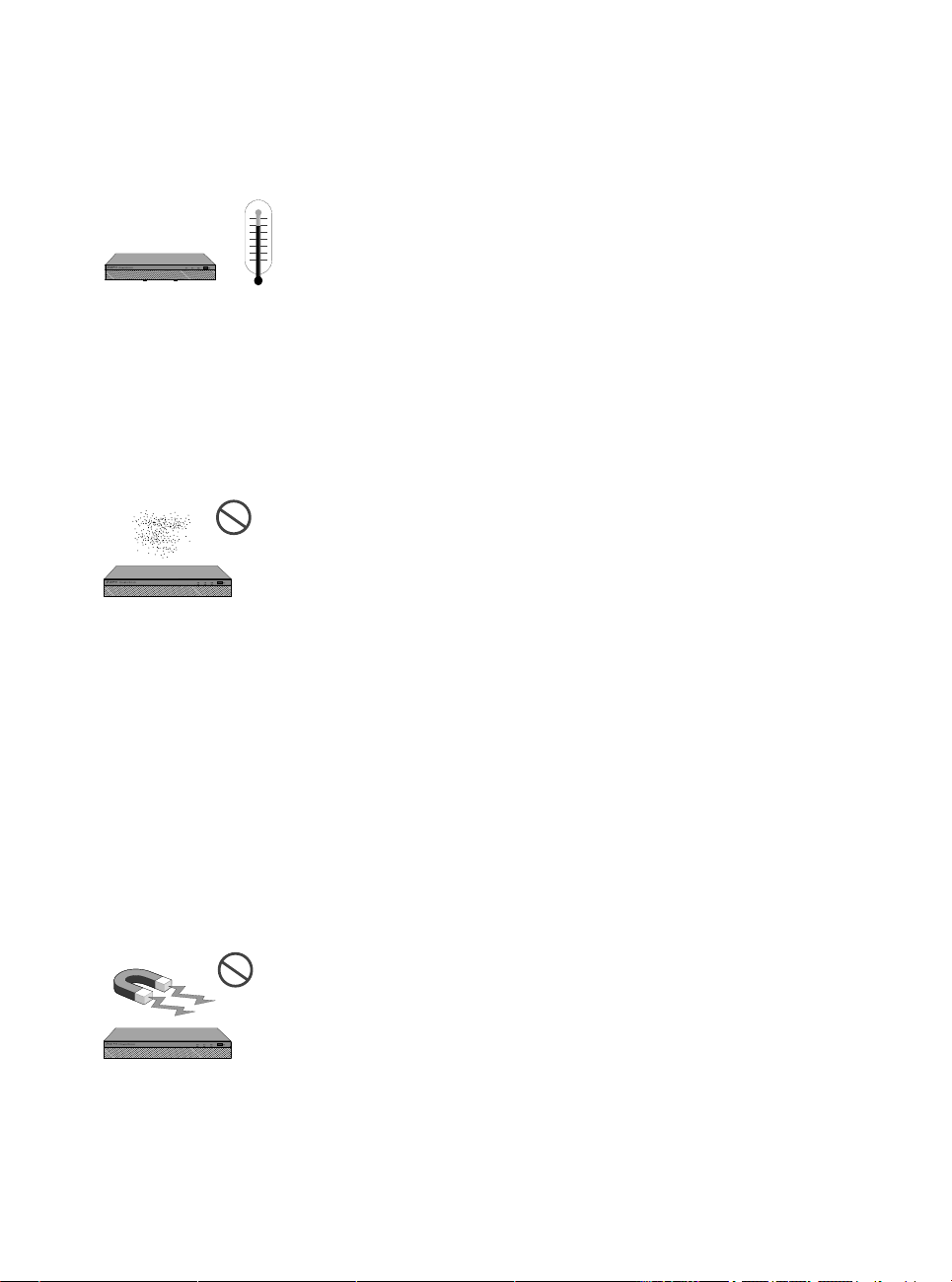

■Site Requirements

Temperature/Humidity

Keep the equipment room at an appropriate level of temperature and

humidity. Too much or too little humidity may lead to bad insulation,

leakage of electricity, mechanical property changes, and corrosion.

High temperatures may accelerate aging of the insulation materials,

significantly shortening the service life of the device.

Clearness

The dust accumulated on the device can be absorbed by static electricity

and result in poor contact of metal contact points. Some measures have

been taken for the device to prevent static electricity, but too strong

static electricity can cause deadly damage to the electronic elements on

the internal circuit board. To avoid the effect of static electricity on the

operation of the device, attach much importance to the following items:

■Dust the device regularly, and keep the indoor air clean.

■Keep the device well grounded and ensure that the static electricity has

been transferred.

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device

can be affected by external interferences, such as conducted emission

by capacitance coupling, inductance coupling, and impedance coupling.

To decrease the interferences, make sure to take the following measures:

■Use the power supply that can effectively filter interference from the

power grid.

■Keep the device far from high-frequency and strong-current devices

such as radio transmitting station.

■Use electromagnetic shielding when necessary.

Lightning Protection

Extremely high voltage currents can be produced instantly when

lightning occurs and the air in the electric discharge path can be instantly

heated up to 20,000 °C. As this instant current is strong enough to

damage electronic devices, more effective lightning protection measures

should be taken.

■Ensure that the rack and the device are well earthed.

■Make sure the power socket has a good contact with the ground.

■Keep a reasonable cabling system and avoid induced lightning.

■Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note:

For detailed lightning protection measures, go to https://www.tp-link.com/

support, search the model number of your product and go to the product Support

web page, refer to the Lightning Protection Guide from the Related Documents:

https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.

Installation Site

When installing the device on a rack or a flat workbench, attach much

importance to the following items:

■The rack or workbench is flat, stable, and sturdy enough to support the

weight of 5.5 kg at least.

■The rack or workbench has a good ventilation system. The equipment

room is well ventilated.

■The rack is well grounded. Keep the device less than 1.5 meters away

from the power socket.

2.3 Installation Tools

■Phillips screwdriver

■ESD-preventive wrist wrap

■Cables

Note:

These tools are not included with our product. If needed, you can purchase them

separately.

2.4 Hard Drive Installation

It is recommended to use the HDD of surveillance or enter-prise level.

Before installation, please disconnect the power from the network video

recorder (NVR).

1. Remove the fixing screws on the side and back panels to open the

cover of the NVR.

2. Choose the right size to install hard disk drive (HDD). Both 3.5-inch

HDD and 2.5-inch HDD are supported.
