Quick Installation Guide

AC750 Wireless Dual Band Gigabit

ADSL2+ Modem Router

MODEL NO. Archer D2

7106505239 REV1.0.0

English

Connect the Hardware

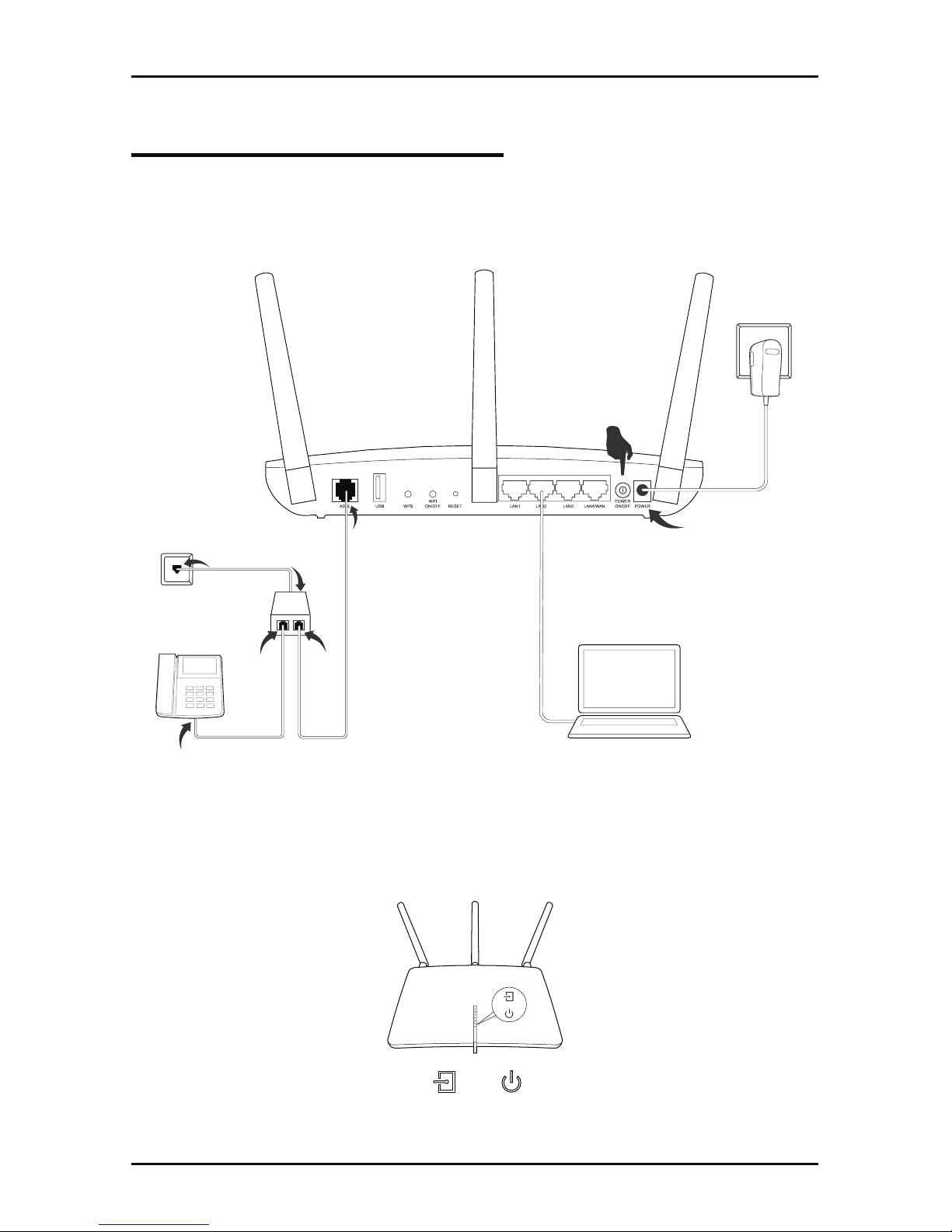

1. Connect the splitter and power adapter as follows. Then press

the POWER ON/OFF button.

Note: If you don’t need the phone service, just directly connect the ADSL port to the

Phone Jack with a phone cable.

2. Check the following LED lights to ensure the hardware

connection is correct.

Note: Please wait 1-2 minutes until the ADSL LED is on.

Phone Jack

Splitter

PHONE

MODEM

LINE

ADSL

Power

English

&RQ¿JXUHWKH0RGHP5RXWHU

0HWKRG9LD:HE%URZVHU

1. Connect your computer to the modem router (Wired or

Wireless).

:LUHG

Ethernet cable

:LUHOHVV

Connect wirelessly by using

the default network name

(SSID) and password on the

product label printed on the

bottom of the modem

router.

Model:Archer D2 ver:1.0

S/No.:XXXXXXXXXXXXX

MAC:XXXXXXXXXXXX

Wireless Password /PIN

2SHQDZHEEURZVHURQWKHFRPSXWHUDQGFRQ¿JXUHWKHPRGHP

router according to the following main clues.

a. Enter KWWSWSOLQNPRGHPQHWor in the address

bar. Type in DGPLQ for both the user name and password

and click /RJLQ.

Note: If the login window does not appear, please refer to FAQ->Q1.

English

http://tplinkmodem.net

admin

b. Choose 4XLFN6HWXS in the main menu and then click Next to start

WKHFRQ¿JXUDWLRQ,QWKHQH[WVFUHHQVHOHFW\RXU5HJLRQ and 7LPH

Zone from the drop-down list, and then click Next.

Region

Back Next

Quick Setup-Region and Time Zone

XXXXXX

XXXXXXXXXX

Time Zone

c. Select <HV to auto detect your connection type and then click

Next to continue.

Back Next

Quick Setup-Auto Detection

Yes.

No. I want to configure the Internet connection myself.

Auto-Detect Connection Type:

d. Enter the parameters provided by your ISP and then click

Next. Here we take PPPoEDVDQH[DPSOH

English

Back Next

XXXXXX

Quick Setup-PPPoE

DSL PVC:

Auto-detection has succeeded!

8/35

Encapsulation Mode: LLC

Connection Type: PPPoE

Username:

Password:

Confirm Password:

e. Click Next to continue.

Note: You may rename your 2.4GHz/5GHz wireless network name and create

your own password.

Wireless Network Name:

Password:

TP-LINK_XXGHz_XXXXXX

XXXXXXXX

2.4GHz & 5GHz Wireless Network Name and Password

Back Next

Channel:

Mode:

Security:

f. Click 6DYH and wait a moment for your settings taking effect.

Click )LQLVK to complete the setup.

Note: If you have changed your 2.4GHz/5GHz wireless network name and

password, you must sign in with the new names/passwords to regain access to

the Internet.

Finish

Quick Setup-Complete

Operation Mode Configuring: Success

WAN Connection Configuring: Success

Gateway and DNS Configuring: Success

Wireless Configuring: Success

Time Zone Configuring: Success Enjoy!

Now your wired and

wireless devices can

connect to the Internet !

English

0HWKRG9LD&'6HWXS:L]DUG

Note: If you are using a computer that cannot run the mini CD, please refer to Method 1

IRUFRQ¿JXUDWLRQ

1. Insert the TP-LINK Resource CD into the CD-ROM drive.

2. Choose your language and select Archer D2. Then click 6WDUW

6HWXS)ROORZWKHSRSXSÀDVKYLGHRWRFRQQHFW\RXUGHYLFHV

Note: ,IWKHPDLQSDJHGRHVQRWGLVSOD\RQ\RXUFRPSXWHUEURZVHWKH¿OHVRQWKH&'

DQGGRXEOHFOLFN$XWRUXQH[H

Archer D2

Start Setup

User Guide

Printer Sharing Setup

Browse CD EXIT

Choose your language:

English

3. Please check the following LEDs. Then click NEXT and follow

the step-by-step instructions.

NEXT EXIT

Welcome

Install ADSL Device

Configure ADSL Device

Confirm Settings

LED Indicator Description

Name Status

on Wireless is enabled.

At least one LAN port is connected.

System start-up complete.

Flash

Indication

(Power)

(ADSL)

The ADSL negotiation is in progress.

ADSL line is synchronized and ready to use.

(LAN)

(WLAN)

English

4. Click ),1,6+ to complete the setup.

Enjoy!

Now your wired and

wireless devices can

connect to the Internet !

FINISH

Welcome

Install ADSL Device

Configure ADSL Device

Confirm Settings

Congratulations!

Tether App

After connecting to the Internet via Web Browser or via CD Setup

Wizard, TP-LINK's Tether App lets you manage the modem router

on smart devices. You can:

• View the information about clients.

• Block or Unblock client's access to the Internet.

• Use Parental Control to limit kid's access to the Internet.

&RQ¿JXUHVRPHEDVLFVHWWLQJVIRUWKHPRGHPURXWHU

Then, how to start?

1. Scan the QR code and download the

TP-LINK Tether App from App Store or

Google Play.

2. Ensure your smart device is wirelessly

connected to the modem router.

3. Launch the Tether App, and enjoy the

easy management of the modem router.

English

86%)HDWXUHV

The USB port can be used for media

sharing, storage sharing and print sharing

across your local network. You can also

VHWXSWKH)73VHUYHUWRDFFHVV\RXU¿OHV

remotely by connecting to the Internet.

Note: To learn more about the USB features, please

visit http://tp-link.com/app/usb, retrieve Resource CD or

simply scan the QR code.

USB sharing port

Remote

Access via

FTP Server

Media

Sharing

Local

Storage

Sharing

Printer

Sharing

)UHTXHQWO\$VNHG4XHVWLRQV)$4

4:KDWFDQ,GRLIWKHORJLQZLQGRZGRHVQRWDSSHDU"

$,IWKHFRPSXWHULVVHWWRDVWDWLFRU¿[HG,3DGGUHVVFKDQJHLWWRREWDLQ

an IP address automatically from the modem router.

A2. Verify http://tplinkmodem.net is correctly entered in the web browser

and press Enter.

A3. Use another web browser and try again.

A4. Reboot your modem router and try again.

A5. Disable the network adapter used currently then enable it again.

English

4:KDWFDQ,GRLI,FDQQRWDFFHVVWKH,QWHUQHW"

A1. Check your cables and make sure they are all plugged in correctly,

including the telephone line, Ethernet cables and power adapter.

A2. Check to see if you can log on to the Web-Management page of the

modem router. The default address of the Web-Management page is

http://tplinkmodem.net. If you can, try the following steps. (If you can

not, please set your computer to obtain an IP address automatically

from the modem router and then try to access the Internet again.)

A3. Consult your ISP and make sure all the VPI/VCI, Connection Type,

account username and password are correct. If they are not, please

replace them with the correct settings and try again.

A4. If you still cannot access the Internet, please restore your modem

URXWHUWRLWVIDFWRU\GHIDXOWVHWWLQJVDQGUHFRQ¿JXUH\RXUPRGHPURXWHU

following the instructions in this QIG.

$3OHDVHFRQWDFWRXU7HFKQLFDO6XSSRUWLIWKHSUREOHPVWLOOH[LVWV

4+RZGR,UHVWRUHWKHPRGHPURXWHUWRLWVIDFWRU\GHIDXOW

VHWWLQJV"

A1. With the modem router in the Power On mode, press and hold

down the RESET Button on the rear panel of the modem router for

DSSUR[LPDWHO\VHFRQGV

A2. Log in Web Management page of the modem router, and go to System

Tools->Factory Defaults, click Restore, then wait until the progress bar

ORDGLQJ¿QLVKHG

RESET Button Press & Hold 8 seconds

English

4:KDWFDQ,GRLI,IRUJHWP\SDVVZRUG"

Ɣ:HE0DQDJHPHQWSDJHSDVVZRUG

A1. Restore the modem router to its factory default settings and then use

the default User Name ‘admin’ and Password ‘admin’ to log in.

Ɣ:LUHOHVV1HWZRUNSDVVZRUG

A1. The factory default password can be found on the product label printed

on the bottom of the modem router.

A2. If you have changed your password, log on to the modem router’s Web

Management page, go to Wireless->Wireless Security to obtain or

reset your password.

Note: If your questions are not answered here, please refer to http://www.tp-link.com/en/

support/faq and click Contact Technical Support for further assistance.

/(',QGLFDWRUV

:36

2Q2II It turns on when a wireless device has been

successfully connected to the network via WPS. After

about 5 minutes, the WPS LED will turn off.

6ORZ)ODVK A wireless device is trying to connect to

the network via WPS. This process may take up to 2

minutes.

86%

On: 7KH86%GHYLFHLVLGHQWL¿HGDQGUHDG\WRXVH

)ODVK 7KH86%GHYLFHLVEHLQJLGHQWL¿HG

2IINo USB device is plugged in to the USB port.

LAN

On: At least one LAN port is connected.

2IINo LAN port is connected.
