TP-Link TD-W8968 Bedienungsanleitung

TP-Link TD-W8968

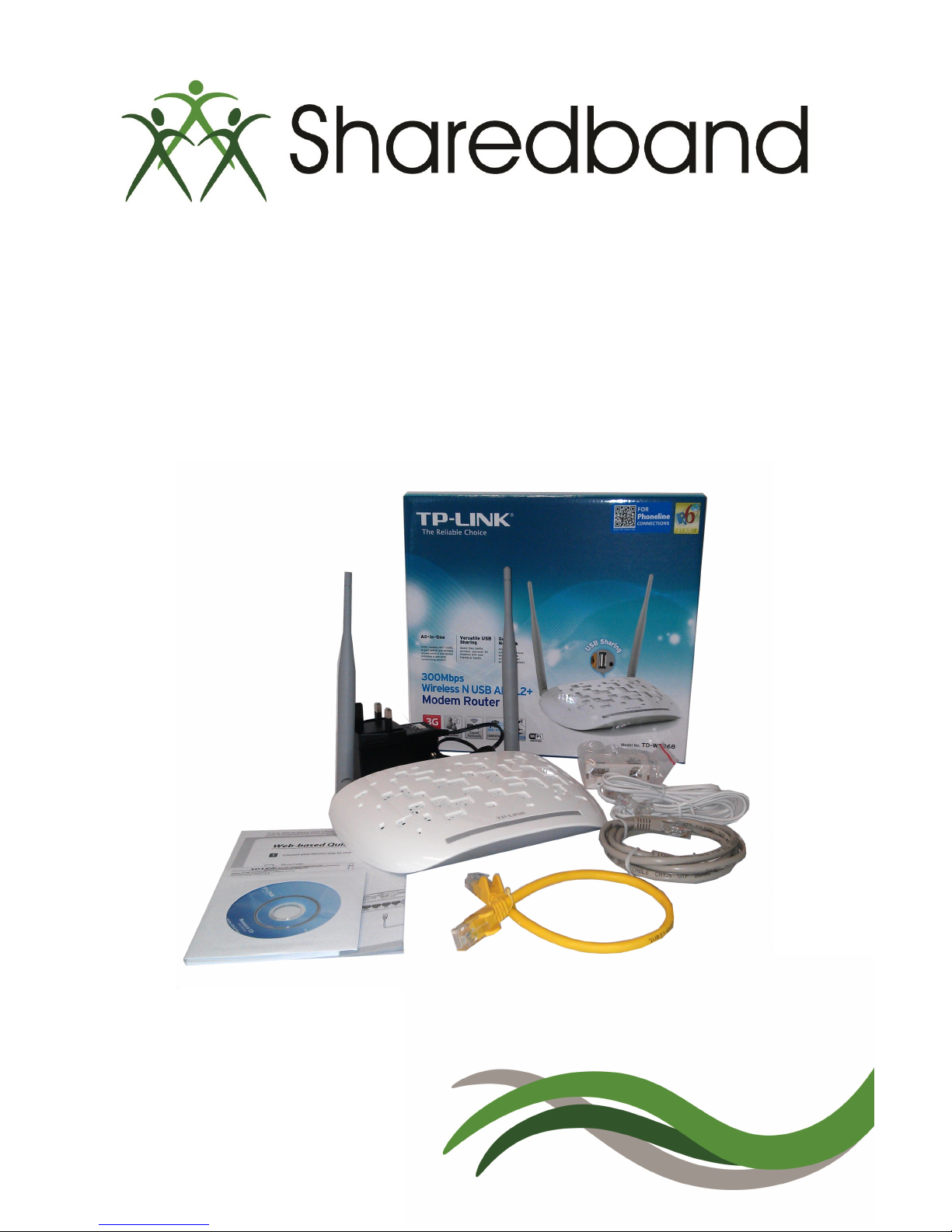

Quick Install Guide

Sharedband Router Setup Steps

1) Remove the Sharedband routers from their packaging and place them in a suitable

locaon

2) Use the included short Ethernet cable(s) to connect the routers’ yellow ’LAN’ ports in

either of these two conguraons:

a) The recommended setup is to connect the Sharedband routers together via an

un-managed switch

b) However you can connect the Sharedband routers together with an Ethernet cable (daisy

chained)

3) Use the included ADSL cable to connect each routers’ grey ‘ADSL’ port to an included ADSL

micro-lter

4) Use the included power adapters to connect each router’s ’Power’ socket to a mains

power outlet

5) Ensure that the ‘On/O’ buon is depressed on all routers

6) Use an Ethernet cable to connect a computer to an unused yellow ‘LAN’ port of any router

TP-Link TD-W8968 QIG 2www.sharedband.com

7) Each router is idened using a node idener. This is a unique single digit number clearly

marked on the underside of the router. Open a web browser and visit hp://192.168.3.1 to

connect to node 1

8) When prompted for sign in credenals , please input the following:

Username: admin Password: Bonding123 (we recommend you change this password)

9 In the menu posioned at the le of the displayed web page, select ‘Quick Setup’

10) In the ’Country’ drop down, select your country

11) In the ‘ISP’ drop down, select the Internet Service Provider associated with the line that

you are connecng this node to

12) In the ‘PPP Username’ eld and ‘PPP Password’ eld, input the corresponding ADSL logon

credenals provided by your ISP. You should have received these credenals directly from

your ISP when they processed your internet access subscripon. If you’re unable to locate

them, please request them from your ISP

13) Click the ‘Next’ buon

14) Click the ‘Conrm’ buon and then wait for 30 seconds to elapse

15) Aer 30 seconds has elapsed, click ‘Management’

16) Click the reboot buon towards the middle of the screen

17) Repeat above steps 7-16 for each of the remaining nodes. Each node has a dierent IP

address which corresponds with the number marked on the underside of the router. For

example router two can be accessed by vising hp://192.168.3.2, router 3 (if applicable)

can be accessed by vising hp://192.168.3.3, etc…

www.sharedband.com 3TP-Link TD-W8968 QIG

TP-Link TD-W8968 QIG 4www.sharedband.com

Verify Successful Setup

a) Use an Ethernet cable to connect a computer to any unused yellow ‘LAN’ port of the

router you would like to verify has been successfully setup

b) Please note the node idener which is a unique single digit number clearly marked on

the underside of the router

c) Open a web browser and visit the IP address of the connected router. These are

hp://192.168.3.1 if connecng to node idener 1, hp://192.168.3.2 if connecng to

node idener 2 etc…

d) When prompted for sign in credenals , please input the following:

Username: admin Password: Bonding123 (we recommend that you change this password)

e) In the menu posioned at the le of the displayed web page, select ‘Status’

f) If this router has been successfully setup, items within the ‘Service Status’ panel will be

displayed green in colour and report as follows:

For informaon, the above listed items make the following checks:

Modem Connecon Status - connecon through your ISP

Aggregaon Server Status - connecon to our data centre

Roung Mode - method by which router is able to communicate:

 WAN and Community: This router is connected to the aggregaon server directly and

at least 1 other Sharedband router in its community

 WAN Only: This router is not connected to other routers in its community (see step 2)

Community Only: This router is not connected to the aggregaon server (see page 4)

No network available: This router is not connected to the Sharedband aggregaon

server and other routers in its community

g) Repeat above steps a-f for all of the remaining routers in the community

More Informaon

Both our helpful knowledgebase and support ckeng system are accessible online at:

hp://support.sharedband.com
