StoreJet 2.5

User’sManual

(Version 1.1.8)

TableofContents

Introduction.........................................................................................1

PackageContents..............................................................................................................1

Features..............................................................................................................................2

SystemRequirements.......................................................................................................2

SafetyPrecautions..............................................................................3

General Use........................................................................................................................3

Backing UpData................................................................................................................3

Transporting.......................................................................................................................3

Power..................................................................................................................................3

Reminders..........................................................................................................................4

ProductOverview...............................................................................5

Installing aHardDrive........................................................................6

DriverInstallation................................................................................8

DriverInstallation for Windows2000, XP and Vista......................................................8

DriverInstallation for Mac OS 9.0, orLater...................................................................8

DriverInstallation for Linux Kernel 2.4, orLater...........................................................8

Connecting to aComputer.................................................................9

Disconnectingfrom a Computer.....................................................11

Removing theStoreJet 2.5inWindows2000, XP and Vista....................................11

Removing theStoreJet 2.5inMac OS 9.0, or Later..................................................11

RemovetheStoreJet 2.5inLinux Kernel 2.4, or Later.............................................11

Formatting theHardDrive................................................................12

Windows®2000/XP...........................................................................................................12

WindowsVista ..............................................................................................................13

Troubleshooting................................................................................17

StoreJet 2.5 IDEseries...................................................................19

StoreJet 2.5 SATAseries...............................................................20

Transcend LimitedWarranty...........................................................21

Introduction

Congratulations onpurchasing TranscendsStoreJet 2.5.Thistiny,Ultra-portable,Hi-SpeedUSB

storagedevice isthe perfectdatamanagementsystemforuploading,downloading,storingand

transferring yourvitaldataandinformation.Withahugestoragecapacityand Hi-Speed USB 2.0data

transferrates,thecompact StoreJet 2.5 isidealforstoringandtransferring yourfiles,folders,

documents,photos,musicand e-workbetween itand anydesktop,ornotebookcomputer.Inaddition,the

StoreJet 2.5 comeswithaveryusefulsoftware(please seetheSoftwareUsersManualfordetailed

instructions)packthatcan (used inWindows®)increase yourproductivity.The User sManualand

accompanying SoftwareUser sGuidearewrittentohelpyou getthemostfromyournewdevice,please

read bothindetail beforeusing the StoreJet 2.5.

PackageContents

The StoreJet 2.5 packageincludes thefollowingitems:

• StoreJet 2.5

• MiniUSB toUSB A-Type cable(USB Ycable)

• QuickInstruction Guide

Introduction

Features

• Hi-Speed USB 2.0compliant and USB 1.1backwards compatible

• EasyPlugand Playinstallation

• Optional2.5”HardDiskDrive

• Ultra-Portability

• OneTouch Auto-Backup function

• Powered viathe USB port. Noexternalpower or batteryneeded

• Hi-Speed datatransferrates upto480Mbitspersecond

• AdditionalStoreJetSoftwarepack: StoreJet elite (helps you manageyour data)

• LED indicates thestatusofpower on,datatransfer activity

System Requirements

Desktop or notebookcomputer withaworking USB port.

One offollowingOperating Systems(OS):

• Windows2000

• WindowsXP

• WindowsVista

• MacOS9.0, or later

• LinuxKernel2.4,orlater

Introduction

SafetyPrecautions

Theseusageand safetyguidelines are IMPORTANT! Please followthem carefully.

YourStoreJet 2.5isconnectedtoacomputerusing aMiniUSB (ontheStoreJet )toUSB

A-Type(on aDesktop,Notebook)cable.Pleaseensurethatyou connectthecableendsto

theportscorrectly.

GeneralUse

• Carefullyunpack thecontentsof the StoreJet 2.5 package.

• During operation,avoidexposingyour StoreJet 2.5 toextremetemperatures above55 ,or

below5 .

• Donot drop your StoreJet 2.5.

• Donot allowyour StoreJet 2.5 tobecomedamporwetfromwater oranyother liquids.

• Donot use adamp/wet clothtowipe or clean the exterior case.

• Donot use or storeyour StoreJet 2.5 inanyofthe listed environments:

o Direct sunlight

o Next toanair conditioner, electricheaterorotherheat sources

o Inaclosed carthatisindirectsunlight

Backing Up Data

• Transcend does NOTtake anyresponsibilityfordataloss,ordamageduring operation.

Ifyou decidetostoredataonyour StoreJet 2.5 westronglyadvise that you regularlybackup

the datatoacomputer,or otherstoragemedium.

• ToensureHigh-SpeedUSB 2.0datatransferrateswhen using your StoreJet 2.5 witha

computer, please checkthatthe computerhas the relevantUSB drivers.Ifyou areunsure

abouthowtocheckthis,please consultthecomputerormotherboardUsersManualforUSB

driver information.

Transporting

• Donotpackyour StoreJet 2.5 intoluggagewithouttheproperpaddedsupport.Otheritems

inthe luggagemaydamageyour StoreJet 2.5 if it does nothavethe proper protection.

• Avoidsqueezingyour StoreJet 2.5 toprevent damagetothe internalHDD.

• Avoidplacingobjectsontoyour StoreJet 2.5 toprevent damagingit.

Power

• The StoreJet 2.5 ispowered directlyviaacomputerUSB port; however, thepowersupplied

bythe USBport on someoldercomputersisbelow the required 5VDC power. Inthisinstance,

please connectthe otherUSB A-Type connectorfromthe provided USB YcabletoaUSB port

on thecomputer,thiswill provide the additionalpower necessarytorunthedrive.

• Please usetheMiniUSB toUSBA-Type cablethat camewiththe StoreJet 2.5 toconnectit

Safety

TheotherUSB A-Typeconnectorisusedtoprovideadditionalpower.

toacomputer,andalwaysensurethatthe cableyou areusingisingoodcondition. NEVER

use acablethat isfrayed ordamaged.

• EnsurenothingisrestingontheUSBcableand thatthecableisnotlocated whereit canbe

tripped over orsteppedon.

Reminders

Alwaysfollowthe procedures inthe “DisconnectingfromaComputer”section toremoveyour

StoreJet from acomputer.

Safety

ProductOverview

Figure1. StoreJet2.5

Screwsx2

Mini USB Port

OneTouchAuto-Backup Button

Product Overview

Installing aHard Drive

Ifyou purchaseda StoreJet 2.5 thatdoesnothaveaHardDiskDrivealreadyinstalled,please readthis

section,otherwise you can skiptothe “DriverInstallation”section.

1. Open the StoreJet 2.5 byremovingthe twoscrewsfrom either side of thetop cover,as indicated in

the diagram.

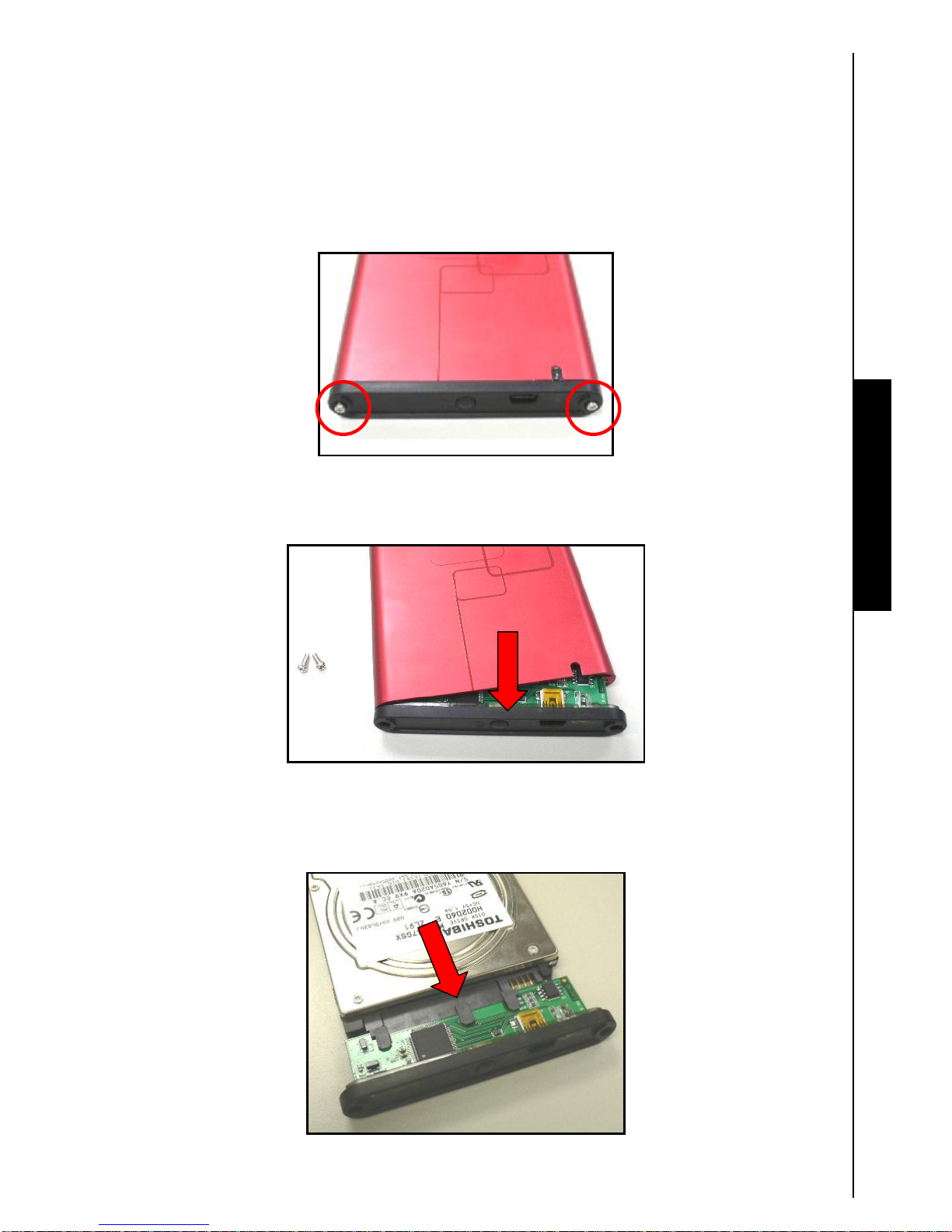

Figure2. Removethescrewsfromthetopcover

2. Removethe coverrevealingacontrolboardadapter; thisconvertsthe IDE/SATAinterface connector

ofthe harddrivetoaMiniUSB 2.0interface.Slide outthecontrolboard.

Figure3. Removethetopcover revealing the IDE/SATAadapter

3. Carefullyline up and plug inthe IDE/SATAconnectoron the controlboardtothe harddrive.Do NOT

forcethe IDE/SATAconnectorintotheharddriveand do NOT insert the connectoratan angle,

otherwise you maydamageit.

Figure4. Connect theharddrivetothe IDE/SATAadapter

Installing a Hard Drive

4. CarefullyreinserttheIDE/SATAadapter anditsconnected 2.5”harddriveintothe StoreJet 2.5 and

reattach the screwstothetopcover.

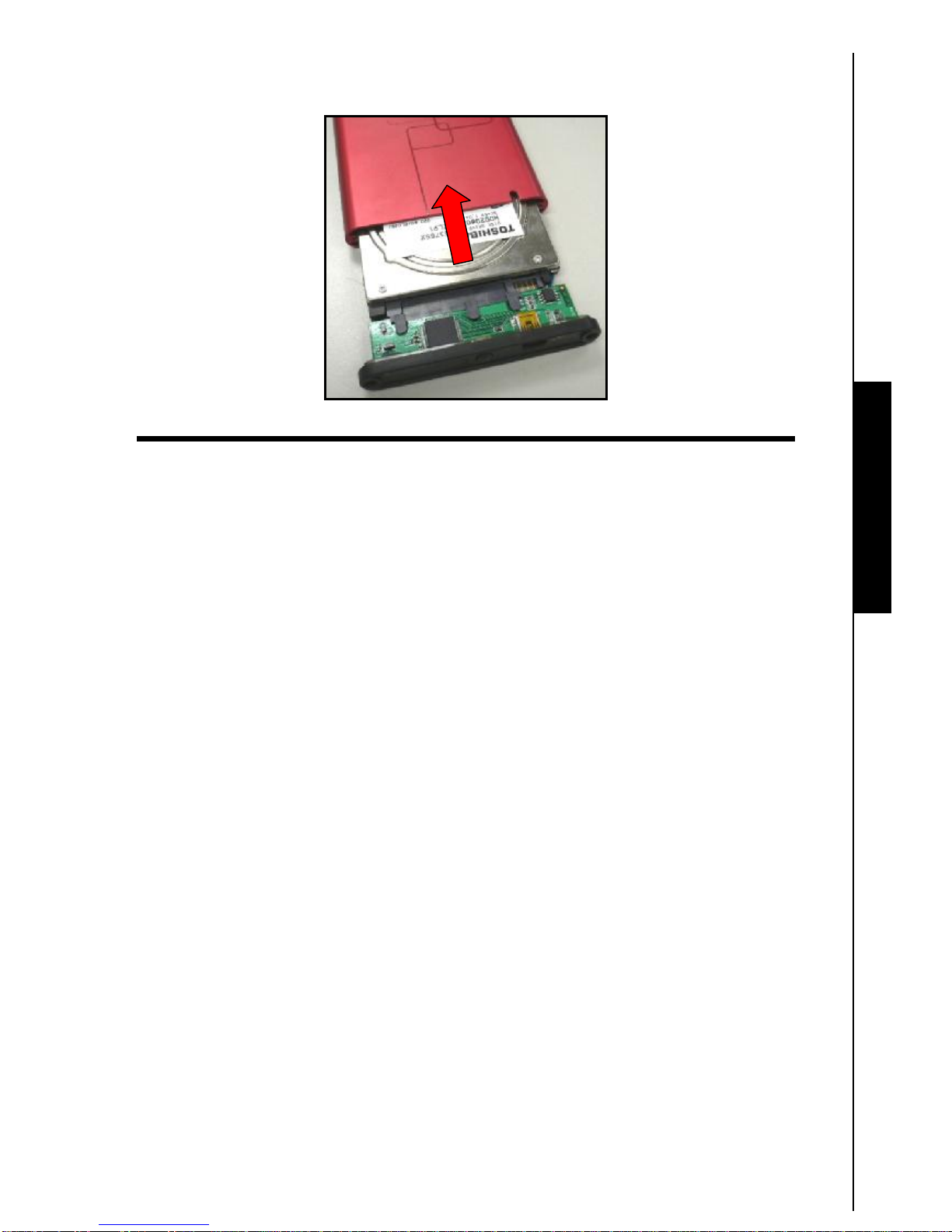

Figure5. Reinsert theadapterplusdriveand reattachthe screws

Installing a Hard Drive

DriverInstallation

DriverInstallation for Windows2000, XPand Vista

Nodriversarerequired.These Windows®OperatingSystemshavebuilt-indriverstosupportthe

StoreJet 2.5.Plugyour StoreJet intoan availableUSB portandWindowswill install the necessary

files.Anew LocalDisk drivewithanewlyassigned driveletterrepresentingthe StoreJet 2.5 will

appear inthe MyComputer window.

DriverInstallation forMac OS9.0,or Later

Nodriversarerequired.Plugyour StoreJet 2.5 intoan availableUSBportand yourcomputerwill

automaticallydetect it.

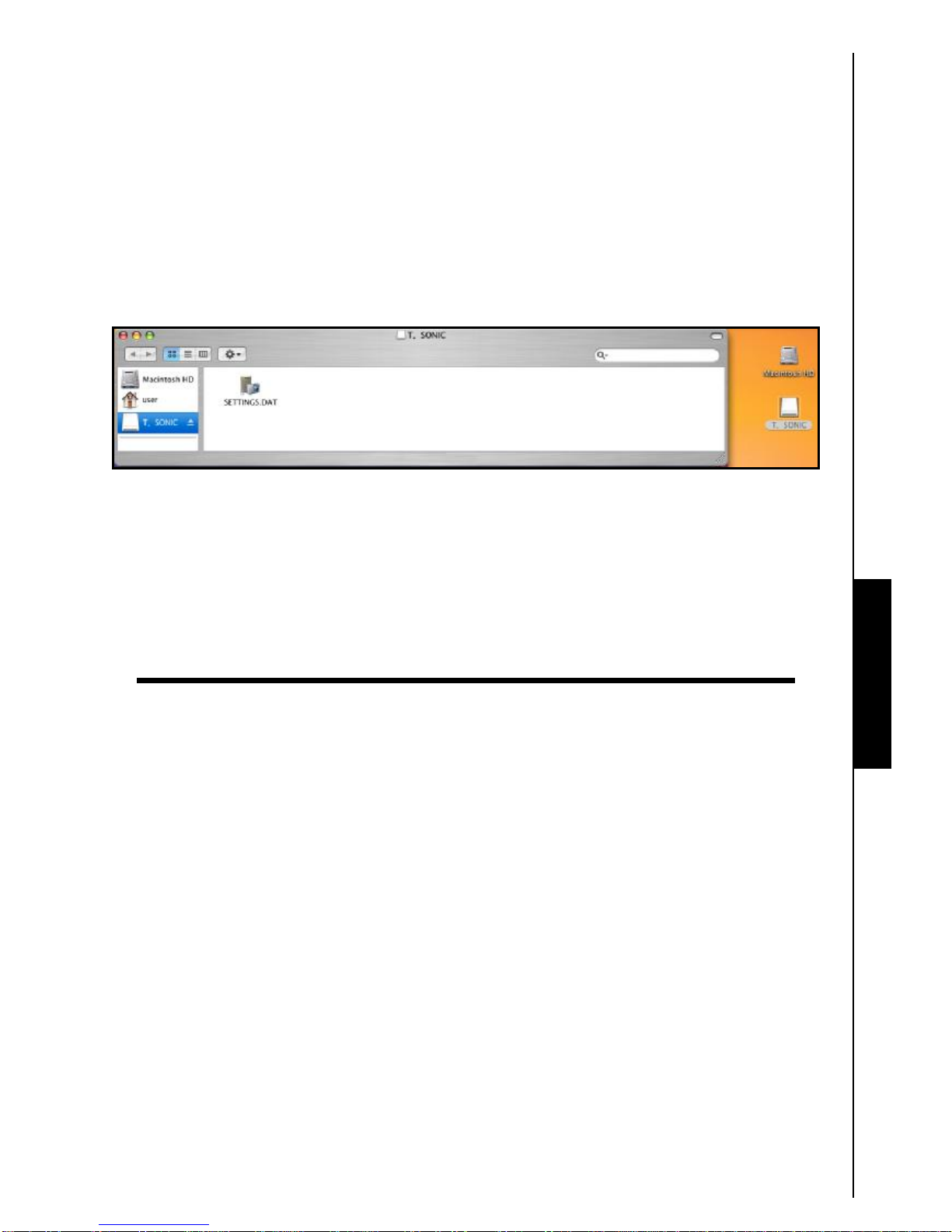

Figure6. MacDriver Installation

DriverInstallation for Linux Kernel 2.4,or Later

Nodriversarerequired. Plugyour StoreJet 2.5 intoaUSB portand mount it.

1. First createadirectoryforthe StoreJet 2.5.

Example: mkdir/mnt/Storejet

2. Then,mountthe StoreJet 2.5.

Example: mount –a –tmsdos/dev/sda1 /mnt/Storejet

Driver Installation
