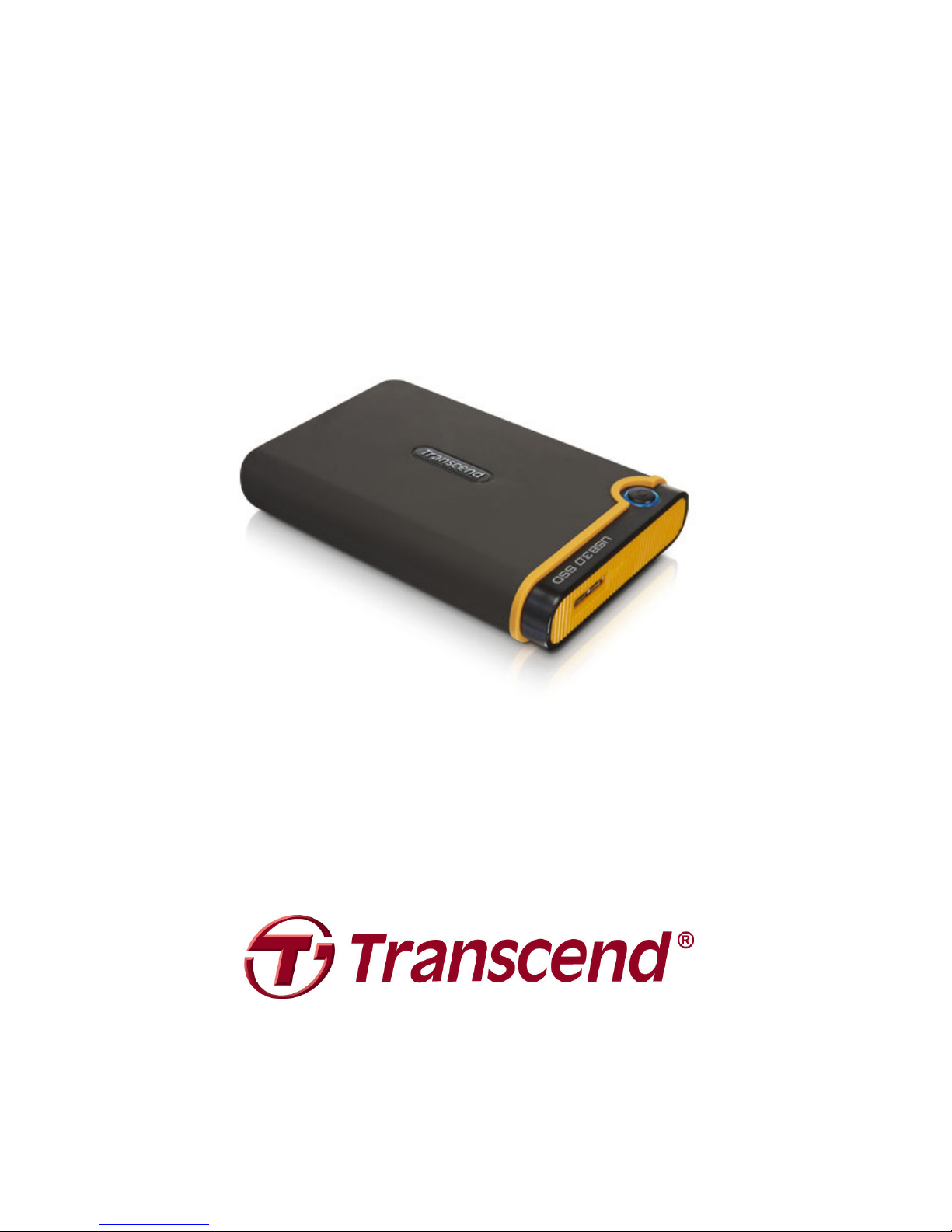

Transcend SSD18C3 Bedienungsanleitung

User’s Manual

USB 3.0 Portable Solid State Drive

SSD18C3

(Version 1.0)

Table of Contents

Introduction..........................................................................................1

Package Contents................................................................................1

Features................................................................................................2

System Requirements .........................................................................2

Safety Precautions ..............................................................................3

General Use................................................................................................................... 3

Backing up Data............................................................................................................ 3

Transporting.................................................................................................................. 3

Power............................................................................................................................. 3

Reminders ..................................................................................................................... 4

Product Overview ................................................................................5

Connecting to a Computer..................................................................6

One Touch Backup..............................................................................9

Turbo Mode ..........................................................................................9

Disconnecting from a Computer......................................................10

Windows







.................................................................................................................... 10

Mac

OS....................................................................................................................... 10

Linux

.......................................................................................................................... 11

Formatting the Solid State Drive......................................................11

Windows

XP/7/Vista .................................................................................................. 11

Mac

OS....................................................................................................................... 12

Linux

.......................................................................................................................... 14

Troubleshooting ................................................................................15

Specifications ....................................................................................17

Three-year Limited Warranty............................................................18

Introduction

Congratulations on purchasing Transcend’s SSD18C3.This rugged, ultra-fast portable USB

storage device is the perfect data management system for uploading, downloading, storing and

transferring your data. With its shock-resistant design, huge storage capacity and real-world

transfer speeds up to 10X faster than USB 2.0 (in USB 3.0 mode), the compact SSD18C3 is ideal

for carrying your files, folders, documents, photos, music and videos. In addition, the SSD18C3

comes with very useful software* that can turbo-charge file transfers and increase your mobile

productivity. This User’s Manual is designed to help you get the most from your new device.

Please read it in detail before using the SSD18C3.

*The SSD18C3 comes bundled with Backup Manager, which enables the SSD’s One Touch backup function and also

includes a USB device driver that enhances file transfer speeds by up to 30%. A free download of Transcend’s JetFlash

Elite data-management software is also included (www.transcend.com.tw/downloads).

Package Contents

The SSD18C3 package includes the following items:

USB 3.0 Portable Solid State Drive

USB 3.0 Cable

Quick Start Guide

Warranty Card

Features

SuperSpeed USB 3.0 and USB 2.0 connection options

Faster and more durable than USB 2.0 portable hard drives

Shock/slip-resistant silicone outer shell

Connection bandwidth up to 5Gbits per second

Up to 30% quicker file transfers with optional driver installation

Extra-large storage capacity

Sleek ultra portable design

USB powered – no external adapter necessary

One Touch Auto-Backup button

Dual-color LED indicator (power, data transfer, & USB 2.0/3.0 connection type)

Includes a free download of JetFlash Elite

System Requirements

Desktop or notebook computer with a working USB port.

One of following Operating Systems:

•

Windows



•

Windows



Vista (32bit or 64 bit, latest Service Packs recommended)

•

Windows



7 (32bit or 64 bit, latest Service Packs recommended)

•

Linux



Kernel 2.6.31 or later

•

Mac



OS X 10.4 or later (only USB 2.0 currently supported)

Safety Precautions

These usage and safety guidelines are IMPORTANT! Please follow them carefully.

General Use

•

Carefully unpack the contents of the SSD18C3 package.

•

During operation, avoid exposing your SSD18C3 to extreme temperatures above 70℃,

or below 0℃.

•

Do not drop your SSD18C3.

•

Do not allow your SSD18C3 to come in contact with water or any other liquids.

•

Do not use a damp/wet cloth to wipe or clean the exterior case.

oDo not store your SSD18C3 in any of the following environments: Direct

sunlight

oNext to an air conditioner, electric heater or other heat sources

oIn a closed car that is in direct sunlight

oIn an area with strong magnetic fields or excessive vibration

•

If your Windows computer will not boot while the SSD18C3 is connected, please

disconnect the SSD18C3 to your computer first and connect the SSD18C3 after starting

Windows. Otherwise, refer to your computer's manual and change the BIOS settings to

instruct the computer to boot from a different device.

Backing up Data

•

Transcend does NOT take any responsibility for data loss, or damage during

operation. If you decide to store data on your SSD18C3 we strongly advise that you

regularly backup the data to a computer, or other storage medium.

•

To ensure Super-Speed USB 3.0 data transfer rates when using your SSD18C3, please

make sure that your computer has the relevant drivers and hardware to support USB 3.0.

If you are unsure about how to check this, please consult the user’s manual of your

computer, motherboard, or USB 3.0 interface card for USB 3.0 driver information.

Transporting

•

Do not pack the SSD18C3 into luggage without proper padded support. Other items in

your luggage may damage the SSD during travel if it does not have proper protection.

•

Avoid squeezing or compressing the SSD18C3.

•

Do not place objects on top of your SSD18C3.

Power

•

The SSD18C3 gets its power directly from your computer’s USB port. However, the

power supplied by the USB ports on some older computers does not meet the stable 5V

DC power requirements of the SSD18C3. If your SSD18C3 does not function properly

upon connecting it to your computer, please plug BOTH ENDS of the USB 3.0 Y-cable

into your computer.

Both ends of the USB 3.0 Y-cable should be

connected to provide ample power to the

SSD18C3

•

Use only the USB 3.0 Y-cable that came with the SSD18C3 to connect it to a computer,

and always ensure that the cable you are using is in good condition. NEVER use a cable

that is frayed or damaged.

•

Ensure nothing is resting on the USB cable and that the cable is not located where it can

be tripped over or stepped on.

Reminders

Always follow the procedures in the “Disconnecting from a Computer” section to remove the

SSD18C3 from your computer.

Product Overview

Micro USB 3.0 Port

One Touch Auto-Backup Button

Connecting to a Computer

The SSD18C3 can be connected to your computer using either USB 2.0 or USB 3.0. To get the

best performance results from your SSD, we recommend using the USB 3.0 interface (currently not

supported on Mac computers).

Plug the micro USB end (1) of the USB cable into the SSD.

Plug BOTH large ends (2) and (3) of the USB cable into an available USB 2.0 or USB 3.0 port

on your desktop or notebook computer.

NOTE:Always plug both large ends of the Y-cable into your computer. If only one

USB port is available, please connect the data transfer end (2) of the Y-cable

(compatibility not guaranteed).

When the SSD18C3 is successfully connected to a computer, its LED will light up (USB2.0 and

USB 3.0 have different colors of illumination to indicate connection type). In Windows, a new

Local Disk drive with a newly-assigned drive letter will appear, and a Removable Hardware

Power

Connector

Micro USB 3.0

Connector

USB 2.0 / 3.0

Connector

USB 3.0 Cable

SSD18C3 Micro USB port USB 2.0 Port USB 3.0 Port

icon will appear on the Windows System Tray. The SSD18C3 comes pre-formatted to

FAT32, which is compatible with most computer systems, including Windows, Mac, Linux, and

more.

•Computers running Windows and Mac OS will automatically detect and install the SSD18C3. To use

USB 3.0, please ensure your computer has all necessary USB 3.0 drivers installed, and make sure you

plug the USB Cable into the correct port on your computer (USB 3.0 ports are usually color-coded to

differentiate them from USB 2.0)

•

Linux users may have to configure the SSD18C3 manually. To do this, first create a directory for the

SSD18C3 (Example: mkdir /mnt/usbdrive). Then, mount the SSD18C3 (Example: mount –a –t msdos

/dev/sda1 /mnt/usbdrive)

Note: (D:) and (G:) above are example drive letters; the letter in your "My Computer" window may differ

Note: “New Volume” is an example drive. The drive name on your Mac computer may differ

Once connected, you can use the SSD18C3 as an external hard drive to transfer data to and

from your computer. Simply drag and drop files or folders onto the Local Disk,Volume,or

drive letter that represents the SSD18C3.
