StoreJet™3.5

User’s Manual

(Version 1.0)

Table of Contents

Introduction ............................................................................................................................3

Package Contents..............................................................................................................................3

Features.............................................................................................................................................4

System Requirements........................................................................................................................4

Safety Precautions .................................................................................................................5

General Use.......................................................................................................................................5

Backing Up Data ................................................................................................................................5

Transporting.......................................................................................................................................5

Power.................................................................................................................................................5

Reminders..........................................................................................................................................5

Product Overview...................................................................................................................6

Installing a Hard Drive............................................................................................................7

Driver Installation .................................................................................................................10

Driver Installation for Windows®2000, XP and VISTA ....................................................................10

Driver Installation for Mac™OS 9.0, or Later ...................................................................................10

Driver Installation for Linux™Kernel 2.4, or Later ............................................................................10

Connecting to a Computer ..................................................................................................11

Disconnecting from a Computer.........................................................................................13

Removing the StoreJet™3.5 in Windows®2000, XP and VISTA.....................................................13

Removing the StoreJet™3.5 in Mac™OS 9.0, or Later....................................................................13

Removing the StoreJet™3.5 in Linux™Kernel 2.4, or Later.............................................................13

Formatting the Hard Drive ...................................................................................................14

Troubleshooting ...................................................................................................................16

StoreJet™3.5 series .............................................................................................................17

Transcend Limited Warranty ...............................................................................................18

Introduction

Congratulations on purchasing Transcend’s StoreJet™3.5.This portable, Hi-Speed USB storage device

is the perfect data management system for uploading, downloading, storing, transferring and backing up

your vital data and information. With a huge storage capacity and Hi-Speed USB 2.0 data transfer rates,

the StoreJet™3.5 is ideal for storing and transferring your files, folders, documents, photos, music and

e-work between it and any desktop, or notebook computer. In addition, the StoreJet™3.5 comes with a

very useful software (please see the Software User’s Manual for detailed instructions) pack that can (used

in Windows®) increase your productivity. The User’s Manual and accompanying Software User’s Guide

are written to help you get the most from your new device, please read both in detail before using the

StoreJet™3.5.

Package Contents

The StoreJet™3.5 package includes the following items:

zStoreJet™3.5

zCD

zUSB B-Type to USB A-Type cable

zPower Adapter

zPower Cable

zVertical stand

Introduction

zQuick Instruction Guide

zScrews x 4

Features

zHi-Speed USB 2.0 compliant and USB 1.1 backwards compatible

zEasy Plug and Play installation

zHi-Speed data transfer rates up to 480Mbits (60MB) per second

zAluminum case

zLED indicates Power On and data transfer activity

zAdditional StoreJet Software pack: StoreJet™elite (helps you manage your data)

System Requirements

Desktop or notebook computer with a working USB port.

One of following Operating Systems (OS):

zWindows®2000

zWindows®XP

zWindows®VISTA

zMac™OS 9.0, or later

zLinux™Kernel 2.4, or later

Introduction

Safety Precautions

These usage and safety guidelines are IMPORTANT! Please follow them carefully.

Your StoreJet™3.5 is connected to a computer using a USB B-Type (on the StoreJet™) to

USB A-Type (on a Desktop/Notebook) cable. Please ensure that you connect the cable

ends to the ports correctly.

General Use

zCarefully unpack the contents of the StoreJet™package.

zDuring operation avoid exposing your StoreJet™to temperature extremes above 60℃, or below 5℃.

zDo not drop your StoreJet™.

zDo not allow your StoreJet™to become damp or wet from water or any other liquids.

zDo not use a damp/wet cloth to wipe or clean the exterior case.

zDo not use or store your StoreJet™in any of the listed environments:

oDirect sunlight

oNext to an air conditioner, electric heater or other heat sources

oIn a closed car that is in direct sunlight

Backing Up Data

zTranscend does NOT take any responsibility for data loss, or damage during operation. If you

decide to store data on your StoreJet™we strongly advise that you regularly backup the data to a

computer, or other storage medium.

zTo ensure High-Speed USB 2.0 data transfer rates when using your StoreJet™3.5 with a computer,

please check the computer has the relevant USB drivers. If you are unsure on how to check this,

please consult the computer or motherboard User’s Manual for USB driver information.

zThe StoreJet™3.5’s internal hard drive comes formatted for NTFS. If you want to backup a Mac

computer you will need to format the drive for HFS+ using the Mac Disk Utility.

Transporting

zDo not pack your StoreJet™3.5 into luggage without the proper padded support. Other items in the

luggage may damage your StoreJet™3.5 without the proper protection.

zAvoid squeezing your StoreJet™3.5 to prevent damage to the internal HDD.

zAvoid placing objects onto your StoreJet™3.5 to prevent damaging it.

Power

zThe StoreJet™3.5 is powered from the mains using the Power Adapter.

zEnsure nothing is resting on the Power cables and that the cables are not located where they can be

tripped over or stepped on.

Reminders

Always follow the procedures in the “Disconnecting from a Computer” section to remove your

StoreJet™from a computer.

SafetySafety

Product Overview

Figure 1. StoreJet 3.5

Screws x 2

Power ON/OFF Switch

Power Jack

LED

USB B-Type Port

Product Overview

Installing a Hard Drive

Your StoreJet™3.5 HDD Enclosure is capable of supporting an IDE, or a SATA Hard Disk

Drive. It is IMPORTANT! that you match and install the correct Hard Drive to the correct

enclosure.

Installing a Hard Drive

If you purchased a Transcend StoreJet™3.5 HDD Enclosure that does not have a Hard Disk Drive

already installed, please read this section, otherwise you can skip to the “Driver Installation” section. Your

Transcend StoreJet™3.5 HDD Enclosure is capable of supporting an IDE, or a SATA Hard Drive, it is

important that you match and install the correct hard drive to the correct enclosure. You can identify the

type of enclosure by its part number. Enclosures with the Transcend part number TS0GSJ35-S support

SATA Drives, while enclosures with the part number TS0GSJ35 support IDE Drives.

1. Open the StoreJet™3.5 by removing the two screws from either side of the top cover, as indicated in

the diagram.

Figure 2. Remove the screws from the top cover

2. Remove the cover revealing a control board adapter; this converts the IDE, or SATA interface

connector of the hard drive to a USB 2.0 B-Type interface. Slide out the control board.

Figure 3. Remove the top cover revealing the IDE/SATA adapter

Installing a Hard Drive

3. IDE Connection: Carefully line up and plug in the IDE connector on the control board to the hard

drive. Do NOT force the IDE connector into the hard drive and do NOT insert the connector at an

angle, otherwise you may damage it. After you have connected the control board, attach the power

cable to the IDE hard drive.

Figure 4. Connect the IDE control board and power cable to the IDE hard drive

4. SATA Connection: Carefully line up and plug in the SATA connector on the control board to the hard

drive. Do NOT force the SATA connector into the hard drive and do NOT insert the connector at an

angle, otherwise you may damage it.

Figure 5. Connect the SATA hard drive to the SATA adapter

5. Using the screws that are provided, secure the hard drive to the control board’s plastic panel; this will

allow you to slide the hard drive into the StoreJet™3.5 more easily.

Figure 6. Secure the hard drive to the panel using the provided screws

Installing a Hard Drive

6. Carefully reinsert the IDE/SATA adapter and its connected 3.5” hard drive into the StoreJet™3.5 and

reattach the screws to the top cover.

Figure 7. Reinsert the IDE/SATA adapter plus drive and reattach the screws

Installing a Hard Drive

Driver Installation

Driver Installation for Windows®2000, XP and VISTA

No drivers are required. These Windows®Operating Systems have built-in drivers to support the

StoreJet™3.5. Plug your StoreJet™into an available USB port. Connect the Power Adapter to the

StoreJet™3.5 enclosure’s power jack and connect the power cable to the adapter, then turn on the unit’s

power switch. Windows will install the necessary files and a new Local Disk drive with a newly assigned

drive letter representing the StoreJet™3.5 will appear in the My Computer window.

Driver Installation for Mac™OS 9.0, or Later

No drivers are required. Plug your StoreJet™3.5 into an available USB port. Connect the Power Adapter

to the StoreJet™3.5 enclosure’s power jack and connect the power cable to the adapter, then turn on the

unit’s power switch and your computer will automatically detect it.

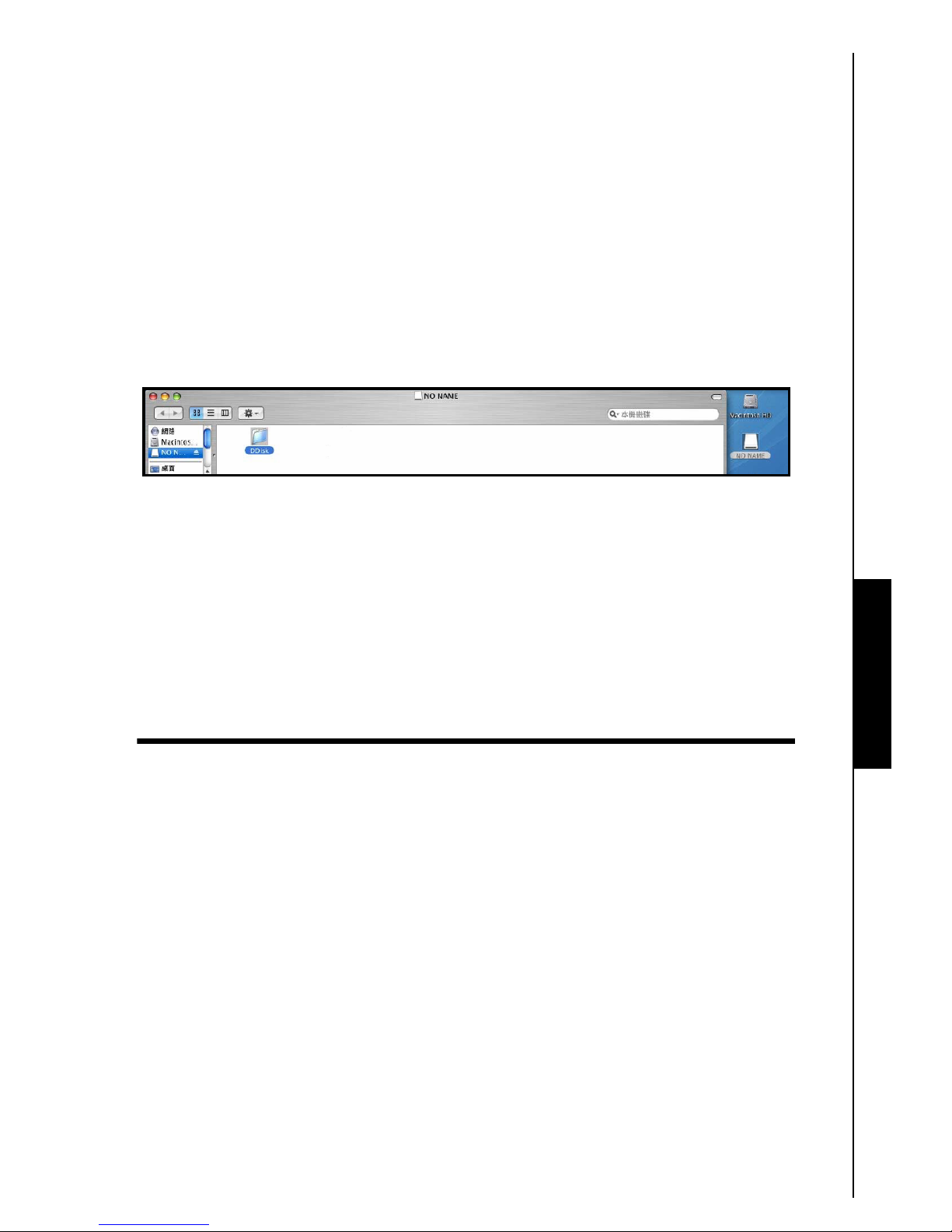

Figure 8. Mac Driver Installation

Driver Installation for Linux™Kernel 2.4, or Later

No drivers are required. Plug your StoreJet™3.5 into a USB port. Connect the Power Adapter to the

StoreJet™3.5 enclosure’s power jack and connect the power cable to the adapter, then turn on the unit’s

power switch and mount it.

1. First create a directory for the StoreJet™3.5.

Example: mkdir /mnt/Storejet

2. Then, mount the StoreJet™3.5.

Example: mount –a –t msdos /dev/sda1 /mnt/Storejet

Driver InstallationDriver Installation
