TRANWO Technology TTA-20T Bedienungsanleitung
User’s Manual
ContentsContents
ContentsContents
Contents
What You Get ............................................................................................................................................1
Product Layout ..........................................................................................................................................3
Setting Up-Transmitter .............................................................................................................................5
Setting Up-Receiver ..................................................................................................................................9
Setting Up-Remote Control Feature .................................................................................................... 11
Setting Up-Other Applications ............................................................................................................. 13
Orienting Units for Optimal Performance ........................................................................................... 15
Auto-Sequence Function for Multiple Location Monitoring ............................................................ 16
Troubleshooting ...................................................................................................................................... 18
Care and Maintenance ........................................................................................................................... 19
Specifications........................................................................................................................................... 20
Declaration of Conformity .................................................................................................................... 20
FCC Statement ...................................................................................................................................... 20
What YWhat Y
What YWhat Y
What You Getou Get
ou Getou Get
ou Get

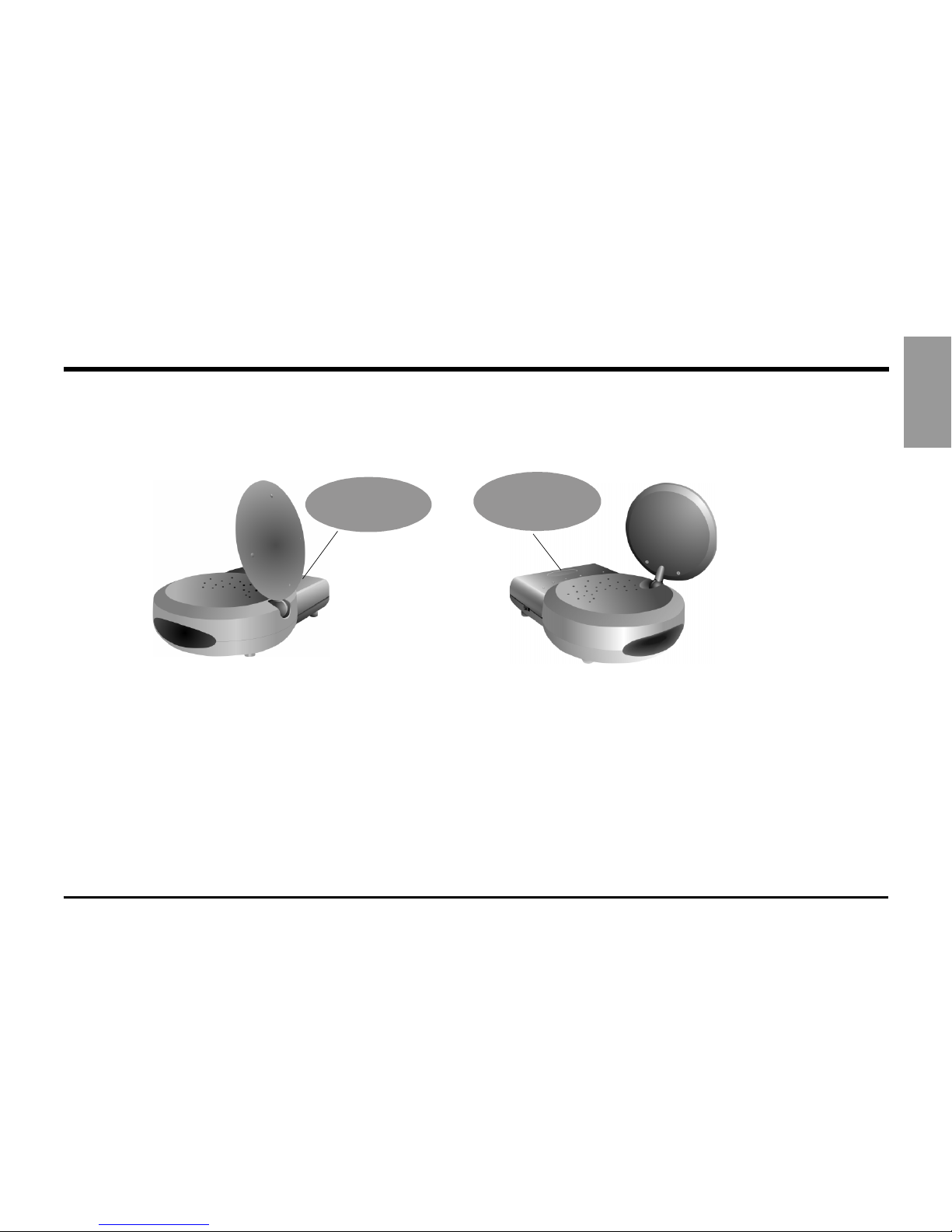

The transmitter and receiver look virtually alike. You can find Transmitter and Receiver on the
nameplate of each unit.
•One Transmitter
•One Receiver
•One Infrared (IR) Emitter
•Two Audio/Video Cables (RCA to RCA cables for NTSC or RCA to Scart cables for PAL)
•Two Power Adapters
•Fastener Strip (for fixing the IR Emitter)
•One Quick Installation Guide
•This User's Manual
Transmitter
1
English
Receiver
Product LayoutProduct Layout
Product LayoutProduct Layout
Product Layout

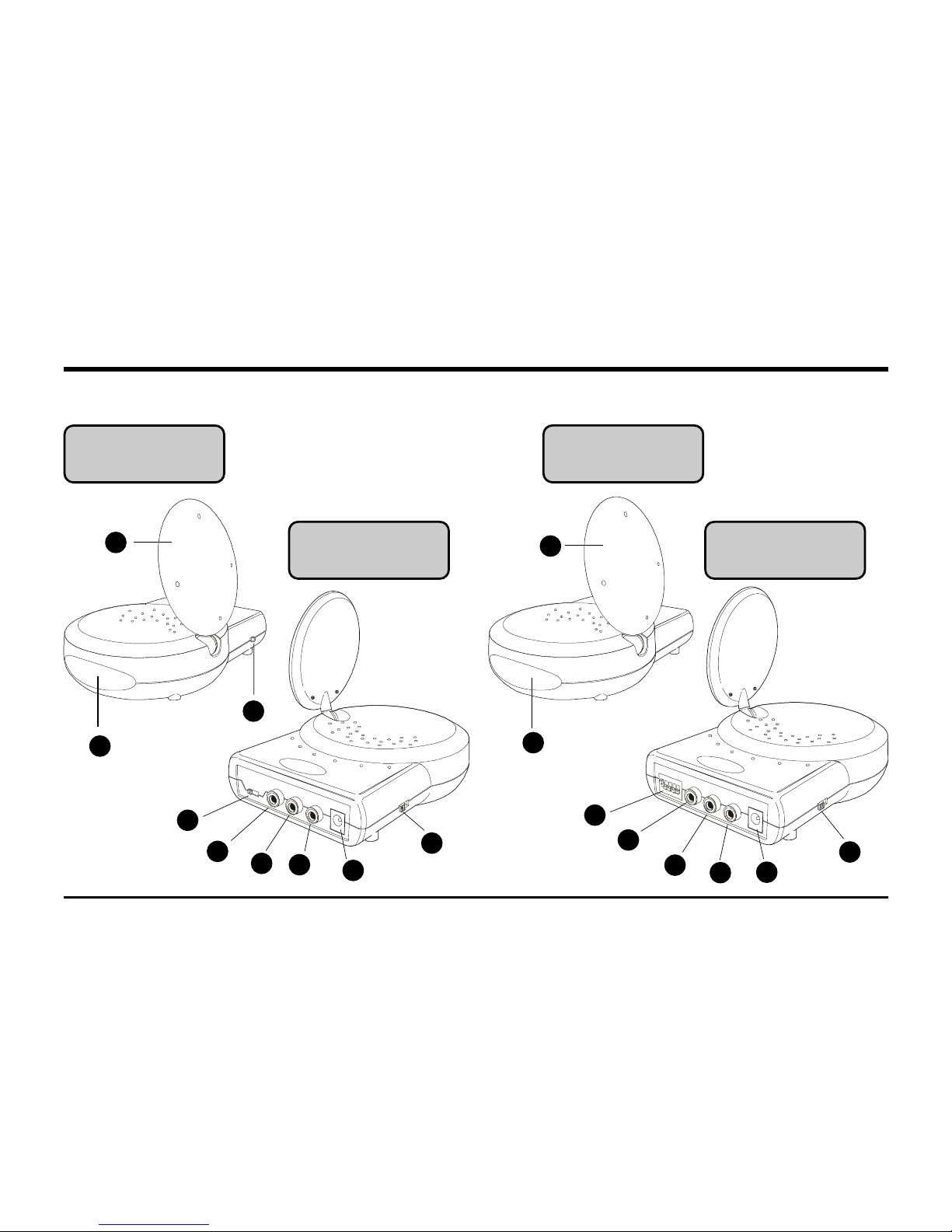

Front View of Transmitter/ReceiverFront View of Transmitter/Receiver
Front View of Transmitter/ReceiverFront View of Transmitter/Receiver
Front View of Transmitter/Receiver
2
2
Front View of
Transmitter
Rear View of
Transmitter
Front View of
Receiver
Rear View of
Receiver
3
4
5678
9
10
5
678
9
11
2
Product LayoutProduct Layout
Product LayoutProduct Layout
Product Layout
3
Power Indicator LED
The LED should be lit when the ON/OFF switch is in the ON position..
2.4GHz Audio/Video Antenna (Front )
Transmits and receives Audio/Video signals. Caution: Antenna does not rotate freely 360 degrees. (See
"Orienting Units for Optimal Performance", on page 15)
IR Emitter Port

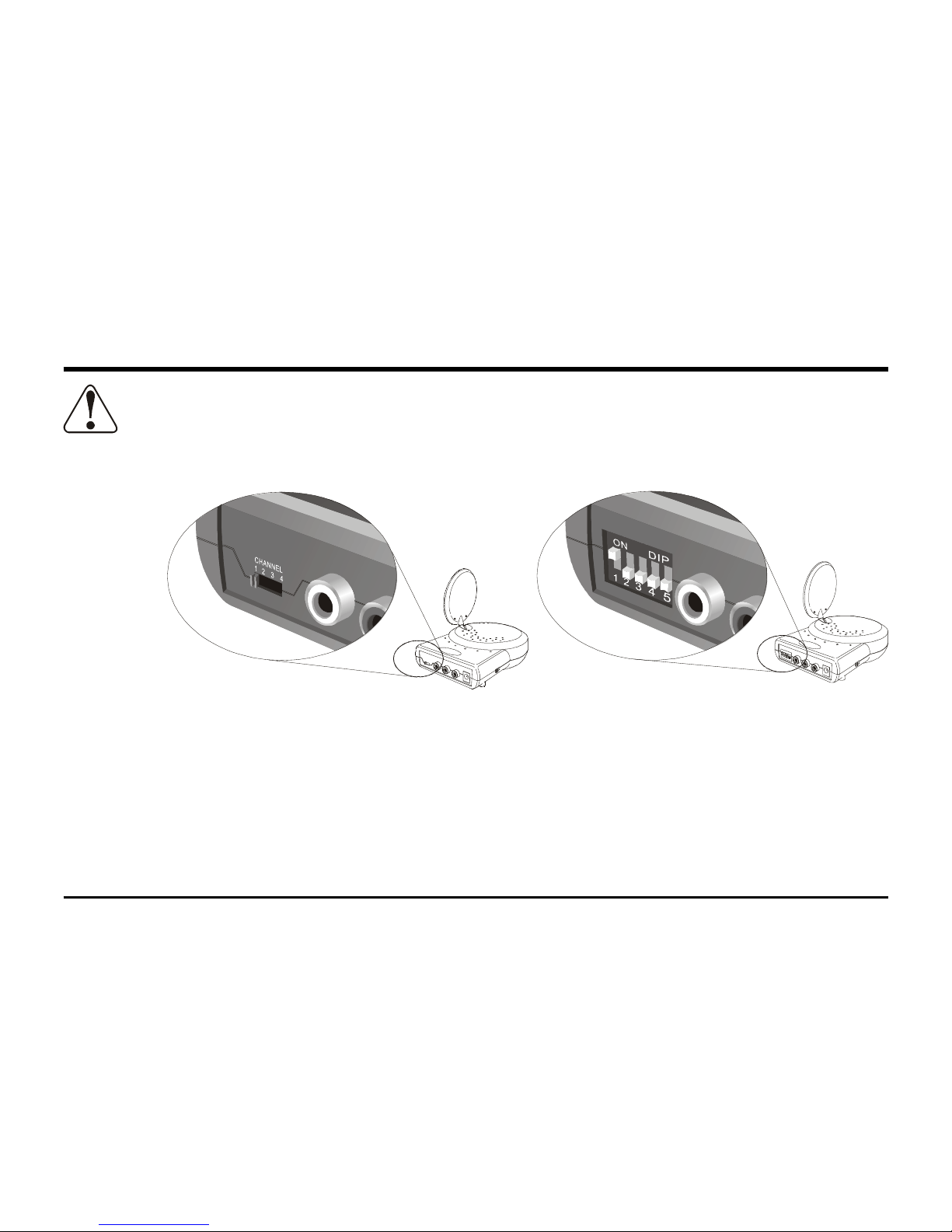

Channel Selection Switch
Select the channel by sliding the slide switch to the channel number you want.
Must select the same channel both on transmitter and receiver.
Left Audio Jack (White)
Right Audio Jack (Red)
Video Jack (Yellow)
9V Power Adapter Plug
ON/OFF Switch
Channel Selection Dipswitches
Select the channel by setting the channel dipswitch to the ON position. The number 5 dipswitch
sets the timer for the auto-sequence function (see "Auto-Sequence Function for Multiple Location
Monitoring", on page 16).
Must select the same channel both on transmitter and receiver.
1
2
3
4
5
6
7
8
9
10
Setting UpSetting Up
Setting UpSetting Up
Setting Up
Before you make the connection:
•Always make sure the unit ON/OFF switch is in the OFF position.
•Set the channel switches on the back of the transmitter and receiver to the same channel.
•Depending on the type of TV you own and the component audio/video system (VCR,
DVD player, satellite receiver, LD player etc.), connection methods will be different. We
recommend you refer to the connected audio/video component's user's manual for details,
then make connections according to the following steps.
Transmitter Receiver
4
Setting Up-Setting Up-
Setting Up-Setting Up-
Setting Up-TransmitterTransmitter
TransmitterTransmitter
Transmitter
Connecting the Transmitter to an Audio/Video ComponentConnecting the Transmitter to an Audio/Video Component
Connecting the Transmitter to an Audio/Video ComponentConnecting the Transmitter to an Audio/Video Component
Connecting the Transmitter to an Audio/Video Component
Connect one set of audio/video cables to the audio/video jacks of the transmitter,
matching the plug colors with the jacks on the transmitter.
1
Connect the other end of the cable to the audio/video jacks on the audio/video component
labeled LINE OUT, matching the plug colors with the jacks on the audio/video component.
Some connection scenarios are shown on the next page.

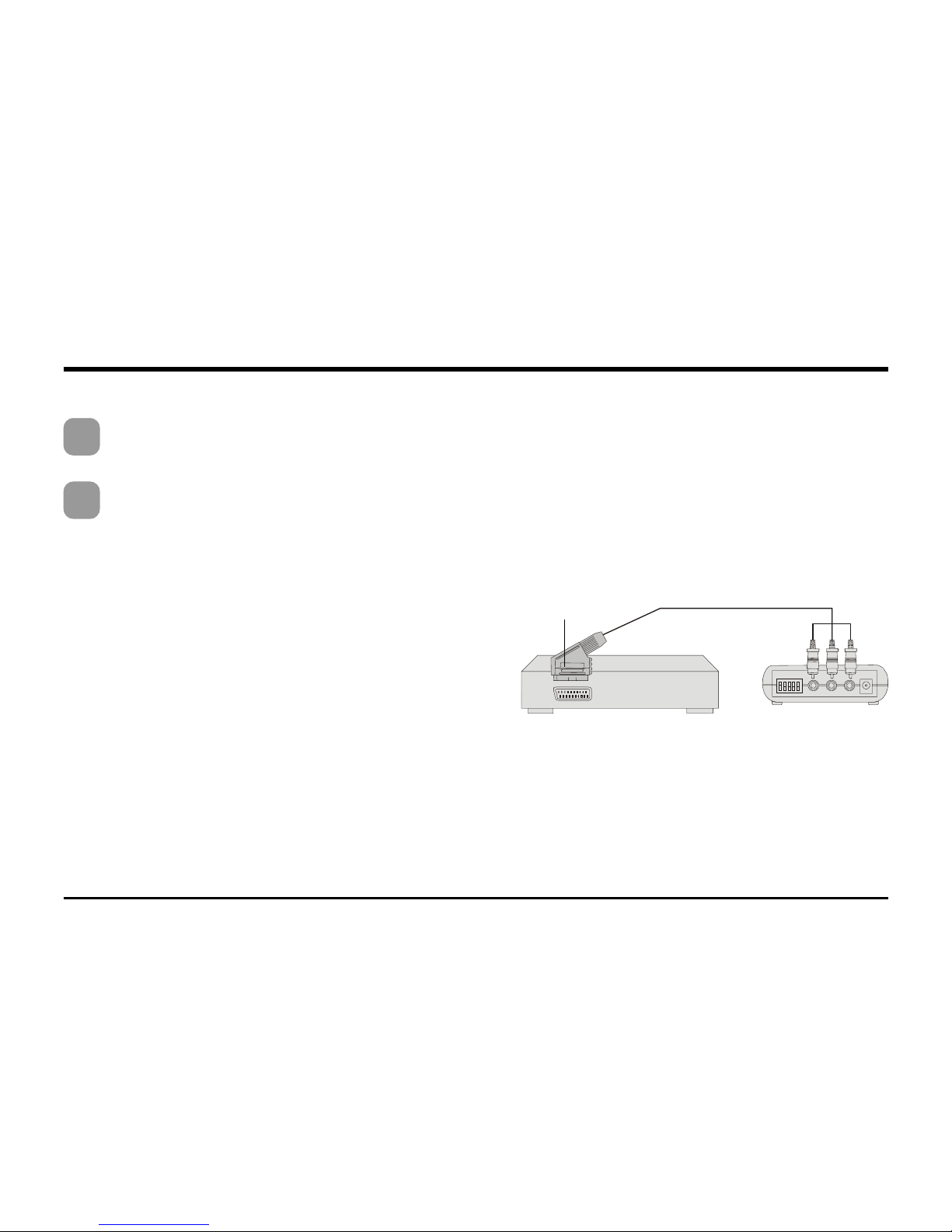

Note: For PAL systems, the connector on the
audio/video component is a Scart socket.
Connect the Scart connector labeled
TRANSMITTER to the Scart socket labeled
OUT on the audio/video component; connect
the RCA connector to the transmitter.
Transmitter
Audio/Video Component
RCA to Scart Cable
Transmitter
2
5
Setting Up-Setting Up-
Setting Up-Setting Up-
Setting Up-TransmitterTransmitter
TransmitterTransmitter
Transmitter

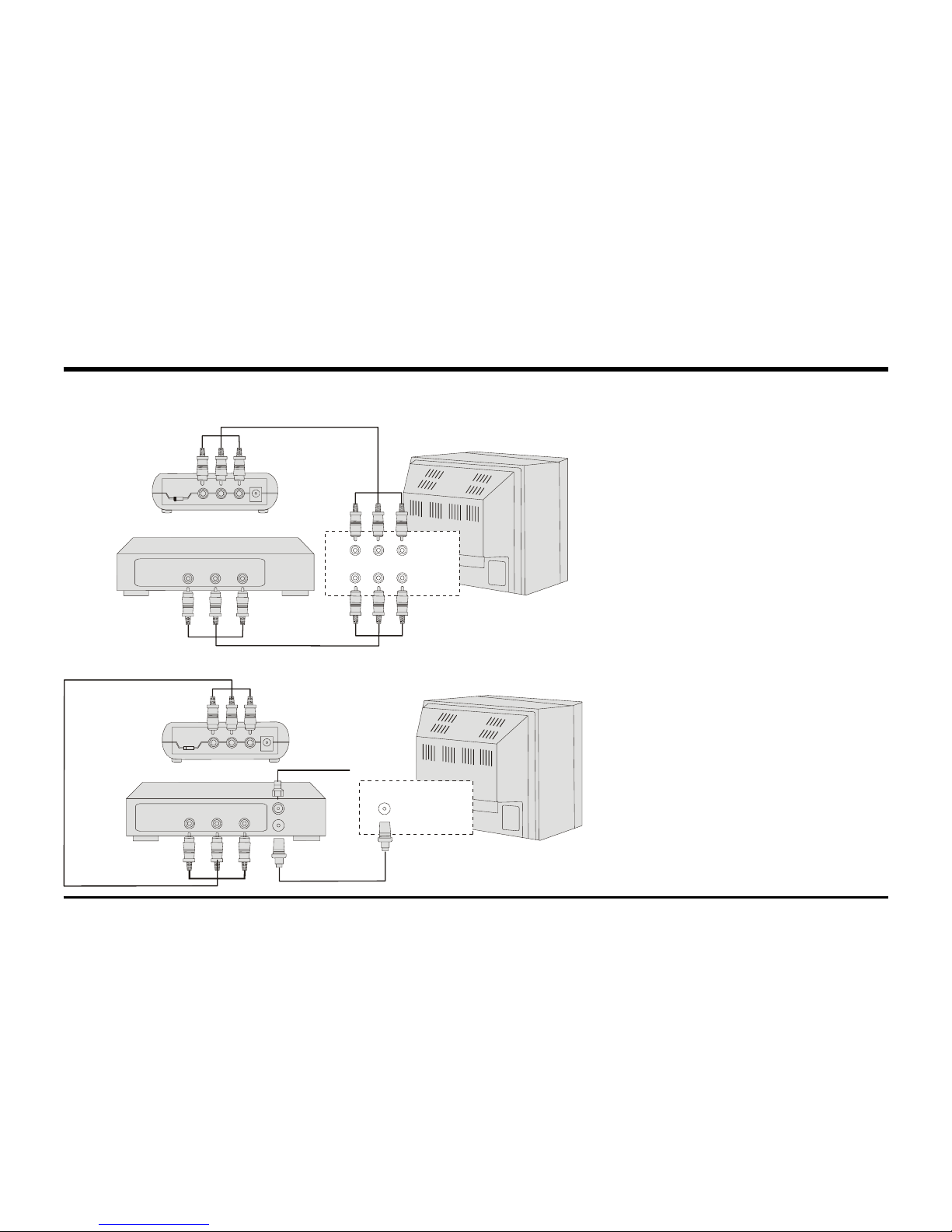

Connecting to a TV with Audio/Video Out Jacks
Connecting to a TV without Audio/Video Out Jacks
Note:
If the audio/video
component has only one
output for audio (mono
sound only), connect the
white plug to that single
audio output and to the
transmitter's AUDIO
LEFT jack.
If the jacks on the audio/
video component are
colored differently,
connect the yellow plug to
the jack labeled VIDEO,
the red plug to the jack
labeled AUDIO RIGHT,
and the white plug to the
jacklabeledAUDIOLEFT.
Transmitter
Audio/Video
Componet
OUT VIDEO AUDIO VIDEO AUDIO IN
OUT
TV
TV
Transmitter
Audio/Video
Componet
OUT VIDEO AUDIO VHF/UHF
ANT. IN
RF OUT
6
Setting Up-Setting Up-
Setting Up-Setting Up-
Setting Up-TransmitterTransmitter
TransmitterTransmitter
Transmitter

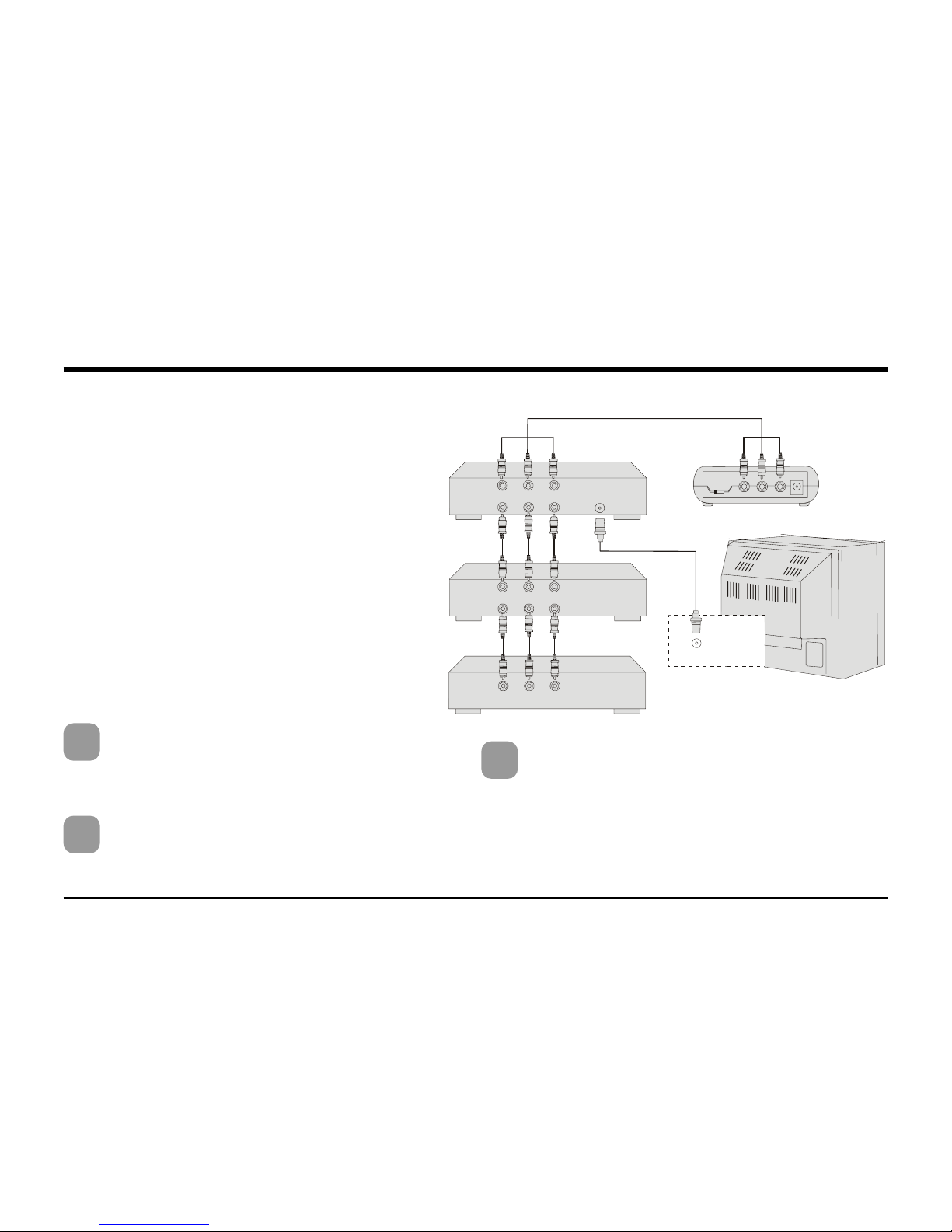

Connecting to Multiple Audio/Video Components
To use the Wireless Audio/Video Sender for
two or more audio/vidoe component, first
identify the last component in the chain and
connect its LINE OUT jacks to the
transmitter.
If the final component of the chain does not
have spare LINE OUT jacks, use coaxial cable
to connect the VHF/UHF jacks on the TV
and the last component. Then connect the
transmitter to the last compontnt's LINE
OUT jacks.
Audio/Video
Componet
Audio/Video
Componet
Audio/Video
Componet
TV
VHF/UHF
Transmitter
RF OUT
VIDEO AUDIO
IN
OUT
VIDEO AUDIO
IN
OUT
VIDEO AUDIO
OUT
Plug one end of the provided power
adapter into a wall outlet and the other
end into the rear of the transmitter.
Turn the ON/OFF switch to the ON positon.
The LED on the front of the unit should light.
Place the transmitter in a convenient
location, then adjust its antenna so that the
front (curved face) faces the room where
the receiver is set up. See "Orienting Units
for Optimal Performance", on page 15).
3
4
5
7
Setting Up-ReceiverSetting Up-Receiver
Setting Up-ReceiverSetting Up-Receiver
Setting Up-Receiver
Connect one set of audio/video cables to the audio/video jacks of the receiver, matching the
plug colors with the jacks on the receiver.
Connect the other end of the cable to the audio/video jacks on the TV labeled LINE IN,
matching the plug colors with the jacks on the TV. Some connection scenarios are shown on
the next page.
11
11
1
2
Connecting the Receiver to a TVConnecting the Receiver to a TV
Connecting the Receiver to a TVConnecting the Receiver to a TV
Connecting the Receiver to a TV

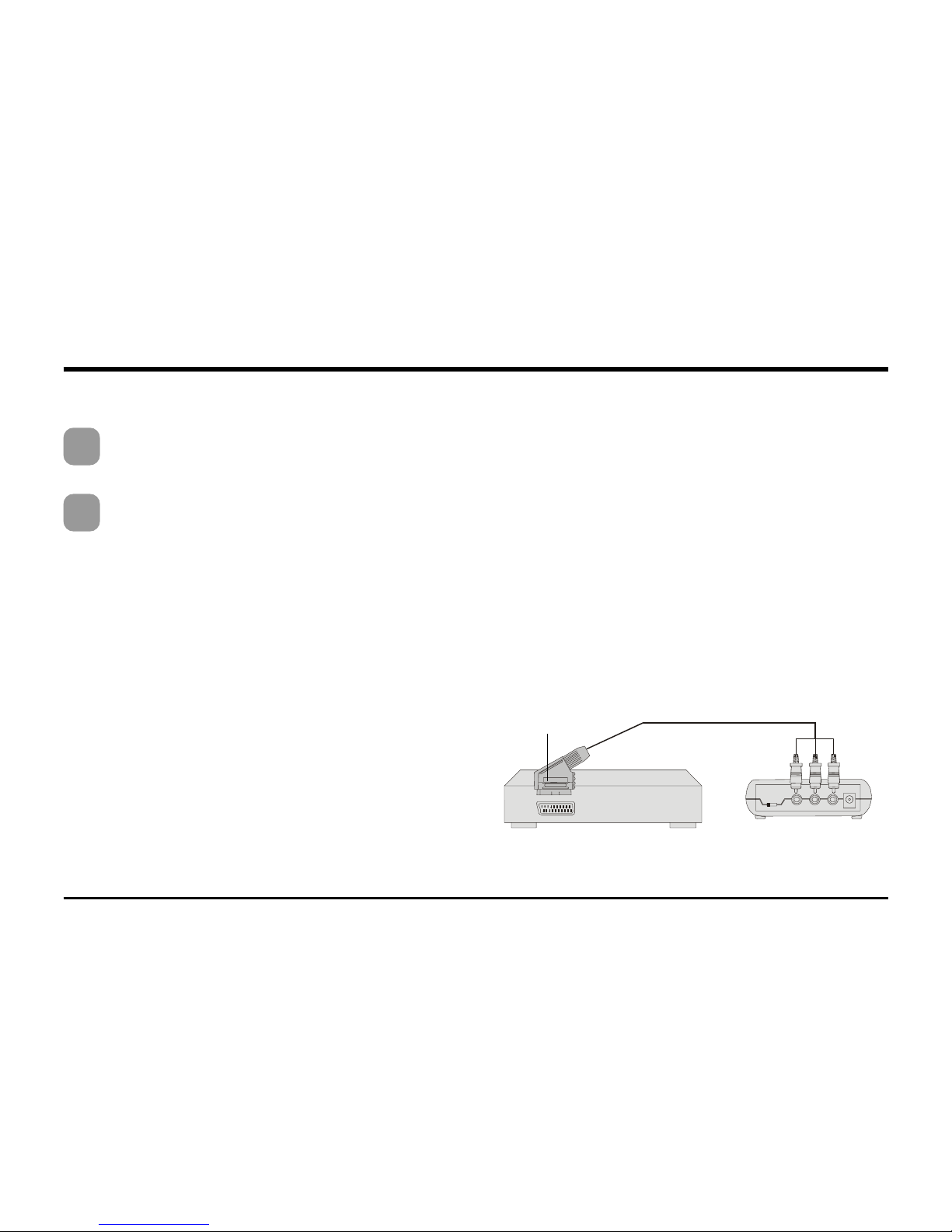

Note: For PAL systems, the connector on
the audio/video component is a Scart socket.
Connect the Scart connector labeled
RECEIVER to the Scart socket labeled IN
on the audio/video component; connect the
RCA connector to the receiver.
Receiver
Audio/Video Component
RCA to Scart Cable
Receiver
8
