TRENDnet TE100-PCI Bedienungsanleitung

Fiber Ethernet Adapter

User’s Guide 1

檔名: pcifxp.doc

原作者: Carrie Chen

列印時間: 1/31/2003 3:06 PM

Preface

This manual describes how to install and use the Fiber Ethernet

Adapter. This Fiber Adapter allows options of different fiber

connections, such as connector types and segment distance.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

• Introduction on Fiber Adapter

• Product features

• LEDs functions

• Hardware installation

• Software installation

• Specifications

Fiber Ethernet Adapter

2 User’s Guide

Table of Contents

PREFACE ...............................................................................1

TABLE OF CONTENTS ...........................................................2

PRODUCT OVERVIEW ...........................................................3

FIBER ETHERNET ADAPTER ..........................................................3

PACKAGE CONTENTS....................................................................3

PRODUCT FEATURES ....................................................................4

Driver Support.................................................................................................5

5Software Support..........................................................................................5

LEDs...............................................................................................................6

HARDWARE INSTALLATION .................................................7

INSTALLING FIBER ADAPTER INTO PCI SLOT ..................................7

CONNECTING REMOTE WAKE-UP CABLE .......................................9

CONNECTING TO YOUR NETWORK...............................................10

Cabling Requirements ..................................................................................11

SOFTWARE INSTALLATION.................................................12

DIAGNOSTIC SOFTWARE .............................................................12

About Hardware’s Configuration...................................................................13

Run Diagnostics ...........................................................................................14

LOADING NETWORK DRIVERS......................................................15

Quick List for Supported Network Drivers ....................................................16

SPECIFICATIONS .................................................................17

ORDERING INFORMATION ..................................................18

Fiber Ethernet Adapter

User’s Guide 3

檔名: pcifxp.doc

原作者: Carrie Chen

列印時間: 1/31/2003 3:06 PM

Product Overview

Fiber Ethernet Adapter

Figure 1: Adapters with SC (left) and ST (right) connectors, featuring two LEDs

Package Contents

When you unpack the product package, you shall find the items

listed below. Please inspect the contents, and report any apparent

damage or missing items immediately to our authorized reseller.

Fiber Adapter

 User’s Guide

3-wire cable (for Wake On LAN)

Driver Diskette

Fiber Ethernet Adapter

4 User’s Guide

Product Features

• Provide a variety of fiber connections:

SC, ST, MT-RJ or VF-45 connectors for multi-mode, and

SC connector for single-mode

• Support 32-bit Bus Master operation

• PCI bus clock speed range from 16.75 to 40 MHz

• Support Wake-On-LAN (WOL) function and remote

wake-up

• Support half-duplex or full-duplex operation for up to

200Mbps data transfer rate

• Compliant with PCI plug-and-play

• Compliant with IEEE 802.3u 100BASE-FX

• Compliant with PCI Specifications Revision 2.1

• Low CPU utilization

• Status LEDs

Fiber Ethernet Adapter

User’s Guide 5

檔名: pcifxp.doc

原作者: Carrie Chen

列印時間: 1/31/2003 3:06 PM

Driver Support

The Fiber Adapter supports a wide range of drivers for commonly

used network operating systems:

• NDIS2 (DOS, OS/2, LANtastic, WFW3.1…)

• NDIS for Win95, 98, NT 3.51, 4.0, 5.0 WFW3.11

• NetWare ODI driver for DOS, OS/2, and NetWare

3.x, 4.x, 5.0 Server

• SCO Unix driver

• Linux driver

Note: Win2000 driver (RTL8139 A/B/C/8130 Series Adapter)

is bundled with Win2000.

Software Support

• Setup/Diagnostic Program for DOS

(REST8139.EXE in DIAG directory)

Note: RSET8139.EXE is a DOS only application. It may not

run properly under the DOS prompt in Windows.

Fiber Ethernet Adapter

6 User’s Guide

LEDs

cLNK Link

This LED comes on when a network connection is established

successfully.

dACT Activity

This LED flashes when the port is transmitting or receiving data.

LEDs Status Indication

Steady A valid network connection established.

LNK stands for LINK.

LNK

Off Disconnection.

Flashing Transmitting or receiving data.

ACT stands for ACTIVITY.

ACT

Off No activity.

Fiber Ethernet Adapter

User’s Guide 7

檔名: pcifxp.doc

原作者: Carrie Chen

列印時間: 1/31/2003 3:06 PM

Hardware Installation

Installing Fiber Adapter into PCI slot

Step 1: Turn off the power to the PC.

Step 2: Remove any metal decorations from your hands and wrists.

Step 3: Remove the cover from your PC.

Step 4: Locate an empty, non-shared bus mastering 32-bit PCI slot and remove

the corresponding backplate. Save the screw for use in Step 6.

<Note>

i. Do not install the Fiber Adapter in a shared PCI slot. Avoid any PCI slot next to

an ISA slot because this is often a shared slot and does not support bus

mastering.

ii. If you are going to install the Remote Wake-Up cable, choose an available

PCI slot most close to the 3-pin Remote Wake-Up connector on the PC

motherboard.

iii. If you have problems in identifying a suitable slot, check your PC

documentation or ask your system administrator for help.

Step 5: Carefully insert the Fiber Adapter into the chosen slot and press firmly

with proper push to ensure it is fully seated in the slot.

Step 6: Secure the Fiber Adapter with the screw you saved in step 4.

<Note>

If you wish to use the Remote Wake-Up function, please complete the

installation in next section “Connecting the Remote Wake-Up Cable” before

proceeding to step 7.

Step 7: Replace the PC cover.

Step 8: Proceed to “Connecting to Your Network” section.

Fiber Ethernet Adapter

8 User’s Guide

Install the FiberAdapterinto the PCIslot

and screwit onto the backplate

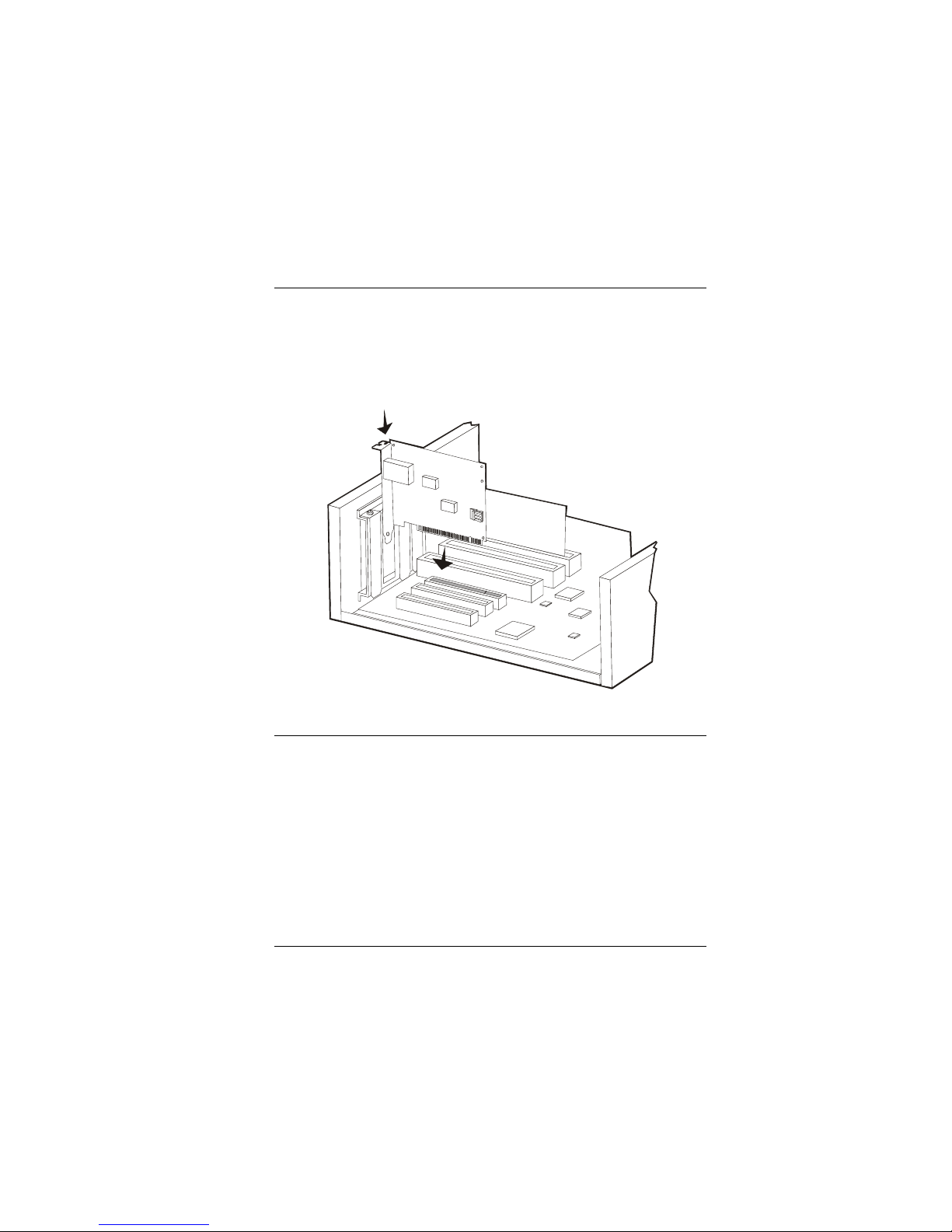

Figure 2: Installing Fiber Adapter into 32-bit PCI slot

<Note>

Always ensure the power is cut off before any installation to avoid electric

shock and possible damage to the equipments.

Fiber Ethernet Adapter

User’s Guide 9

檔名: pcifxp.doc

原作者: Carrie Chen

列印時間: 1/31/2003 3:06 PM

Connecting Remote Wake-Up Cable

This is an optional function. Proceed with the installation only

when your PC supports this Remote Wake-Up and you wish to

make use of this function. Please check your Motherboard User’s

Guide for more information.

Step 1: Make sure the power to the PC is off.

Follow Step 1~3 in previous section.

Step 2: Check if the Fiber Adapter is properly installed in a PCI slot.

Step 3: Prepare a Remote Wake-Up cable. Connect the cable from Fiber

Adapter to motherboard connector. Refer to Figure 3 below for details.

Step 4: Replace the PC cover then.

Step 5: Proceed to “Connecting to Your Network” Section.

Connect Remote Wake-Up cable from FiberAdapter

to motherboard connector

Pl u g i n Re m o t e Wa ke - Up c a b l e

to c onnec tor on Fiber Ada pter

Figure 3: Connecting Wake-Up cable

Fiber Ethernet Adapter

10 User’s Guide

Connecting to Your Network

This section describes how to connect the Fiber Adapter to a 100

Mbps fiber-based Ethernet network, which contributes to its

optimal performance.

<Note>

You must connect the Fiber Adapter to the network before installing the

network driver.

Step 1: Remove the protective covers from the Fiber Adapter’s connector.

Step 2: Prepare a network cable with corresponding connectors for the two end

devices, one end to the Fiber Adapter and the other to a 100Mbps fiber

port on the network hub or switch.

Step 3: Connect the network cable to the connector on the Fiber Adapter. This

network cable consists of two individual cables: one for ‘transmission

(TX)’, and the other for ‘reception (RX)’. Refer to Figure 4 for details.

Step 4: Connect the other end of the network cable to a 100BASE-FX hub or a

switch.

<Note>

i. Insert the cable that is connected to the transmit (TX) connector on the Fiber

Adapter into the receive (RX) connector on the network hub or switch.

ii. Insert the cable that is connected to the receive (RX) connector on the Fiber

Adapter into the transmit (TX) connector on the network hub or switch.

Step 5: When the cable is properly connected to two end devices, turn on the

power to the PC.

Step 6: Check the LNK (Link) LED. The LED will come on when the Fiber

Adapter is receiving a good link signal from the connected device, a hub

or switch.

Step 7: Proceed to next section for installing the network driver.
