TRENDnet TEW-624UB Bedienungsanleitung

Regulatory notes and statements

Wireless LAN, Health and Authorization for use

Radio frequency electromagnetic energy is emitted from Wireless LAN devices.

The energy levels of these emissions however are far less than the electromagnetic

energy emissions from wireless devices such as mobile phones. Wireless LAN

devices are safe for use frequency safety standards and recommendations. The use

of Wireless LAN devices may be restricted in some situations or environments for

example:

·On board of airplanes, or

·In an explosive environment, or

·In case the interference risk to other devices or services is perceived or identified

as harmful

In case the policy regarding the use of Wireless LAN devices in specific

organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial

plants, private buildings etc.) is not clear, please ask for authorization to use these

devices prior to operating the equipment.

Regulatory Information/disclaimers

The installation and use of this Wireless LAN device must be in strict accordance

with the instructions included in the user documentation provided with the product.

Any changes or modifications made to this device that are not expressly approved

by the manufacturer may void the user’s authority to operate the equipment. The

Manufacturer is not responsible for any radio or television interference caused by

unauthorized modification of this device. The Manufacturer and its authorized

resellers or distributors will assume no liability for any damage or violation of

government regulations arising from the failure to comply with these guidelines.

USA-FCC (Federal Communications Commission) statement

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause

undesired operation of this device.

FCC Radio Frequency Exposure statement

This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65

and found compliant to the requirements as set forth in CFR 47 Sections 2.1091,

2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices.

The radiated output power of this Wireless LAN device is far below the FCC radio

frequency exposure limits. Nevertheless, this device shall be used in such a manner

that the potential for human contact during normal operation is minimized.

When nearby persons has to be kept to ensure RF exposure compliance, in order to

comply with RF exposure limits established in the ANSI C95.1 standards, the

distance between the antennas and the user should not be less than 20 cm.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses, and radiates radio frequency energy. If not installed

and used in accordance with the instructions, it may cause harmful interference to

radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try and correct the interference by one or more of the following

measures:

1. Reorient or relocate the receiving antenna.

2. Increase the distance between the equipment and the receiver.

3. Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Export restrictions

This product or software contains encryption code that may not be exported or

transferred from the US or Canada without an approved US Department of

Commerce export license.

Safety Information

Your device contains a low power transmitter. When the device is transmitted it

sends out radio frequency (RF) signal.

CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this

equipment should be installed and operated with a minimum distance of 20 cm

between the radiator and your body. Use the supplied antenna. Unauthorized

antennas, modifications, or attachments could damage the transmitter and may

violate FCC regulations.

The antenna(s) used for this transmitter must be installed to provide a separation

distance of at least 20 cm from all persons and must not be located or operating in

conjunction with any other antenna or transmitter.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

Protection requirements for health and safety – Article 3.1a

Testing for electric safety according to EN 60950 has been conducted. These are

considered relevant and sufficient.

Protection requirements for electromagnetic compatibility – Article

3.1b

Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-

17 and EN 55024 has been conducted. These are considered relevant and sufficient.

Effective use of the radio spectrum – Article 3.2

Testing for radio test suites according to EN 300 328-2 has been conducted. These

are considered relevant and sufficient.

CE in which Countries where the product may be used freely:

Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,

Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.

France: French regulations prohibit the use of all channels except channels 10

through 13.

iii

TABLE OF CONTENT

Introduction............................................................................................................... 1

Overview of this User’s Guide ............................................................................... 1

Unpacking and Setup ................................................................................................ 2

Unpacking .............................................................................................................. 2

Setup....................................................................................................................... 2

Connecting the USB Extension Cable.................................................................... 2

Software Installation ................................................................................................. 3

Windows Based Utility Installation........................................................................ 3

Wireless Utility Setting .......................................................................................... 4

I. Link Information............................................................................................. 5

II. Configuration................................................................................................ 5

III. Advanced.....................................................Error! Bookmark not defined.

IV. Site Survey.................................................................................................... 8

V. WPS............................................................................................................ 10

VI. About .......................................................................................................... 11

Technical Specifications ......................................................................................... 12

INTRODUCTION

Congratulations on your purchase of this 300Mbps Wireless N USB Adapter.

This manual contains detailed instructions regarding the operation of this product.

Please keep this manual for future reference.

With the 300Mbps Wireless N USB Adapter, a desktop or laptop computer can

communicate with another computer wirelessly. An easy-to-use utility is bundled

with the Wireless USB Adapter for configuration, monitoring, and diagnostic

purposes.

The 300Mbps Wireless N USB Adapter can wirelessly transmit and receive data, at

a speed of up to 54 megabits per second.

The 300Mbps Wireless N USB Adapter provides users with access to real-time

information anywhere in their organization. The mobility of the 300Mbps Wireless

N USB Adapter provides productivity and service, which are not available under

wired networks. The 300Mbps Wireless N USB Adapter can easily adapt from

peer-to-peer networks, suitable for a small number of users, to full infrastructure

networks of thousands of users that allow roaming around a broad area.

Overview of this User’s Guide

Introduction. Describes the 300Mbps Wireless N USB Adapter and its features.

Unpacking and Setup. Helps you get started with the basic installation of the

300Mbps Wireless N USB Adapter.

Hardware Installation. Describes the LED indicator on the Adapter.

Software Installation. Describes how to setup the driver and the utility setting.

Technical Specifications. Lists the technical (general, physical and environmental)

specifications of the 300Mbps Wireless N USB Adapter.

UNPACKING AND SETUP

This section provides unpacking and setup information for the 300Mbps Wireless N

USB Adapter.

Unpacking

The box should contain the following items:

One TEW-624UB 300Mbps Wireless N USB Adapter

One Driver & Utility CD-ROM

One Multi-Language Quick Installation Guide

If any item is found missing or damaged, please contact your local reseller for

replacement.

Setup

Before installation, check the following:

Make sure your computer is running at least a 300MHz or above processor with

256MB RAM or above

Make sure the USB ports are is USB 2.0 port

The operating system on your computer must be the following: Windows 2000

(Service Pack 4), XP (Service Pack 2), Windows Vista

A draft 802.11n or 802.11b/g access point.

Make sure the environment has minimal interference and obstructions.

Connecting the USB Extension Cable

The USB extension cradle that comes with the Adapter has Type A connectors on

both ends. One end of the cradle is a male Type A connector that plugs into the

PC’s USB port. The other end of the cradle is a female Type A connector that

plugs into the Adapter.

This USB extension cradle can be adjusted to improve the wireless connection. It is

recommended that the 300Mbps Wireless N USB Adapter is perpendicular to the

ground.

SOFTWARE INSTALLATION

This section describes how to install the driver and utility for the 300Mbps Wireless

N USB Adapter.

Windows Based Utility Installation

1) Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and

then click Install Utility.

2) Follow the InstallShield Wizard Instructions

3) Click Finish to restart the computer.

4) Plug the 300Mbps Wireless N USB Adapter into an available USB slot on your

computer

Wireless Utility Setting

The user can configure the wireless settings using the Wireless Adapter

Configuration Utility. Double-click the utility icon that appears in the taskbar.

The Wireless Adapter Configuration Utility is divided into five sections: Link Info,

Configuration, Advanced, Site Survey and About.

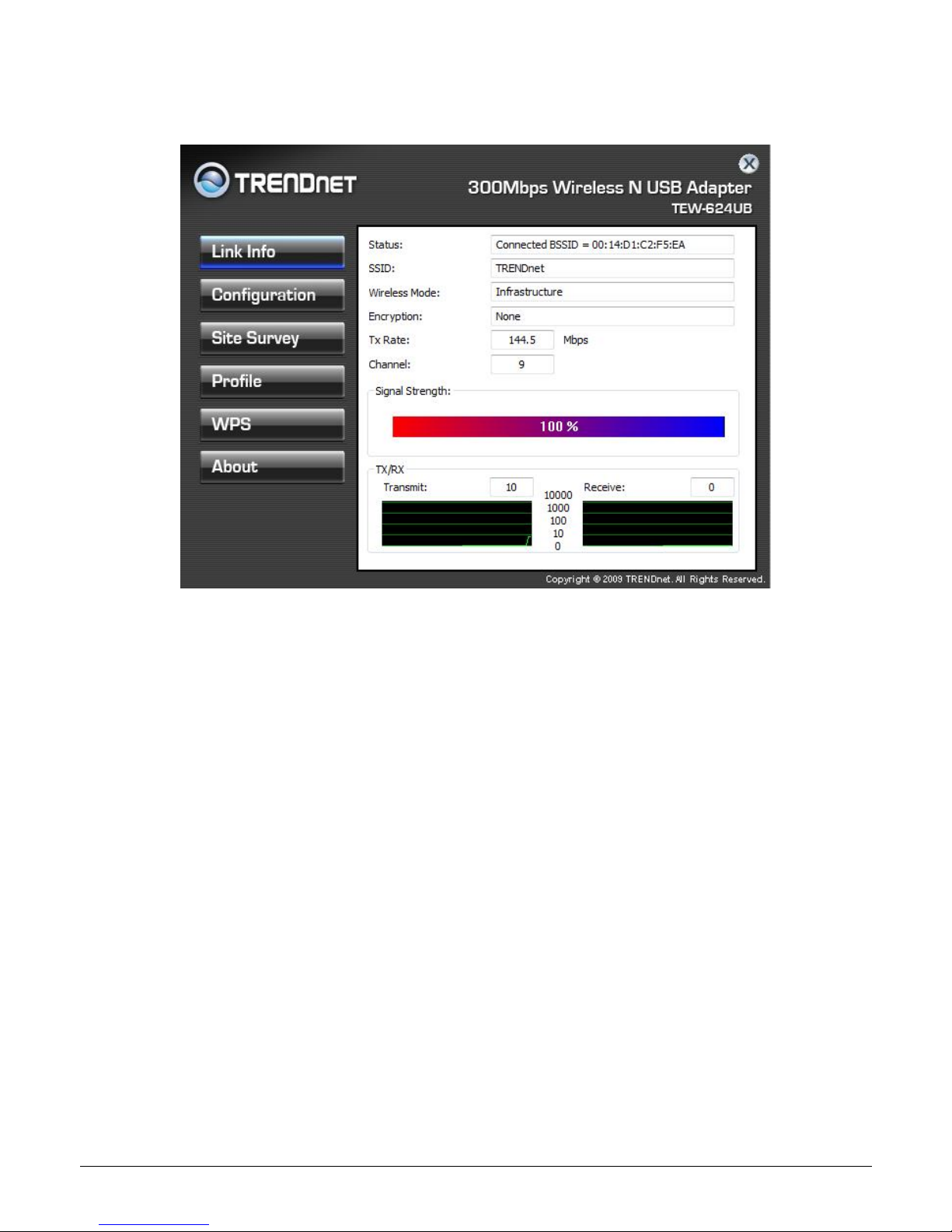

I. Link Information

This is the default screen after launching the Utility program.

Status: Shows the associated BSSID, which can be used to identify the wireless

access point.

SSID: Shows the current SSID, which must be the same on the wireless client and

AP in order for communication to be established.

Wireless Mode: Shows the current wireless mode used for wireless communication.

Encryption: Shows the current encryption mode used on the wireless network.

TxRate: Shows the current data rate used for transmitting.

Channel: Shows the current channel for communication.

Signal Strength: Shows the wireless signal strength of the connection between the

300Mbps Wireless N USB Adapter with the Access Point.

Data Rate: Shows the statistics of data transfer, and the calculation is based on the

number of packets transmitted and received.

II. Configuration

Andere Handbücher für TEW-624UB

Inhaltsverzeichnis

Andere TRENDnet Adapter Handbücher

TRENDnet

TRENDnet TEW-664UB Bedienungsanleitung

TRENDnet

TRENDnet TEW-648UBM Bedienungsanleitung

TRENDnet

TRENDnet TEW-644UB Bedienungsanleitung

TRENDnet

TRENDnet TPL-302E Bedienungsanleitung

TRENDnet

TRENDnet TEW-807ECH Bedienungsanleitung

TRENDnet

TRENDnet TEW-624UB Bedienungsanleitung

TRENDnet

TRENDnet TEW-640MB Bedienungsanleitung

TRENDnet

TRENDnet TU2-ET100 Bedienungsanleitung

TRENDnet

TRENDnet TPL-304E Bedienungsanleitung

TRENDnet

TRENDnet TEW-648UB - 150Mbps Mini Wireless N USB 2.0... Bedienungsanleitung

TRENDnet

TRENDnet TPL-102E Bedienungsanleitung

TRENDnet

TRENDnet TPL-4052E Bedienungsanleitung

TRENDnet

TRENDnet TEW-649UB - Mini Wireless N Speed USB 2.0... Bedienungsanleitung

TRENDnet

TRENDnet TPL-406E V1.0R Installations- und Betriebshandbuch

TRENDnet

TRENDnet TEW-624UB Bedienungsanleitung

TRENDnet

TRENDnet TEW-649UB - Mini Wireless N Speed USB 2.0... Bedienungsanleitung

TRENDnet

TRENDnet TEW-806UBH Bedienungsanleitung

TRENDnet

TRENDnet TEW-646UBH Bedienungsanleitung

TRENDnet

TRENDnet TU-S9 Bedienungsanleitung

TRENDnet

TRENDnet TEW-424UB Bedienungsanleitung

TRENDnet

TRENDnet TU2-IDSA Bedienungsanleitung

TRENDnet

TRENDnet TEW-621PC - 300Mbps Wireless N PC Card... Bedienungsanleitung

TRENDnet

TRENDnet HotFlash TEW-429UF Bedienungsanleitung

TRENDnet

TRENDnet TEW-648UBM Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
