TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ...........................................................................1

Package Contents .......................................................................................................... 1

Features......................................................................................................................... 1

Product Hardware Features........................................................................................... 2

System Requirements.................................................................................................... 2

Application Diagram ...................................................................................................... 3

Installing your Wireless Adapter......................................................4

Connect to your wireless network using WPS ..................................9

Technical Specifications.................................................................11

Troubleshooting............................................................................13

Appendix ......................................................................................14

TRENDnet User’s Guide

TEW-807ECH

Product Overview

TEW-807ECH

Package Contents

In addition to your wireless adapter, the package includes:

CD-ROM (Drivers)

Multi-Language Quick Installation Guide

2 x High Gain Detachable Dual Band Antennas

1 x Magnetic Antenna Base with 1 m (3.3 ft) extension cable

Standard & Low Profile Brackets

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Features

TRENDnet’s AC1200 High Power Wireless Dual Band PCIe Adapter, model TEW-807ECH,

upgrades a standard or low profile Windows®tower computer to Wireless AC1200.

Quickly connect to a high performance Wireless AC network at 867 Mbps or to a

Wireless N network at 300 Mbps. A high power 500 mW radio with detachable 5 dBi

antennas increase wireless coverage. A convenient 1 m (3.3 ft.) extension cable and a

magnetic mounting base provide installation flexibility.

Easy Setup

Get up and running in minutes with the intuitive guided setup

AC1200 Dual Band

Connect to an extreme performance 867 Mbps Wireless AC or 300 Mbps Wireless N

network*

Wireless Coverage

Extended wireless coverage with high power 500 mW radio and detachable 5 dBi

antennas

PCIe Slot

PCI Express slot (1x)

Heat Sink

Heat sink minimizes heat loading and optimizes processing performance

Tower Brackets

Includes standard and low profile tower brackets

Extension Cable

Convenient 1 m (3.3 ft.) extension cable provides installation flexibility

Magnetic Base

Adjustable magnetic mounting base attaches to the side of a tower computer or other

metal surface

LED Indicator

LED indicator conveys device status

Operating Systems

Compatible with Windows operating systems

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications.

Actual data throughput and coverage will vary depending on interference, network traffic,

building materials and other conditions. For maximum performance of up to 867Mbps, connect to

an 867 Mbps 802.11ac wireless router or access point.

TRENDnet User’s Guide

TEW-807ECH

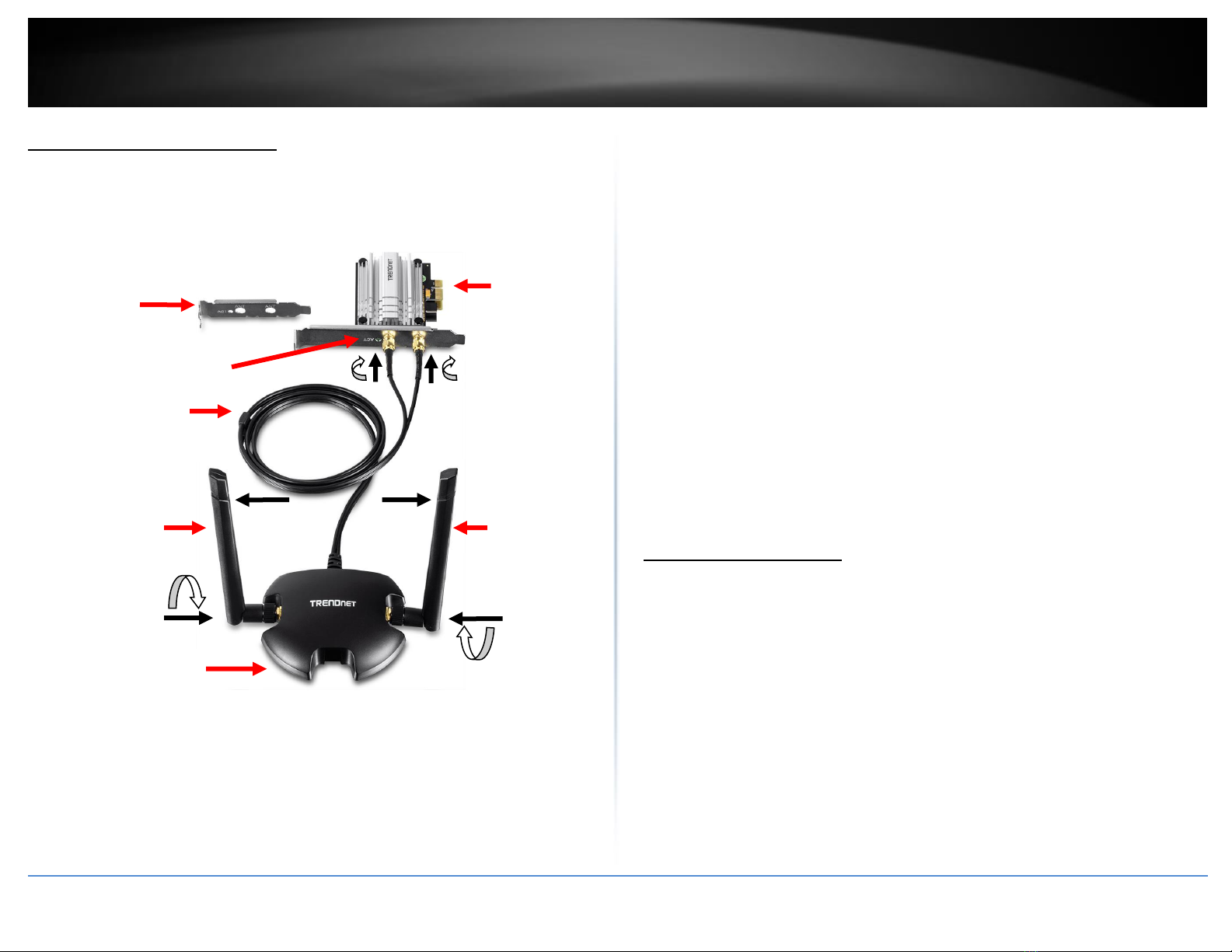

Product Hardware Features

PCIe 1x Interface –The PCIe interface connects your adapter to PCIe slots on your

computer.

Activity LED Indicator –The LED will blink rapidly to indicate WPS has been

activated. The LED will blink every 5 sec. when disconnected. When connected, the

LED will blink rapidly during wireless data transmission.

Detachable High Gain Antennas –The high gain antennas can be connected to the

external mounting base for flexible and optimized antenna placement or connected

directly to the antenna connectors on the adapter.

Mounting Base –It is recommended to attach the antennas to the external

mounting base to achieve the best possible placement and wireless coverage. The

mounting base is also magnetic and can attach to metallic surfaces. When using the

mounting base, the extension cable connectors will be connected to the antenna

connectors located on the adapter.

Low Profile Bracket –The low profile bracket can be used to install the adapter on

low profile computer towers.

System Requirements

Windows® 8.1, 8, 7, Vista, or XP

Available PCIe slot on your computer.

CD-ROM Drive (Utility and Driver Installation with included CD)

Activity LED

Indicator

PCIe 1x

Interface

Detachable High

Gain Antenna

Low Profile

Bracket

Magnetic

Mounting Base

Extension Cable

Connectors

Detachable High

Gain Antenna

TRENDnet User’s Guide

TEW-807ECH

Application Diagram

The AC1200 High Power Wireless Dual Band PCIe Adapter can provide wireless AC or

wireless N connectivity through the use of an available PCIe slot on your computer to a

wireless AC/N network (router/access point). The external mounting base allows for

flexible and optimal antenna placement to achieve the best possible wireless coverage

and connectivity

TRENDnet User’s Guide

TEW-807ECH

Installing your Wireless Adapter

This section describes how to install the software driver for the wireless adapter.

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

Note: If you do not have the included CD-ROM, you can download the utility and drivers

from http://www.trendnet.com/downloads/.

2. At the CD Autorun Prompt window, click Run Autorun.exe.

Note: If the Autorun prompt does not appear automatically, open the CD contents and

double-click Autorun.exe.

At the CD-ROM main menu, click Install Drivers.

3. At the installation window, click Next.

TRENDnet User’s Guide

TEW-807ECH

4. You will be prompted to accept the end user license agreement. Select I accept the

terms of the license agreement and click Next.

5. Wait for the utility and drivers installation to complete. This may take a few minutes.

Note: If you do not receive a security prompt, continue to the next step. If prompted,

click Install this driver software anyway.

TRENDnet User’s Guide

TEW-807ECH

6. After the process is completed, click Finish.

8. Please shut down your computer.

9. Locate an available PCIe slot inside of your computer. Insert the adapter into the

available PCIe slot.

TRENDnet User’s Guide

TEW-807ECH

10. Attach the high gain detachable antennas to the antenna connectors on the

mounting base and attach the extension cable connectors from the mounting base to

the antenna connectors on the adapter. It is recommended to place the mounting base

at the highest point possible (ex. table top or on top of the computer tower) and

position the antennas at opposite angles as shown for optimal coverage. The mounting

base is magnetic and attaches to the metallic surfaces for flexible placement. The

antennas may also be directly connected to the antenna connectors on the adapter.

11. Power on your computer.

12. After the driver is successfully installed, click the icon in the system tray to scan for

available wireless networks.

TRENDnet User’s Guide

TEW-807ECH

13. Click the network you would like to connect.

14. Enter the WiFi Key (password).

15. The status will display “Connected”to indicate a successful connection.

Note: If the connected message does not display, double check your WiFi key (password)

and re-enter it.
