TRENDnet TPL-305E Bedienungsanleitung

Quick Installation Guide

TPL-305E

1.01

Table of Contents

Version 01.01.2011

English 1

1. Before You Start

2. How to Install 2

3. LEDs and Buttons 5

Troubleshooting 7

1. Before You Start

ŸA Desktop or Laptop PC with Network Adapter Installed

ŸExisting 10/100Mbps wired network when TPL-305E is used as a bridge device

ŸAdditional HomePlug AV powerline adapter(s) (e.g. TRENDnet TPL-303E/E2K,

TPL-304E/E2K, TPL-310AP, or another TPL-305E)

CD-ROM Drive

Note: The configuration utility will allow you to add security to your powerline

network by providing you with the ability to change the default network name and

create your own personal network name for your powerline network. The utility can

also help you to troubleshoot connectivity between powerline adapters by verifying

the network name. Please refer to the User's Guide on the TPL-305E CD-ROM for

instructions on installing and using the utility.

Package Contents

ŸCD-ROM (Utility and User’s Guide)

ŸMulti-Language Quick Installation Guide

ŸCat.5 Ethernet Network Cable (1.5m/5ft)

TPL-305E

System Requirements

Supported Operating Systems CPU Memory

Windows 7 (32/64-bit)

Windows Vista (32/64-bit)

Windows XP (32/64-bit)

1GHz or above

800MHz or above

300MHz or above

1GB RAM or above

512MB RAM or above

256MB RAM or above

2. How to Install

The example diagram shows a typical powerline network configuration in a home

environment with 3 powerline adapters installed in different rooms. The orange line

represents the powerline connectivity established through your home's electrical system

and the blue lines represent Cat. 5, 5e, 6 Ethernet connectivity to your network enabled

appliances such as a computer, router, or IP set top box connected to your television.

Note:

1. DO NOT install the TPL-305E until instructed to do so

2. DO NOT plug the TPL-305E into a surge protector or power strip.

3. Avoid connecting the TPL-305E into an outlet that has appliances

(e.g. refrigerators, washer and dryer) plugged in.

4. In order for the TPL-305E to link to each other, each unit must be on the same

electrical system.

5. A maximum of 16 TPL-305E can be networked.

6. Assuming that the TPL-305E are configured with the default settings, to create

a powerline network, simply connect all TPL-305E adapters to wall outlets that

are on the same electrical system. No additional configuration in the utility is

necessary.

7. The network name must be the same on all powerline adapters in order to

establish connectivity. If the network name is not the same on all powerline

adapters, the adapters will NOT establish connectivity. The default network

name for the TPL-305E is “HomePlugAV”.

3-Port 200Mbps Powerline AV Adapter

(TPL-305E)

10/100Mbps Powerline

Internet

Game Console

Media

Server

Wireless

Router

Storage

Below is an example showing how to create a Powerline network using TPL-305E and

existing router to share Internet

2. Connect a network cable from the TPL-305E to

an available LAN network port on your router

(e.g. TEW-673GRU).

3. Plug a second TPL-305E into an available

power outlet where your remote computer or

network appliances (e.g. Game Console, IP Set

box, network enabled TV, etc.) are located.

Outlet

1. Plug a TPL-305E into an available power outlet.

This TPL-305E should be located within the

reach of the router's network cable.

5. Verify that the PWR (Power), PL (Powerline),

and the active ports 1-3 (Ethernet) LEDs are

on for both TPL-305E adapters.

Your installation is now complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TPL-305E configuration and advanced settings, please

refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's

website at http://www.trendnet.com.

Outlet

4. Connect a network cable from one of the

second TPL-305E network ports (1-3) into the

network port on your remote computer or

network appliance (e.g. Game Console, Blu-ray

player, IP Set box, network enabled TV, etc.).

You can connect up to three network

appliances/computers to the TPL-305E.

3. LEDs and Buttons

1-3 (Ethernet)

PWR (Power)

Reset Button

Sync

PL (Powerline)

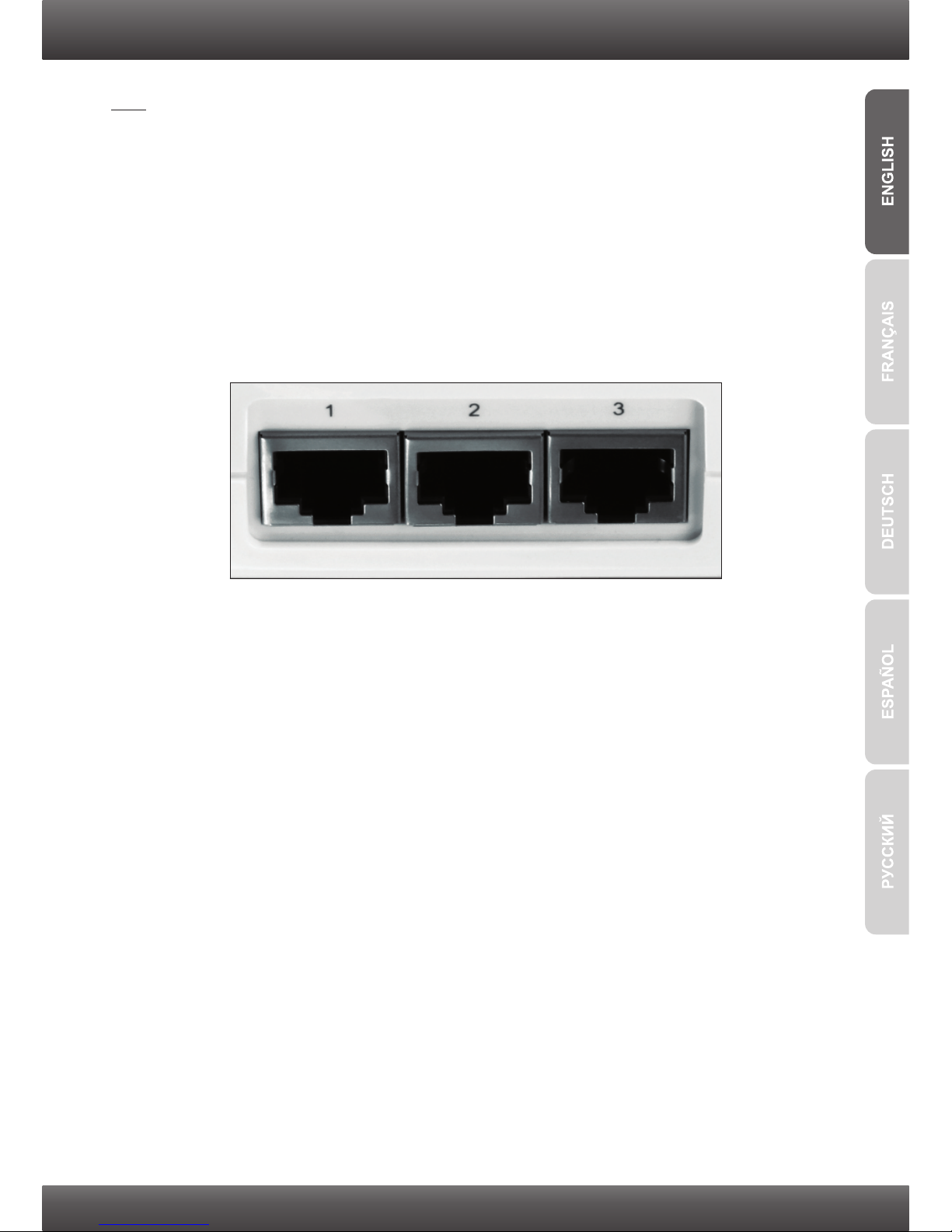

The Ethernet/Network Ports are located at the bottom of the device.

Note:

The following factors may affect the powerline network's connection quality

ŸNoise – Generated by appliances that are connected to your electrical system through

power outlets that have high power consumption requirements. (e.g. Microwaves, ovens,

blow dryer, iron, dishwasher, etc.) The quality of your household electrical wiring may

also cause additional noise on your electrical system.

ŸDistance – Long lengths of electrical wiring through your electrical system between connected

powerline adapters.

1. Make sure you are not connecting the device into a surge protector or power strip.

I have verified that my Powerline device is connected to my workstation, but I cannot detect

other Powerline devices. What should I do?

Verify that you are using Cat. 5, Cat 5e or Cat. 6 Ethernet network cables from each TPL-305E

adapter.

2. Verify that the power outlet of the TPL-305E is plugged into is on the same electrical power

distribution and/or circuit breaker box.

3. If you are still not able to establish connectivity after performing the above steps, please reset

both of the TPL-305E adapters to factory default. The default network name/key is

“HomePlugAV”. The Reset button is located on the front LED panel of the TPL-305E.

a: With a pin or paperclip, press and hold the reset button for 1 second and release it. The

LEDs will turn off and turn back on.

b: To verify connectivity, the PL LED will become solid when the powerline adapters establish

connectivity. The TPL-305E powerline adapters must have the same network name/key in

order to connect to each other.

Note: If you have problems resetting the device, unplug the powerline adapter(s) from the

power outlet, wait 15 seconds and plug the adapter(s) back into the outlet, then repeat the

reset procedure.

I can detect my Powerline devices on my Powerline network, but I cannot connect to the

Internet. What should I do ?

Assuming that the Powerline network is connected to a router:

2. Make sure that your Router is connected to the Internet and one of the Router's LAN port is

connected to one of the TPL-305E's network ports (1-3). Check both TPL-305E and the router's

network port LED for positive connection status.

3. Make sure your computer's TCP/IP settings are set to Obtain an IP address automatically (see

the steps below).

Troubleshooting

Windows 7

1. Go into the Control Panel, click Network and

Internet, click Network and Sharing Center, click

Change Adapter Settings and then right-click the

Local Area Connection icon and then click

Properties.

2. Click Internet Protocol Version 4(TCP/IPv4)

and then click Properties. Then click on

Obtain an IP address automatically.

1. Go into the Control Panel, click Network and

Internet, click Network and Sharing Center, click

Manage Network Connections and then right-click

the Local Area Connection icon and then click

Properties.

Windows Vista

2. Click Internet Protocol Version 4(TCP/IPv4)

and then click Properties. Then click on Obtain

an IP address automatically.

3. I have a HomePlug 1.0 or HomePlug Turbo network. Can I use this with my network?

The TPL-305E is not backwards compatible with HomePlug 1.0 or HomePlug Turbo.

4. Do I need to reconfigure my TPL-305E after I hit the reset button?

No, the TPL-305E should automatically connect with each other once both units are reset to

default settings.

If you still encounter problems or have any questions regarding the TPL-305E, please refer to the User's

Guide included on the Utility CD-ROM or contact TRENDnet's Technical Support Department.

1. Go into the Control Panel, double-click the Network

Connections icon and then right-click the Local

Area Connection icon and then click Properties.

Windows XP/2000

2. Click Internet Protocol (TCP/IP) and then click

Properties. Then click on Obtain an IP address

automatically.
