TRENDnet TFC-1600MM Bedienungsanleitung
TFC-1600MM
Media Conversion System
Management Configuring Guide
CONFIGURING THE SYSTEM
This chapter provides network managers and system administrators with information
about how to configure the Media Converter Chassis system.
The reader of this document should be knowledgeable about network devices, device
configuration, network management, and Internet browsers. The user is assumed to be a
network administrator or manager with an understanding of network operations.
The Media Converter Chassis system
The chassis’s first slot is for the management module as illustration on figure 1.

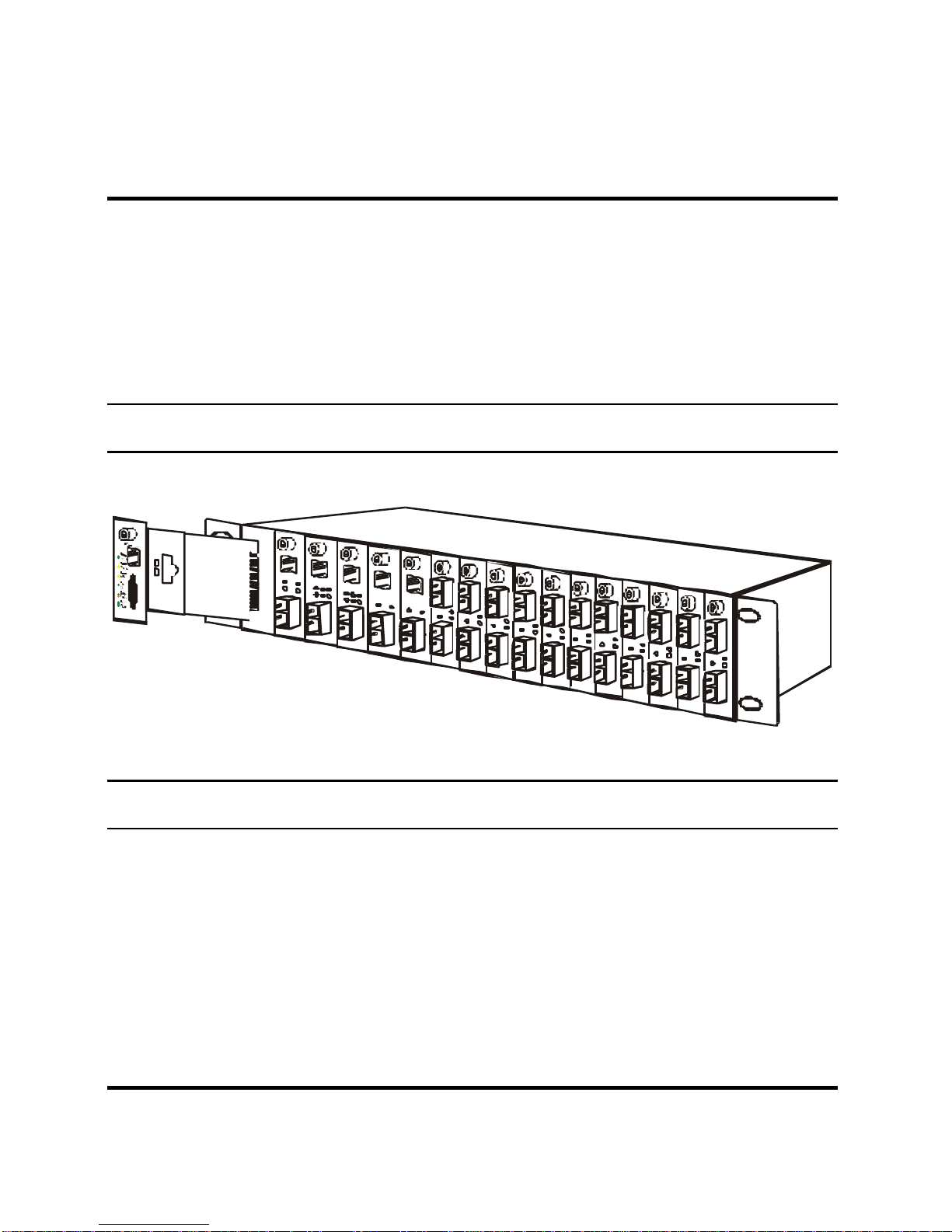

Figure 1. Slide in the management module in the first slot of the chassis system.
Installing the Management Module
Before Configure the chassis system, you must do the following:
?? Install the management module into the chassis. (Figure 1)
?? Connect the module to the network.
?? Boot up for SNMP management on Web browser or emulation terminal
program.
Configure through Web browser
The Media Converter chassis system is accessible using a Web browser (IE explorer,
Netscape Communications, etc.) to open up the chassis monitoring system. The default
IP Address for the chassis system is “192.168.1.1”, and the default Login name and
password is both “root”.
Configuration via Serial Port
The Media Converter chassis system can be accessible using a terminal or terminal
emulator attached to the RS232 serial port on the Switch too.
NOTE: (1) The serial port cable is attached directly with the device.
(2) It needs to upgrade the Terminal Emulator due to key malfunction.
1. Locate correct DB9 serial port cable with female DB9 connector.
2. Attach the DB9 serial port female cable connector to the male DB9 serial port
connector on the chassis system.
3. Attach the other end of the DB9 serial port cable to a remote workstation.
4. By default, the Switch uses the following serial port parameter values:
Bits per second 57600
Stop bits 1
Data bits 8
Parity NONE
Flow Control NONE
5. The default Login name and password is both “root”.
Support SNMP Management
The Media Converter Management Module supports SNMP management.
LED Indicators

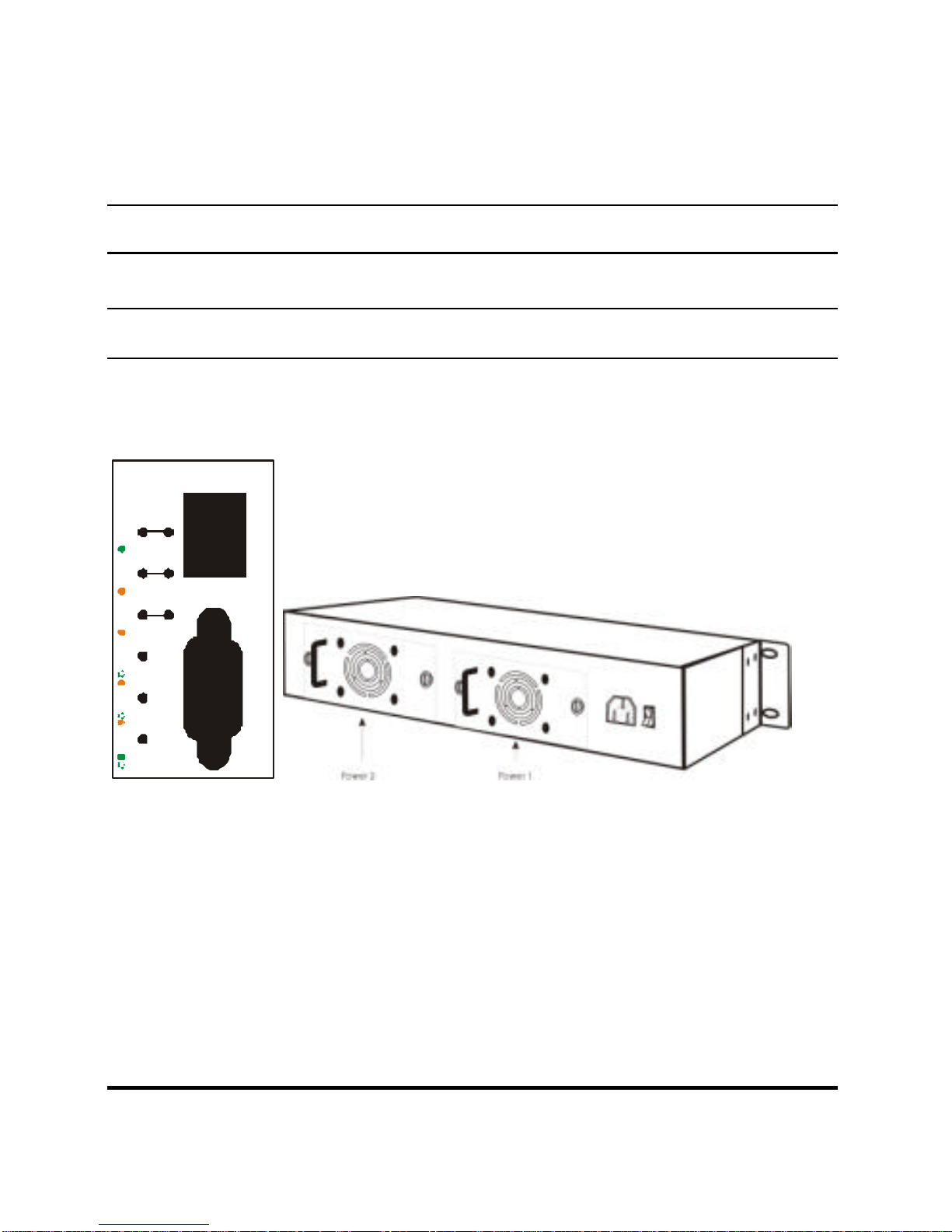

The LED indicators of the Switch include Power, ALERT, HTTP, ICQ, SMTP, SPEED,
LINK/ACT and FDX/COL. The following shows the LED indicators for the Switch
along with an explanation of each indicator.
POWER ON
10/100 Fast Ethernet
POWER FAIL
FAN FAIL
1 2
MGM
CONSOLE
LINK/ACT
CPUWORK
CPUFAIL
DATA TRANSFER
ERROR DATA
LINK
DATA TRANSFER
Power On: Lights green when the power is inserted.
Power Fail: Lights Amber when the power is inserted and it is fail.
Fan Fail: Lights Amber when the fan is fail.
MGM: Blinks green when the device CPU is working and lights amber
when the CPU works fail.
Console: Blinks green when the data is transmitting through console port
and blinks amber when transmitting the wrong data.
Link/Act: Lights green when link tonetworking Ethernetand blinksgreen
for activity.
Management Setting Through Web Browser
1 Main Menu
Figure (1) Main Menu
1-1System Function
There are four items in System Function menu, “Software Reboot, Factory Reset, Image
Update and Configuration Update. (Figure 2)
1-2Configuration
There are three items in Configuration menu, “General Configuration, System
Configuration and SNMP Configuration. (Figure 2)
Figure (2) Configuration
1-1-1Software Reboot
To reboot for the software setting.
1-1-2Factory Reset
This function is to set the device back to the default setting in case of the messy setting.
1-1-3Image Update

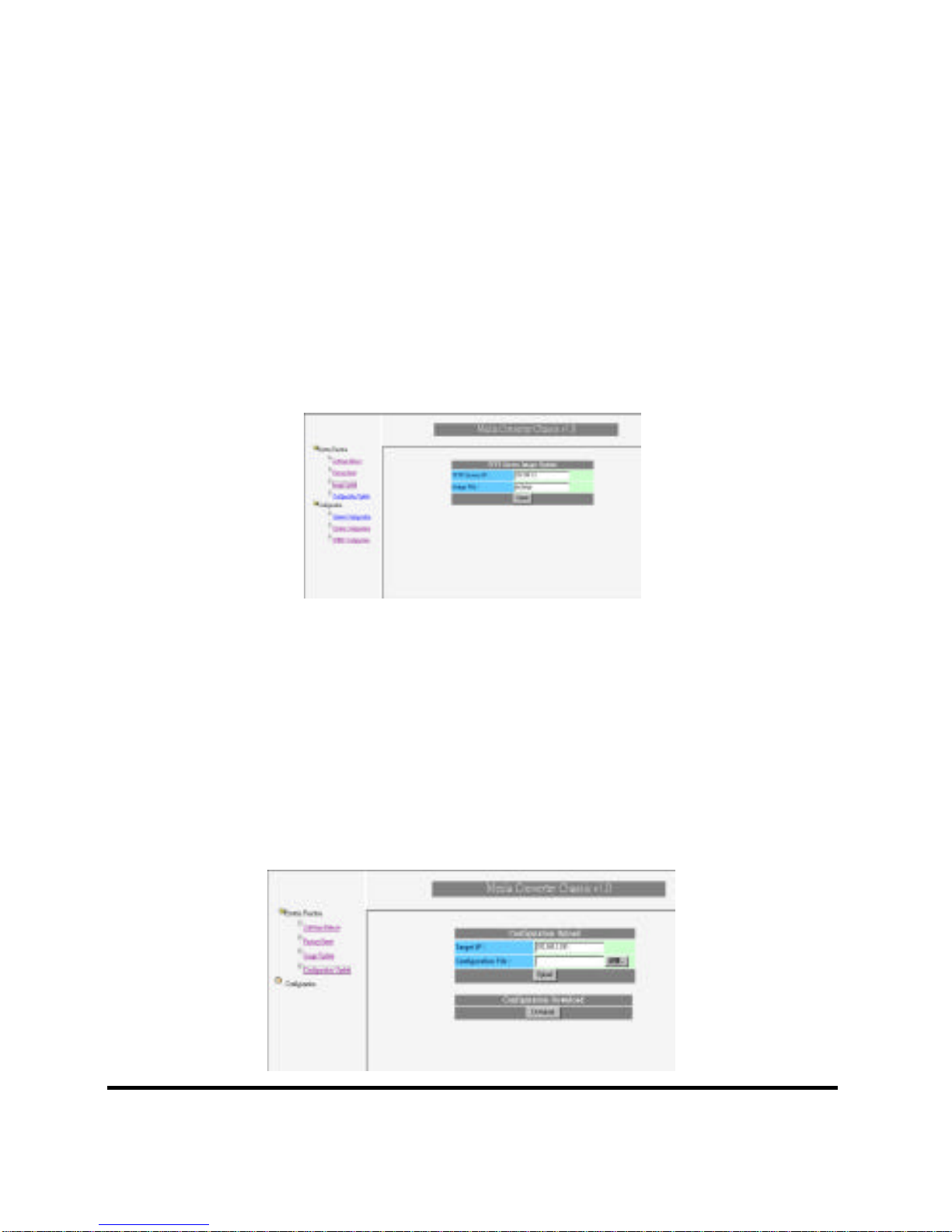

Figure (3)
The section is to set the TFTP Server IP Address first, and the default address was set to
“192.168.1.2”. The Image File can be updated by uploading the image file from the
TFTP server. (Figure 3)
Note: The content of the image file will write the whole firmware of the management module, please
be sure that the image file is correct.
1-1-4Configuration Update
Figure (4)
The section is explaining how to upload and download the configure setting of the
module.
The Configuration Upload is to restore a setting file to the management module.
The Configuration Download is to backup the setting from the management module.
1-2-1General Configuration
Figure (5)
Hardware revision: noted the version of the hardware.
BIOS revision: noted the version of the BIOS.
Firmware revision: noted the version of the firmware.
Change Password: the changing of the admit password.
Confirm Password: to confirm the setting of admit password.
System Name: to authorize the device system name.
Location: to show the device where it is located.
Refresh time: to set the refreshing time of the device through the web.
1-2-2General Configuration

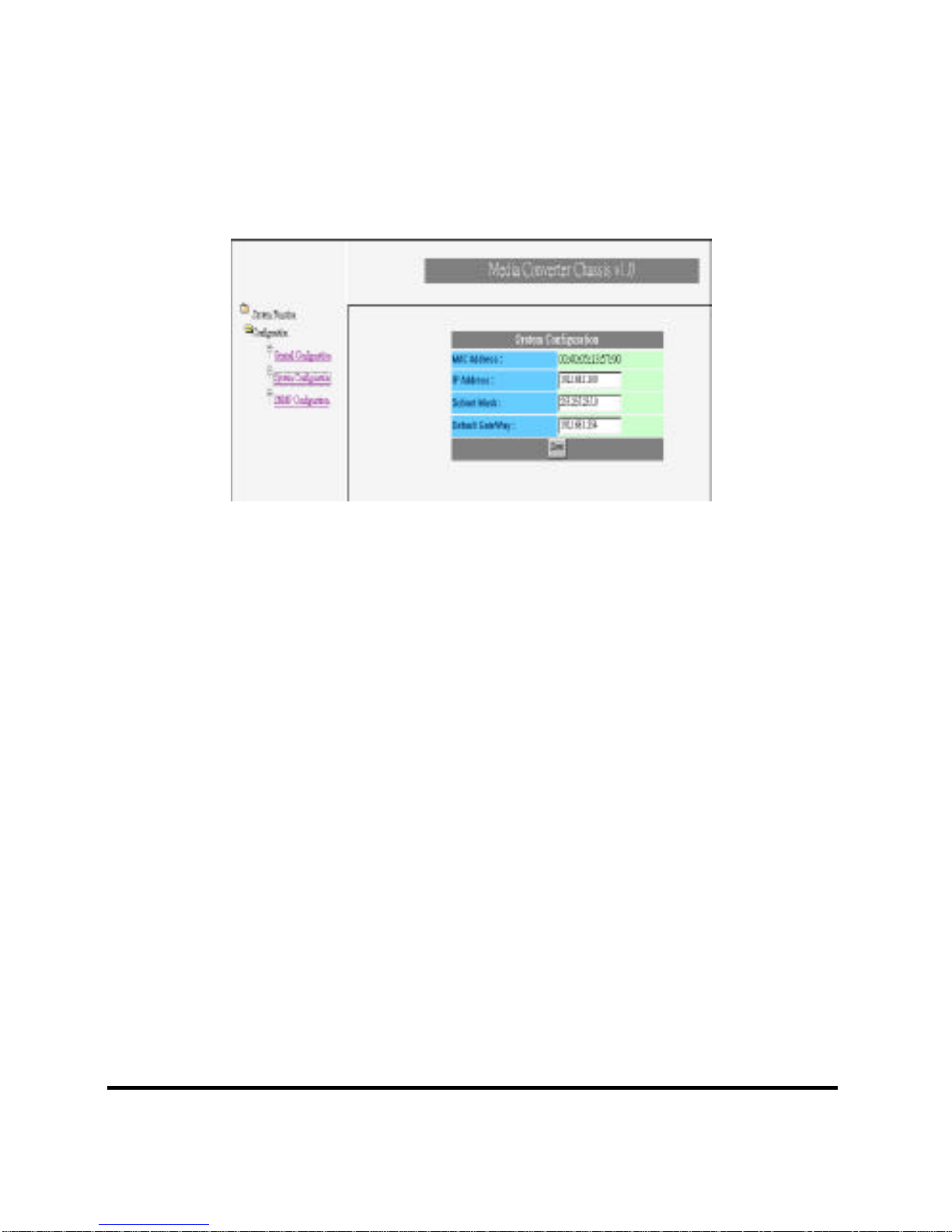

Figure (6)
MAC Address: will show out the MAC address of the device.
IP Address: to allocate an IP address for the device, the default IP is
“192.168.1.1”.
Subnet Mask: to set the Subnet Mask, the default is “255.255.255.0”.
Default Gateway: to set the gateway address, the default is
“192.168.1.254”.
NOTE: After configuring the system device, need to press the save button to save the setting.
1-2-3SNMP Configuration

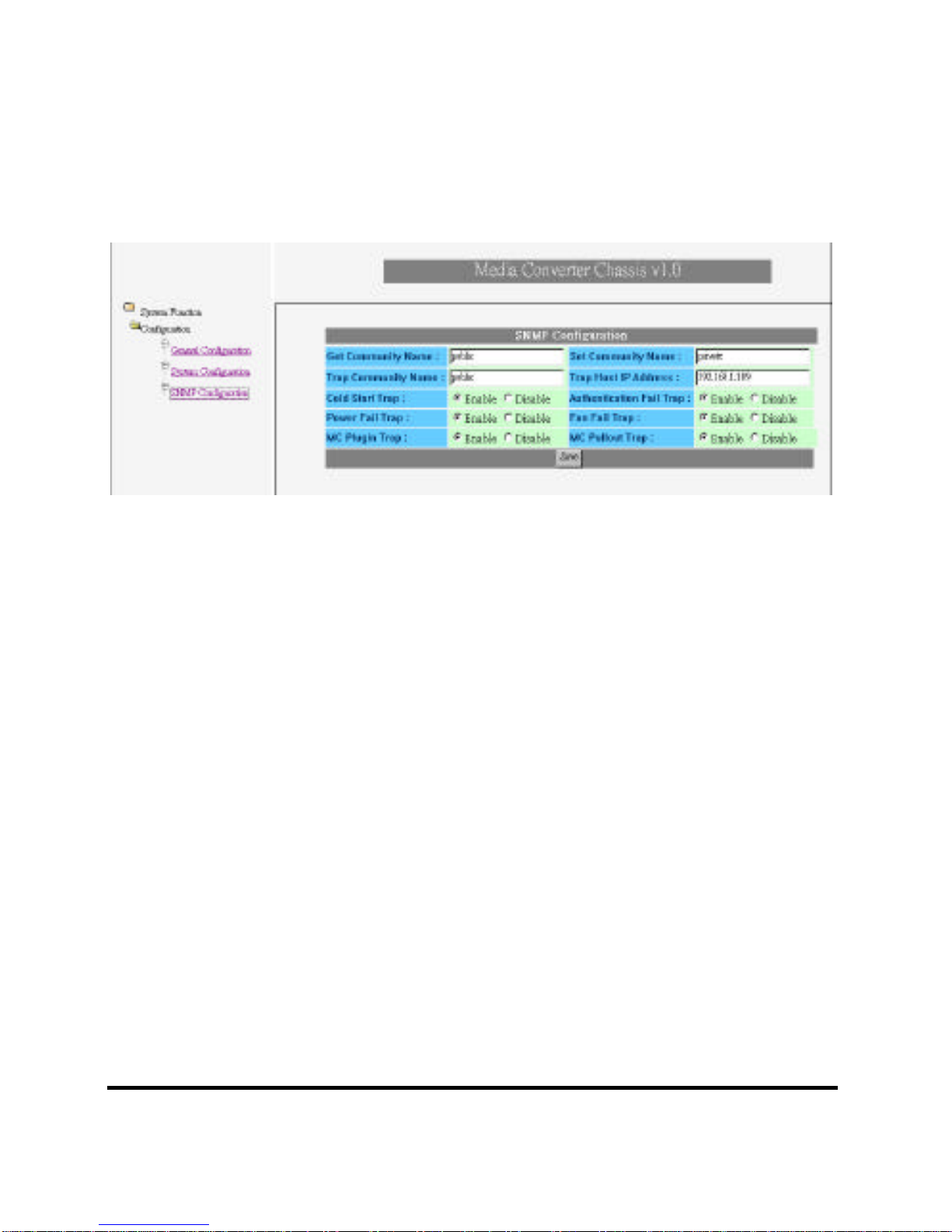

Figure (7)
Get Community Name: to get the device community name(default =public).
Set Community Name: to set the device community name (default=private).
Trap Community Name: to authorize the device trap community name
(default = public).
Trap Host IP Address: to set the trap host IP address(sameasmonitoringstation
IP address).
Cold Start trap: to set the trap for rebooting the device (default = enable).
Authentication Fail Trap: to set the warning trap when the community
name of the device and workstation are different (default = enable).
Power Fail Trap: to set the Power Fail Trap (default = enable).
Fan Fail Trap: to set the fan fail trap (default = enable).
MC Plug-in Trap: to set the trap of the Media Converter module if it is
plugged in (default = enable).
MC Pullout Trap: to set the trap of the Media Converter module if it is
pulled out (default = enable).
Management Setting Through Terminal Emulator
2Main Menu

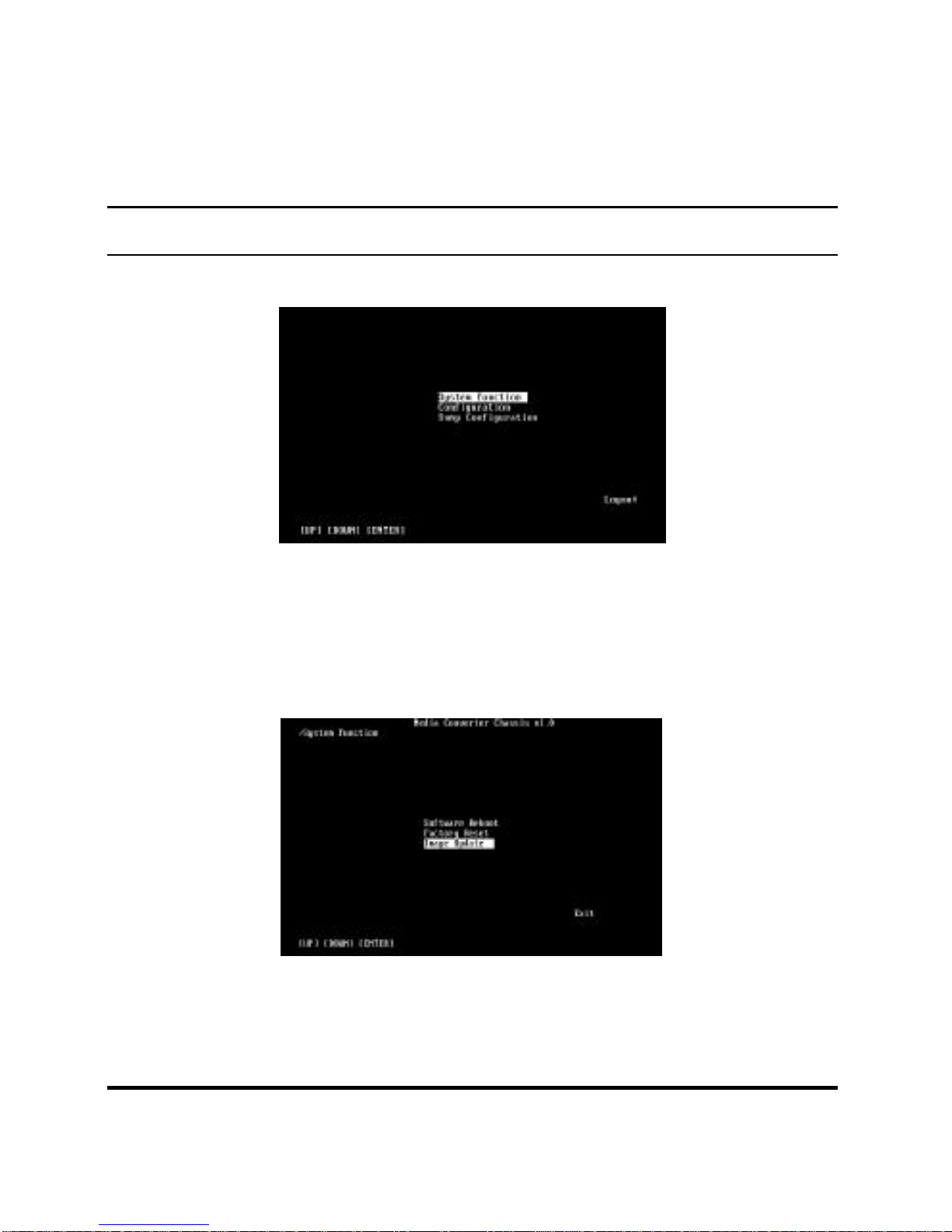

Figure (8)
2-1System Function
There are three items in System Function menu, “Software Reboot, Factory Reset,
Image Update. (Figure 9)
Figure (9)
2-1-1Software Reboot
