TRENDnet TDM-C400 Bedienungsanleitung

TDM-E400

TDM-C400

Quick Installation Guide

Table of Contents

Version 09.07.2006

English .......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. .........................................................................

..................................................................................

Hardware Installation .

Software Installation (TDM-C400 only) ...............................................

4. Configuring the ADSL Modem through Ethernet or USB connection ..

Installation Requirements

Application

ADSL/ADSL2/ADSL2+ service up and running on your telephone line.

Package Content

1. Before You Start

English

TDM-E400/TDM-C400

CD-ROM (User's Guide)

Quick Installation Guide

1 x RJ-45 Cat.5 Cable

1 x USB Cable (for TDM-C400 only)

1 x RJ-11 Telephone Cable

Power Adapter (15V DC 1A)

One or more computers each containing an Ethernet 10Base-T/100Base-T

network interface card (NIC) and/or a single computer with a USB port

An Ethernet hub or switch, if you are connecting the device to more than

one computer on an Ethernet network

Web browser: Internet Explorer v5.0 or later, or Netscape v6.1 or later

ADSL Enabled Phone Jack

ADSL/ADSL2+ Ethernet Modem Router (TDM-E400)

ADSL/ADSL2+ Ethernet/USB Combo Modem Router (TDM-C400)

Workstations with10/100Mbps

Fast Ethernet PCI Adapter

(TE100-PCIWN)

5-port 10/100Mbps

Fast Ethernet Switch

(TE100-S5P)

Workstation with 10/100Mbps

Fast Ethernet PCI Adapter

(TE100-PCIWN)

Stand-Alone PC

Internet

(TDM-C400 only)

English

Collect the following information from your

ADSL2+ service provider

VPI value: ______

VCI value: ______

Encapsulation type: □LLC/SNAP or □VC/MUX

As well as:

For PPPoA (RFC2364) or PPPoE (RFC2516)

User Name: _______________________

Password: ________________________

Authentication method: □PAP or □CHAP

Host or IP address: _________________

For Static or Fixed IP Connectin (RFC1483 or RFC1577)

Host: ____________________________

Domain: __________________________

Gateway: _________________________

IP address: _______________________

Subnet Mask: _____________________

DHCP Server IP : __________________

Primary DNS Server IP: ______________________

Secondary DNS Server IP: ____________________

English

2. Hardware Installation

3. Attach the power connector to the

ADSL2+ ethernet router.

2. Connect the RJ-45 cable (and/or

connect the USB cable for

TDM-C400 USB combo Model

only).

1. Connect the RJ-11 cable.

4. Allow the device 60 seconds to

boot. Verify that the WAN and LAN

LEDs are on.

English

3. Software Installation (TDM-C400 only)

Note: For Windows 98/98SE applications, you may need the Windows

98/98SE CD ROM to complete the installation.

Before starting the software setup process, close all Windows programs

currently running on your PC.

1. The system automatically detects

the new hardware when the USB

cable is connected to your PC

Click Cancel.

(Windows 98/98SE)

(Windows 2000)

(Windows ME)

(Windows XP)

2. Insert the installation CD into the

CD drive and click on the USB

Utility button sub menu

"TDM-C400". The installation

should start.

English

3. The “Welcome!” windows appears.

Exit all Windows programs before

continuing. Then, click on Next.

4. Please review the license

agreement and click Accept to

continue.

5. The USB Modem Setup Wizard will

begin installing the software and

indicates the progress of the

installation.

6. If the installation wizard detects

that the ADSL modem is not

connected by USB, it prompts you

to connect it in order to proceed.

7. A message will be displayed

requiring you to reboot the system.

Select “Yes, reboot the computer

now” and then click Close.

9. From Programs, go to TRENDnet

DSL Modem and click on the DSL

Status.

English

8. After rebooting, the device will be

installed. Please click Finish.

10. The “Physical Link” tab of the

“TRENDnet DSL Modem” window

(Control Panel) allows you to

review the current state of the

TRENDnet DSL Modem and

connection. The State field will

indicate that the TDM-C400 is

“Connected”.

English

Note: The DHCP server of the ADSL2+ modem router is enabled by default.

Please configure your computer to automatically obtain an IP address from the

ADSL2+ modem router’s DHCP Server.

2. Enter User name and Password,

and then click OK. By default,

User name: admin

Password: admin

1. Open your web browser, type

http://192.168.1.254 in the

Address bar, and press Enter.

3. The System View page displays

each time you login to the Web-

Configuration. Click Quick

Configuration to start

configuration procedures.

4. Configuring the ADSL Modem through Ethernet

or USB connection

English

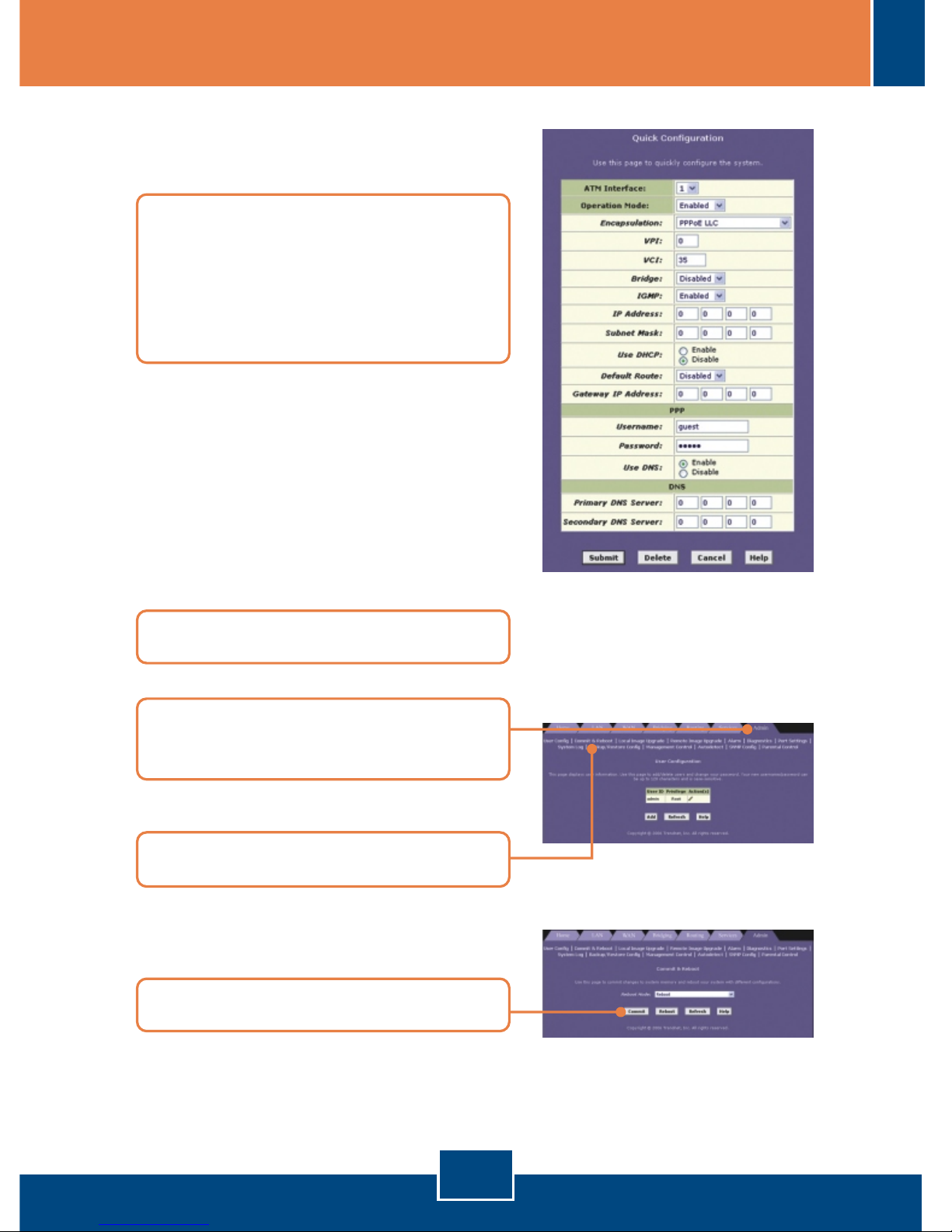

4. The Quick Configuration table will

appear requiring you to fill in the

fields with the appropriate

information provided by your

Service Provider.

5. Then click the Submit button.

6. Click Admin in the Web

Configuration screen.

7. Click Commit & Reboot.

8. Click Commit.
