TRENDnet TEW-652BRP Bedienungsanleitung
Quick Installation Guide
TEW-652BRP
H/W: V1.0R
Table of Contents
Table of Contents
Version 06.25.2008
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
2
3
7
1. Before You Start
2. Hardware Installation .........................................................................
3.
.................................................................................
Configure the Wireless Router ...........................................................

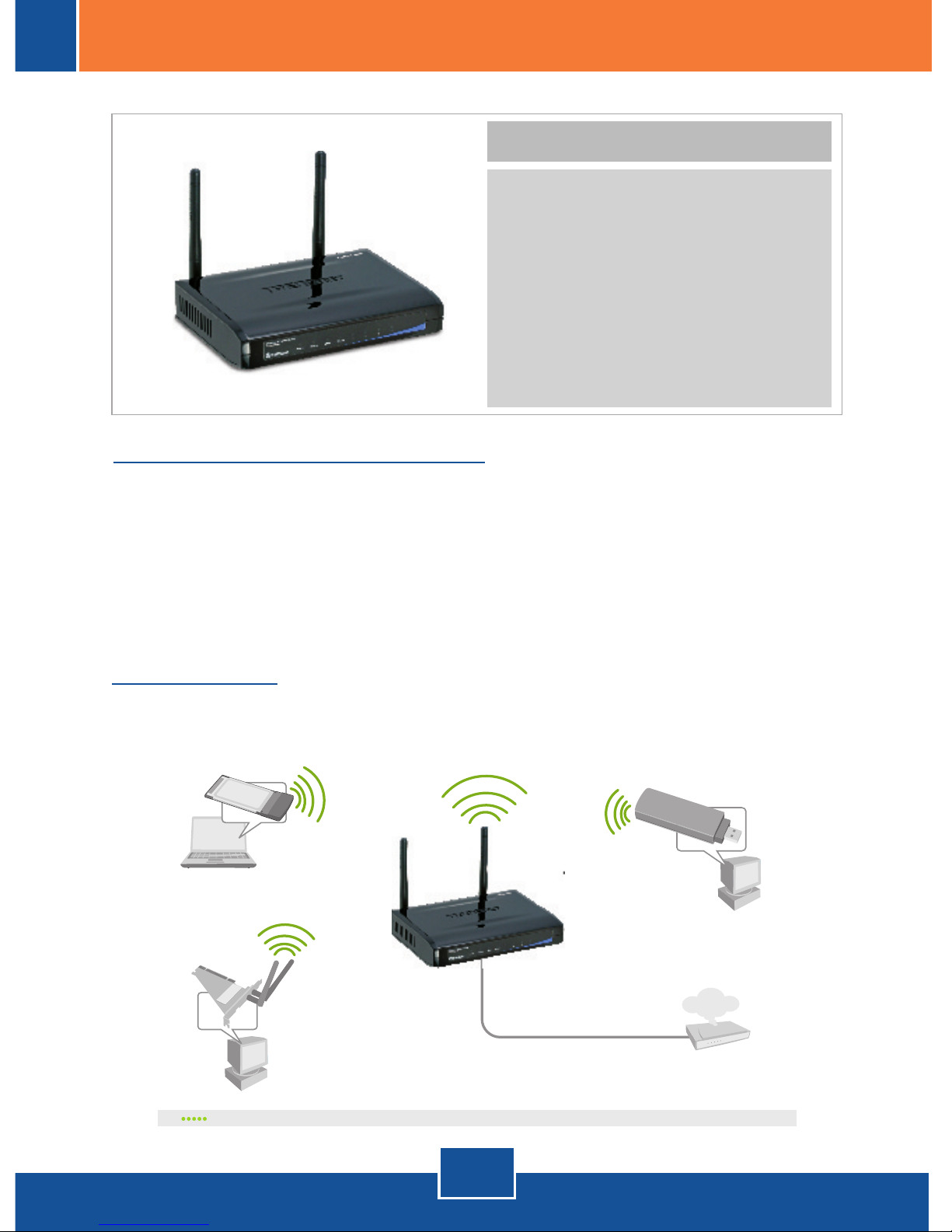

Installation Requirements
Application
Package Contents
1. Before You Start
English
1
?
?
?
?
?
?
TEW-652BRP
User's Guide CD-ROM
Multi-Language Quick Installation
Guide
1 x RJ-45 Ethernet Cable
2 x 2dbi Antenna
AC Power Adapter (5V, 2A)
?
?
?
?
A computer with a wired or wireless network adapter properly installed
Web Browser: Internet Explorer (5.0 or higher)
Broadband Internet
Installed Cable or DSL Modem
300Mbps, share multimedia throughout the house
Wireless N Home Router
(TEW-652BRP)
Notebook with
Wireless N PC Card
(TEW-641PC)
Cable/DSL
Modem
Workstation with
Wireless N PCI Adapter
(TEW-643PI)
Internet
Workstation with
Wireless N USB Adapter
(TEW-644UB)
English
2
2. Hardware Installation
4. Connect the AC Power Adapter to
the wireless router and then to a
power outlet.
5. Verify that the following panel lights
are on: Power, LAN, WAN and
WLAN.
3. Connect one end of a RJ-45 cable
to the TEW-652BRP’s WAN port.
Connect the other end of the cable
to your modem.
Note: Gather all information related to your Internet Connection before you
start. If necessary, contact your Internet Service Provider (ISP).
1. Verify that you have an Internet
connection when connecting your
computer directly to the Cable or
DSL modem. Open your browser
(e.g. Internet Explorer) and type in
a URL (e.g.
http://www.trendnet.com) in the
address bar.
2. Connect one end of a RJ-45 cable
to one of the TEW-652BRP’s LAN
ports. Connect the other end of
the cable to the computer's
Ethernet port. Then connect the
2dbi detachable antenna.
Cable/DSL Modem
Internet
English
3
3. Configure the Wireless Router
Note: It is recommended that you configure the Wireless Router from a wired
computer.
2. Enter the User Name and
Password, and then click Log In.
User Name: admin
Password: admin.
1. Open your web browser, type
http://192.168.10.1 in the
Address bar, and then press Enter.
3. The Wizard will automatically
appear. Click Wizard if the Wizard
does not automatically appear.
4. Click Next.
English
4
5. Enter a Password, verify the
Password and then click Next. By
default, the Password is admin.
6. Select your Time Zone and then
click Next.
7. Click Next. Note: Do not change
default settings unless it is
conflicting with your existing
hardware.
English
5
9. Click Next.
Note: It is recommended that you enable encryption on the wireless router.
Please refer to the User Guide on the User's Guide CD-ROM for information on
setting up encryption on the wireless router.
10. Click Restart.
8. Configure the settings based on
information provided by your ISP.
Follow the wizard instructions to
complete the configuration.
Note: Each Internet Connection
type may have different options.
English
6
Your configuration is now complete.
For detailed information regarding the TEW-652BRP's configuration and
advanced settings, please refer to the Troubleshooting section, User's Guide
CD-ROM, or TRENDnet's website at http://www.trendnet.com.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
11. Click Close.
7
Troubleshooting
Q1:
A1:
I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error
message says “The page cannot be displayed.” How can I get into the TEW-
652BRP’s web configuration page?
First, check your hardware settings again by following the instructions in
Section 2. Second, make sure the LAN and WLAN lights are lit. Third, make sure
your TCP/IP settings are set to Obtain an IP address automatically (see the
steps below).
1. Go into the Control Panel, double-click
the Network Connections icon and
then right-click the Local Area
Connection icon and then click
Properties.
2. Click Internet Protocol (TCP/IP) and
then click Properties. Then click on
Obtain an IP address automatically.
Fourth, press on the factory reset button for 15 seconds.
I am not sure what type of Internet Account Type I have for my Cable/DSL
connection. How do I find out?
Contact your Internet Service Provider's (ISP) support service for the correct
information.
The Wizard does not appear. What should I do?
First, click on Wizard on the left hand side. Second, near the top of the
browser, “Pop-up blocked” message may appear. Right click on the message and
select Always Allow Pop-ups from This Site. Third, disable your browser's pop up
blocker.
Q2:
A2:
Q3:
A3:
8
Q4:
A4:
Q5:
A5:
I went through the Wizard, but I can not get onto the Internet. What should I
do?
First, verify that you can get onto the Internet with a direct connection into your
modem. Second, contact your ISP and verify all the information that you have in
regards to your Internet connection settings is correct. Third, power cycle your
modem and router. Unplug the power to the modem and router. Wait 30
seconds, and then reconnect the power to the modem. Wait for the modem to fully
boot up, and then reconnect the power to the router.
I can not make a wireless connection to the Router. What should I do?
First, make sure that the antenna is connected to the TEW-652BRP. Second,
double check that the WLAN light on the Router is lit. Third, power cycle the TEW-
652BRP. Unplug the power to the TEW-632BRP. Wait 15 seconds, then plug the
power back in to the TEW-652BRP. Fourth, contact the manufacturer of your
wireless network adapter and make sure the wireless network adapter is
configured with the proper SSID. The preset SSID is TRENDnet.
If you still encounter problems or have any questions regarding the TEW-652BRP,
please contact TRENDnet's Technical Support Department.
