TRENDnet TEW-WLC100 Bedienungsanleitung

Quick Installation Guide

TEW-WLC100 (V1)

Table of Content

1 English

1. Before You Start

2. Hardware Installation and Configuration

3. Connect your wireless access points

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

1. Before You Start

Package Contents

ŸTEW-WLC100

ŸQuick Installation Guide

ŸCD-ROM (User's Guide)

ŸPower adapter (12V DC, 1A)

ŸRack mount kit

Minimum Requirements

ŸComputer with an Ethernet port and web browser

ŸNetwork cable for computer connection to controller

ŸCompatible wireless access point(s) (TRENDnet TEW-755AP, TEW-821DAP, or TEW-825DAP)

Optional Equipment

ŸEIA standard 19” rack

ŸPower drill/drill bits and Phillips bit or screwdriver for mounting

Make sure your existing network is using a DHCP server to distribute IP addresses to the access

points. By default, TRENDnet access points listed below will obtain an IP address automatically

through DHCP or otherwise default back to 192.168.10.100 / 255.255.255.0 if a DHCP server is

not available on your network. Each access point must be assigned a unique IP address on the

same network. The wireless controller and access points must be connected to the same IP

subnet on your network (e.g. 192.168.10.x / 255.255.255.0).

Important Note:

Access Point Model Description Controller Compatible

Firmware Version

TEW-755AP N300 PoE Access Point 1.03 or above

TEW-821DAP AC1200 Dual Band PoE Access Point 1.05 or above

TEW-825DAP AC1750 Dual Band PoE Access Point 1.01 or above

Access Point Compatibility

Before you proceed, please ensure you are using one of the access point models in the list and

the firmware version of your access point has been upgraded accordingly to the versions

indicated in the list below. You can download the access point firmware from

http://www.trendnet.com/support which include instructions on how to upgrade the firmware.

Before any access points are added to the wireless controller, make sure to reset the access

points to factory default.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

2. Initial Controller Setup

Note: Before connecting the wireless controller to the network and connecting other devices

such as PoE injectors or access points, follow the steps to set up your controller IP address

settings and administrator password first.

3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x

(e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

4. Open your web browser, type the default IP address of the wireless controller in the address

bar, and then press Enter. The default IP address is 192.168.10.200.

Power

6. Click Management and click on LAN.

5. Enter the User name and Password, and then click Login. By default:

User Name: admin

Password: admin

LAN

Management

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

8. To change the controller administrator password, click Account Settings and click Edit.

Edit

Account Settings

7. Configure the wireless controller IP address settings to match the requirements of your

network and click Apply.

IP Address

Netmask

Gateway

DNS1

DNS2

192.168.10.200

255.255.255.0

192.168.10.1

10. Using an Ethernet cable, connect one of the five Gigabit Ethernet ports located on the back of

the wireless controller to your network (e.g. router, switch, etc.)

9. In the New Password and Confirm Password fields, enter the new administrator password

and click OK to save the new password settings. You will be prompted immediately

afterwards to login to the controller management page with the new password.

Confirm Password

New Password

Network

TEW-WLC100

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

3. Connect your wireless access points

Important Note: Please make sure your access points have met the requirements in Section 1.

1. Using an Ethernet cable, connect each wireless access point to the wireless controller or your

network.

Note: If powering the access points using their power adapters, you can connect the access

points directly to your network or the wireless controller. If powering the access point using

power over Ethernet (PoE), you can connect your access points to your network or to the

wireless controller using a separate PoE injector (not included) or PoE/PoE+ switch (not

included).

OR OR

Access Point

Power

Network

PoE Injector

Access Point

Network

PoE Switch

Access Point

Network

4. Initial Wireless Setup

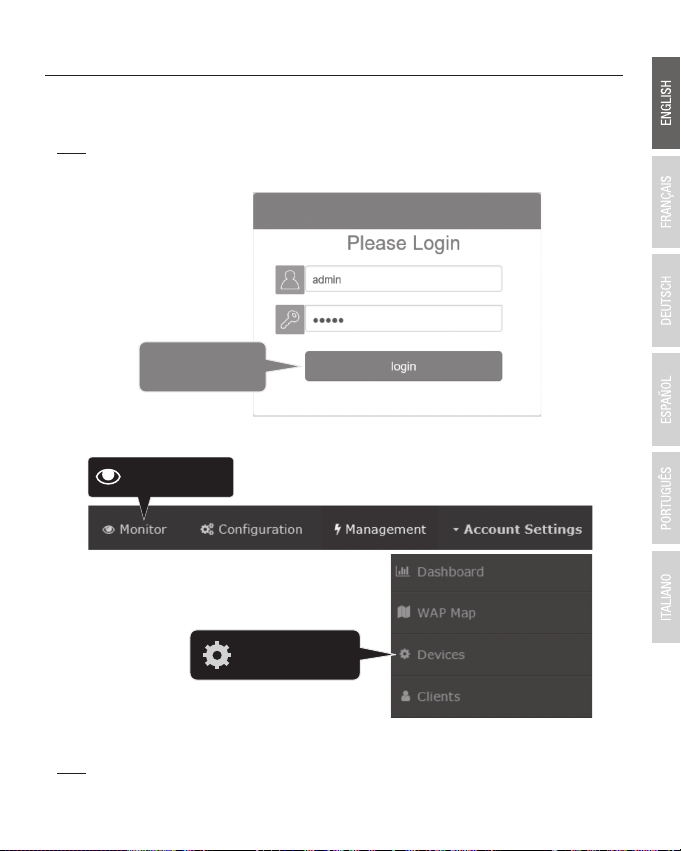

1. Using your computer and web browser, access the wireless controller management page

using the newly assigned IP address settings (configured in Section 2) and login.

Note: If the IP address settings were not changed in Section 2, the IP address settings for the

controller are 192.168.10.200 / 255.255.255.0.

2. Click Monitor and click Devices.

3. The access points will be discovered automatically and appear in the Device List.

Note: If the access points do not appear, make sure the access points are powered by checking

the physical LEDs and physical cable connections and refresh the page.

Devices

Monitor
