TS-U100/ TS-U200

Version 03.30.05

2-port USB 2.0 Network Storage Server

USB 2.0 Network Storage Server with All-in-1 Memory Card Reader/Writer

Quick Installation Guide

Guide d'installation rapide du

Serveur de stockage réseau à 2 ports USB 2.0/

Serveur de stockage réseau USB 2.0 avec lecteur/

enregistreur de carte mémoire tout en un

USB-2.0-Netzwerkspeicherserver mit 2 Ports /

USB-2.0-Netzwerkspeicherserver mit Multispeicherkartenleser/-schreiber

Kurzanleitung zur Installation

Guía de instalación rápida del

Servidor de almacenamiento de red USB 2.0 de 2 puertos/

Servidor de almacenamiento de red USB 2.0 con lector/e

scritor de tarjeta de memoria todo en uno

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Prepare for Installation ......................................................................

2. Product Detail ....................................................................................

3. Hardware Installation ........................................................................

4. Storage Server Setup .......................................................................

5. Accessing Storage Devices on TS-U100/TS-U200 ..........................

Thank you for purchasing TRENDnet's TS-U100/TS-U200 2-port USB 2.0

Network Storage Server /USB 2.0 Network Storage Server with All-in-1

Memory Card Reader/Writer

This guide will help you set up your USB 2.0 Network Storage Server.

Following the installation instructions should be quick and easy, but if you run

into any problems, please refer to the Troubleshooting section. If you need

further assistance, please visit www.TRENDNET.com or call technical support

by phone.

Verify Package Contents

Please make sure you have everything in the box:

1. Prepare for Installation

English QIG

English

Minimum System Requirements

1. 10/100 Mbps switch

2. Cat 5 cable with RJ-45 connector

3. USB 2.0 storage devices (i.e. hard drive, flash drive, memory card reader,

etc.)

4. Installed Network Card using TCP/IP networking protocol

5. Windows XP, 2000, ME, 98SE

Quick Installation Guide

Power Adapter (5V, 2.5A) CD-ROM

TS-U100/TS-U200

TRENDnet

TRENDware, USA

What's Next in Networking

TS-U100/ TS-U200

Version 03.30.05

2-port USB 2.0 Network Storage Server

USB 2.0 Network Storage Server with All-in-1 Memory Card Reader/Writer

Quick Installation Guide

Guide d'installation rapide du

Serveur de stockage réseau à 2 ports USB 2.0/

Serveur de stockage réseau USB 2.0 avec lecteur/

enregistreur de carte mémoire tout en un

USB-2.0-Netzwerkspeicherserver mit 2 Ports /

USB-2.0-Netzwerkspeicherserver mit Multispeicherkartenleser/-schreiber

Kurzanleitung zur Installation

Guía de instalación rápida del

Servidor de almacenamiento de red USB 2.0 de 2 puertos/

Servidor de almacenamiento de red USB 2.0 con lector/e

scritor de tarjeta de memoria todo en uno

2. Product Detail

The USB 2.0 Network Storage Server has 3 LEDs that indicate power, network

activity, and storage devices.

English

Network LED

USB Storage LED

Power LED

TS-U100

Memory Card

Slots

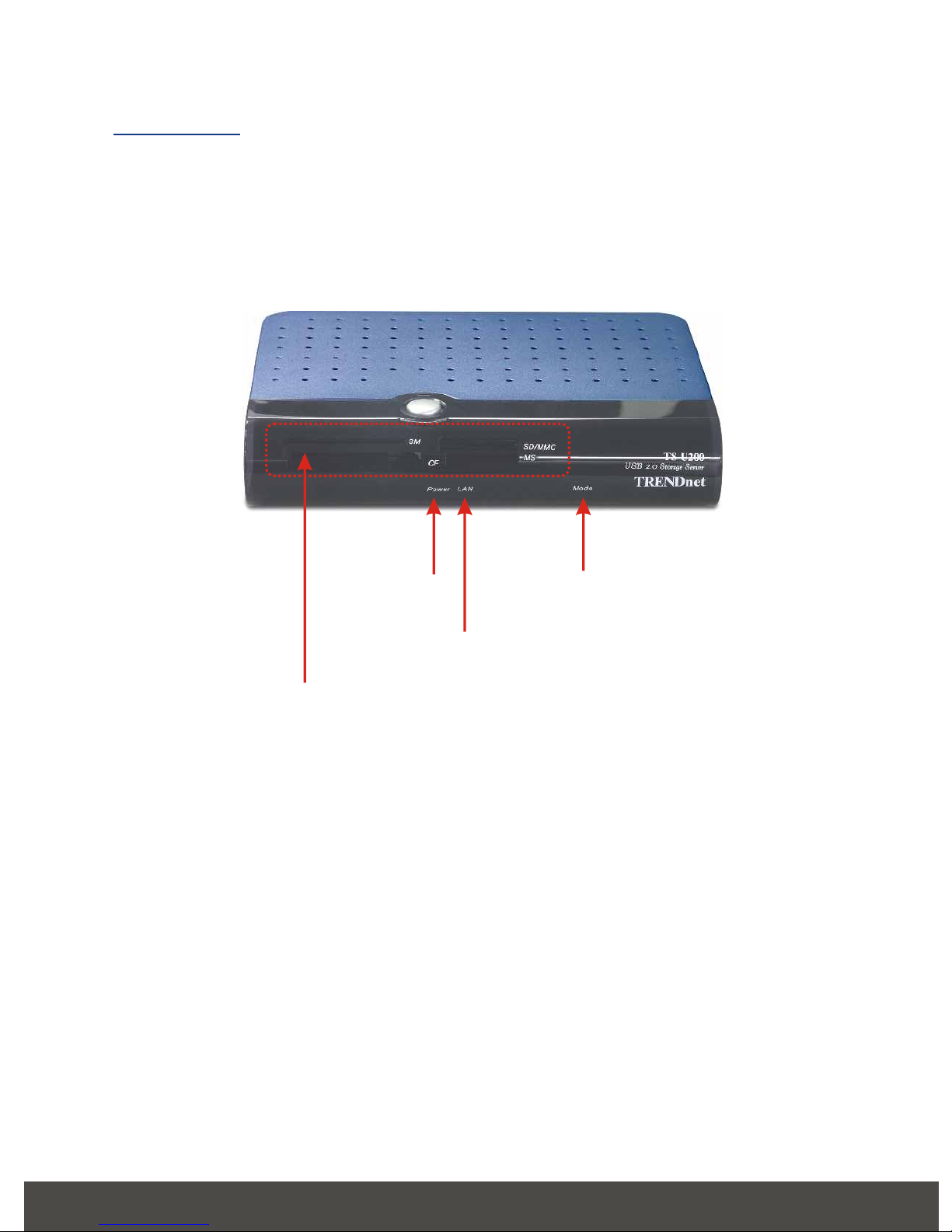

The USB 2.0 Network Storage Server with All-in-1 Memory Card Reader/Writer

has 3 LEDs and 4 Memory Card Reader/Writer slots. The LEDs indicate

power, network activity, and storage devices. The Memory Card Reader/Writer

slots indicate SM, SD/MMC, CF and MS slots.

English

TS-U200

Network LED

USB Storage LED

Power LED

3. Hardware Installation

1. Connect the power adapter to the TS-U100/TS-U200.

2. Connect the TS-U100/TS-U200 to your switch or computer by using a CAT 5

cable.

3. Connect your USB 2.0 Storage Device into a USB slot.

4. (For TS-U200 Only) Insert SmartMedia, Memory Stick, SecureDigital or

MultiMedia Card into the memory card slots with the copper connectors face

down. Insert Compact Flash Card as shown.

English

Your installation is now complete.

For Windows Users

1. Insert the TS-U100/TS-U200 CD-ROM into your computer's CD-ROM drive.

2. Click “Run Utility”

4. Storage Server Setup

English

3. Click Search Device and Click TS-U100/TS-U200. Take note and write

down the name of the TS-U100/TS-U200.

6English

4. Change the IP address in the LAN section and Click Modify. Take note and

write down the IP address of TS-U100/TS-U200.

7English

5. Accessing Storage Devices on

TS-U100/TS-U200

1. Go to the Static section and click the storage device you want to access.

Click Mount and click OK. Repeat this step to add more than one storage

device.

2. Double click My Computer and double click on any mounted storage device

in Network Drives.

8English

3. Your storage device is ready for access.
