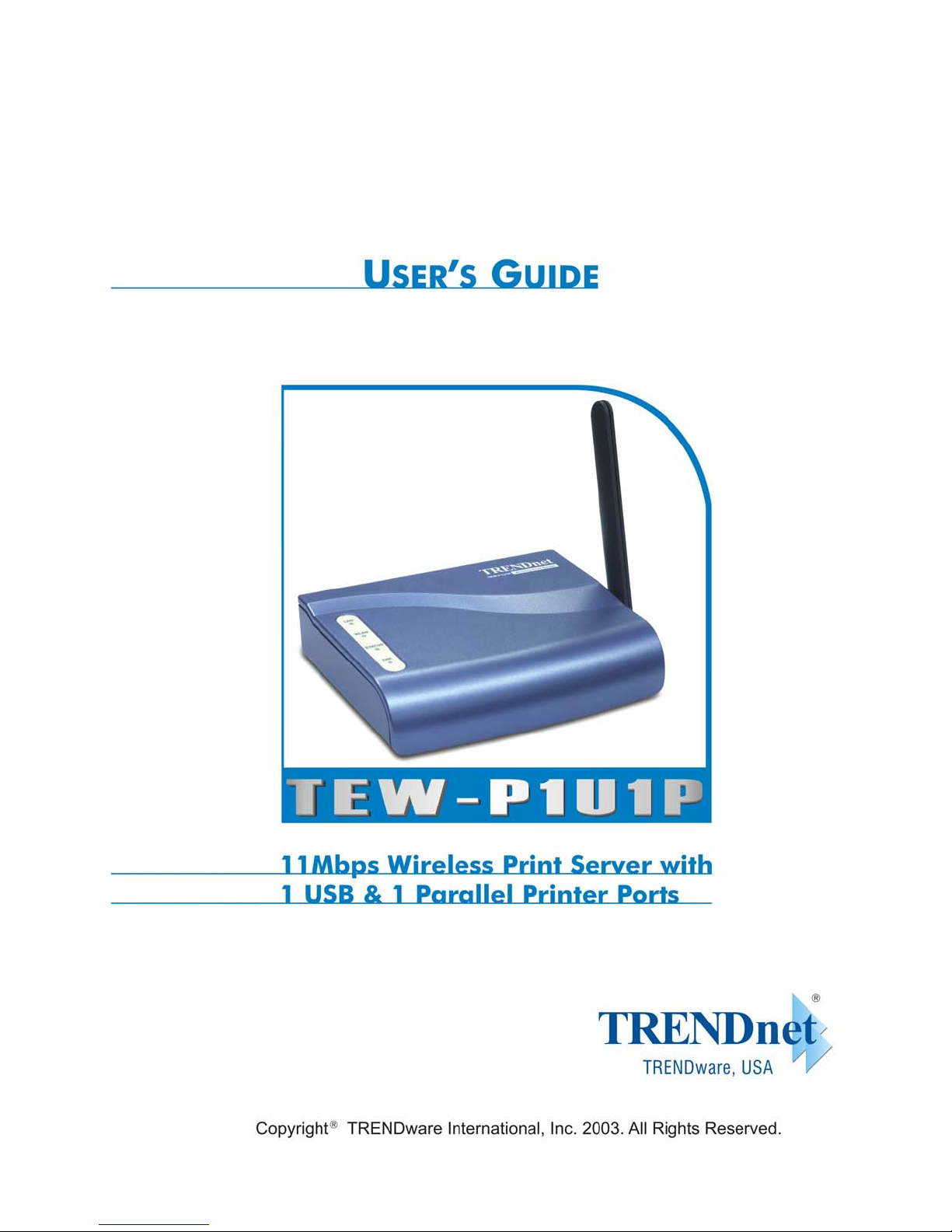

TRENDnet TEW-P1U1P Bedienungsanleitung
Table of Contents
Chapter 1 Introduction 1
Features................................................................................................................................... 1
Safety Instructions .................................................................................................................. 2
Package Contents.................................................................................................................... 3
Description.............................................................................................................................. 3
LED Indicators 4
Diagnostic Push Button 4
Chapter 2 LAN Installation 5
Procedure ................................................................................................................................ 5
Chapter 3 Wireless Print Server Configuration 6
Overview ................................................................................................................................ 6
Using the Windows Wizard.................................................................................................... 6
Procedure 6
Wireless Configuration ........................................................................................................... 8
Chapter 4 Client PC Configuration 9
Overview ................................................................................................................................ 9
Printing Methods 9
Which printing method should I use? 10
Checking your Network Protocols (Windows 9x) 10
Windows Peer-to-peer Printing............................................................................................. 12
Windows 2000/XP Setup 12
Windows 9x/ME Setup 16
PTP Printer Port Setup 17
Windows SMB Printing........................................................................................................ 20
Printing from MS-DOS Programs 21
Windows with Server-based Print Queues............................................................................ 23
Macintosh (AppleTalk)......................................................................................................... 24
Software Requirements 24
AppleTalk Setup 24
Printing 24
Advanced Setup and Management 24
Macintosh OS X ................................................................................................................... 25
LPR printing Setup 25
Page i
Chapter 5 BiAdmin Management Utility 26
Requirements ........................................................................................................................ 26
Installation ............................................................................................................................ 26
Operation .............................................................................................................................. 26
Main Screen 26
Menus 29
Configuration 29
Chapter 6 Web-Based Management 39
Overview .............................................................................................................................. 39
Preparation............................................................................................................................ 39
Connecting to the Wireless Print Server ............................................................................... 40
Configuration Screens...........................................................................................................40
AppleTalk 40
NetBEUI 41
TCP/IP 42
Configure Server 43
Wireless Configuration 44
Other Screens 46
Chapter 7 Special Features 47
Overview .............................................................................................................................. 47
Internet Printing Protocol (IPP) ............................................................................................ 47
IPP Server Configuration 47
IPP Client Setup - Windows 95/98/Me/NT 4.0/XP 48
IPP Client Setup - Windows 2000/XP 50
Using IPP Printers 51
Internet Mail Printing............................................................................................................ 52
System Requirements 52
Internet Mail Printing Configuration 53
User Software 54
Using the new Port 55
Checking the Printer Driver 56
Printing through the Internet................................................................................................. 56
Chapter 8 Troubleshooting 57
Overview .............................................................................................................................. 57
Hardware & LAN Problems ................................................................................................. 57
AppleTalk (Macintosh)......................................................................................................... 58
Windows Printing Problems ................................................................................................. 60
Page ii
Appendix A Specifications 64
General Specifications ..........................................................................................................64
Parallel Port Pin Assignments 64
Protocol Support 65
Feature Support 65
Appendix B Network Server Configuration 66
Windows NT4.0 Server ........................................................................................................ 66
Adding TCP/IP Printing Support 66
Adding a TCP/IP Remote Printer 66
Windows 2000/2003 Server.................................................................................................. 67
Unix Systems ........................................................................................................................ 68
Wireless Print Server IP Address Configuration 68
Other Wireless Print Server Configuration 68
LPD Configuration 69
Netware Systems .................................................................................................................. 74
Page iii
Page 1
1
Chapter 1
Introduction
This chapter provides an overview of your Wireless Print Server's features.
Features
Congratulations on the purchase of your new TEW-P1U1P Wireless Print Server. Your
Wireless Print Server was designed to provide a simple and efficient network printing solution.
It is packed with features, including:
Versatility. The Wireless Print Server supports up to four protocols: TCP/IP, SMB
(Service Message Block), AppleTalk (EtherTalk), and NetBEUI. It features one or two
Ethernet interface ports and operating system support includes Unix, NetWare (NDPS
LPR printing), and Microsoft Windows.
Easy Installation. The Wireless Print Server makes adding printers or plotters to your
network simple. The auto-sensing feature on the LAN interface means that there is no need
to set jumpers or perform software configuration to select the network interface used.
Easy Setup. A number of utility programs are supplied to simplify setup. For Windows
95/98/Me/NT/2000/XP users, the BiAdmin program makes it easy to configure the
Wireless Print Server for a variety of network and server configurations.
Web-based Interface. The Web-based interface provides an easy method of
configuration in TCP/IP networks to every model.
Compact Size. This allows the Wireless Print Server to be used even where space is
limited.
Remote Management Tools. A variety of software tools are provided. In most
environments, both the Wireless Print Server and attached bi-directional printers can be
configured remotely.
Internet Printing Protocol (IPP) Support. The Wireless Print Server can act as an
IPP (Internet Printing Protocol) Server, allowing clients, suppliers, colleagues and others
to print to your printer from anywhere on the Internet. Windows IPP Client software is
also supplied.
Wireless LAN Support. Wireless stations supporting the IEEE 802.11b standard can
interoperate with the Wireless Print Server. Both LAN and WLAN users can print to the
attached printer.
Safety Instructions
For your own safety, and to protect your Wireless Print Server, please observe the following
safety advice.
1. Unplug this device from its power source before cleaning. Use only a slightly dampened
cloth for cleaning. Do not use liquid or aerosol cleaners.
2. Avoid using this product near water. Exposure to water poses an electric-shock hazard.
3. Do not place the Wireless Print Server on an unstable surface. The device may fall causing
serious damage to the device.
4. This device should only be used with the power supply type specified on the marking
label. If you are not sure of type of your local power supply, consult your dealer or the
local power company.
5. Do not pinch, crimp or otherwise damage the power cord. If exposed to foot traffic,
ensures that the cable is properly shielded and does not pose a tripping hazard.
6. If using an extension cord, makes sure the total ampere rating of the products using the
cord does not exceed the extension cord's ampere rating.
7. Do not attempt to service this device, as opening or removing casing may expose you to
dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
8. The Wireless Print Server should be serviced by qualified service personnel under the
following conditions:
• The power cord is damaged or frayed.
• Liquid has been spilled onto the product.
• The product has been exposed to rain or water.
• The product does not operate normally in accordance with the operating instructions.
• The device has been dropped or the casing has been damaged.
Page 2
Package Contents
You should find the following items packaged with your Wireless Print Server. If any items are
missing, contact your dealer immediately.
• The Wireless Print Server
• Power Adapter
• One CD-ROM containing all support programs and this manual
• Quick Install Guide
Description
TEW-P1U1P Wireless Print Server
• 1 USB Printer Port
• 1 Parallel Printer Port
• IEEE 802.11b Wireless Station
• 10/100BaseT LAN connection
Figure 1 TEW-P1U1P Wireless Print Server
Page 3
LED Indicators
The Error LED is red. The Status indicator LED is green. The LED indicator modes are
described in the following table.
ACT LED
(Green)
ERR LED
(Red)
Status Description
Off Off No power.
On Off Normal operation - Idle.
Flashing Off Normal operation - transmitting or receiving
packets from the network.
On On Hardware error.
Flashing Flashing Firmware upgrade in progress.
LED Description
WLAN ACT Off - No Wireless connection available.
On - Wireless connection available.
Flashing - Transmitting or receiving data via the Wireless LAN.
LAN ACT Off - No LAN connection
On - LAN connection available.
Flashing - Transmitting or receiving data via the wired LAN.
Diagnostic Push Button
The Wireless Print Server is fitted with a Diagnostic Push Button. The button is recessed; a pin
or paper clip can be used to press it. This button has 2 functions:
• Restore the factory default settings
• Print a test page containing all current settings.
To restore the factory default settings:
1. Turn the Wireless Print Server OFF.
2. Press and hold the diagnostic button. While pressing the button, switch the Wireless Print
Server ON.
3. If you continue pressing the button for 10 seconds, a diagnostic page will be printed,
showing the new (default) settings.
To generate a Diagnostic print out
1. Ensure that both the Wireless Print Server and the printer attached to port 1 (parallel port)
are ON.
2. Press the diagnostic button, and hold it in for 2 seconds.
3. The test page, containing the current settings, will be printed.
Note:
PostScript printers are unable to print this page. If you have a PostScript printer on Port 1,
the test page will not be printed.
Page 4
Page 5
2
Chapter 2
LAN Installation
This chapter describes how to install the Wireless Print Server in your LAN.
Procedure
1. Preparation
• Ensure the power is OFF.
• Find the Default Server Name for your Wireless Print Server. The Default Server Name is
shown on a sticker on the base of the device. It consists of 8 letters and/or digits. Record
this name; it may be needed during configuration.
2. Connect the Printer or Printers
Connect the printer or plotter cables to the appropriate port on the Wireless Print Server unit.
Parallel port cables should be less than 3 meters long.
3. Connect to the Network
• For Wired Networks
Use a standard RJ-45 LAN cable to connect the LAN port on the Print Server to a
10/100Base-TX hub or switch.
If the LAN port is not connected to a functioning network device, the
LAN port is disabled. To enable the LAN port, please power off the
Print Server, connect the LAN port to a working network device and
then power on the Print Server.
• For Wireless Networks
Change your PC's Wireless settings to match the Print Server's default settings:
• Mode: Ad-hoc
• SSID: ANY
• Channel: 11
• WEP: Disabled
In Infrastructure mode, you can use EITHER the Wireless OR the
LAN interface on the Print Server, but not both
4. Power Up and check the LED
Connect the supplied Power Adapter, power up both the Printer and Print Server, and check the
Error LED on the Print Server.
• It should flash, then go off.
• It will remain On if there is a hardware problem.
Use only the Power Supply unit provided with the device. Power Supply units for
different models are not interchangeable.
Page 6
3
Chapter 3
Wireless Print Server
Configuration
This chapter provides an overview of the configuration process.
Overview
The Wireless Print Server is designed to support many different platforms, and the
configuration required would depend upon the environment in which it is installed.
• The Wireless Print Server usually requires configuration, but if there's a DHCP server on
your network, then the device is just plug-and-play. A Windows-based setup Wizard is
also provided on the CD-ROM to simplify this task.
• PCs wishing to use the printer attached to the Wireless Print Server always require
configuration. See Chapter 4- Client Configuration for details.
• If you wish to use a queue-based printing system using Windows NT Server/Windows
2000/Windows XP, the Network Server must be configured as detailed in Appendix B -
Network Server Configuration. However, it is not necessary to use a Network Server-based
queue; client PCs can print directly to the Wireless Print Server using the Peer-to-peer
Printing installed by the User setup option on the CD-ROM.
Configuration Methods
The following methods are available to perform the required Print Server configuration:
• Windows-based Wizard - see below for details.
• BiAdmin management utility program - see Chapter 8 for details.
• Web-based setup - see Chapter 6 for details.
Advanced Configuration and Management
The BiAdmin management utility is provided for advanced configuration and management.
This program is installed by default when the Administrator install option is chosen. See
Chapter 5 for details on using BiAdmin.
Using the Windows Wizard
The Windows-based Wizard is supplied on the CD-ROM, and runs on Windows 95, 98,
NT4.0, ME, Windows 2000 and Windows XP.
Using this Wizard is the recommended method to configure the Print Server.
It can be used configure the Wireless Print Server for your Network environment, even if the
Print Server does not have a valid IP address.
Procedure
1. Insert the supplied CD-ROM into your drive. If the setup program does not start
automatically, run AutoRun.exe in the root folder.
2. On the first screen, shown below, click Setup Wizard.
Andere Handbücher für TEW-P1U1P
3
Inhaltsverzeichnis
Andere TRENDnet Druckserver Handbücher
TRENDnet
TRENDnet TE100-PS3 Bedienungsanleitung
TRENDnet
TRENDnet TE100-MP1UN Bedienungsanleitung
TRENDnet
TRENDnet TE100-MP1UN Bedienungsanleitung
TRENDnet
TRENDnet TE100-P21 Bedienungsanleitung
TRENDnet
TRENDnet TEW-P1UG - Wireless Print Server Bedienungsanleitung
TRENDnet
TRENDnet TEW-MP1U Bedienungsanleitung
TRENDnet
TRENDnet TEW-P11G Bedienungsanleitung
TRENDnet
TRENDnet TE100-PS3plus Bedienungsanleitung
TRENDnet
TRENDnet TE100-PS1U Bedienungsanleitung
TRENDnet
TRENDnet TEW-P1PG SHEETS Bedienungsanleitung
TRENDnet
TRENDnet TEW-P1UG - Wireless Print Server Bedienungsanleitung
TRENDnet
TRENDnet TW100-P1W1 Bedienungsanleitung
TRENDnet
TRENDnet TEW-MFP1 Bedienungsanleitung
TRENDnet
TRENDnet TEW-P1UG - Wireless Print Server Bedienungsanleitung
TRENDnet
TRENDnet TEW-MFP1 Bedienungsanleitung
TRENDnet
TRENDnet TE100-P11 Bedienungsanleitung
TRENDnet
TRENDnet TEW-PS3 Bedienungsanleitung
TRENDnet
TRENDnet TEW-PS1U Bedienungsanleitung
TRENDnet
TRENDnet TE100-P1P - Parallel Print Server Bedienungsanleitung
TRENDnet
TRENDnet TEW-P21G Bedienungsanleitung
