TRENDnet's TEG-S224TX is a 26-port 10/100/1000Mbps

NWay Gigabit Switch with 24 10/100Mbps NWay Ethernet

ports and two 1000Base-T Copper Gigabit Ethernet ports. All

ports supports full and half duplex transfer mode with non-

blocking store-and-forward switching method. This high-

performance switch also supports IEEE 802.1p Quality of

Service (QoS) for priority data packet processing. And with

Broadcast Storm Control, Port Trunking, and VLAN supports,

the TEG-S224TX is powerful and easy-to-use in reducing

unnecessary broadcast traffic, segmenting the network, and

enhancing network security.

TEG-S224TX

26-Port 10/100/1000Mbps NWay Copper Gigabit Ethernet Switch

2 10/100/1000Mbps Auto-Negotiation Copper Gigabit Ethernet Ports

24 10/100Mbps Auto-Negotiation Ethernet/Fast Ethernet Ports

Full/half Duplex transfer mode for each 10/100/1000Mbps ports

Auto MDI-II / MDI-X media type detection for all ports

Supports store and forward architecture with non-blocking full wire

speed performance

802.3x flow control for full duplex and collision-based back pressure

function for full duplex operation

Supports up to 32K MAC addresses table/hashing algorithm on

address learning

Supports 2Mbytes packet buffer per device

Broadcast storm control

Port Trunking (2 Trunk Groups) with 2, 3, 4, 5, 6, 7, or 8 designated

10/100Mbps ports

Port-based VLAN

Supports IEEE 802.1p Port-Based Quality of Service (QoS)

Console Port (cable included) for easy configuration with Windows-

Based GUI (for Win95/98/ME)

Extensive front-panel diagnostic LED's

5 Year Warranty

BENEFITSFEATURES

Performance:

Flexibility:

Expandability:

Cost Effectiveness:

Security:

Provides two 1000Mbps Gigabit

connections to Power Servers and/or

other Gigabit Switch, with each port

running at full wire speed.

Connects to 10Base-T, 100Base-TX,

and 1000Base-T Networks.

Simple expansion can be done by

uplinking to other 10/100Mbps or

Gigabit Switches. Trunks two switches

with up to 8 10/100Mbps ports to

create 1.6Gbps "pipe" between two

Switches.

Provides Gigabit Performance at an

affordable price.

Port-based VLAN to further segment

the network.

TEG-S224TX (11-17-2002)

TRENDnet

TRENDware, USA

What's Next in Networking

PRODUCT INFORMATION

To Order Please Call:

1-888-326-6061

TEG-S224TX: 26-port 10/100/1000Mbps NWay Copper Gigabit

Switch

TEG-S80TX: 8-port 10/100/1000Mbps NWay Copper Gigabit

Switch

TEG-S18TX: 9-port 10/100/1000Mbps NWay Copper Gigabit

Switch

TEG-PCITX: 32-Bit PCI 10/100/1000Mbps NWay Copper Gigabit

Ethernet Card

TEG-PCITX2: 32/64-Bit PCI 10/100/1000Mbps NWay Copper

Gigabit Ethernet Card

ETH-800I: EIA-19" Rack-Mount Kit for TEG-S18TX

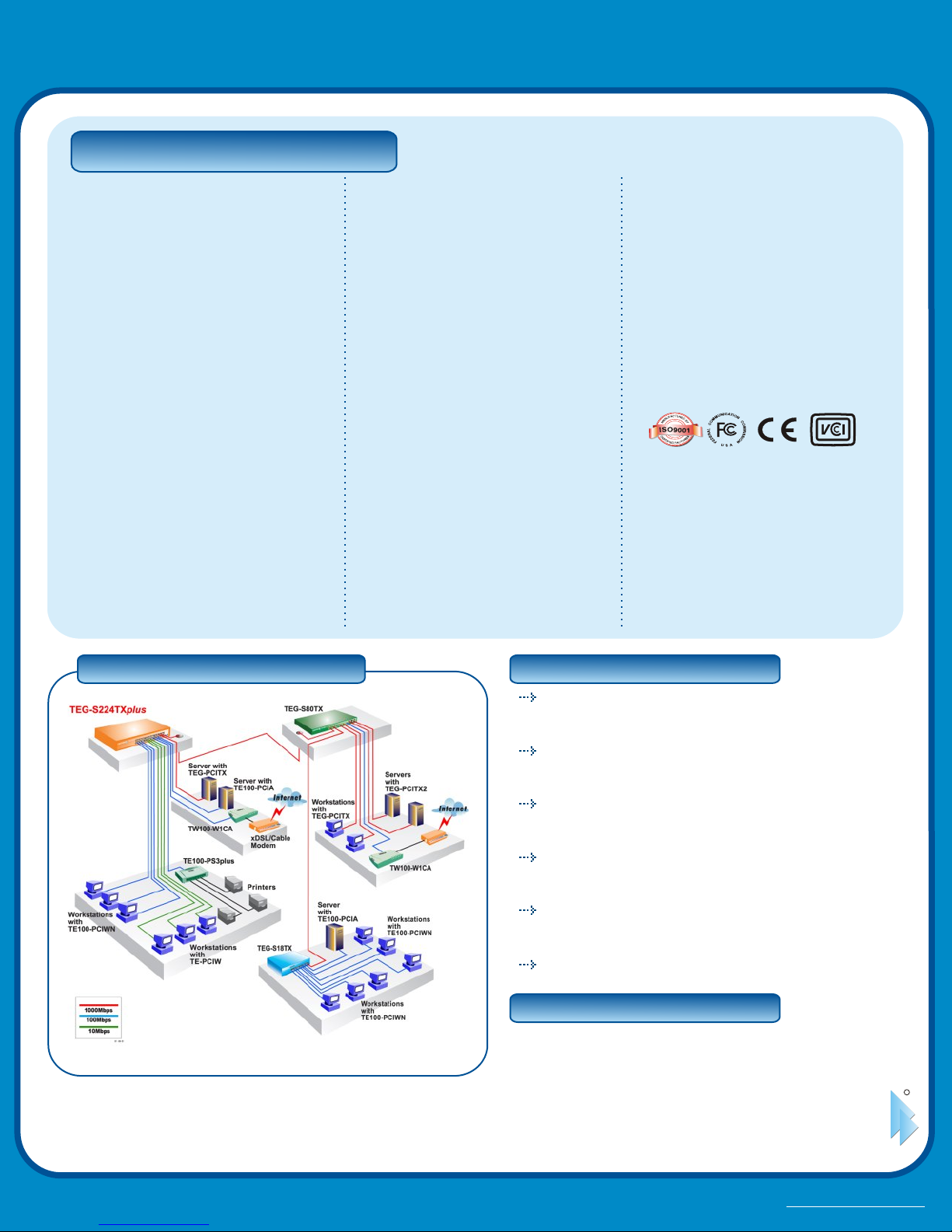

NETWORKING SOLUTIONS

SPECIFICATIONS

TEG-S224TX

26-Port 10/100/1000Mbps NWay Copper Gigabit Ethernet Switch

TEG-S224TX

26-Port 10/100/1000Mbps NWay Copper Gigabit Ethernet Switch

Standards:

• IEEE 802.3 10Base-T Ethernet,

IEEE 802.3u 100Base-TX Fast

Ethernet, IEEE 802.3ab 1000Base-T

Gigabit Ethernet, IEEE 802.3z

1000Base-F Gigabit Ethernet,

ANSI/IEEE 802.3 NWay

Auto-Negotiation, IEEE 802.3x

Full-Duplex Flow Control

Data Transfer Rate:

• Ethernet: 10Mbps (Half-Duplex),

20Mbps (Full-Duplex)

• Fast Ethernet: 100Mbps (Half-

Duplex), 200Mbps (Full-Duplex)

• Gigabit Ethernet: 1000Mbps (Half-

Duplex),2000Mbps (Full-Duplex)

Protocol:

• CSMA/CD

Topology:

• Star

Cabling:

• Ethernet: UTP CAT 3,4,5,

EIA.ITA-568 100-ohm screened

twisted pair (STP)

• Fast Ethernet: UTP CAT 5,

EIA/TIA-568 100-ohm screened

twisted pair (STP)

• Gigabit Ethernet: UTP CAT 5,

EIA/TIA-568 100-ohm screened

twisted pair (STP)

Data RAM Buffers:

• 2Mbit per Device

Filtering Address Table:

• 32K entries per device

Diagnostic LEDs:

• Power, 10M Link/Act, 100M Link/Act,

1000M Link/Act

Power Consumption:

• 100~240 VAC 50/60hz, Internal

Universal Power Supply

Dimensions:

• 440 x 200 x 44mm (W x H x D)

Temperature:

• Operating: 0° to 50°C (32° to 122° F)

• Storage: -5° to 55° C (23° to 131° F)

Humidity:

• 5 % to 90 % non-condensing

Certifications:

• FCC Class A, CE Class A, VCCI-A

TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this

document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit

____________________

http://www.TRENDNET.com.

TRENDware International, Inc.

3135 Kashiwa Street

Torrance, CA. 90505. USA

Tel: 310-891-1100

Fax: 310-891-1111

Web:

Email: [email protected]

www.TRENDNET.com
