TPE-80WS
Quick Installation Guide
Table of Contents
Version 07.19.2007
English ...................................................................................................... 1
1
2
3
4
1. Before You Start
2. Hardware Installation .........................................................................
3. Configuring the Power Over Ethernet (PoE) Switch ..........................
................................................................................
Troubleshooting ........................................................................................
System Requirements

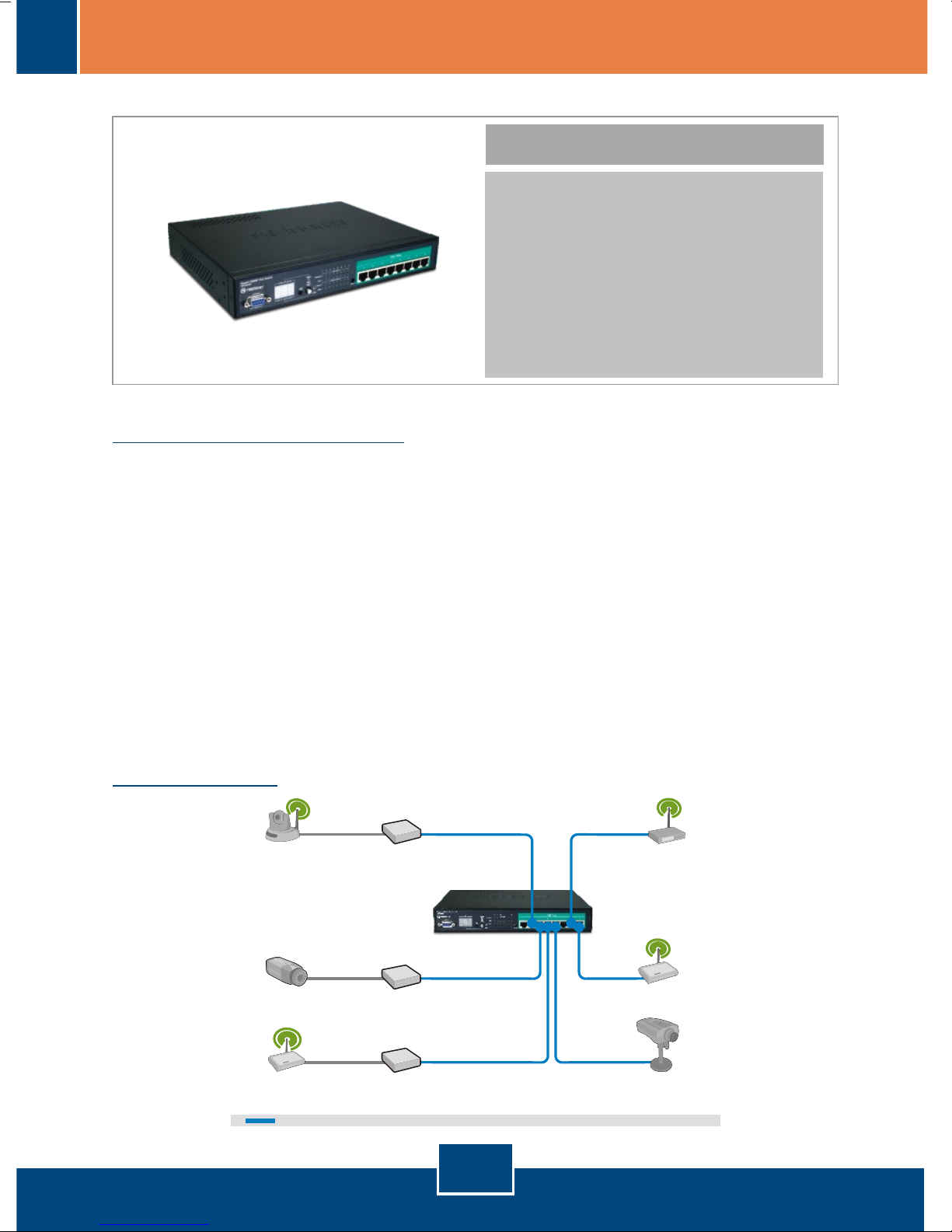

1. Before You Start
English
1
Package Contents
Application
?
?
?
?
?
?
TPE-80WS
Quick Installation Guide
User's Guide CD-ROM
RS-232 Cable
Power Cord
Rack Mount Kit
?
(4.7 or higher).
?A computer with a network adapter properly installed.
?A RJ-45 network cable.
?
Web Browser: Internet Explorer (5.5 or higher) or Netscape Navigator
EIA standard 19” rack (Optional)
Note: The TPE-80WS only support Power over Ethernet (PoE) devices that
follow the IEEE 802.3af standard
8-Port Gigabit Web
Smart PoE Switch
(TPE-80WS)
108Mbps 802.11g
Hot-Spot Access Point
(TEW-453APB)
PoE Internet
Camera Server
(TV-IP201P)
Advanced Wireless Pan & Tilt
Internet Camera Server
(TV-IP400W)
Power over Ethernet
(PoE) Splitter
(TPE-102S)
108Mbps 802.11g
Wireless Access Point
(TEW-450APB)
Advanced Day/Night Internet
Camera Server with Audio
(TV-IP301)
54Mbps 802.11g Wireless
PoE Access Point
(TEW-434APB)
Power over Ethernet
(PoE) Splitter
(TPE-102S)
Power over Ethernet
(PoE) Splitter
(TPE-102S)
Power + Ethernet Data

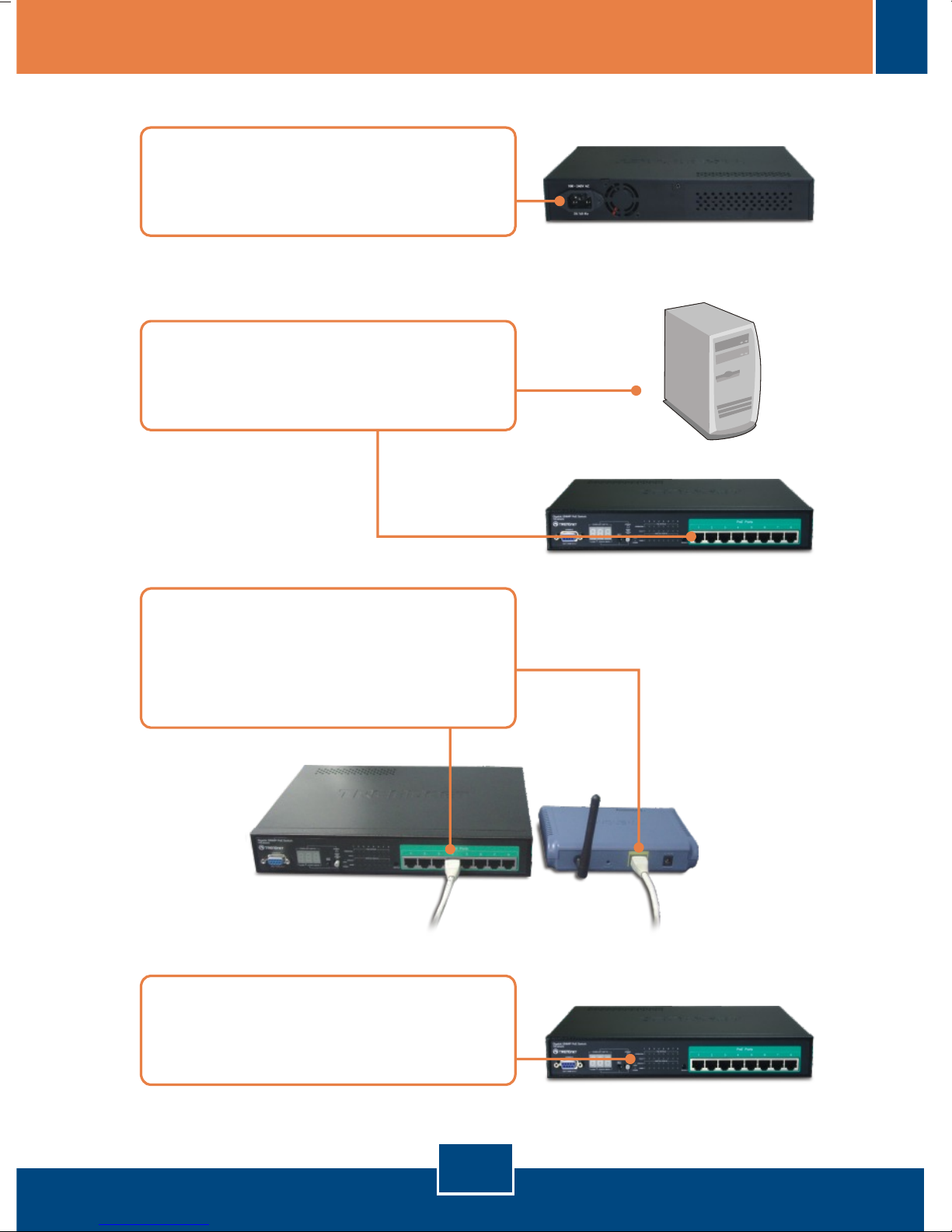

2. Hardware Installation
English
2
3. Connect a RJ-45 cable from a PoE
port on the TPE-80WS to the LAN
Port of the PoE device (e.g.
TEW-434APB)
4. Verify that the following panel lights
are on: POWER, OPERATING and
LINK/ACT
2. Connect a RJ-45 network cable
from the computer to an available
Ethernet port on the TPE-80WS.
1. Connect the Power Cord to the
rear of the TPE-80WS and then
to a power outlet.
English
3

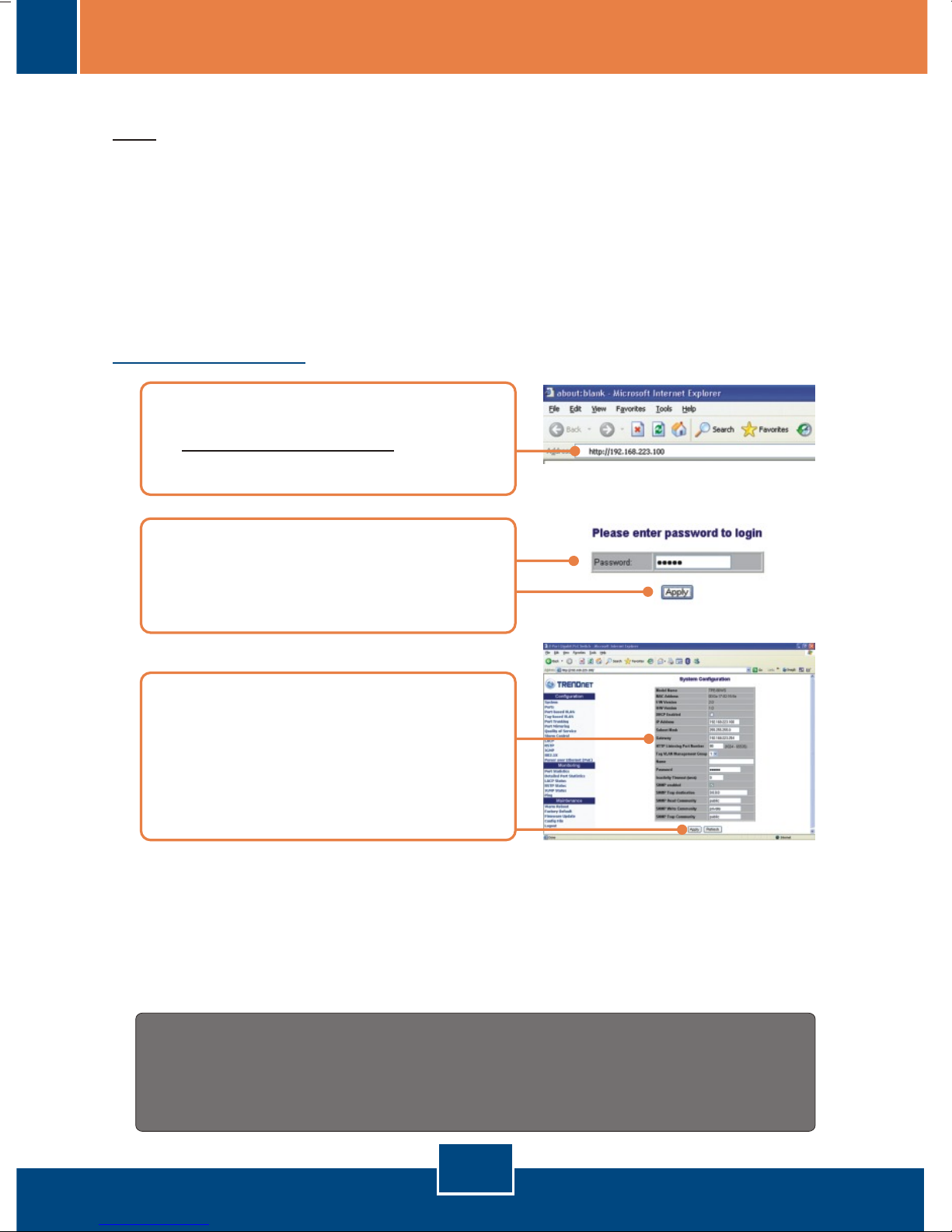

1. Open your web browser, type
http://192.168.223.100 in the
Address bar, and then press Enter.
Web Browser
3. Configure the Power Over Ethernet (PoE) Switch
Note: It is recommended that you configure the PoE Switch from a wired
computer. Before the PoE Switch can be configured, a Static IP address must
be assigned to your computer's network adapter in the subnet of
192.168.223.x. Since the PoE Switch's default IP address is 192.168.223.100,
make sure no other network devices are assigned an IP address of
192.168.223.100. (Refer to Troubleshooting section on how to configure
TCP/IP settings on your PC.)
3. Click Configuration and then click
System. Configure the IP
Address, Subnet Mask and
Gateway to match your network
and then click Apply.
Your installation is now complete.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
For detailed information regarding the TPE-80WS's configuration and
advanced settings, please refer to the Troubleshooting section, User's
Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com
2. Enter the Password, and then click
Apply. By default:
Password: admin
4
Troubleshooting

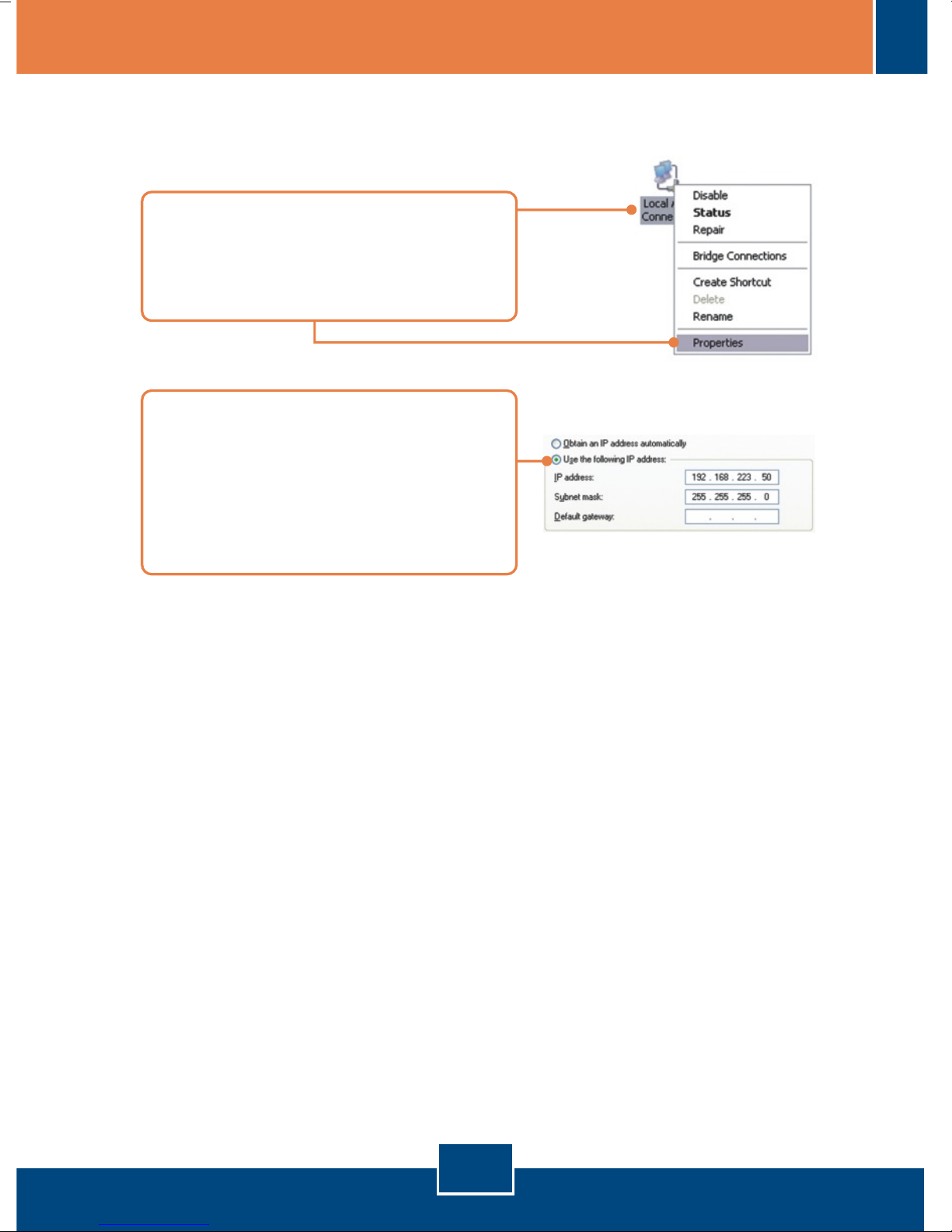

Q1: How do I configure TCP/IP settings on my computer?
1. Go into the Control Panel and double-
click the Network Connections icon,
right-click the Local Area Connection
icon and then click Properties.
2. Click Internet Protocol (TCP/IP) and
then click Properties. Then click on
Use the following IP address, and
make sure you assign your network
adapter an IP address in the subnet of
192.168.223.x.
Q2:
A2:
Q3:
A3:
If my network's IP is different than the PoE Switch's range, what should I do?
You should still configure the PoE Switch first. After all the settings are
applied, go to the PoE Switch's configuration page, click on IP settings and change
the IP address of the PoE Switch to match your network's IP.
I typed http://192.168.223.100 in my Internet Browser's Address Bar, but an
error message says “The page cannot be displayed.” How can I get into the TPE-
80WS's web configuration page?
First, check your hardware settings again by following the instructions in
section 2. Second, make sure the POWER and LINK/ACT lights are lit. Third,
make sure the TCP/IP settings are configured properly (see Q1). Fourth, since
the PoE Switch’s default IP address is 192.168.223.100, make sure that no other
network devices are assigned an IP address of 192.168.223.100.
Q4:
A4:
Q5:
A5:
Q6:
A6:
I forgot the administration password. How do I reset my TPE-80WS?
Press on the default button using a pen or paperclip for 10 seconds. The
default password is admin.
What are the default port settings for configuring the Switch through the
console port using HyperTerminal?
Bits per Second: 115200; Data bits: 8; Parity: None; Stop bits: 1; Flow control:
None; Emulation: VT100.
If you still encounter problems or have any questions regarding the TPE-80WS, please
contact TRENDnet’s Technical Support Department.
My 802.3af Powered device does not power on when I plug the device into
the Switch. What should I do?
First, verify that your PoE device supports IEEE 802.3af protocol. Second,
verify that your PoE device powers up using its power adapter. Third, power cycle
the PoE switch. Unplug power to the switch, wait 15 seconds, then plug the
power back in. Fourth, plug the device into a different port on the PoE switch.
Fifth, try using another Cat-5e cable.
5
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.
Product Warranty Registration
TRENDnet Technical Support
US Canada
24/7 Tech Support
Toll Free Telephone: 1(866) 845-3673
Europe (Germany France Italy Spain Switzerland UK)
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
Worldwide
Telephone: +(31) (0) 20 504 05 35
Toll Free Telephone: +00800 60 76 76 67
.
. . . . .
Copyright ©2007. All Rights Reserved. TRENDnet.
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/register
20675 Manhattan Place
Torrance, CA 90501
USA
