TRENDnet TK-205K - PS/2 KVM Switch Bedienungsanleitung
TK-205K
Quick Installation Guide
Table of Contents
Table of Contents
Version 02.08.2006
Deutsch .....................................................................................................
Specifications ............................................................................................
Troubleshooting .........................................................................................
1
1
2
3
5
6
1. Bevor Sie anfangen ...........................................................................
2. Installation .........................................................................................
3. Bedienung .........................................................................................
1
1. Bevor Sie anfangen
Deutsch
Anwendung
Systemanforderungen
PS/2-Tastatur
PS/2-Maus
VGA-kompatibler Monitor
Windows XP/2000/ME/98SE, Unix und Linux
TK-205
KVM-Kabel (zwei)
Anleitung zur Schnellinstallation
Packungsinhalt
PC 1 PC 2
LCD Monitor
2-Port PS/2
KVM Switch
(TK-205K)
PS/2 Keyboard PS/2 Mouse
Cable Cable
2
Deutsch

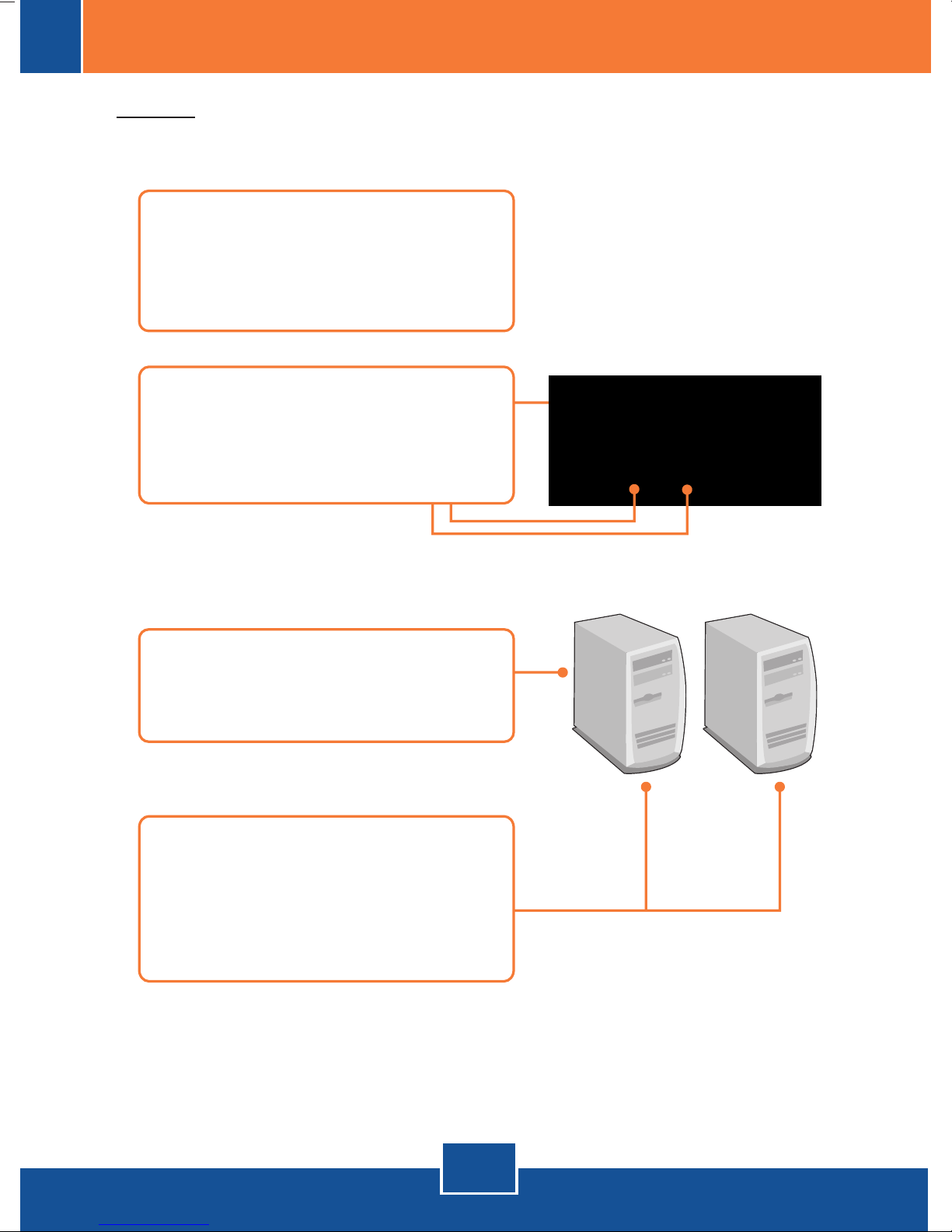

2. Installation
Hinweis: Der PS/2-KVM-Umschalter TK-205 benötigt weder spezielleTreiber
noch eine eigene Software.
1. Schalten Sie alle Computer und
Peripheriegeräte aus und trennen
Sie alle Stromversorgungskabel
ab.
3. Verbinden Sie die Computer über
die KVM-Kabel mit dem KVM-
Umschalter.
4. Schalten Sie die miteinander
verbundenen Computer
nacheinander ein und warten Sie,
bis die Computer vollständig
hochgefahren sind.
2. Verbinden Sie die gemeinsam
genutzte Tastatur, den Monitor und
die Maus mit dem Konsolen-Port
des KVM-Umschalters.
Ihre Installation ist beendet!
Deutsch
3
Hinweis: Um von einem Computer zum anderen zu wechseln, können Sie die
Drucktasten auf dem Gerät oder Tastenkombinationen verwenden.
3.1 Drucktasten
3.1 The Push Buttons
Drücken Sie auf die entsprechende
Taste, um den gewünschten PC
auszuwählen.
3. Bedienung
3.2 Tastenkombinationen
Eine Tastenkombination setzt sich aus drei Tasten zusammen:
Tastenkombination = ScrLk (ROLLEN) + ScrLk (ROLLEN) +
Befehlstaste(n)
Sobald Sie die ScrLk-Taste (ROLLEN-Taste) gedrückt haben, müssen Sie die
Taste innerhalb von 2 Sekunden nochmals drücken. Innerhalb der nächsten 2
Sekunden müssen Sie dann eine Befehlstaste drücken. Wenn Sie innerhalb
von 2 Sekunden keine Taste drücken, wird die Tastenkombination nicht
wirksam.
Deutsch
4
Befehl Tastenkombination Beschreibung
Schnellübersicht für den TK-205
PC auswählen
Unmittelbar darunter
liegender PC-Kanal
Unmittelbar darüber
liegender PC-Kanal
Autoscan
Autoscan beenden
ScrLk ScrLk X
+ +
(x ist eine Zifferntaste. x = 1 oder 2,
entsprechend der Kanalnummer des PC)
ScrLk ScrLk
+ + (Pfeil nach
oben)
ScrLk ScrLk
+ + (Pfeil nach
unten)
ScrLk ScrLk
+ + S
Press any key on keyboard
Wählt den aktiven PC-Kanal aus.
Wählt den unmittelbar darunter
liegenden Kanal eines verbundenen
PC aus.
Wählt den unmittelbar darüber
liegenden Kanal eines verbundenen
PC aus.
Fragt für die schnelle Durchsicht der
Bildschirmanzeigen automatisch alle
Kanäle ab.
Beendet die automatische Abfrage.
ScrLk ScrLk
+ + (key)
Die Darstellung der Tastenkombination
bedeutet, dass Sie die einzelnen tasten nicht gleichzeitig, sondern
hintereinander drücken sollen.
Vereinbarung zu Tastenkombinationen:
Computer Connections 2
Cable Interface (all male)
KVM Cable 2 Sets of 1.2M (4ft) KVM Cables
Console Connectors
(all female)
Mouse: PS/2 6-pin Mini Din
Keyboard: PS/2 6-pin Mini Din
Monitor: VGA/SVGAHDB 15-pin
To Console:
1 x VGA/SVGAHDB 15-pin
To PC:
1 x PS/2 Mouse 6-pin Mini Din
1 x PS/2 Keyboard 6-pin Mini Din
1 x VGA/SVGAHDB 15-pin
Port Selection Push Button or Hot-Key Commands
Auto-Scan Interval 10 seconds
Keyboard State Saved and restored
Power Supply Bus-Powered
Dimensions 95 x 65 x 30 mm (3.7 x 2.6 x 1.2 in.)
Weight 85g (3oz)
0º ~ 40ºC (32º ~104º F)Operating Temperature
-20º ~ 60ºC (-4º ~ 140º F)Storage Temperature
0%~80%, Non-Condensing
Humidity
CE, FCCCertifications
5
Specifications
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause
undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FORANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TOTHIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’SAUTHORITY TO OPERATE THE EQUIPMENT.
6
Troubleshooting
Waste electrical and electronic products must not
be disposed of with household waste. Please
recyclewherefacilitiesexist. CheckwithyouLocal
AuthorityorRetailerforrecyclingadvice.
Q1:
A1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
Q5:
A5:
Where is the AC adapter? I did not find one in the box.
I have the KVM switch connected properly, but my keyboard and mouse don't
work. Please make sure your PS/2 ports are working properly by testing it with
another mouse or keyboard. Once you confirm that the PS/2 ports are functional,
please reboot your computers, and try to use the KVM switch again.
Can I connect or disconnect the KVM cables while the computers are turned
on? Yes, you can connect or disconnect the KVM cables while the computers are
turned on, because the interface is Hot-Pluggable.
Will the KVM switch remember the keyboard settings between computers?
Yes, the KVM switch will remember the keyboard settings when switching
between your computers. (i.e.: Caps lock, Num key, etc.)
How do I switch from one computer to another with the KVM switch?
Because the TK-205 KVM switch supports Hot-Key commands, you can use
Hot-Key commands to switch between 2 computers.
The TK-205 does not require anAC adapter. It draws power from your
computer's keyboard port.As long as your KVM switch is connected to the
keyboard port, it will receive the necessary power to function.
If you still encounter problems or have any questions regarding the TK-205K, please
contact Trendnet's Technical Support Department.
Limited Warranty
TRENDnet warrants its products against defects in material and
workmanship, under normal use and service, for the following lengths of
time from the date of purchase.
TK-205K - 2 Year Warranty
If a product does not operate as warranted above during the applicable
warranty period, TRENDnet shall, at its option and expense, repair the
defective product or part, deliver to customer an equivalent product or
part to replace the defective item, or refund to customer the purchase
price paid for the defective product. All products that are replaced will
become the property of TRENDnet. Replacement products may be new
or reconditioned.
TRENDnet shall not be responsible for any software, firmware,
information, or memory data of customer contained in, stored on, or
integrated with any products returned to TRENDnet pursuant to any
warranty.
There are no user serviceable parts inside the product. Do not remove
or attempt to service the product by any unauthorized service center.
This warranty is voided if (i) the product has been modified or repaired
by any unauthorized service center, (ii) the product was subject to
accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within
the applicable warranty period for a Return Material Authorization (RMA)
number, accompanied by a copy of the dated proof of the purchase.
Products returned to TRENDnet must be pre-authorized by TRENDnet
with RMA number marked on the outside of the package, and sent
prepaid, insured and packaged appropriately for safe shipment.
7
WARRANTIES EXCLUSIVE: IF THE TRENDnet PRODUCT DOES NOT
OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE
REMEDY SHALL BE, AT TRENDnet'S OPTION, REPAIR OR
REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES
ARE EXCLUSIVE AND ARE IN LIEU OFALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDnet NEITHER ASSUMES NOR AUTHORIZES ANY OTHER
PERSON TO ASSUME FOR ITANY OTHER LIABILITY IN
CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR
USE OF TRENDnet'S PRODUCTS.
TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS
TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED
DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY
CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,
IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED
ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE
BEYOND THE RANGE OF THE INTENDED USE, OR BYACCIDENT,
FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENTALLOWED BY LAW
TRENDnet ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY
LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,
SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT
OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION
OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY
TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE
PAID, AT TRENDnet’S OPTION. THIS DISCLAIMER OF LIABILITY FOR
DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of
the state of California.
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 Year
Warranty
8
