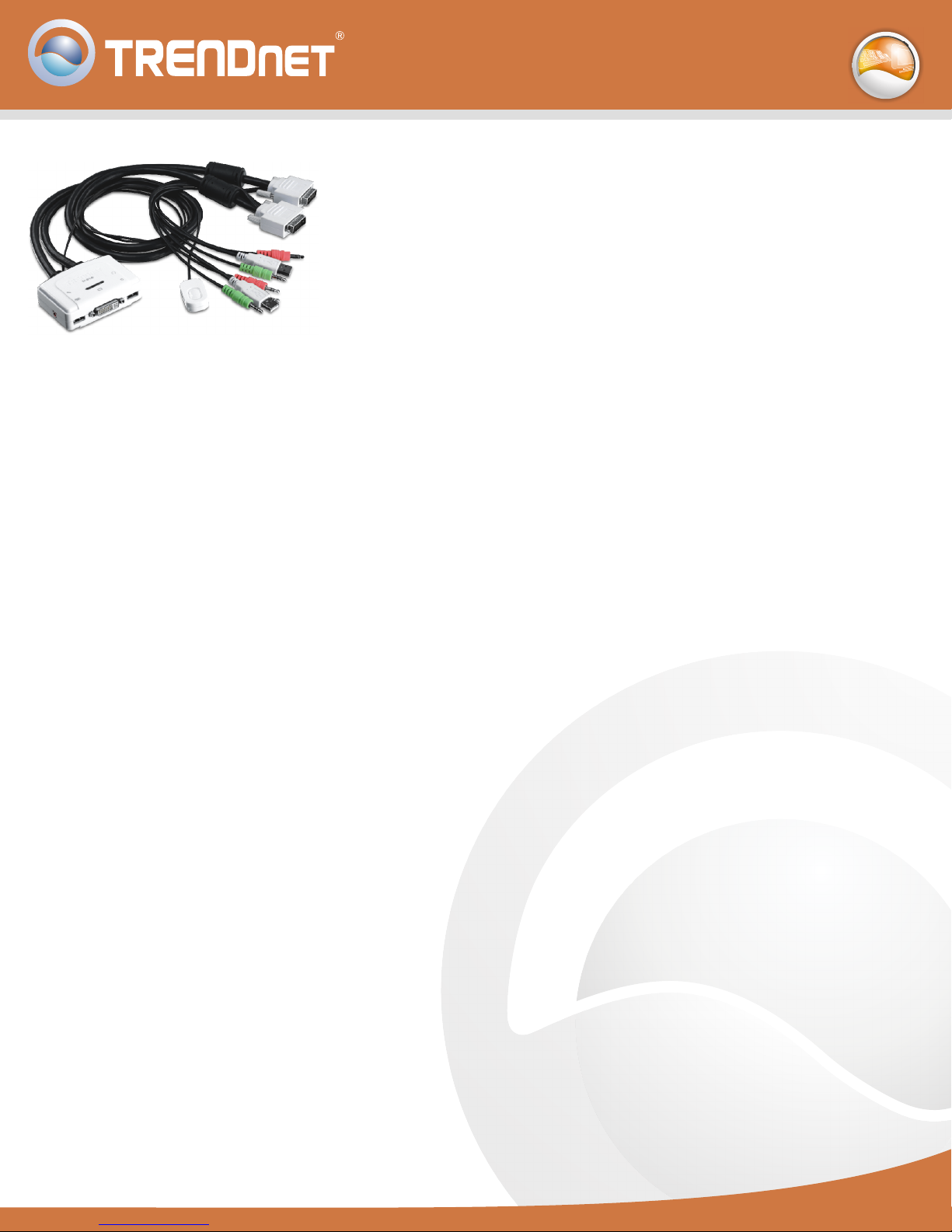

TRENDnet TK-214i Bedienungsanleitung

Features

• Use one keyboard, monitor, and mouse to control two computers

• Audio support for speakers and microphone

• Console-side hardware

1 x DVI port

2 x USB 2.0 Type A port

1 x 3.5mm audio port

1 x 3.5mm microphone port

LED display for easy computer monitoring

Push button switch with a 1.45 m (4.8 ft.) extension cable

• Computer-side hardware

2 sets of 80 cm (2.6 ft.) built-in combination cables with DVI, USB, audio, and microphone ports

• Works with most standard USB mouse and keyboard designs

• Support video quality of up to 1920 x 1200 resolution

• Supports Windows, Linux, and Mac operating systems*

• Hot-Plug feature: add computer or remove the connected computer for maintenance without powering down the KVM Switch

• Keyboard status restored when switching between computers

• Install the included KVM switcher software in order to program Hot-Keys and Auto-Scan intervals

• Plug and Play with no software download required

• No power required, this device is powered by the computer's USB port

• 2-year limited warranty

kvm

TK-214i

rev:11.22.2010

The 2-Port DVI USB KVM Switch with Audio, model TK-214i, allows you to control

2 PC and/or Mac computers with one set of console controls. Manage laptops or

desktops that have DVI, USB, and audio ports at the touch of a button with one

set of USB keyboard, USB mouse, DVI monitor, microphone, and speakers.

No driver installation required, simply plug in the devices to control 2 computers. A

convenient toggle switch with a 1.5 m (5 ft.) extension cable can be placed in the

most ergonomic location on your workstation.

View crystal clear Digital Video Interface (DVI) resolution at up to 1920 x 1200

pixels. Built in 0.9 m (3 ft.) combination cables include all the necessary USB,

DVI, and audio connectors for each respective computer. This KVM switch does

not need to be plugged into an outlet—it is powered by the connected computers.

Download a Windows and Mac compatible utility to define Hot Keys, manage

multiple audio ports, and create Auto Scan intervals.

TK-214i (V1.0R)

2-Port DVI USB KVM Switch with Audio

* KVM Switcher Software only support Mac 10.4 or higher

SPECIFICATIONS

Cable

Controls

Computer Connectors

Console Connectors

Port Selection

Video Resolution

• 2 Computers

• 2 Sets of USB, DVI, audio, and microphone combination cables 80 cm (2.6 ft.)

• 2 x USB Type A (male) • 2 x DVI-I (male)

• 1 x 3.5mm audio port • 1 x 3.5mm mic. port

• 1 x DVI port (female) • 2 x USB type A port (female)

• Push button switch: Windows, Mac and Linux

• KVM Switcher Software: Windows and Mac 10.4 or higher

• USB Bus Powered

Hardware

• Computer 1 or Computer 2 Status Indicator

Power Type

• 89 x 64 x 25 mm (3.5 x 2.5 x 1.0 in.)

• Operating: 0° ~ 40° C (32° ~ 104° F) • Storage: -20° ~ 60° C (-4° ~ 140° F)

• Max. 90% (non-condensing)

• CE, FCC

• DVI-I 1920 x 1200

• 431 g (15.2 oz.)

TK-214i (V1.0R)

2-Port DVI USB KVM Switch with Audio

• 2 x 3.5mm audio plug • 2 x 3.5mm microphone plug

• Hot Keys Command: Windows, Linux

Temperature

Humidity

Certifications

LED

Dimensions

Weight

• Multi-Language Quick Installation Guide

RELATED PRODUCTS

PACKAGE CONTENTS

NETWORKING SOLUTIONS

• TK-214i

• CD-ROM (Utility and User's Guide)

TK-208K

TK-217i

2-Port PS/2 KVM Switch Kit w/ Audio

2-Port USB KVM Switch

TK-207K 2-Port USB KVM Switch Kit

CONTACT INFORMATION

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

1-888-326-6061

www.trendnet.com

KVM

Microphone

Speakers

2-Port DVI USB KVM

Switch Kit with Audio

(TK-214i)

MouseKeyboard Monitor Computer

Notebook

Ergonomic Toggle Switch

DVI
