TEW-611BRP
Version 08.09.05
Quick Installation Guide
Table of Contents
English ................................................................................................................... 1
1
3
4
12
13
1. Prepare for Installation ...................................................................................
2. Install Hardware .............................................................................................
3. Configure your AP/Router ..............................................................................
4. Configure your Wireless Networking Adapter ................................................
Troubleshooting ......................................................................................................
Thank you for purchasing the TEW-611BRP. This Wireless AP/Router will allow
you to securely share your Internet connection, files, and other resources with
multiple users.
This guide will help you set up and configure your AP/Router. Following the
installation instructions should be quick and easy. If you run into problems,
please refer to the Troubleshooting section or the more detailed installation
procedures on the User's Guide CD-ROM. If you need further technical
support, please visit www.TRENDNET.com or call technical support by phone.
Verify Equipment
Before installing the AP/Router, you should have:
1. An installed Cable/DSL Modem with an Ethernet Port
2. A Broadband Internet Account
3. A web browser such as Internet Explorer (5.0 or higher) or Netscape
Navigator (4.7 or higher)
4. A network cable for each computer
5. A computer with TCP/IP Protocol and Client for Microsoft Networks
Service installed
Verify Package Contents

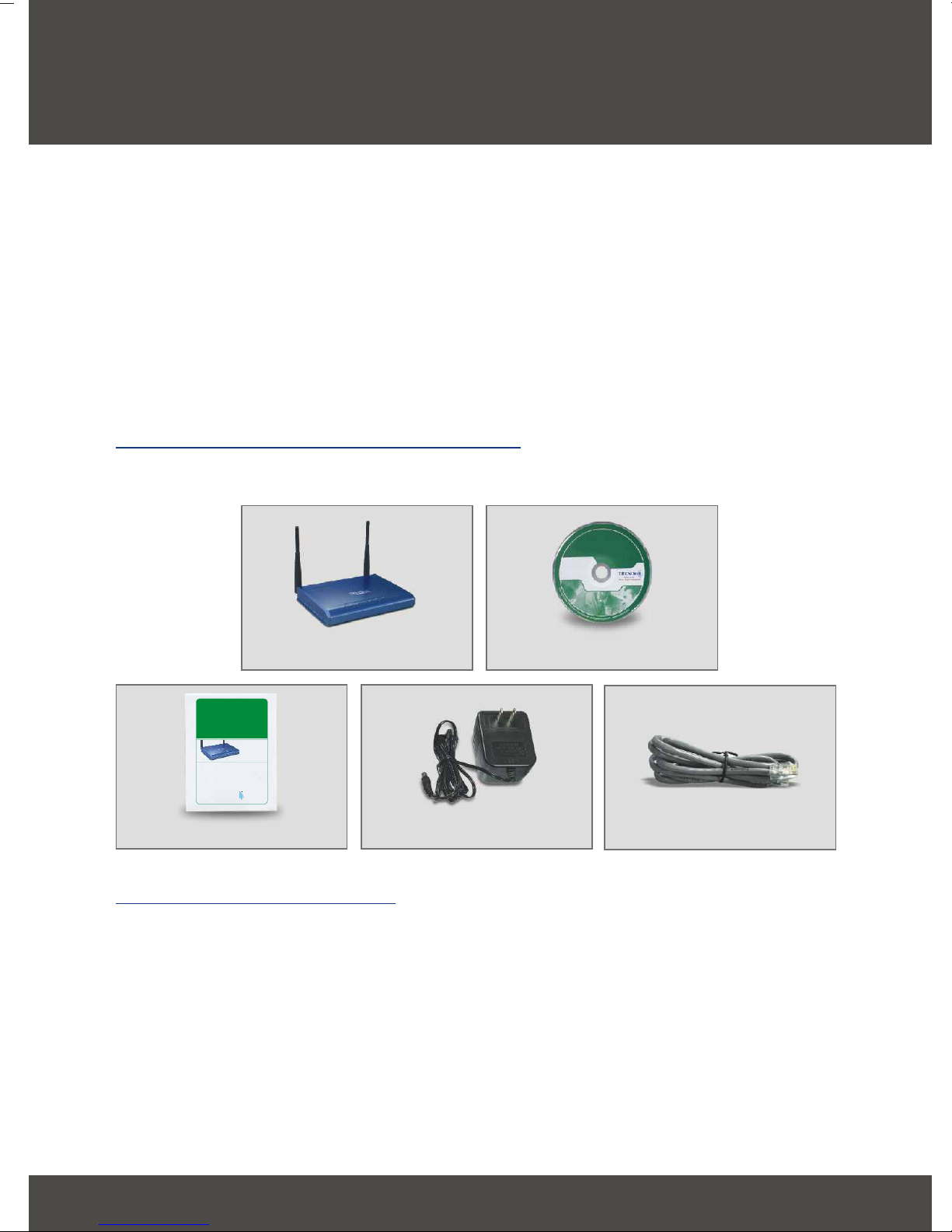

Please make sure you have everything in the box:
User’s Guide CD-ROM
1
TEW-611BRP
1. Prepare for Installation
English QIG
English
AC Power Adapter (5V, 2.5A)
Quick Installation Guide RJ-45 Ethernet (LAN) Cable
Copyright ©2005. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TEW-611BRP
Version 08.09.05
Quick Installation Guide
2
Collect Account Information from Internet
Service Provider (ISP)
During the installation of your AP/Router, the configuration utility will ask you to
specify your ISP connection type. Therefore, please verify your Cable or DSL
Internet broadband connection with your ISP and ensure you have all the
information for one of the following connection types:
Dynamic IP Cable Connection
Nothing is required. The IP address will be automatically assigned by your ISP.
Static or Fixed IP Cable Connection
Internet IP Address:____.____.____.____ (eg. 215.24.24.129)
Subnet Mask: ____. ____. ____. _____
Gateway IP Address:____.____.____._____
Primary DNS:____.____._____.______
Secondary DNS:_____._____._____.____
PPPoE DSL Connection
Login Name:______________
Password:________________
PPTP DSL Connection
Internet IP Address:____.____.____.____ (eg. 215.24.24.129)
Subnet Mask: ____.____.____._____
Gateway IP Address:____.____.____._____
PPTP Server IP:____.____._____._____
Login Name:_______________
Password:_________________
L2TP DSL Connection
Internet IP Address:____.____.____.____ (eg. 215.24.24.129)
Subnet Mask: ____.____.____._____
Gateway IP Address:____.____.____._____
L2TP Server IP:____.____._____._____
Login Name:_______________
Password:_________________
English
3
2. Install Hardware

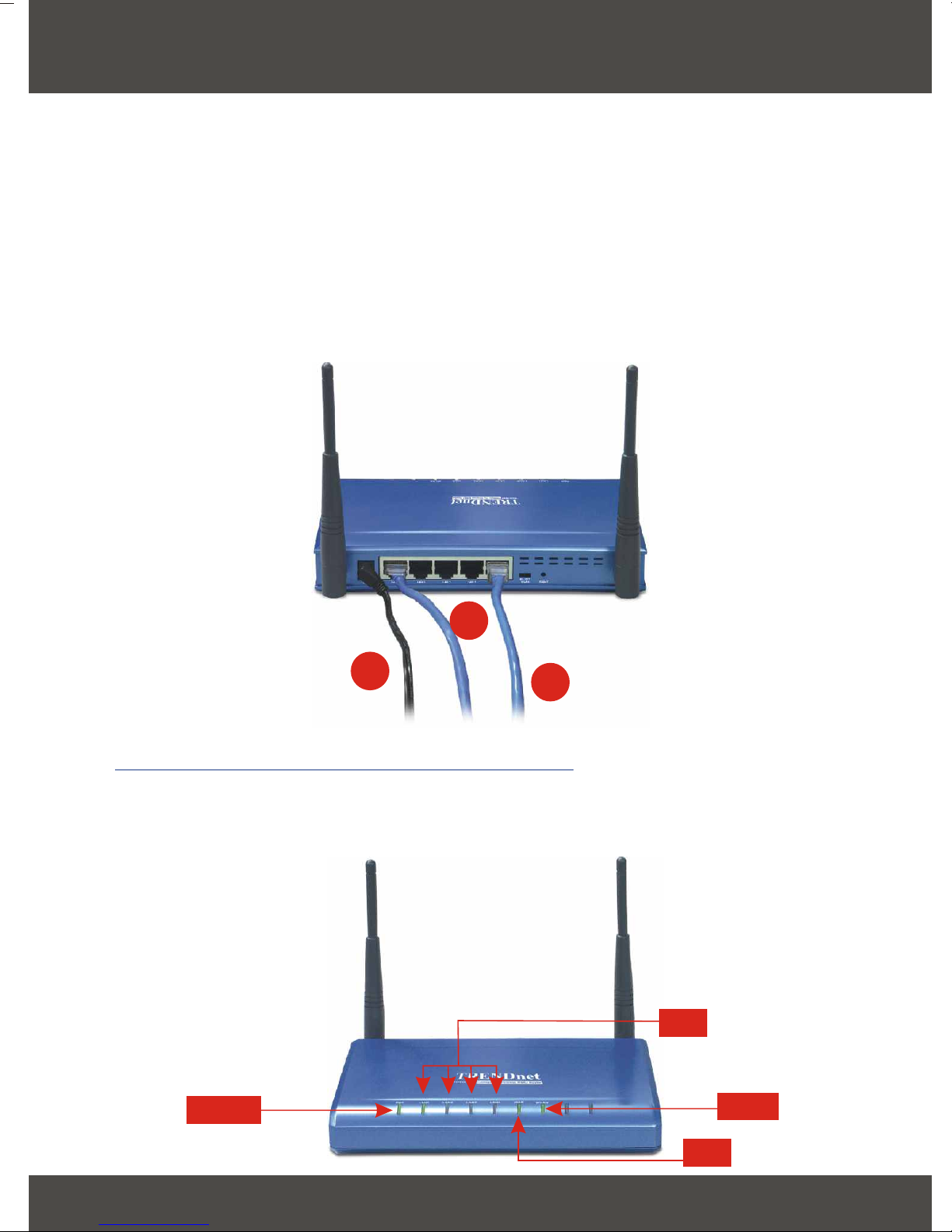

1. Connect one RJ-45 network cable from the Cable/DSL Modem's Ethernet
port to the WAN port on the AP/Router.
2. Connect a different RJ-45 network cable from one of the AP/Router's LAN
ports to your computer's network port.
3. Turn on your Cable/DSL modem.
4. Connect the included Power Adapter from your AP/Router to a power outlet;
your AP/Router should turn on.
5. Turn on your computer
Verify Hardware Installation
Verify that the following front panel lights are on: Power, Status, WAN, WLAN,
and one LAN port LED for each wired computer connected to the AP/Router.
English
POWER
WAN
WLAN
LAN
42
1
TEW-611BRP
4
3. Configure your AP/Router
English
The following section will help you configure your AP/Router to connect to the
Internet and your PCs. The setup differs and is dependent on the type of
Internet connection you have. If you are not sure what type of connection you
have, please contact your ISP to obtain the required information, which is listed
in the Prepare for Installation section at the beginning of this Quick
Installation Guide.

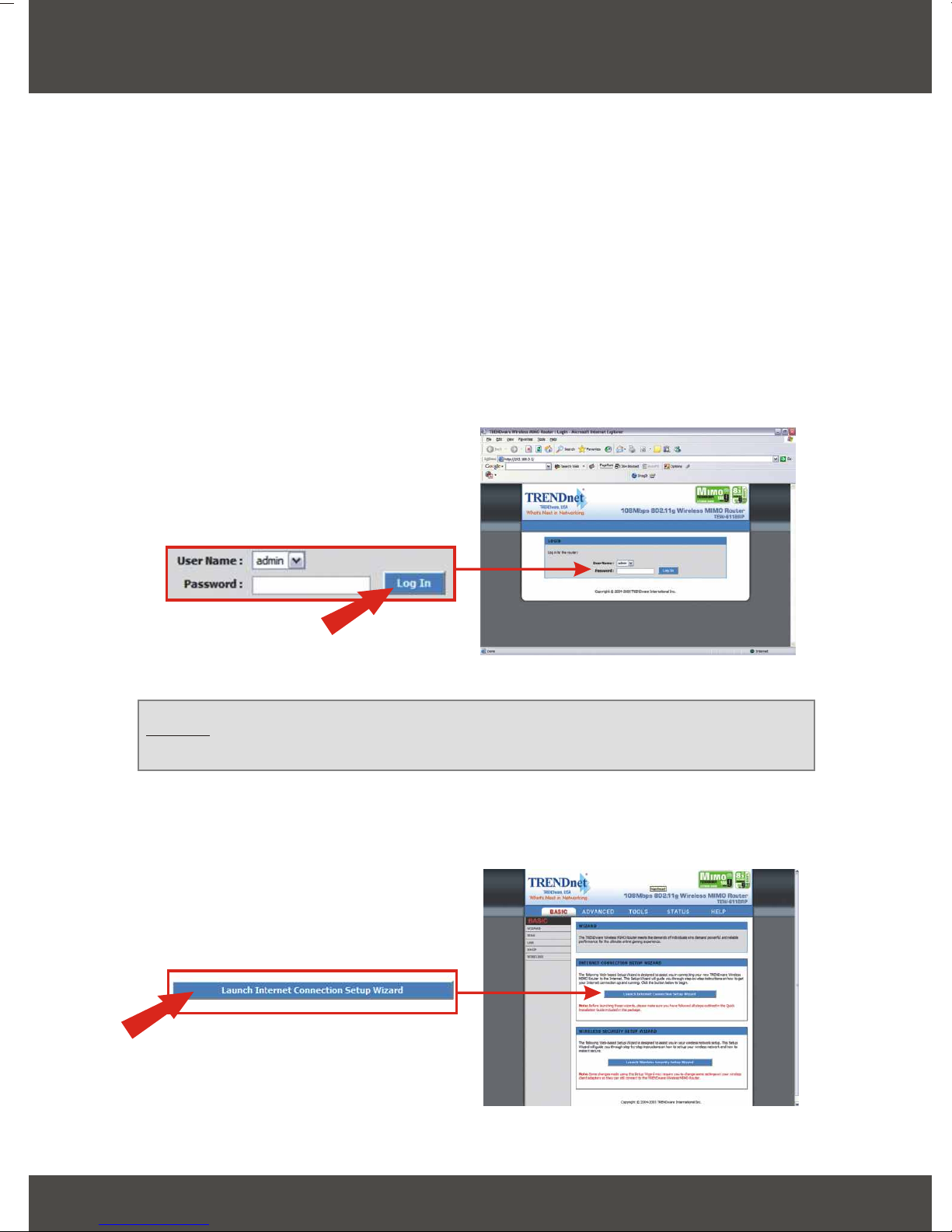

1. Open your web browser, type http://192.168.0.1 in the Address bar, and
press Enter.
2. Click login.
NOTE: To reset the password on the AP/Router, refer to the User's
Guide CD-ROM.
3. Click Launch Internet Connection Setup Wizard.
5English

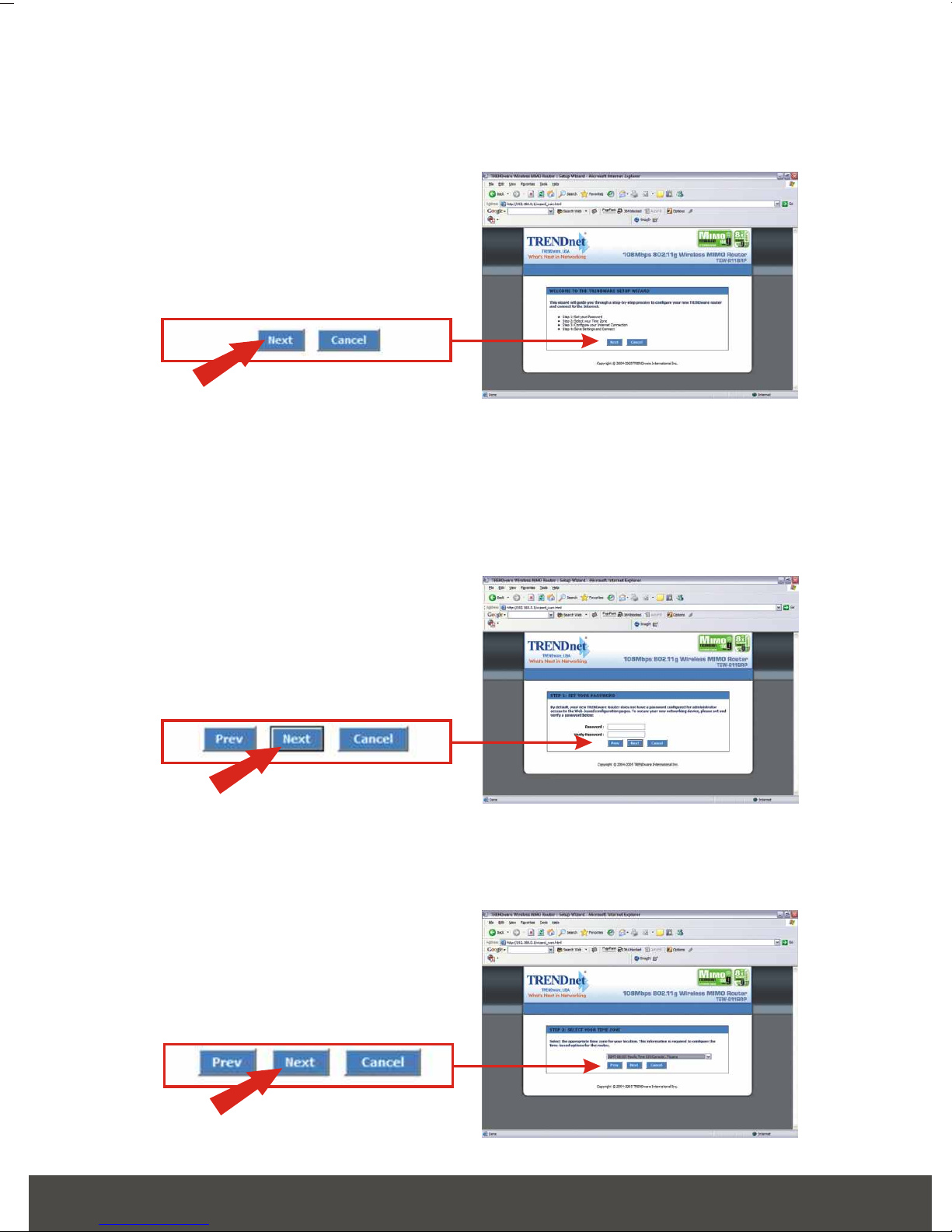

4. Click Next.
5. If you want to change your password for your router, then type the new
password in the Password and Verify Password fields. Otherwise, click
Next.
6. Choose the appropriate Time Zone from the pull down menu, and click Next.
English
6
7. Select your Connection Type [ DHCP Connection (Dynamic IP Address),
Username/Password Connection (PPPoE), Username/Password Connection
(PPTP), Username/Password Connection (L2TP), Static IP Address
Connection] and proceed to appropriate subset of instructions listed below.

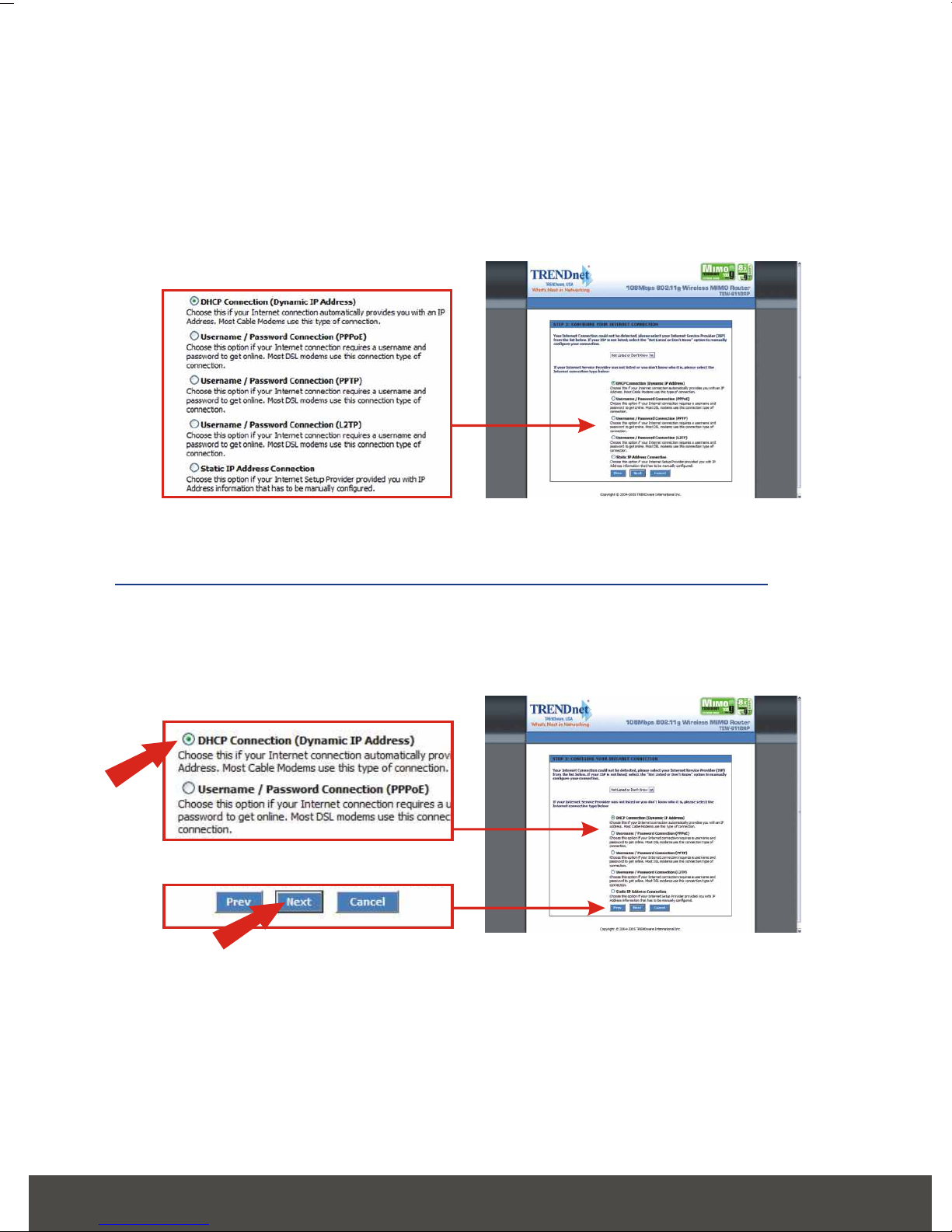

8. Select DHCP Connection (Dynamic IP Address) as the Connection Type
and click Next.
DHCP Connection (Dynamic IP Address)
7English

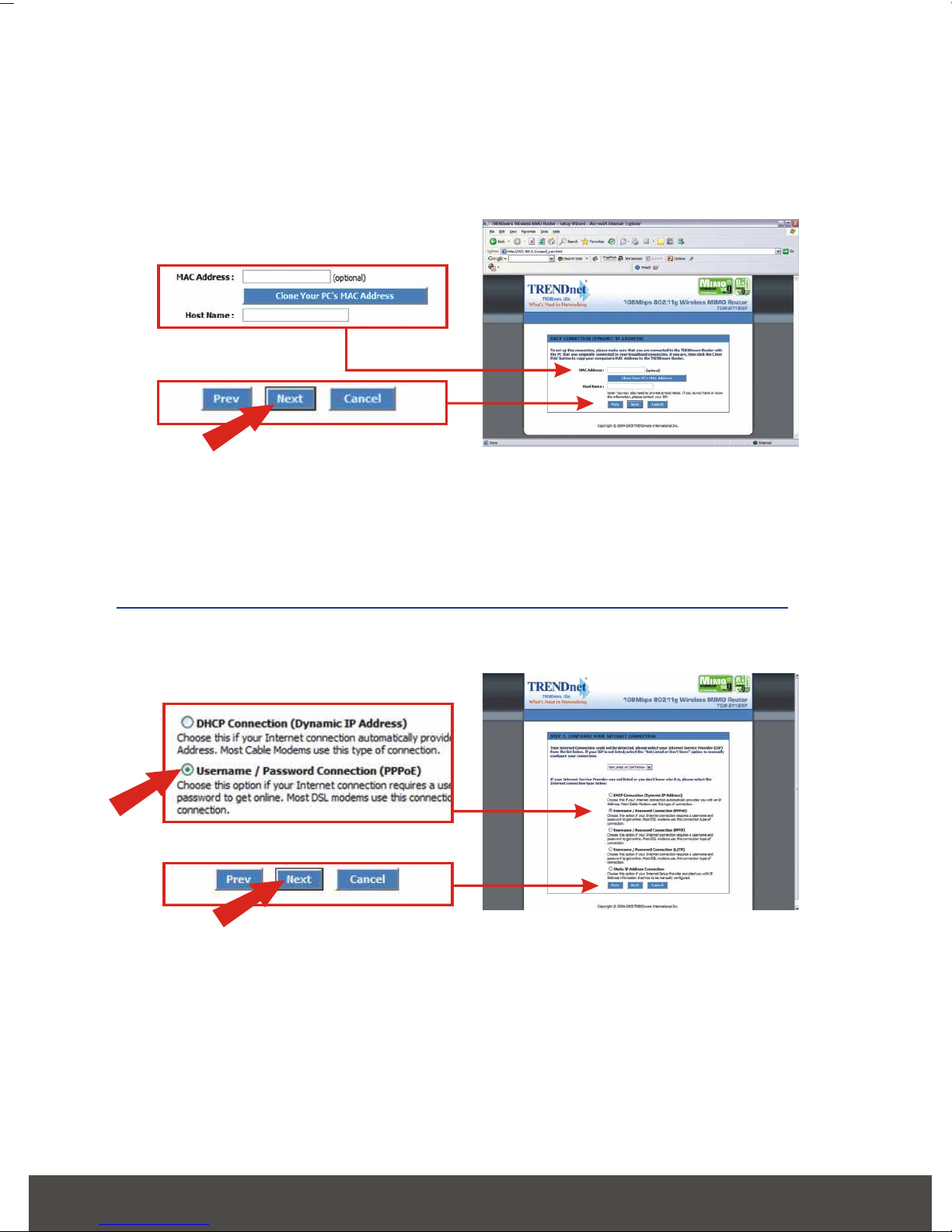

9. If your ISP requires you to enter a MAC Address and Hostname, enter the
information in the appropriate fields. Otherwise, click Next.
10. Go to step 22.
11. Select Username/Password Connection (PPPoE) and click Next.
Username/Password Connection (PPPoE)
12. Type your username and password in the appropriate fields. If you ISP
requires you to enter your Service Name, type the information in the
appropriate field. Otherwise, click Next.

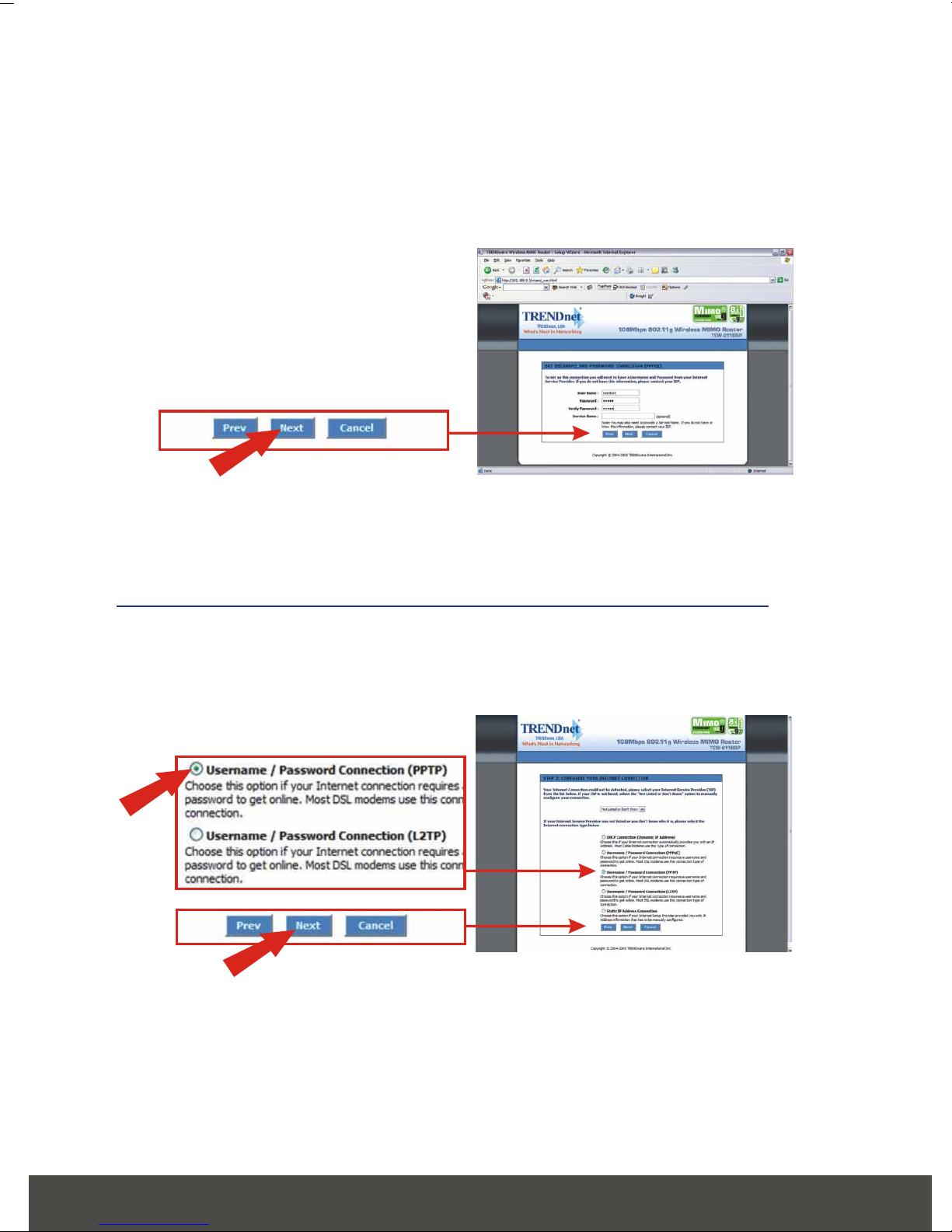

14. Select Username/Password Connection (PPTP) as the connection type
and click Next.
13. Go to step 22.
8English
Username/Password Connection (PPTP)
