TRENDnet TEW430A Bedienungsanleitung

TEW-430APB

Quick Installation Guide

Version 09.28.2007

Troubleshooting ........................................................................................ 6

Workstation with

Wireless PCI Adapter

(TEW-423PI)

Notebook with

Wireless PC Card

(TEW-421PC)

Cable/DSL 4-Port

Firewall Router

(TW100-BRF114)

Workstation with

PCI Adapter

(TE100-PCIWN)

54Mbps 802.11g Wireless LAN Access Point

(TEW-430APB)

Cable/DSL

Modem

Internet

Troubleshooting

Q1: How do I configure TCP/IP settings on my computer?

1. Go into the Control Panel and double-

click the Network Connections icon,

right-click the Local Area Connection

icon and then click Properties.

2. Click Internet Protocol (TCP/IP) and

then click Properties. Then click on

Use the following IP address, and

make sure you assign your network

adapter an IP address in the subnet of

192.168.1.x.

Q2:

A2:

Q3:

A3:

If my network's IP is different than the Access Point's range, what should I

do?

You should still configure the Access Point first. After all the settings are

applied, go to the Access Point's configuration page, click on TCP/IP settings and

change the IP address of the Access Point to match your network's IP.

I typed http://192.168.1.100 in my Internet Browser's Address Bar, but an

error message says “The page cannot be displayed.” How can I get into the

TEW-430APB's web configuration page?

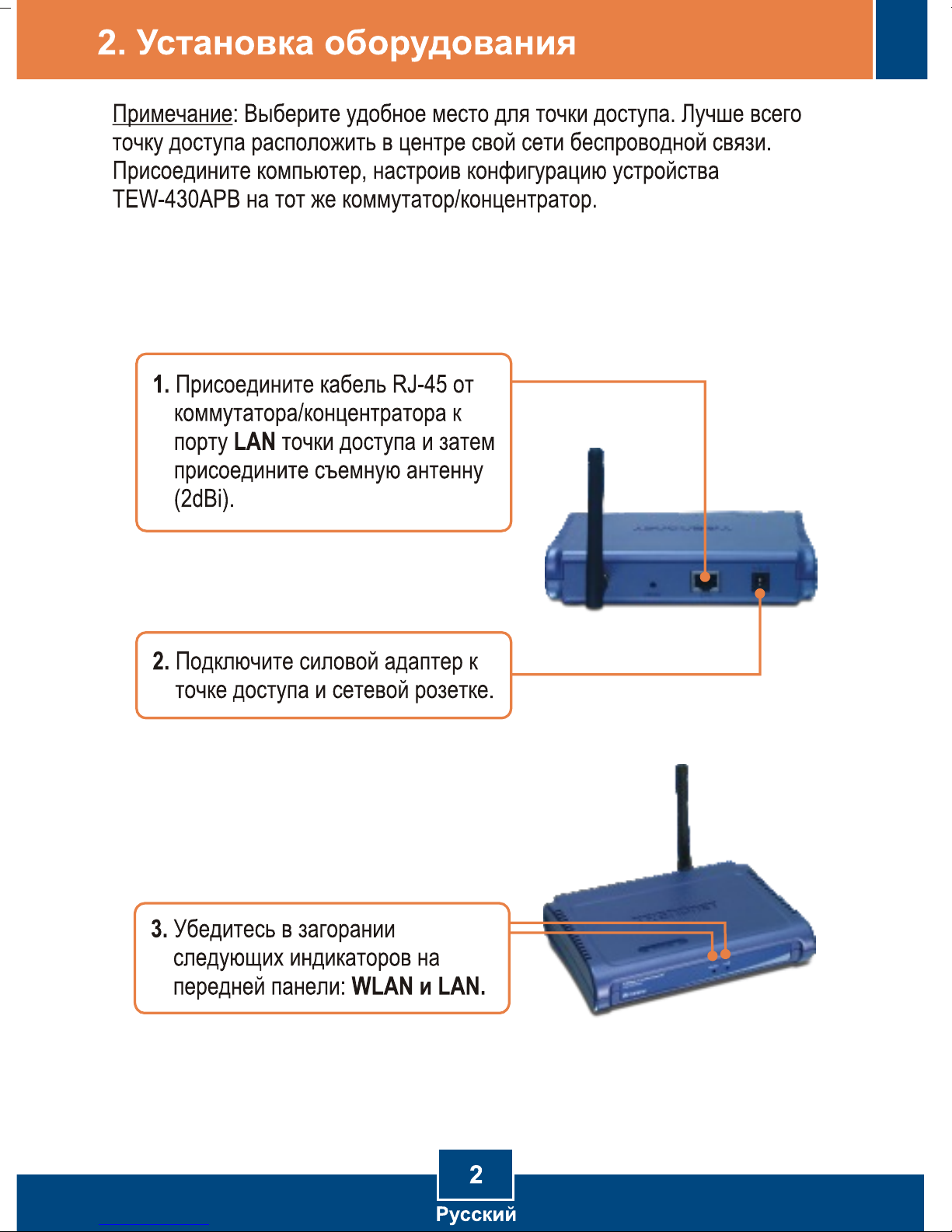

First, check your hardware settings again by following the instructions in

section 2. Second, make sure the LAN and WLAN lights are lit. Third, make sure

the TCP/IP settings are configured properly (see Q1). Fourth, since the Access

Point's default IP address is 192.168.1.100, make sure that no other network

devices are assigned an IP address of 192.168.1.100.

Q4:

A4:

Q5:

A5:

After I successfully configured the Access Point to meet my network settings,

I can not connect to my network using wireless computers.

If you have a DHCP server in your network, you need to go into TCP/IP

settings again and re-select "Obtain an IP address automatically" to allow the PC

to regain an IP address from your DHCP server.

All the settings are correct, but I can not make a wireless connection to the

Access Point.

First, double check that the WLAN light on the Access Point is lit. Second,

power cycle the Access Point by unplugging the power to the Access Point. Wait

15 seconds, then plug the power back in. Third, contact the manufacturer of your

wireless network adapter. Make sure the wireless network adapter is configured

with the proper SSID. The default SSID of the Access Point is TRENDnet.

If you still encounter problems or have any questions regarding the TEW-430APB,

please contact TRENDnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

( 01) 07898431242525
