Tripp Lite SmartRack SRTH6UB Bedienungsanleitung

Owner’s Manual

SmartRack®

Vertical Expansion Rack

Models: SRTH6UB, SRTH12UB

(Series Numbers: AG-0545, AG-0546)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

Español 16 • Français 31 • Русский 46

Important Safety Instructions 3

Compatible Rack Enclosures 4

Feature Identiﬁcation 5

Conﬁguration 6

Ground Connection 6

Adding or Removing Front and 6

Rear Doors

Removing Door 6

Reversing Front Door 7

Adding or Removing Roof Panel 9

Adding or Removing Side Panels 10

Adjusting Mounting Rails and 11

Cable Management Rails

Equipment Installation 12

Installing or Removing Cage Nuts 12

Speciﬁcations 13

Storage and Service 14

Warranty and 15

Product Registration

Table of Contents

Important Safety Instructions

SAVE THESE INSTRUCTIONS

All sections of this manual contain instructions and warnings that should be followed during the installation and

use of the Vertical Expansion Rack as described in this manual. Read all instructions and warnings thoroughly

before attempting to move, install or use the Vertical Expansion Rack as described in this manual. Failure to

comply will create a risk of personal injury and property damage and may invalidate the warranty.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, ﬂammable liquids and

gasses, conductive contaminants, dust and direct sunlight.

• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into

the external ventilation openings of the enclosure.

• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it

unassisted. Use a mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.

• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures or

more than one height adjustment kit on top of the enclosure.

• Inspect the Vertical Expansion Rack’s contents for shipping damage. Do not use the Vertical Expansion Rack if it is

damaged.

• Leave the enclosure in the shipping container until it has been moved as close to the ﬁnal installation location as possible.

• The Vertical Expansion Rack is intended to be installed on top of Tripp Lite SmartRack Rack Enclosure models that are

secured to the building structure for stability.

• This equipment is intended to be installed by skilled, qualiﬁed service personnel.

• Install the SmartRack Rack Enclosure and Vertical Expansion Rack in a structurally sound area with a level ﬂoor that is able

to bear the weight of the enclosure and all equipment that will be installed and/or equipment that will be installed nearby.

• Be sure to connect the enclosure to ground. See Ground Connection for more information.

• Use caution when cutting packing materials. The contents could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may

cause product damage that will void the warranty.

• Do not re-ship the enclosure with additional equipment unless the enclosure was shipped with a special shock pallet (“SP1”

models only). The combined weight of the enclosure and installed equipment must not exceed the load capacity of the

pallet. Tripp Lite is not responsible for any damage that occurs during re-shipment.

• Not for use when children are present.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the

failure of the life support equipment or to signiﬁcantly affect its safety or effectiveness is not recommended.

CAUTION

GROUND

Compatible Rack Enclosures

The SRTH6UB and SRTH12UB Vertical Expansion Racks are compatible with the Tripp Lite SmartRack Rack Enclosure models

shown below, including Agency Series AGAC7006, AGAC7454, AGAC7761, AG-00BE, AG-0324, AG-0325, AG-0534,

AG-0535, AG-0536:

Model

SR2400

SR25UB

SR25UB3

SR25UB3001

SR25UBEXP

SR25UBSP1

SR42UB

SR42UB007

SR42UB1032

SR42UB3

SR42UB3002

SR42UBC

SR42UBC001

SR42UBCL

SR42UBCLSP1

Model

SR42UBEXP

SR42UBEXP001

SR42UBEXP002

SR42UBEXP003

SR42UBEXP004

SR42UBEXP1032

SR42UBEXPC001

SR42UBEXPND

SR42UBEXPND3

SR42UBEXPNDNR3

SR42UBG

SR42UBG001

SR42UBG3

SR42UBG3001

SR42UBKD

SR42UBND

SR42UBSFDKD

SR42UBSP1

SR45UB

Model

SR45UBEXP

SR45UBEXPND

SR45UBEXPNDNR3

SR45UBND

SR45UBSP1

SR48UB

SR48UB3

SR48UBCL

SR48UBEXP

SR48UBEXPND

SR48UBEXPNDNR

SR48UBEXPNDNR3

SR48UBSP1

SR50UB

SR52UB

SR55UB

SRX42UBAB

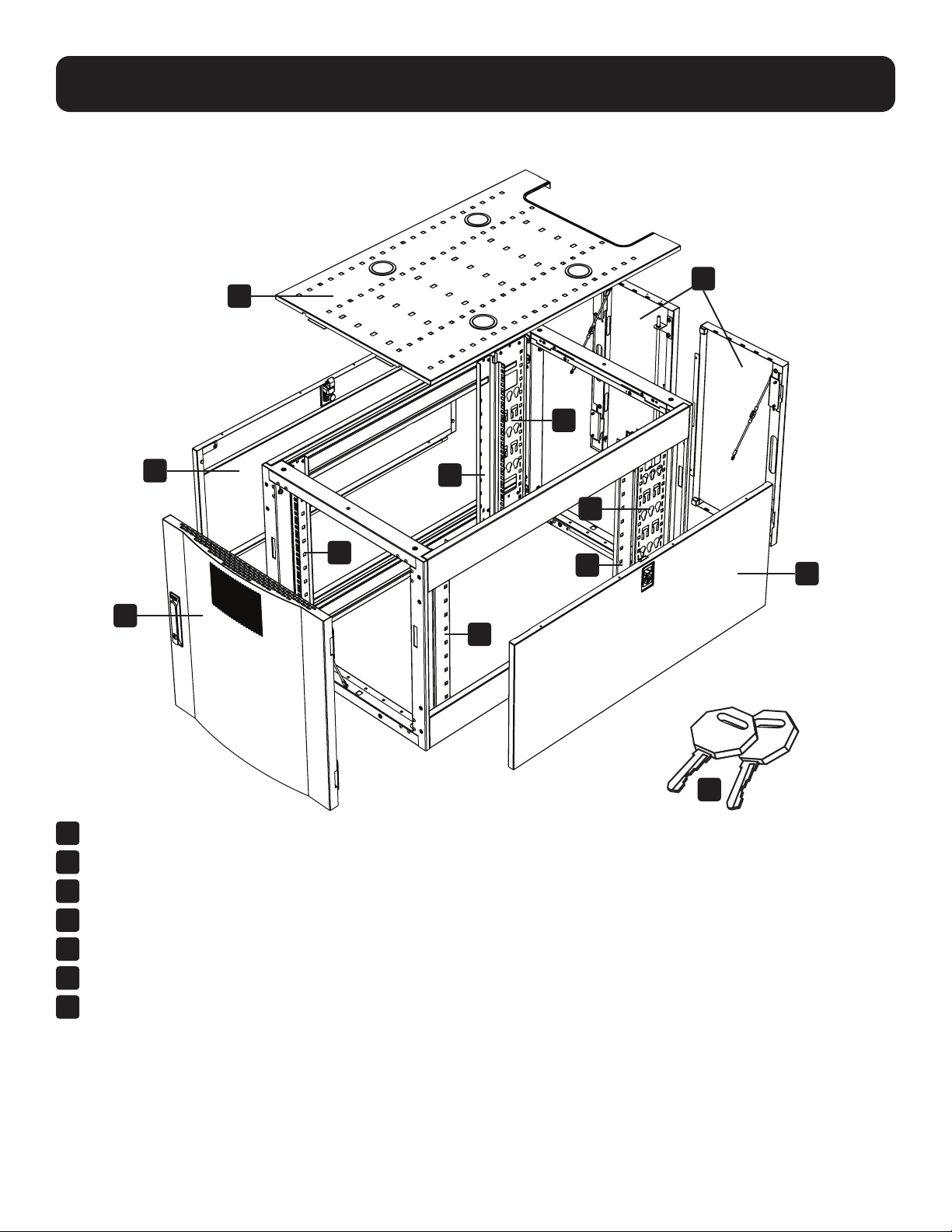

Feature Identiﬁcation

Model SRTH12UB shown.

1Roof Panel

2Locking Split Rear Doors

3Locking Side Panels

4Cable Management Rails

5Mounting Rails (Provide horizontal and vertical mounting points for equipment.)

6Locking Reversible Front Door

7Keys (One for the doors and one for the side panels.)

Not Shown: Mounting hardware, documentation, shipping brackets and other shipping materials.

Conﬁguration

Before proceeding with conﬁguration, make sure the unit is properly assembled and secured to the rack

enclosure. Refer to the Assembly Instructions document for step-by-step instructions.

Ground Connection

The unit includes multiple threaded grounding points labeled . To establish a ground, choose a grounding point and use the

included M6 screw to connect the frame of the unit directly to your facility’s earth ground connection with an 8 AWG

(3.264 mm) wire. Make sure to route the ground wire through the enclosure’s frame to ensure unhindered door operation.

WARNING: Attach each enclosure to earth ground separately. Do not use the enclosure without an earth ground

connection.

Adding or Removing Front and Rear Doors

WARNING: Do not attempt to add or remove doors without assistance.

90°

Removing Door

1Disconnect the door’s ground wire.

2Open the door until it is perpendicular (90 degrees) to the front

of the enclosure.

3Lift the door from the hinges and remove it from the enclosure.

To Reinstall Door, Reverse Steps 1-3

Reversing Front Door

WARNING: Do not attempt to reverse the front door without assistance.

1Remove the screw connecting the ground wire to the inside of the

door.

2Remove the 2 screws connecting the door handle to the door.

Remove the door handle.

3Remove the screw and washer from the rear of the door handle and

remove the latching mechanism. Rotate the latch washer counter-

clockwise 90 degrees and reverse the latch so it points in the

opposite direction, then use the screw and washer to re-attach the

latch to the rear of the door handle.

4Remove the door by following the steps in the previous section.

Conﬁguration

5Remove the door hinges from the enclosure, rotate them

180 degrees and attach them on the opposite side of the enclosure.

Note: The alternate door hinge attachment points have plastic plugs in the

screw holes. Remove the plugs and insert them in the original door hinge

attachment points.

6Unscrew the 2 hinge mechanisms from the hinge openings inside

the door, then reattach each of them using the set of screw holes

immediately opposite their original position.

7Rotate the door 180 degrees and reinstall it on the enclosure.

Remember to connect the ground wire to the inside of the door, using

the attachment point nearest the hinge at the top of the door. The

attachment point is marked with the ground connection symbol .

8Reinstall the door handle.

Conﬁguration

Adding or Removing Roof Panel

WARNING: Do not attempt to use the roof panel for weight-bearing purposes other than those explicitly described

and approved by Tripp Lite. Do not attempt to add or remove the roof panel without assistance.

Removing Roof Panel

1Pull the 2 pins near the rear of the roof panel. While holding the pins,

push the roof panel upward.

2Remove the roof panel tabs Afrom the roof panel attachment slots

Bin the enclosure frame.

3Disconnect the ground wire located on the side panel.

4Lift the roof panel from the enclosure.

To Reinstall Roof Panel, Reverse Steps 1-4

Conﬁguration

Adding or Removing Side Panels

1Open the latch by sliding it downward.

2Tilt the top of the panel away from the enclosure.

3Lift the panel away from the brace that supports it.

To Reinstall Side Panel, Reverse Steps 1-3
