Trust ACM-3000H2 Bedienungsanleitung

www.trust.com

START-LINE

ACM-3000H2

ACM-3000H2 BUILT-IN SWITCH

Item 71148 Version 1.0

Visit www.trust.com

for the latest instructions

USER MANUAL

MULTI LANGUAGE

5mm

01 02

Com S1 S2 N L

01 02

Com S1 S2 N L

01 02Com S1 S2 N L

9.1

01 02 S1 S2 N L

COM

Wall switch

ACM-3000H2

Switch 1a

Switch 2a

Switch 1b Switch 2b

01 02Com S1 S2 N L

1 SEC

01 02 S1 S2 N L

COM

Wall switch

ACM-3000H2

Switch 2Switch 1

9.2

9.3

01 02Com S1 S2 N L

ININ OUT

N N

01 02Com S1 S2 N L

1 SEC

OFF

01 02Com S1 S2 N L

8 SEC 1 SEC

ACM-3000H2 BUILT-IN SWITCH

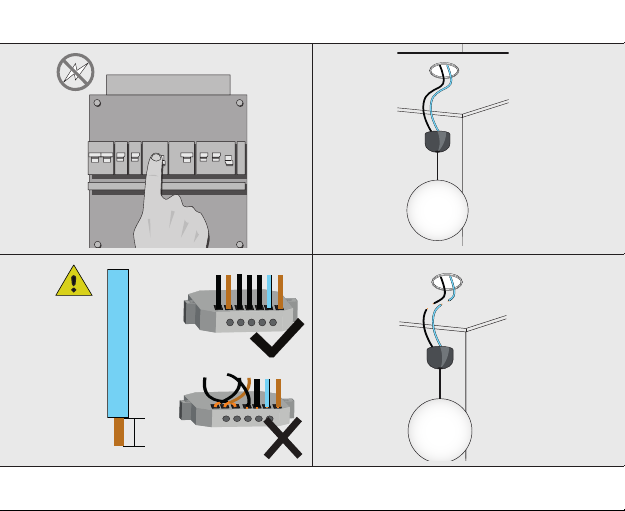

1. Disable mains power

Always turn OFF the mains power (In the meter closet) before you begin the installation or removal

of this product. The ACM-3000H2 can be used for either one or two hotel switches, connected with

one or two lamps. Also, the ACM-3000H2 can be used for one or two single wall switches, which are

connected with one or two lamps.

2. Loosen ceiling lights

Remove the existing lighting/equipment from the ceiling, leaving the wires connected to the lighting.

Lighting/equipment, may not exceed the maximum of 3000 watts.

3. Warning for stripping wires

3A. Make sure the wires are stripped for 5mm.

3B. When connecting the wires to the ACM-3000H2 make sure the stripped wires are pressed ﬁrmly

in the module, no exposed wires are visible and the wires cannot touch each other. This can cause a

short circuit.

4. Disconnect the switch wire and neutral wire

To install the ACM-3000H2 disconnect the switch wire and neutral wire of lamp 1. (Disconnect from

terminal block or cut the wires if necessary) Disconnect the switch wire and neutral wire of lamp 2.

Consult an electrician if in doubt about wire colours.

5. Connect the live wire and the neutral wire to a terminal block

(a) Connect the live wire from the ceiling box to a terminal block. Connect the other end of the live

wire also back into the same terminal block.

(b) Connect the neutral wire from the ceiling box to a dierent terminal block. Make sure other Trust

Smart Home receivers are placed at least 50 cm from the ACM-3000H2 to prevent interference.

6. Connect the switch wire and neutral wire of the lamp to the terminal block

(a) Connect the wall switch wire of lamp 1 from the ceiling box to the [S1] contact.

(b) Connect the (blue) neutral wire from lamp 1 to the terminal block of the neutral wire. Connect a

new wire from the neutral terminal block on to the [N] contact.

ACM-3000H2 BUILT-IN SWITCH

(d) Connect two new live wires from the live wire terminal block to the [L] and [COM] contact.

(e) Tighten the terminal screws of the ACM-3000H2.

7. Connect second lamp and wall switch.

(a) Pull the switch wire from the wall switch of lamp 2 to the ceiling box of lamp 1. Pull the switch wire

from lamp 2 to the ceiling box of lamp 1.

(b) Connect the switch wire of lamp 2 to the [O2] contact

This is an technical installation schematic of the ACM-3000H2 with two wall-switches (1 hotel/stairwell

circuit).

This is an technical installation schematic of the ACM-3000H2 with four wall-switches (2 hotel/stairwell

circuit.

8. Enable mains power

Switch the mains power ON before proceeding with the installation.

Make sure no stripped parts of wires are touched after this step.

The LED indicator on the receiver will be lit for a few seconds when voltage is applied.

9.1 Activate pairing mode

Press for about 1 second (with a pointed object) on the Connect button to activate the pairing mode.

The pairing mode will be active for 15 seconds and the LED indicator on the receiver will ﬂash slowly.

9.2 Send an ON signal

While the LED indicator ﬂashes, press the ON button on a Trust Smart Home transmitter to pair the

transmitter to the ACM-3000H2. (Or activate a Trust Smart Home sensor).
