TYAN THUNDER K8QW Bedienungsanleitung

http://www.TYAN.com

Thunder K8QW /// S4881G2NR

Revision 1.01

manual may be reproduced or translated without prior written consent from TYAN

Computer Corp.

All registered and unregistered trademarks and company names contained in this manual

are property of their respective owners including, but not limited to the following.

TYAN, Thunder K8QW are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

Nvidia and nForce are trademarks of Nvidia Corporation

Phoenix BIOS is a trademark of Phoenix Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

Information contained in this document is furnished by TYAN Computer Corporation and

has been reviewed for accuracy and reliability prior to printing. TYAN assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of

TYAN products including liability or warranties relating to fitness for a particular purpose

or merchantability. TYAN retains the right to make changes to product descriptions and/or

specifications at any time, without notice. In no event will TYAN be held liable for any

direct or indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin… Page 4

Chapter 1: Introduction

Congratulations Page 5

Hardware Specifications Page 5

Software Specifications Page 7

Chapter 2: Board Installation

2.00 Board Image Page 9

2.01 Block Diagram Page 10

2.02 Board Parts, Jumpers and Connectors Page 11

2.03 Front Panel Connector (J15) Page 13

2.04 Clear CMOS Jumper (J20) Page 14

2.05 SMBus Connector (J1) Page 14

2.06 USB 2.0 Header (J30, J31,J95) Page 15

2.07 Chassis Intrusion (JP2) Page 15

2.08 Serial Port Internal Header (J101) Page 16

2.09 PCI-X Speed Select Jumper (J11) Page 16

2.10 PCI-X Speed Select Jumper (J12) Page 17

2.11 RI Header (JP1) Page 17

2.12 Gigabit LAN1, LAN2 LED Header (JP4,JP5) Page 18

2.13 IEEE 1394A Pin Header (J27, J28) Page 18

2.14 ID Switch (J118) Page 19

2.15 ID LED (J119) Page 19

2.16 NMI (J22) Page 20

2.17 CPU Fan Connectors

(J117, J116, J108, J109) Page 20

2.18 Chassis 4-PIN Fan Connectors

(J103, J104, J105, J106, J107, J110) Page 21

2.19 Chassis 3-PIN Fan Connectors (J111, J112) Page 21

2.20 Parallel Header (LPT Connector) Page 22

2.21 PWR Connector (PWR3) Page 22

2.22 PWR Connector (PWR4) Page 23

2.23 OEM Reserved Connectors and Jumpers Page 24

2.24 Installing the processor(s) Page 24

2.25 Heatsink Retention Frame Installation Page 25

2.26 Thermal Interface Material Page 26

2.27 Heatsink Installation Procedures Page 27

2.28 Finishing Installing the Heatsink Page 29

2.29 Tips on Installing Motherboard in Chassis Page 30

2.30 Installing the Memory Page 32

2.31 Attaching Drive Cables Page 35

2.32 Installing Add-In Cards Page 37

2.33 PCI Riser Cards Page 38

2.34 Connecting External Devices Page 39

2.35 Installing the Power Supply Page 39

2.36 Finishing Up Page 40

Chapter 3: BIOS

3.00 BIOS Setup Utility Page 41

3.10 BIOS Menu Bar Page 42

http://www.TYAN.com

3.20 BIOS Legend Bar Page 42

3.30 BIOS Main Menu Page 43

3.40 BIOS Advanced Menu Page 44

3.4.1 Hammer Configuration Sub-Menu Page 45

3.4.2 Integrated Devices Sub-Menu Page 48

3.4.3 PCI Configuration Sub-Menu Page 50

3.4.4 IDE Configuration Sub-Menu Page 53

3.4.5 Floppy Configuration Sub-Menu Page 56

3.4.6 I/O Device Configuration Sub-Menu Page 56

3.4.7 Hardware Monitor Sub-Menu Page 57

3.4.8 Console Redirection Sub-Menu Page 58

3.4.9 Watchdog Timer Option Sub-Menu Page 59

3.50 BIOS Memory Menu Page 61

3.60 BIOS Security Menu Page 62

3.70 BIOS Boot Menu Page 63

3.7.1 Boot Device Priority Page 64

3.80 BIOS Power Menu Page 65

3.90 BIOS Exit Menu Page 67

Chapter 4: Diagnostics Page 68

Appendix I: Glossary Page 69

Appendix II: BIOS POST Code Page 74

Technical Support Page 77

http://www.TYAN.com

Before you begin…

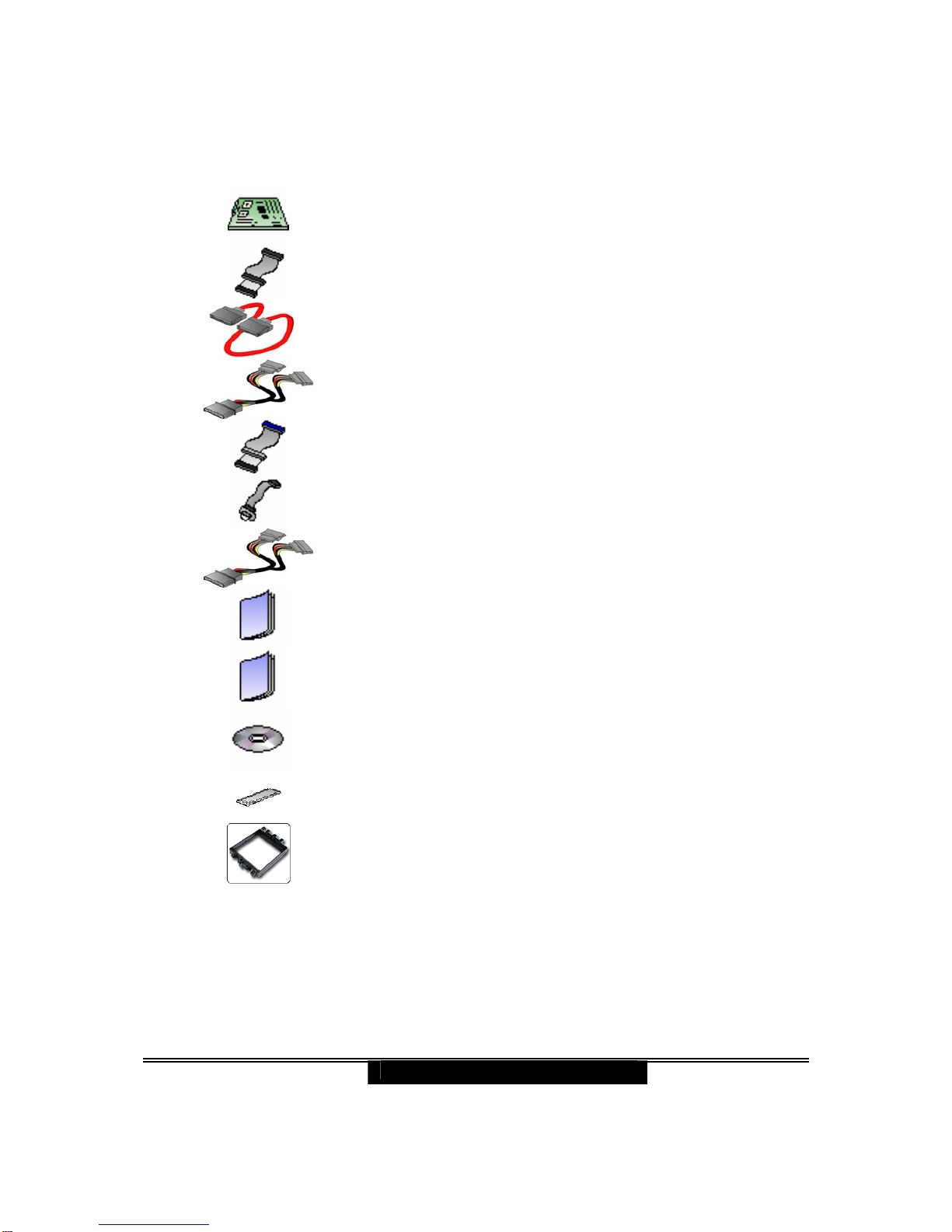

Check the box contents!

The retail motherboard package should contain the following:

1x Thunder K8QW motherboard

1x 34-Pin floppy drive cable

4 x SATA cable

2x SATA Drive Power Adapter

2x Ultra-DMA-100/66 IDE cable

1x Cable set: 9-pin Serial and 25-pin Parallel

1 x 1394 cable

1x Thunder K8QW user’s manual

1x Thunder K8QW Quick Reference guide

1x TYAN driver CD

1x I/O shield with 2 LAN ports

4 x CPU Mounting Kit

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

Congratulations

You are now the owner of the ideal solution for rackmount servers, large computer

clusters, or pedestal server needs. The Tyan Thunder K8QW features support for

Quad AMD Opteron processors, dual channel GbE Network Adapters and SATA

devices. The Thunder K8QW also offers the option to upgrade to eight-level processing

capabilities through the use of the HT4881 and the M4881 add-on modules.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS upgrades.

Hardware Specifications

Processor

•Quad µPGA 940-pin ZIF sockets

•Supports up to four Single/Dual Core

AMD OpteronTM 800 series processors

•Four onboard 4-phase VRMs

•Integrated 128-bit DDR Memory

controller

Chipset

•NVIDIA CrushK8-04 Professional

•AMD-8131TM HyperTransport I/O Hub

•Winbond W83627HF Super I/O chip

•Three Analog Devices ADT7476

Hardware Monitoring IC

Memory

•128-bit dual channel memory bus

•Sixteen 184-pin DDR DIMM sockets

(Four per CPU)

•Supports up to 64 GB Reg/ECC DDR

•Supports DDR266, DDR333, or

DDR400

•Supports Single/Dual and Quad Rank

memory

Expansion Slots

•Two x16 PCI Express slot, one with x4

signals

•Two independent 64-bit PCI-X buses

•One 133 MHz max 3.3V PCI-X slot

from Bridge B

•Two 100 MHz max 3.3V PCI-X slots

from Bridge A

•Total of five usable slots

Integrated Enhanced IDE

Controller

•Provides two IDE dual-drive

ports for up to four EIDE

devices

•Supports for UDMA 33 /66 /

100 /133 IDE drives and

ATAPI compliant devices

Integrated I/O

•One floppy connector supports

up to two drives

•Two 9-pin serial ports (one

connector and one header) and

One 25-pin parallel port pin-

header

•Eight USB 2.0 EHCI ports (two

rear connectors & three headers

with two ports each)

•PS/2 mouse and keyboard

connectors

System Management

•Modular BMC 2x25pin header

for SMDC support

•Ten 4-pin fan headers support

tachometer monitoring and

smart FAN control (PWM)

•Temperature and voltage

monitoring

•One 2-pin Chassis Intrusion

header

•Port 80h LED display

http://www.TYAN.com

Integrated SATA Controller (Mfg.

option)

•Four SATA 2.0 ports

•Supports up to Four SATA drives

•Supports RAID 0,1 and 10

Intelligent Platform Management

Interface Header

•Tyan Server Management Daughter

card (Optional) supports features

listed below via IPMI header

•QLogicTM Zircon Baseboard

Management Controller (BMC)

based on powerful ARM7

technology

•Tailored for IPMI 1.5 Spec

•Supports KCS and BT styles

•Flexible Windows and Linux based

Management Solution

•Supports RMCP and SNMP

protocols

•Supports ASF standard and EMP

•I

2C serial multi-master controllers

and UARTs

•Built-in IPMB connector

•Remote power on/off and reset

support (IPMI-over-LAN)

Hyper Transport™ Connectors

•Two PCI Express x16 slots with

TYAN private signal definition which

uses the Hyper Transport to

connect two HT cards to the M4881.

(CPU Board specifically designed by

TYAN).

Integrated PCI Graphics

•ATI®RageTM XL PCI graphics

controller

•8MB Frame Buffer of video memory

Integrated LAN Controllers

•Broadcom®BCM5704C dual-

channel Gigabit Ethernet

controller

•Two RJ-45 LAN connectors

with LEDs

•Connected to PCI-X Bridge A

•Two Front Panel LED headers

BIOS

•Phoenix BIOS with 4Mbit LPC

Flash ROM

•Watchdog timer

•USB boot support

•48-bit LBA Support

•Supports PXE via Ethernet

•Power management:S0, S1, S4

and S5

•ACPI 2.0 & 1.0B support

Form Factor

•SSI MEB footprint (13” x 16” /

330.2mm x 406.4mm)

•EPS12V power connectors

•One serial port and one VGA

connector

•Stacked USB 2.0 (two)

connectors

•Stacked PS/2 keyboard and

mouse connectors

•Two RJ-45 side-by-side LAN

connectors with LEDs

Regulatory

•FCC Class B (Declaration of

Conformity)

•European Community CE

*Not validated at the time of print,

subject to change.

http://www.TYAN.com

Software Specifications

OS (Operating System) Support

Microsoft Windows 2003 Enterprise Server (32/64-bit)

Microsoft Windows 2003 Server (32/64 bit)

SuSE Enterprise 10.0 64-bit

RHEL 3 Update 4 64-bit

RHEL 4 64-bit

Other distributions of Linux pending validation

TYAN reserves the right to add support or discontinue support for any OS with or

without notice.

http://www.TYAN.com

Chapter 2: Board Installation

Precaution: The Thunder K8QW supports EPS12V power supplies (24-pin/8-pin) and will

not operate with any other types.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage the

board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information

that will make configuration and setup much easier. Here are some precautions you

should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic

bag. Unplug the power from your computer power supply and then touch a

safely grounded object to release static charge (i.e. power supply case). For the

safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or

flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory

modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag

that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis,

as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

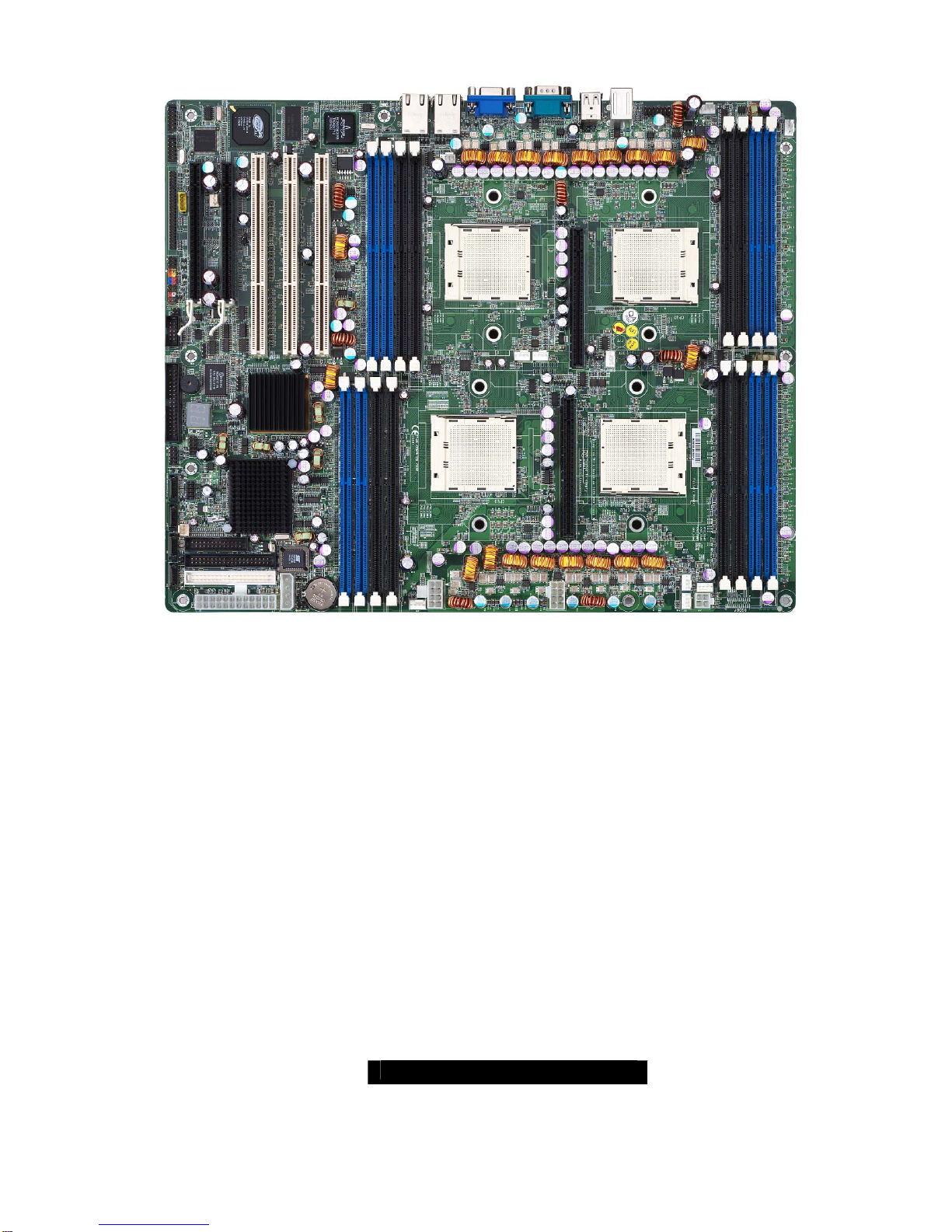

2.00 – Board Image

This picture is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above

picture.

The following page includes details on the vital components of this motherboard.

http://www.TYAN.com

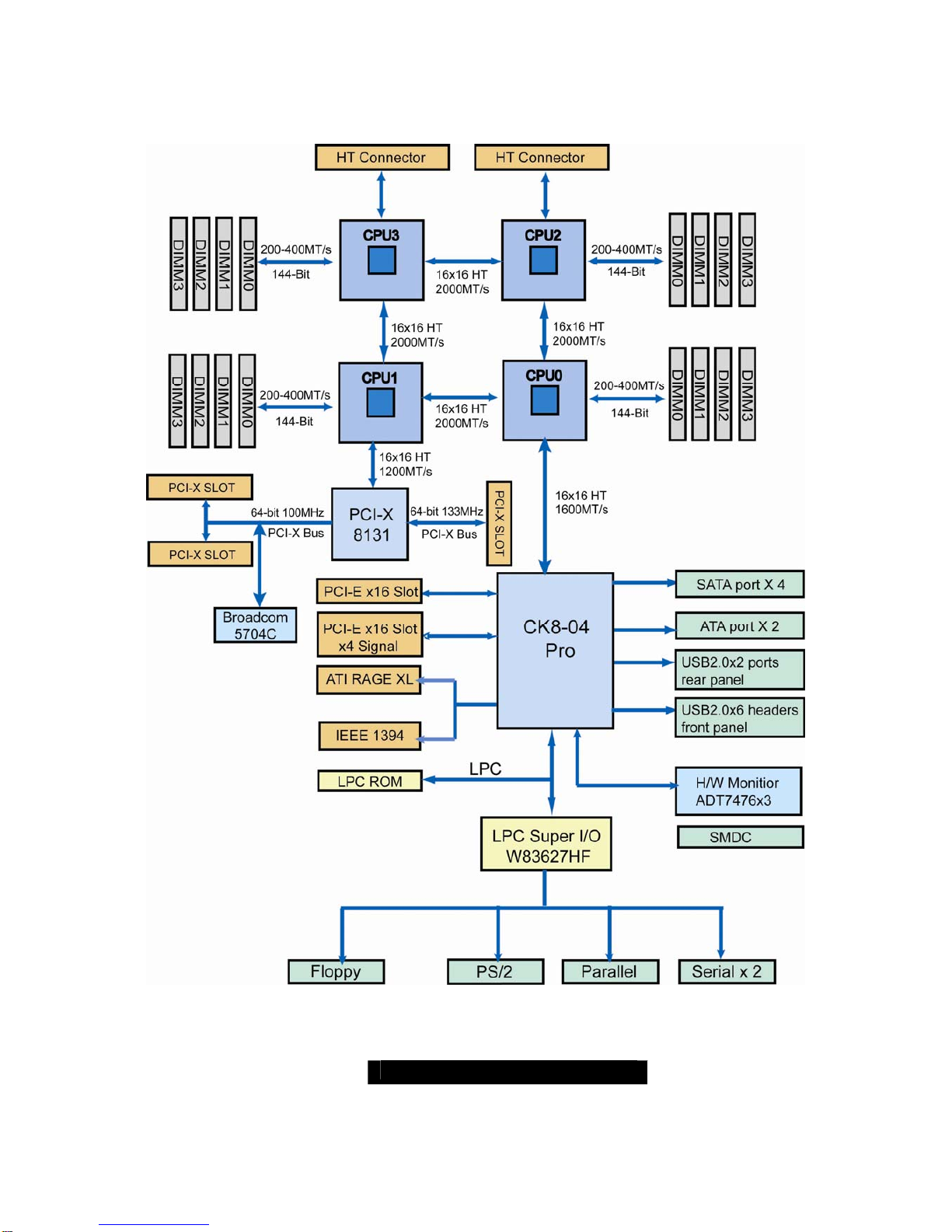

2.01 – Block Diagram

S4881 Thunder K8QW Block Diagram

Note: The Hyper Transport speed between HT CON & CPU can reach up to 2000MT/S

Andere Handbücher für THUNDER K8QW

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN TIGER 200 Bedienungsanleitung

TYAN

TYAN 1.00 Technisches Handbuch

TYAN

TYAN TRINITY 510 Bedienungsanleitung

TYAN

TYAN Tempest i5000VF S5370 Bedienungsanleitung

TYAN

TYAN TOMCAT I7230W Bedienungsanleitung

TYAN

TYAN TIGER K8W Bedienungsanleitung

TYAN

TYAN Toledo i3210W Bedienungsanleitung

TYAN

TYAN S5545 Bedienungsanleitung

TYAN

TYAN S5642 Bedienungsanleitung

TYAN

TYAN S7103 Bedienungsanleitung

TYAN

TYAN Thunder i7500 Pro S2721 Bedienungsanleitung

TYAN

TYAN TACOMA Bedienungsanleitung

TYAN

TYAN S7070 Bedienungsanleitung

TYAN

TYAN THUNDER I7520, D, R, RD Bedienungsanleitung

TYAN

TYAN TRINITY 371 Bedienungsanleitung

TYAN

TYAN Thunder n3600QX Bedienungsanleitung

TYAN

TYAN THUNDER K7 Montage- und Bedienungsanleitung

TYAN

TYAN THUNDER N3600B Bedienungsanleitung

TYAN

TYAN S8230 Bedienungsanleitung

TYAN

TYAN TOMCAT I815E Bedienungsanleitung

TYAN

TYAN Tomcat n3400B S2925 Bedienungs- und Wartungshandbuch

TYAN

TYAN TITAN III Bedienungsanleitung

TYAN

TYAN S1846 Tsunami ATX Bedienungsanleitung

TYAN

TYAN Thunder i7501 Pro S2721-533 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
