Thunder n3600B ///

S2927

Version 1.0

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Thunder n3600B are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark of SuSE AG.

Marvell®is a trademark of Broadcom Corporation and/or its subsidiaries

XGI and XG20 are trademarks of XGI Corporation

nVIDIA, nForce are trademarks of NVIDIA Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

http://www.tyan.com

Table of Contents

Check the box contents! Page 3

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 8

2.2Block Diagram Page 9

2.3Board Parts, Jumpers and Connectors Page 10

2.4 Tips on Installing Motherboard in Chassis Page 22

2.5Installing the Processor(s) Page 23

2.6Installing the Memory Page 28

2.7Attaching Drive Cables Page 31

2.8Installing Add-In Cards Page 33

2.9 Installing Graphic Cards and SLI Bridge Page 34

2.10 Connecting External Devices Page 35

2.11 Installing the Power Supply Page 36

2.12 Finishing Up Page 36

Chapter 3: BIOS Setup

3.1 About the BIOS Page 37

3.2BIOS Menu Bar Page 37

3.3Setup Basics Page 38

3.4 Getting Help Page 38

3.5In Case of Problems Page 38

3.6BIOS Main Menu Page 39

3.7Advanced Menu Page 40

3.8PCI/PnP Menu Page 61

3.9Boot Menu Page 63

3.10 Security Menu Page 67

3.11Chipset Menu Page 68

3.12Exit Menu Page 70

Chapter 4: Diagnostics

4.1 Beep Codes Page 71

4.2 Flash Utility Page 71

4.3 AMIBIOS Post Code Page 77

Appendix: SMDC Information Page 79

Glossary Page 81

Technical Support Page 87

http://www.tyan.com

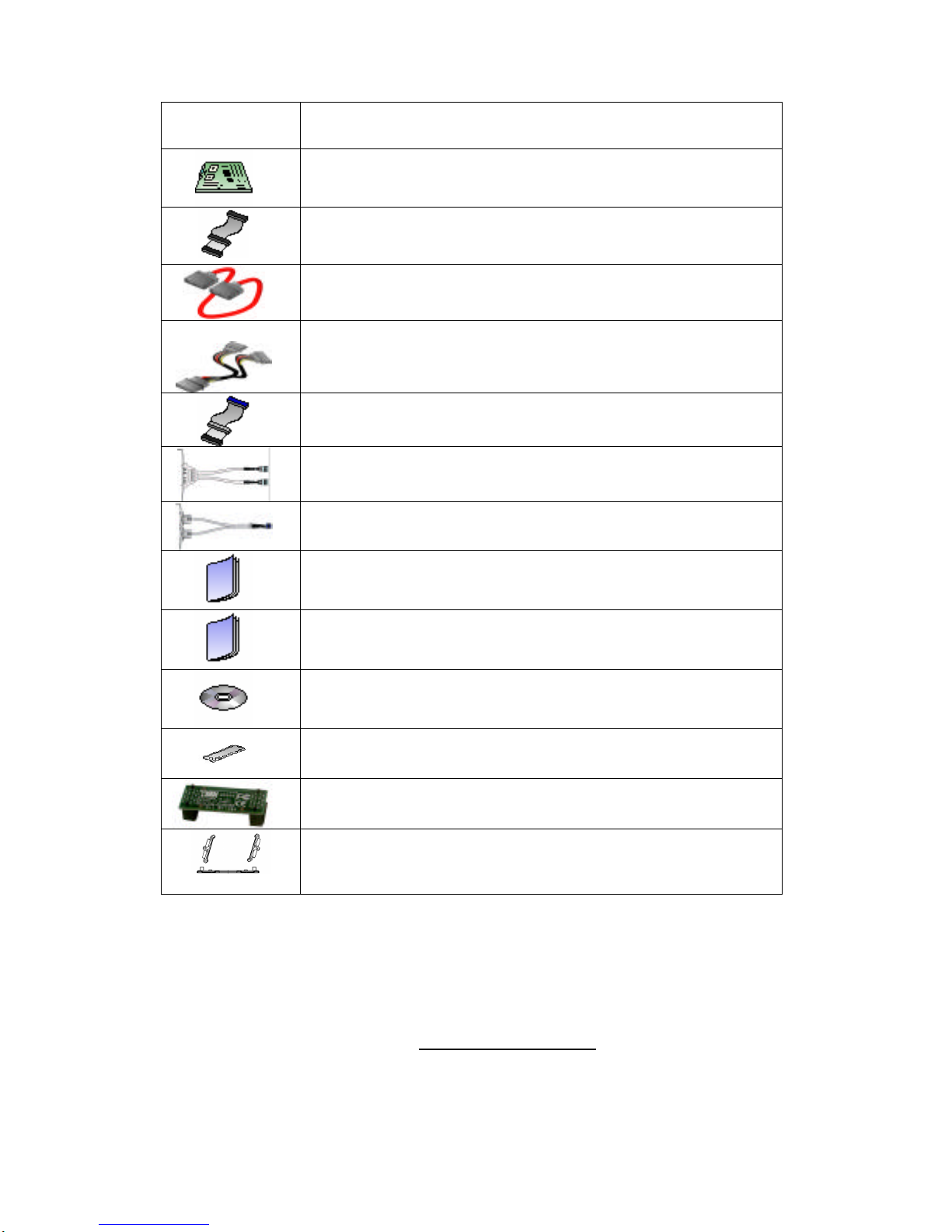

Check the box contents!

Item S2927

1x S2927 motherboard

1x 34-Pin floppy drive cable

6x SATA cable

3x SATA Drive Power Adapter

1x Ultra-DMA-100/66 IDE cable

1x IEEE1394a Cable (S2927A2NRF only)

1x USB2.0 cable

1x S2927 User’s Manual

1x S2927 Quick Reference guide

1x TYAN driver CD

1x I/O shield

1 x SLI bridge (S2927A2NRF only)

2 x CPU Retention Frame and Back Plate

http://www.tyan.com

Chapter 1: Introduction

1.1 -Congratulations

You have purchased one of the most powerful server solutions. The Thunder

n3600B (S2927) is a flexible AMD64 platform for multiple applications, based on

NVIDIA nForce Pro3600 and SMSC SCH5017 chipsets.

Designed to support AMD®Opteron™2000 series processorsand DDRII-667

memory, the S2927with integrated Dual Gigabit Ethernet LAN, built-in 16MB

XGI XG20TM video and six serial ATA ports, is ideal for CPU, memory, and

video intensive applications such as CAD, Graphics Design, and High

Bandwidth Video Editing, etc.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 -Hardware Specifications

Processor

•Dual 1207-pin ZIF sockets

•Supports up to two AMD Socket F

Opteron 2000 series processors

•Up to 1.0GHz Hyper-Transport link

support

Expansion Slots

•One (1) x16 PCI-E(PCI-E1)

•One (1) x16 PCI-E with x8

bandwisth (PCI-E2)

•Three 32-bit, 33MHz PCI v2.3

slots (PCI1~PCI3)

•Total five usable expansion slots

Chipset

•nVIDIA nForce Pro 3600

•SMSC SCH5017

Memory

•Dual memory channels

•Supports 8xDDRII-667/533/400

registered, ECC DIMMs

Integrated LAN Controllers

•Two nForce Pro 3600 integrated

MAC with two Marvell88E1116

single port Gigabit Ethernet PHY

-Integrated TCP offload Engine

(TOE)

-IEEE802.3 compliant, WOL/PXE

support

-Pin header for front panel LAN

LED

Integrated Audio

(S2927A2NRF only)

•Realtek ALC262 audio CODEC

•HD Audio 1.0 compliant

•2 x 5 pin header for front panel

audio connector

•CD_IN connector

Integrated PCI 1394

(S2927A2NRF only)

•VIA VT6307/6308 PCI FireWire

(1394) controller

•Two IEEE1394 ports (via cable)

http://www.tyan.com

System Management

•SMSC SCH5017 w/ 2x

EMC6D103

•2x CPU FAN & 2x 4-pin system

Fan headers, w/ tachometer input

and w/ auto fan control

•Temperature and voltage

monitoring

•Watchdog timer

•Port 80 code display LED

Integrated PCI IDE

•Single channel master mode

support up to two IDE devices

•Support for ATA-133/100/66/33

IDE drives and ATAPI compliant

devices

Integrated 2D/3D PCI Graphics

(S2927G2NR only)

•XGI Volari (XG20)

•16MB frame buffer memory

Integrated Serial ATA II

•Three serial ATA II Host

controllers embedded

•Supports up to 6 serial ports

running at 3.0Gb/s per direction

per channel

•Serial ATA II specification

compliant

•nVIDIA MediaShieldTM supports for

RAID 0, 1, 0+1, 5, JBOD

•HDD LED connector

Integrated I/O Interface

•One (1) floppy connector

•Four (4) USB 2.0 ports (via cable)

•One (1) COM port (via cable)

•Tyan 2x9 front panel pin header

•One (1) parallel pin header

Form Factor

•ATX footprint, 10.2”x 12.0”

(259mmx305mm)

Back Panel I/O Ports

•Stacked PS/2 mouse & keyboard

ports

•One (1) COM1 connector

•One (1) 15-pin VGA port

•3 audio jacks (from bottom: line

out <green>, line in <blue>, MIC

<pink>)(S2927A2NRF version

only)

•2 double-decked USB2.0 ports

and one RJ45 (2x Marvell

88E1116 single port GbE PHy +

nVIDIA MAC) 10/100/1000 Base-

T port with link/activity LED

Server Management

•M3291, IPMI 2.0 Remote System

Mgmt card

•Renesas H8S2167 BMC controller

•BT, KCS, Logging support

•IPMI-over-LAN

•Remote power on/off and reset

BIOS

•AMI BIOS 8Mbit Flash

•Supports ACPI 2.0

•PnP, DMI2.0, WfM 2.0 power

management

Power

•EPS12V support, on board 4-

phase VRD

•Universal 24-pin + 8-pin power

connectors

•4-pin auxiliary power connector

Regulatory

•FCC Class B (Declaration of

Conformity)

•CE (Declaration of Conformity)

http://www.tyan.com

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Thunder n3600B S2927matches the ATX specification. Before continuing

with installation, confirm that your chassis supports anATX motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1)Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2)Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3)Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4)Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5)Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE

DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

http://www.tyan.com

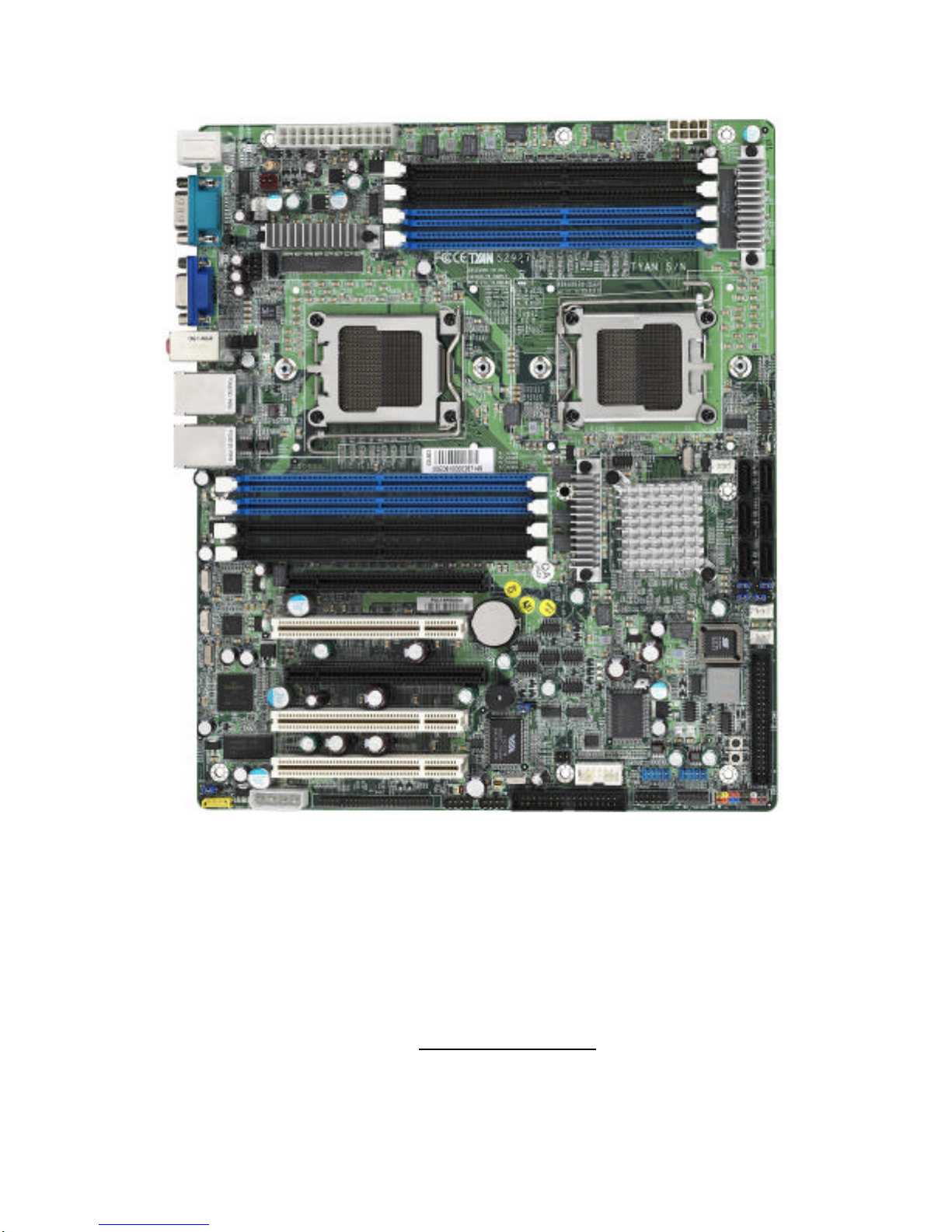

2.1-Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

http://www.tyan.com

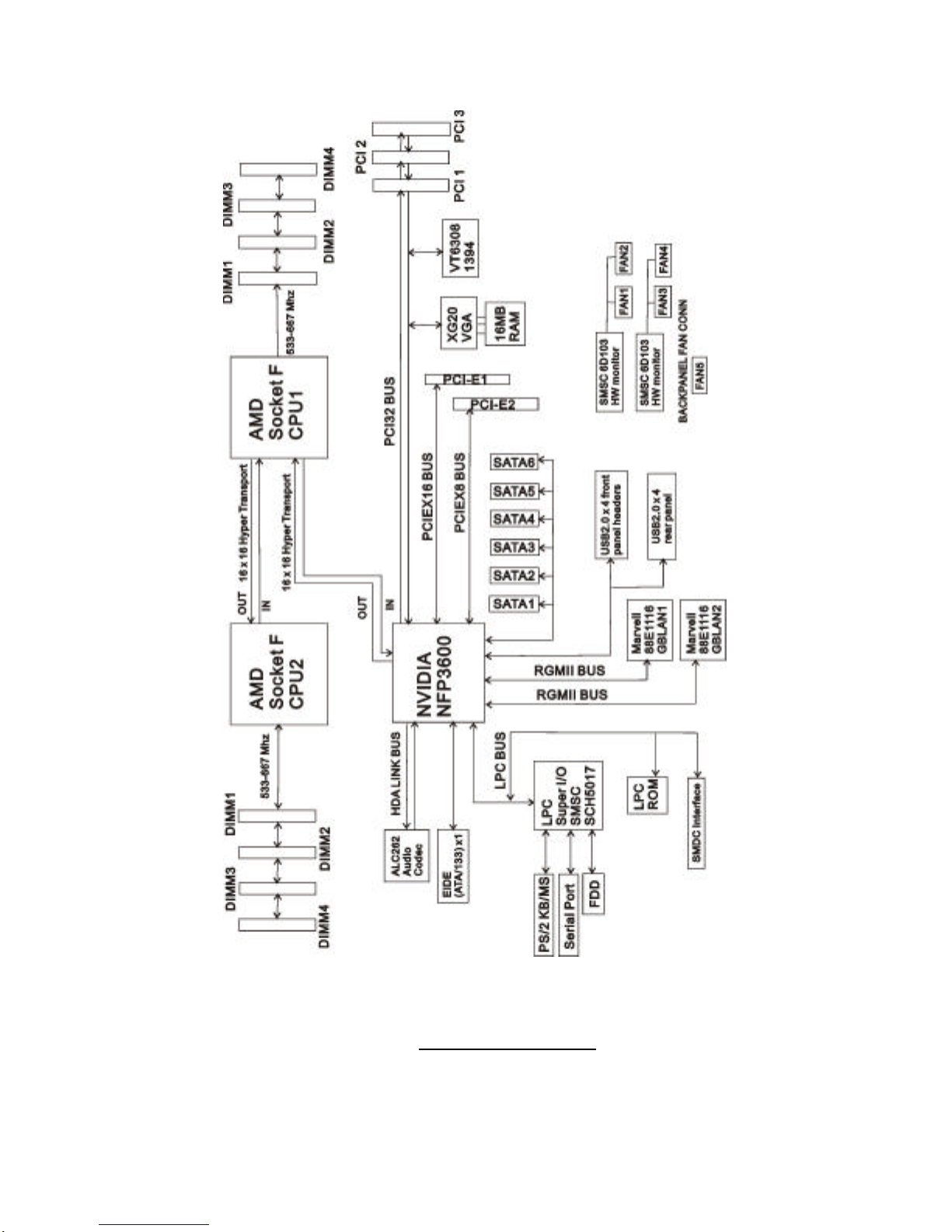

2.2 -Block Diagram

Thunder n3600B S2927Block Diagram

http://www.tyan.com

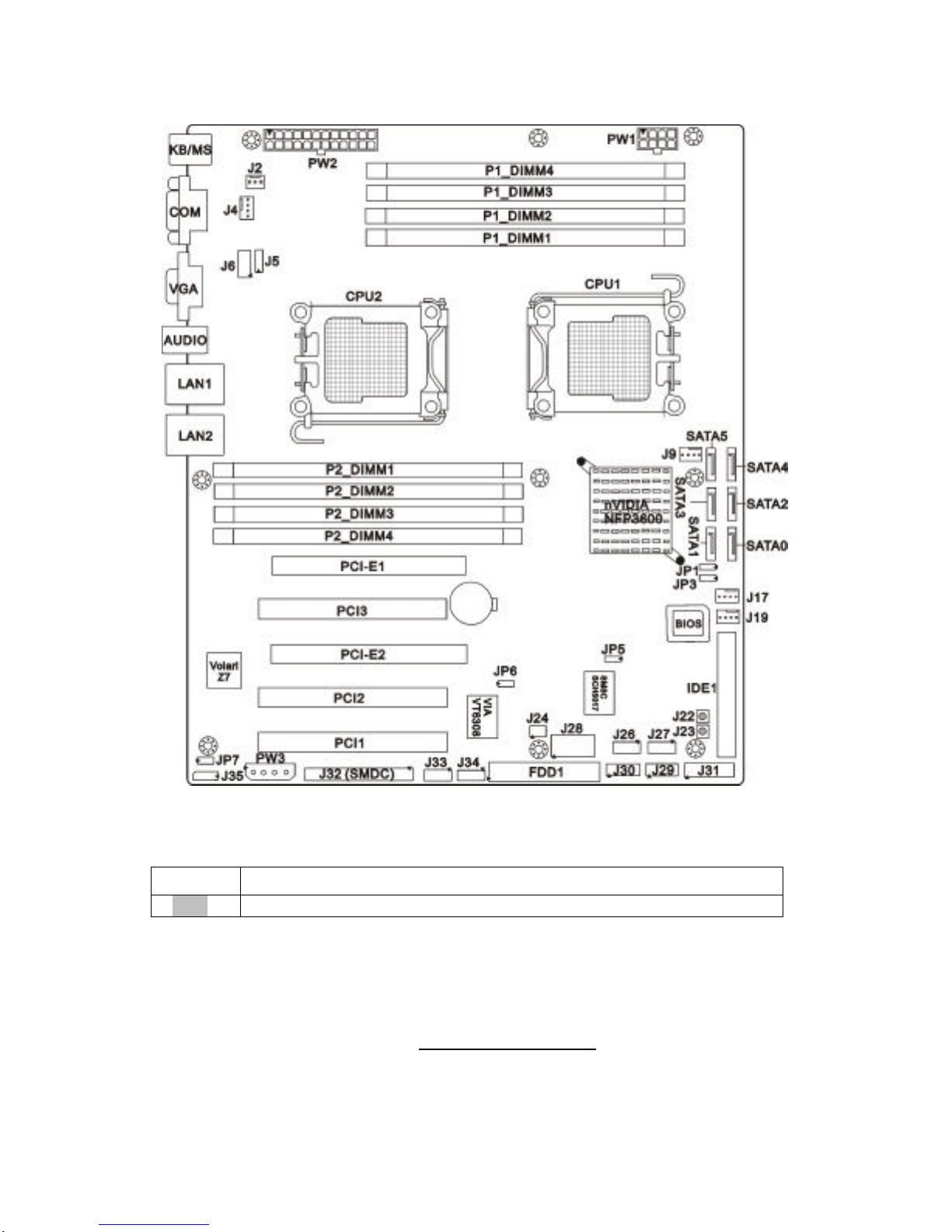

2.3 -Board Parts, Jumpers and Connectors

Jumper Legend

©© OPEN -Jumper OFF, without jumper cover

©© CLOSED –Jumper ON, with jumper cover
