TYAN TIGER I7501X Bedienungsanleitung

http://www.TYAN.com

Tiger i7501X /// S3022

Revision 1.03

reproduced or translated without prior written consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in this manual are

property of their respective owners including, but not limited to the following.

TYAN, Tiger i7501X S3022 are trademarks of TYAN Computer Corporation.

Intel, Xeon, and combinations thereof are trademarks of Intel Corporation.

AMI, AMIBIOS are trademarks of AMI Software Incorporated.

Microsoft, Windows are trademarks of Microsoft Corporation.

QLogic, Zircon, and combinations thereof are trademarks of QLogic Corporation.

IBM, PC, AT, PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Portable Document Format (PDF) is a trademark of Adobe Corporation.

LSI is a trademark of LSI Logic Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and has been

reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and

disclaims any express or implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains the

right to make changes to product descriptions and/or specifications at any time, without notice. In

no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,

loss of use, loss of data or other malady resulting from errors or inaccuracies of information

contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…

Chapter 1: Introduction

1.1 Congratulations!

1.2 Hardware Specifications

Chapter 2: Board Installation

2.1 Board Jumpers, LEDs, and Fans

2.2 Jumper Settings

2.3 Jumper Definitions

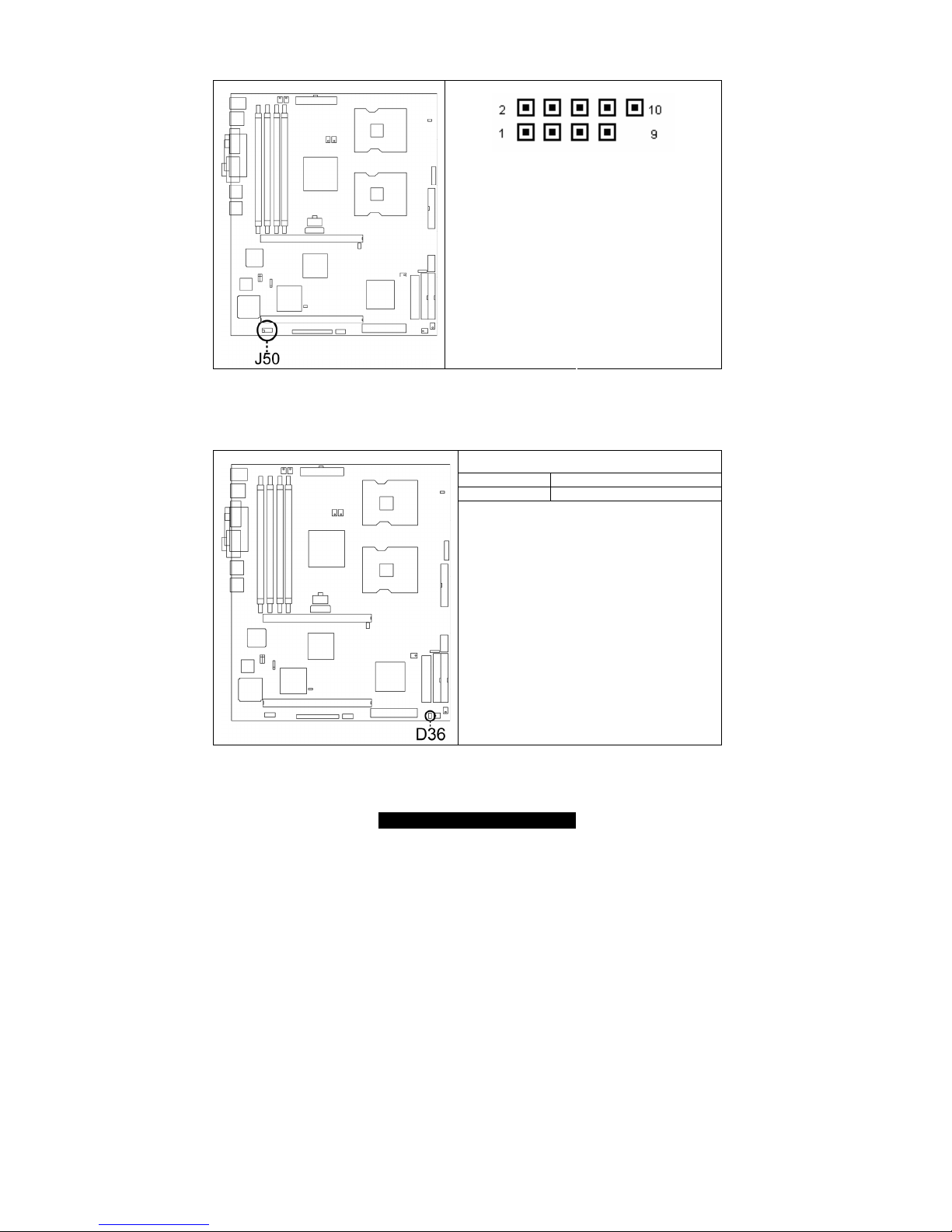

2.4 Serial Header Information

2.5 USB Header Information

2.6 LED Information

2.7 Fan Header Information

2.8 PCI Setup

2.9 Mounting the Motherboard

2.10 Installing the Memory

2.11 Installing the Processors & Heatsinks

2.12 Installation Guide of Xeon Processor

Reinforcement Kit

2.13 Attaching Drive Cables

2.14 Installing Add-In cards

2.15 Connecting External Devices

2.16 Installing the Power Supply

2.17 Finishing up

Chapter 3: BIOS

3.1 Main BIOS Setup

3.2 Advanced Settings

3.3 CPU Configuration

3.4 IDE Configuration

3.5 Floppy Configuration

3.6 Super IO Configuration

3.7 ACPI Configuration

3.8 DMI Event Logging

3.9 Remote Access Configuration

3.10 USB Configuration

3.11 Hardware Monitor

3.12 Onboard Device Configuration

3.13 PCIPnP

3.14 Boot

3.15 Chipset

3.16 ICH3 Chipset Configuration

3.17 Intel PCI-64 Hub Configuration

3.18 Intel E7500/7501 Northbridge

Configuration

3.19 Security

3.20 Exit

Chapter 4: Diagnostics

4.1 Hardware Monitor Information

4.2 Beep Codes

4.3 Flash Utility

Appendix I: Onboard LAN LED Color Def.

Appendix II: Glossary

Appendix III: SMDC Information

Technical Support

……………………………………………..Page 3

……………………………………………..Page 4

……………………………………………..Page 6

……………………………………………..Page 7

……………………………………………..Page 8

……………………………………………...Page 9

…………………………………………… Page 10

…………………………………………… Page 11

…………………………………………… Page 12

…………………………………………… Page 13

…………………………………………… Page 14

…………………………………………… Page 17

…………………………………………… Page 20

…………………………………………… Page 22

…………………………………………… Page 24

…………………………………………… Page 25

…………………………………………… Page 26

……………………………………………Page 26

……………………………………………Page 28

………………………….…………………Page 29

………………………….…………………Page 30

………………………….…………………Page 31

………………………….…………………Page 32

………………………….…………………Page 33

…………………………….………………Page 33

………………………….…………………Page 33

……………………………….……………Page 34

……………………………………………Page 35

……………………………………………Page 37

……………………………………………Page 38

……………………………………………Page 39

……………………………………………Page 40

……………………………………………Page 45

……………………………………………Page 46

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Tiger i7501X S3022 motherboard

2X CPU retention modules

2x CPU Back-plates with screws

1x 34-Pin floppy drive cable

1x Ultra-DMA-100/66/33 IDE cable

1 x Ultra320 SCSI cable

1x Tiger i7501X S3022 User’s Manual

1x Tiger i7501X S3022 Quick Reference

1x TYAN driver CD

1x LSI Ultra160/Ultra320 SCSI driver diskette

1x I/O shield

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1 – Congratulations!

You have purchased one of the most powerful Dual Intel processor solutions, the Tiger i7501X

S3022. Based on Intel's E7501 chipset, the Tiger i7501X S3022 is Hyper-Threading ready -

utilizing onboard resources so that a second thread of data can be processed in a single

processor. Compatible with both ATX12V and EPS12V power supplies, this platform offers

convenient remote Intelligent Platform Management Interface (IPMI) monitoring through a Server

Management Daughter Card. The Tiger i7501X also features an ATX form factor, Gigabit

Ethernet port, Fast Ethernet port, an onboard ATI 8MB PCI RAGE XL VGA, and an onboard Dual

channels (Ultra320) LSI SCSI, which provides an advanced and versatile solution for your server

needs.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, distributors list and BIOS setting explanations.

1.2 – Hardware Specifications

Processors

• Dual mPGA604 ZIF Socket

• Supports one or two Intel Xeon processors

with 512KB of integrated L2 cache

• Onboard 4-phase VRM (VRM 9.1 spec)

• Front-Side Bus support for 533&400MHz

Chipset

• Intel E7501 server chipset

• MCH + ICH3 + P64H2 + FWH

• Intel P64H2 supports two PCI-(X) buses

• Winbond W83627HF Super I/O chip

• Winbond W83782D hardware monitoring chip

Memory

• Four 184-pin 2.5-Volt DDR DIMM sockets

• Supports up to 8GB of Registered

DDR200/266 (PC1600/PC2100)

• Dual channel memory bus

• Supports Registered ECC type memory

modules only

Integrated LAN Controllers

• Intel 82545EM Gigabit Ethernet controller

• One RJ-45 LAN connector with LEDs

• Connected to a PCI-X bus

• Intel 82551QM Fast Ethernet controller

• One RJ-45 LAN connector with LEDs

• Two RJ-45 LAN connectors with LEDs

Expansion Slots

• Two 64-bit 133/100/66MHz (3.3V) PCI-X slots

Integrated I/O

• One floppy connector supports up to two

drives

• Two 9-pin serial ports (one connector and one

header)

• Four USB ports (2 rear connectors and 2

headers) *

• PS/2 mouse and keyboard connectors

Integrated 2D/3D Graphics

• ATI RAGE XL PCI graphics controller

• 8MB Frame Buffer of video memory

Integrated PCI IDE

• Provides two PCI bus master channels for up

to four Enhanced IDE devices

• Supports for UDMA 33/66/100 IDE drives and

ATAPI compliant devices

Integrated SCSI Controllers

• LSI LS53C1030 SCSI controller (optional)

• Dual SCSI Channels (Ultra 320)

• Two 68pin SCSI connectors

• Supports Zero-channel RAID (LSI Logic

MegaRAID®SCSI 320-0 ZCR) card not

Included, refer to Page 12.

* Please see page 31 for instructions on

how to enable internal USB ports

http://www.TYAN.com

System Management*

• Total seven 3-pin fan headers

• Six fan headers with tachometer monitoring

• One 2-pin Chassis Intrusion header

• Temperature, voltage and fan monitoring

• Watchdog timer

Form Factor

• ATX footprint (12” x 10.25”)

• ATX12V/EPS12V power connector

• One stacked parallel port (optional), one

serial connector, and one VGA connector

• Stacked USB (two) connectors

• Stacked PS/2 mouse and keyboard

connectors

• Two RJ-45 Side-by-side connectors with

LEDs (optional)

* Tyan SMDC is a System Management

Daughter Card. It enables you to access the

hardware remotely and perform monitor,

control, and diagnose activities effectively.

See Appendix III (Pg 45) for details In Tyan

SMDC.

BIOS

• AMI BIOS 8.0 on 4Mbit Flash ROM

• LAN remote boot (PXE) and SMBIOS v2.3

support

• BIOS Boot Specification v3.1 (BBS) support

• Auto configuration of IDE hard disk types

Regulatory

• FCC Class B (Declaration of Conformity)

• European Community CE (Declaration of

Conformity)

Hyper-Threading Support In:

Windows 2000 Server

Windows 2000 Advanced Server

Windows XP Pro

Windows NT 4.0 Server

Linux (Kernel 2.4.18)

TYAN reserves the right to add support or

discontinue support for any OS with or

without notice.

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Tiger i7501X

S3022 matches the ATX specification. Before continuing with installation, confirm that your

chassis supports an Extended ATX motherboard.

How to install our products right…. the first time!

The first thing you should do is read this user’s manual. It contains important information that will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch a safely grounded

object to release static charge (i.e. power supply case). For the safest conditions, Tyan

recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the

board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory modules,

and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the

board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis, as well

as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.TYAN.com

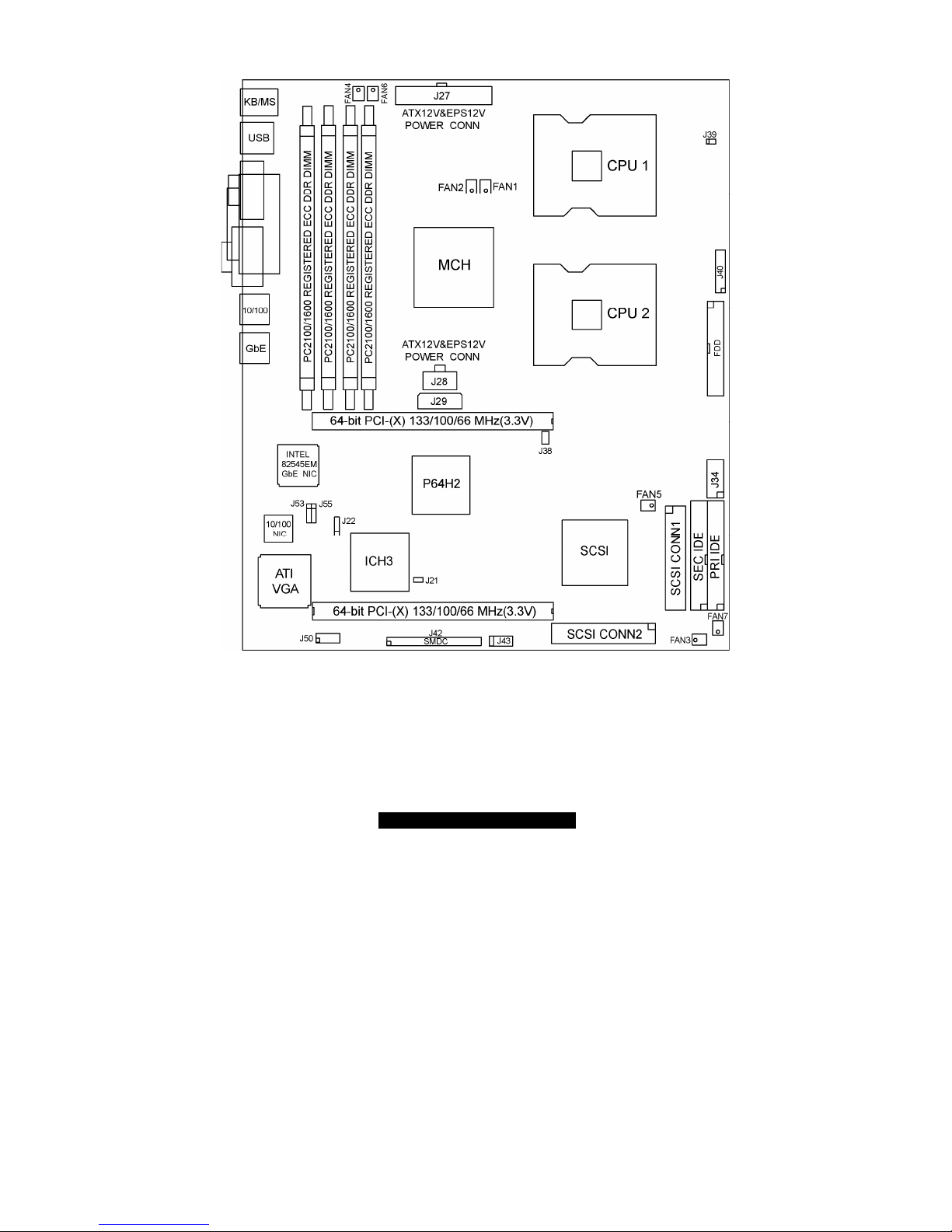

2.1 – Board Jumpers, LEDs, and Fans

Note: A □depicts pin #1

This jumper diagram is only a representation of the latest board revision available at the

time of publishing. The board you receive may or may not look exactly like the above

diagram.

http://www.TYAN.com

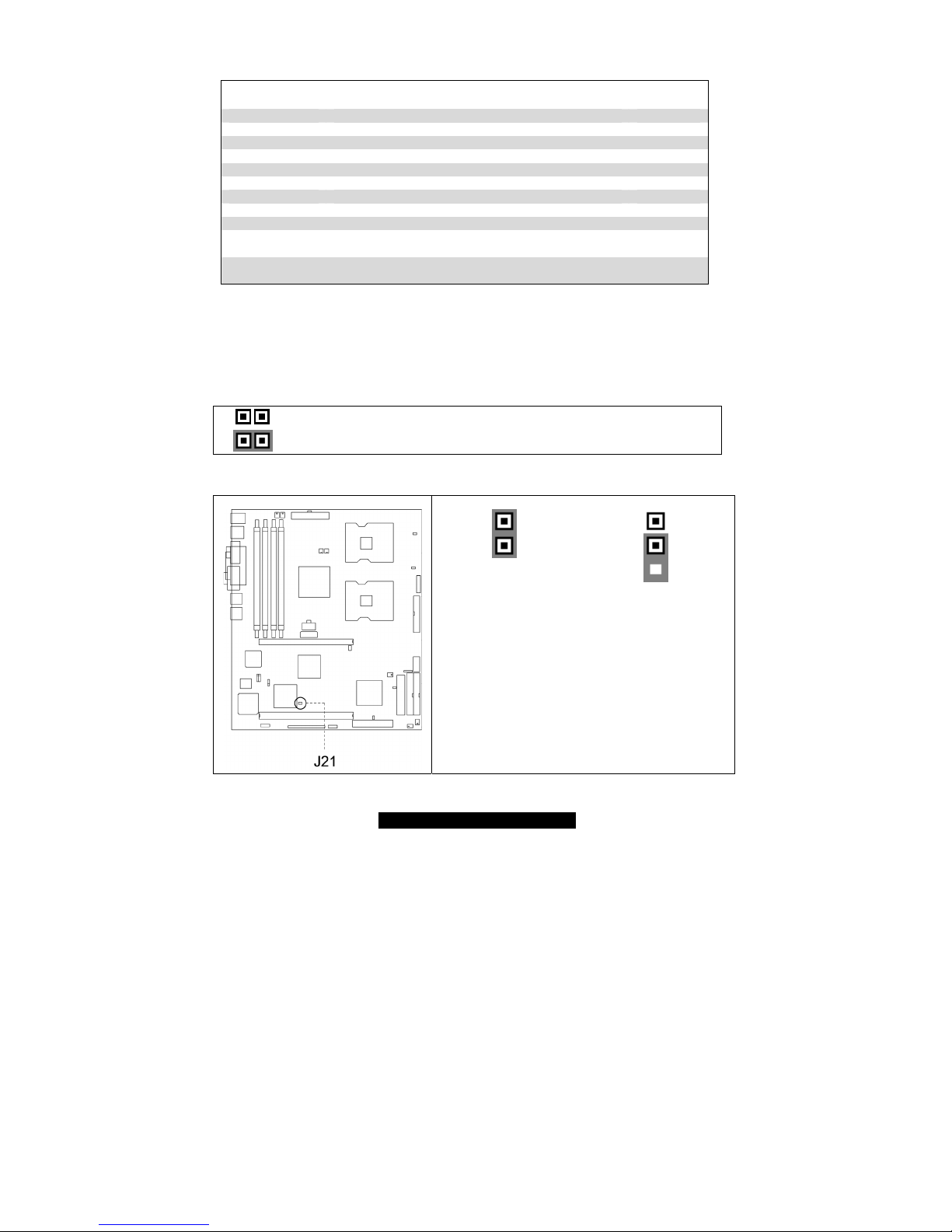

2.2 – Jumper Settings

Jumper Function Ref. Page

J21 CMOS Clear Page 8

J22 External speaker header N/A

J34 Serial Port internal header Page 9

J38 * Wake On LAN N/A

J39 Hardware Monitor LED header(reserved) N/A

J40 Front panel connector Page 9

J42 SMDC (Server Management Daughter Card) connector Page 45

J43 I2C bus connector N/A

J50 Front USB header Page 10

J53 Intel 82545EM GbE NIC 4-pin external LAN activity/link

LED header

Page 39

J55 Intel 82551QM 4-pin external LAN activity/link LED

header

Page 39

* WOL is only supported by LAN1 (82551, 10/100 Mbps).

2.3 – Jumper Definitions

Jumper Example

Jumper OFF – open

Jumper ON – closed

CMOS Reset (J21)

Clear CMOS Normal

(With a spare jumper cap)

You can reset the CMOS settings in case an incorrect

setting causes system instability or you have forgotten

your system/setup password or have just flashed your

BIOS by using this jumper.

- Power off system, disconnect power supply from

motherboard

- Set jumper J21 to Clear CMOS

- Wait about 5 seconds

- Set jumper J21 to Normal

http://www.TYAN.com

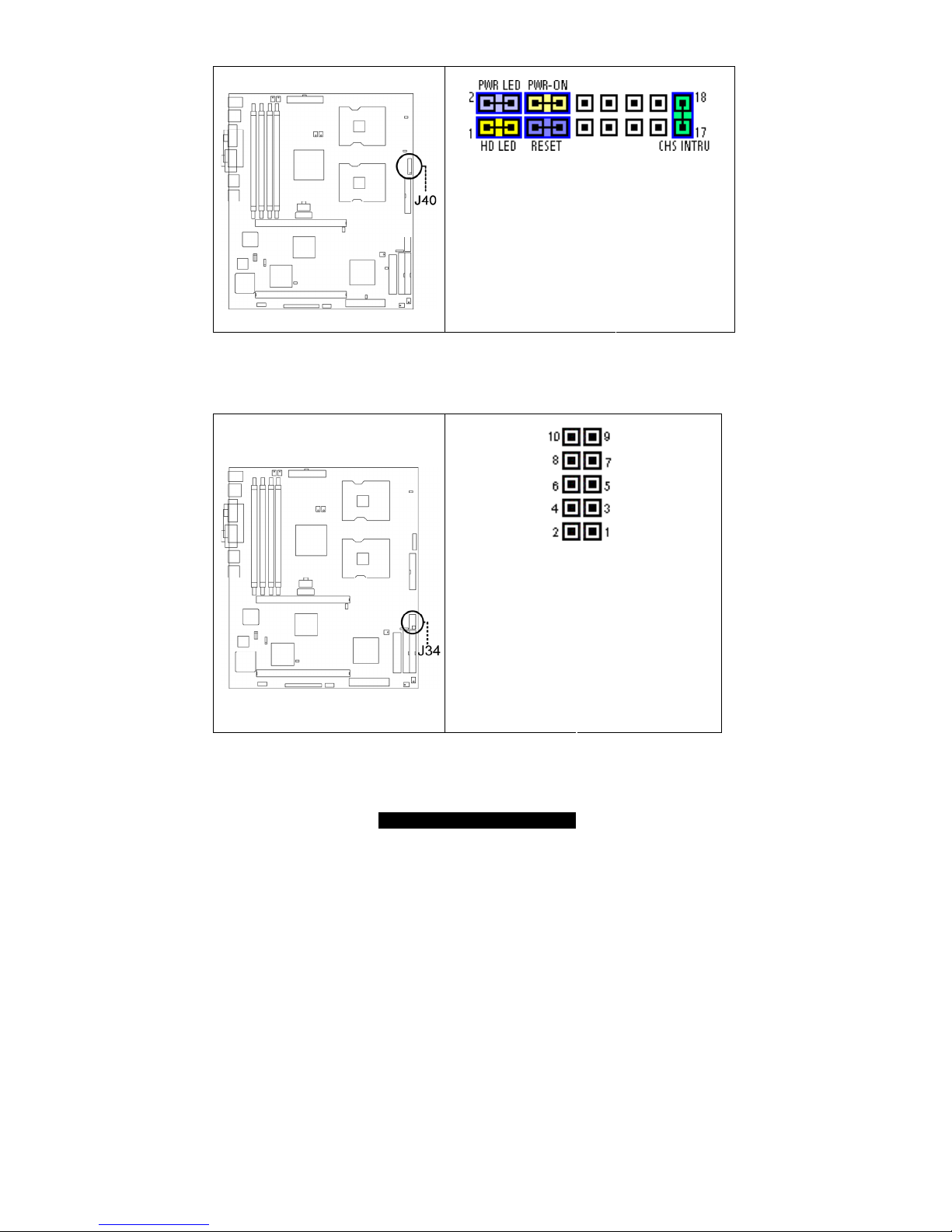

Front Panel Connector (J40)

Your chassis will usually come with connectors to

install onto the motherboard, such as HD and Power

LEDs. The Front Panel Connector (J40) has been

implemented for such purposes.

HD LED Header = Pin 1 & 3

Power LED Header = Pin 2 & 4

Power-On Switch = Pin 6 & 8

Reset Switch = Pin 5 & 7

Chassis Intrusion Header = Pin 17 & 18

2.4 – Serial Header Information

If the Serial port on the rear panel is inadequate, a

serial header is available for additional serial port

DCD# Pin 1

DSR# Pin 2

RXD Pin 3

RTS# Pin 4

TXD Pin 5

CTS# Pin 6

DTR# Pin 7

RI# Pin 8

GND Pin 9

N/A Pin 10

http://www.TYAN.com

2.5 – USB Header Information

If the USB ports on the rear panel are inadequate,

a USB header is available for additional USB

ports

USB2+ Pin 5

USB2- Pin 3

USB3+ Pin 6

USB3- Pin 4

Power Pin 1 & 2

GND Pin 7, 8 & 10

2.6 – LED Information

LEDs Description

D36 Power on LED

This LED functions as pins 2 & 4 in J40 above.

Using those pins you can connect to the

Chassis Power LED wire.

Andere Handbücher für TIGER I7501X

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TYAN Hauptplatine Handbücher

TYAN

TYAN S7070 Bedienungsanleitung

TYAN

TYAN THUNDER I7525 Bedienungsanleitung

TYAN

TYAN S7066 Bedienungsanleitung

TYAN

TYAN S2505T Montage- und Bedienungsanleitung

TYAN

TYAN TAHOE 2 ATX Bedienungsanleitung

TYAN

TYAN TOMCAT I7221 Bedienungsanleitung

TYAN

TYAN TAHOE AT Bedienungsanleitung

TYAN

TYAN THUNDER I840 Bedienungsanleitung

TYAN

TYAN Tiger K8WE S2877 Bedienungsanleitung

TYAN

TYAN TOMCAT I845GV Bedienungsanleitung

TYAN

TYAN S5547 Bedienungsanleitung

TYAN

TYAN TIGER 200 Bedienungsanleitung

TYAN

TYAN TRINITY 400 Bedienungsanleitung

TYAN

TYAN TAHOE PLUS ATX Bedienungsanleitung

TYAN

TYAN Thunder n4250QE-S4985G3NR-E Bedienungsanleitung

TYAN

TYAN THUNDER K8SD PRO Bedienungsanleitung

TYAN

TYAN Triumph i7320 S6621 Bedienungsanleitung

TYAN

TYAN Thunder K7X Pro (S2469) Bedienungsanleitung

TYAN

TYAN TITAN TURBO AT Bedienungsanleitung

TYAN

TYAN S5530 Bedienungsanleitung

TYAN

TYAN THUNDER I7500 Bedienungsanleitung

TYAN

TYAN THUNDER I7501 XTREME Bedienungsanleitung

TYAN

TYAN S8036 Bedienungsanleitung

TYAN

TYAN TOMCAT I810EF Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
