Tyco Fire Product Star SuperNova S120 Bedienungsanleitung

Quick Response - Std. Coverage

Upright and Pendent

Intermediate Level Sprinklers

SuperNova™ S120

K=5.6 and 8.0

GENERAL DESCRIPTION

The Star SuperNova S120, 5.6 and 8.0 K-Factor, Upright

and Pendent, Intermediate Level Sprinklers are quick re-

sponse - standard coverage, fusible solder type spray

sprinklers primarily designed for use in rack storage sprin-

kler systems. The Shields are intended to help prevent

water spray from higher elevation sprinklers, which could

operate earlier during a fire, from wetting the fusible ele-

ment of lower elevation sprinklers, e.g., sprinklers located

in rack storage or sprinklers located beneath open grid-

ded catwalks.

WARNINGS

The SuperNova S120 Sprinklers described herein must

be installed and maintained in compliance with this docu-

ment, as well as with the applicable standards of the Na-

tional Fire Protection Association, in addition to the stand-

ards of any other authorities having jurisdiction. Failure to

do so may impair the integrity of these devices.

The owner is responsible for maintaining their fire protec-

tion system and devices in proper operating condition.

The installing contractor or sprinkler manufacturer should

be contacted relative to any questions.

OPERATION

The fusible link (heat collector) assembly is comprised of

two link halves which are joined together by a thin layer

of solder. When the rated temperature is reached, the sol-

der melts and the two link halves separate, which then al-

lows the sprinkler to activate and flow water.

TECHNICAL DATA

Approvals

UL and ULC Listed. FM Approved.

(Refer to Table A. The approvals apply only to the service

conditions indicated in the Design Criteria section.)

Maximum Working Pressure

175 psi (12,1 bar)

Pipe Thread Connection

1/2 inch NPT for K=5.6

3/4 inch NPT for K=8.0

Discharge Coefficient

K=5.6GPM/psi

1/2 (80,7 LPM/bar1/2)

K=8.0GPM/psi

1/2 (115,2 LPM/bar1/2)

Temperature Ratings

165°F/74°C or 212°F/100°C

Finish

Sprinkler: Natural Brass or Chrome Plated

Physical Characteristics (Ref. Figure 1)

The SuperNova S120 utilizes a bronze frame. The strut

and hook are bronze; the button, deflector, and shield

are brass; the orifice seal is Teflon



; and, the two halves

of the fusible link assembly are nickel.



DuPont Registered Trademark

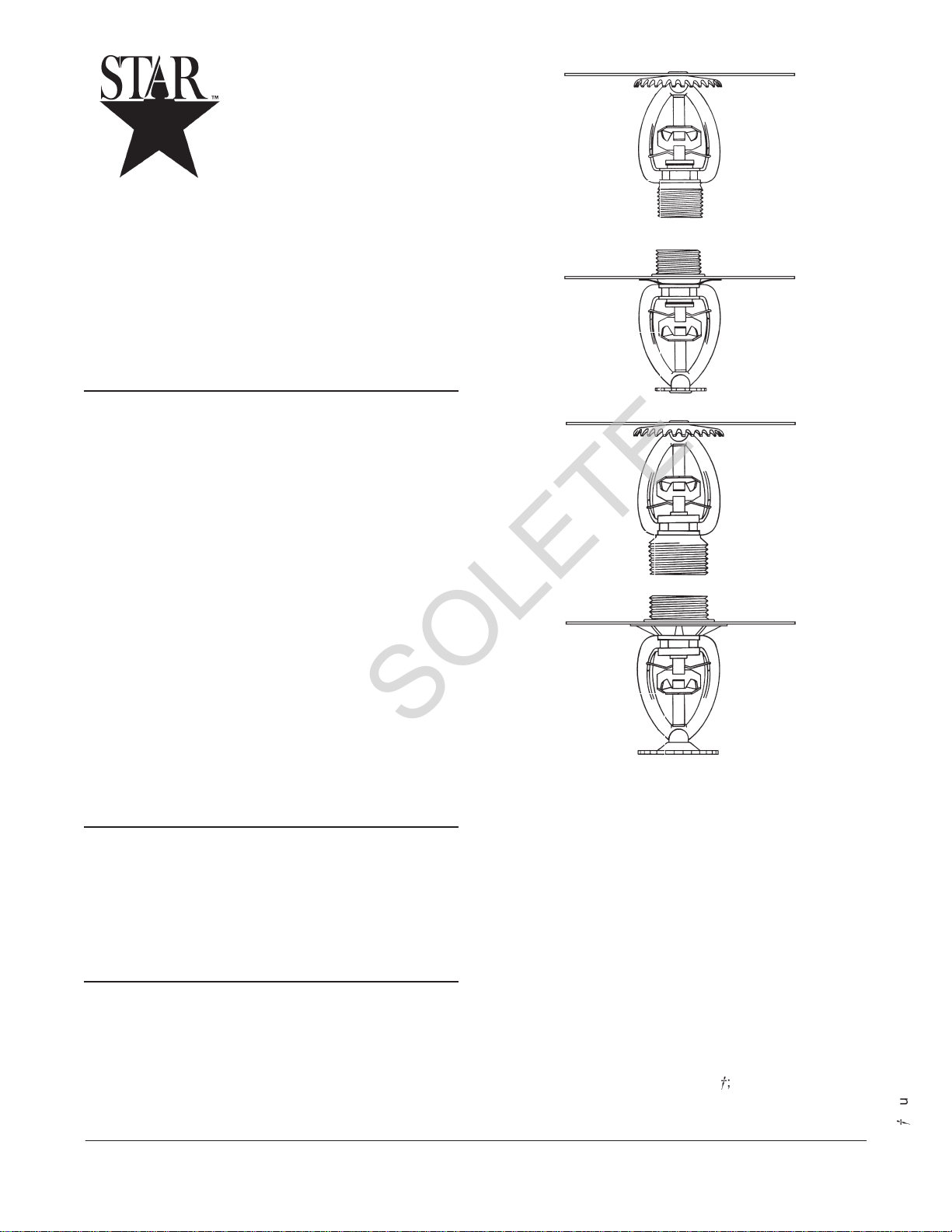

SIN S1991

K=5.6 Upright

With Q-53 Shield

SIN S1865

K=5.6 Pendent

With Separately

Ordered Q-52

Shield/O-Ring/Speednut

SIN S1993

K=8.0 Upright

With Q-53 Shield

SIN S1867

K=8.0 Pendent

With Separately

Ordered Q-52

Shield/O-Ring/Speednut

Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010

Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500 3-01

1-4.2.21

TYCO FIRE PRODUCTS

OBSOLETE

DESIGN CRITERIA

The 5.6 and 8.0 K-Factor, SuperNova S120 Upright and

Pendent, Intermediate Level Sprinklers are intended for

fire protection systems designed in accordance with the

standard installation rules recognized by the applicable

Listing or Approval agency (e.g., UL Listing is based on

NFPA 13 requirements).

INSTALLATION

The 5.6 and 8.0 K-Factor, SuperNova S120 Sprinklers

must be installed in accordance with the following instruc-

tions:

NOTES

A leak tight 1/2 inch NPT sprinkler joint should be ob-

tained with a torque of 7 to 14 ft.lbs. (9,5 to 14,0 Nm). A

maximum of 21 ft.lbs. (28,5 Nm) of torque is to be used to

install sprinklers with 1/2 inch NPT connections. Higher

levels of torque may distort the sprinkler inlet with conse-

quent leakage or impairment of the sprinkler.

A leak tight 3/4 inch NPT sprinkler joint should be ob-

tainedwithatorqueof10to20ft.lbs.(13,4to26,8Nm).

A maximum of 30 ft.lbs. (40,2 Nm) of torque is to be used

to install sprinklers with 3/4 inch NPT connections. Higher

STAR SPRINKLER

Page 2 1-4.2.21

FIGURE 1

5.6 K-FACTOR, SUPERNOVA S120

UPRIGHT AND PENDENT INTERMEDIATE LEVEL SPRINKLERS

FIGURE 2

8.0 K-FACTOR, SUPERNOVA S120

UPRIGHT AND PENDENT INTERMEDIATE LEVEL SPRINKLERS

OBSOLETE

levels of torque may distort the sprinkler inlet with conse-

quent leakage or impairment of the sprinkler.

The O-ring seal for pendent sprinklers must be installed

to prevent possible dripping of spray onto the fusible link,

due to clearance between the shield mounting hole and

the threaded end of the sprinkler.

1. Upright sprinklers must be installed only in the upright

position and pendent sprinklers must be installed only in

the pendent position. The centerline of the sprinkler

must be vertical.

2. Upright sprinklers are shipped preassembled, and pen-

dent sprinklers are to be field assembled. Refer to Fig-

ure 1 or 2, as applicable, for proper orientation of parts

for the pendent sprinkler. The speednut is installed by ro-

tating it clockwise over the sprinkler pipe threads, and

the O-ring is rolled over the sprinkler pipe threads.

When properly installed, the O-ring and speednut will be

slightly compressed, thereby firmly holding the shield in

its proper position.

3. With pipe thread sealant applied to the pipe threads,

hand tighten the sprinkler into the sprinkler fitting.

Wrench tighten the Sprinkler using only the W-Type 11

Sprinkler Wrench (Ref. Figure 3). The wrench recess of

the W-Type 11 is to be applied to the sprinkler wrench-

ing area (Ref. Figure 1 or 2, as applicable).

CARE AND MAINTENANCE

The 5.6 and 8.0 K-Factor, SuperNova S120 Sprinklers

must be maintained and serviced in accordance with the

following instructions:

NOTE

Before closing a fire protection system main control valve

for maintenance work on the fire protection system which

it controls, permission to shut down the affected fire pro-

tection systems must be obtained from the proper authori-

ties and all personnel who may be affected by this action

must be notified.

Sprinklers which are found to be leaking or exhibiting vis-

ible signs of corrosion must be replaced.

Automatic sprinklers must never be shipped or stored

where their temperature will exceed 100°F/38°C and they

must never be painted, plated, coated, or otherwise al-

tered after leaving the factory. Modified or over-heated

sprinklers must be replaced.

Care must be exercised to avoid damage - before, dur-

ing, and after installation. Sprinklers damaged by drop-

ping, striking, wrench twist/slippage, or the like, must be

replaced.

The owner is responsible for the inspection, testing, and

maintenance of their fire protection system and devices in

compliance with this document, as well as with the appli-

cable standards of the National Fire Protection Associa-

tion (e.g., NFPA 25), in addition to the standards of any

other authorities having jurisdiction. The installing contrac-

tor or sprinkler manufacturer should be contacted relative

to any questions.

It is recommended that automatic sprinkler systems be in-

spected, tested, and maintained by a qualified Inspection

Service.

RECESS

WREN

ONLY USE

SUPERNOVA

SPKR" END FOR

"SMALL FRAME

#2849

FIGURE 3

W-TYPE 11 SPRINKLER WRENCH

STAR SPRINKLER

1-4.2.21 Page 3

SPRINKLER FINISH

Temperature

Rating

Frame

Color Code

Natural

Brass

Chrome

Plated

Natural

Brass

165°F/74°C

212°F/100°C

Plain

White

K = 5.6 Upright (S1991)

K = 8.0 Upright (S1993)

Notes:

1. Listed by Underwriters Laboratories, Inc. as Quick Response Sprinklers.

2. Listed by Underwriters’ Laboratories of Canada as Quick Response Sprinklers.

3. Approved by Factory Mutual Research Corporation as Quick Response Rack Storage Sprinklers.

TABLE A

LABORATORY LISTINGS AND APPROVALS

Chrome

Plated

1, 2, 3

K = 5.6 Pendent (S1865)

K = 8.0 Pendent (S1867)

1, 2, 3

OBSOLETE

LIMITED WARRANTY

Products manufactured by Tyco Fire Products are war-

ranted solely to the original Buyer for ten (10) years

against defects in material and workmanship when paid

for and properly installed and maintained under normal

use and service. This warranty will expire ten (10) years

from date of shipment by Tyco Fire Products. No warranty

is given for products or components manufactured by

companies not affiliated by ownership with Tyco Fire Prod-

ucts or for products and components which have been

subject to misuse, improper installation, corrosion, or

which have not been installed, maintained, modified or re-

paired in accordance with applicable Standards of the Na-

tional Fire Protection Association, and/or the standards of

any other Authorities Having Jurisdiction. Materials found

by Tyco Fire Products to be defective shall be either re-

paired or replaced, at Tyco Fire Products’ sole option.

Tyco Fire Products neither assumes, nor authorizes any

person to assume for it, any other obligation in connec-

tion with the sale of products or parts of products. Tyco

Fire Products shall not be responsible for sprinkler sys-

tem design errors or inaccurate or incomplete information

supplied by Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE PRODUCTS BE LI-

ABLE, IN CONTRACT, TORT, STRICT LIABILITY OR UN-

DER ANY OTHER LEGAL THEORY, FOR INCIDENTAL,

INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES,

INCLUDING BUT NOT LIMITED TO LABOR CHARGES,

REGARDLESS OF WHETHER TYCO FIRE PRODUCTS

WAS INFORMED ABOUT THE POSSIBILITY OF SUCH

DAMAGES, AND IN NO EVENT SHALL TYCO FIRE

PRODUCTS’ LIABILITY EXCEED AN AMOUNT EQUAL

TO THE SALES PRICE.

THE FOREGOING WARRANTY IS MADE IN LIEU OF

ANY AND ALL OTHER WARRANTIES EXPRESS OR IM-

PLIED, INCLUDING WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE.

ORDERING PROCEDURE

Please Specify:

5.6 K-Factor, SuperNova S120/Q-53

Upright Intermediate Level Sprinkler (#1991)

5.6 K-Factor, SuperNova S120 Pendent Sprinkler (#1865)

plus one SuperNova 1/2" NPT S120/Q-52 Pendent Shield

(#1568-07/09), one O-Ring (#1426-02), and one Speed-

nut (#1400)

8.0 K-Factor, SuperNova S120/Q-53

Upright Intermediate Level Sprinkler (#1993)

8.0 K-Factor, SuperNova S120 Pendent Sprinkler (#1867)

plus one SuperNova 3/4" NPT S120/Q-52 Pendent Shield

(#1568-08/10), one O-Ring (#1426-02), and one Speed-

nut (#1400-01)

W-Type 11 Sprinkler Wrench (#2849)

Refer to Price List for for complete listing of Part Num-

bers with respect to temperature ratings, sprinkler fin-

ishes, etc.

STAR SPRINKLER

Page 4 1-4.2.21

7071 S. 13th Street • Suite 103

Oak Creek, WI 53154

www.starsprinkler.com

PRINTED IN U.S.A. 3-01

OBSOLETE

Inhaltsverzeichnis

Andere Tyco Fire Product Bewässerungssystem Handbücher

Tyco Fire Product

Tyco Fire Product CENTRAL RFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL DS-1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 BV Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F916 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12EC PRO Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F685 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem DS-1 Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Pulsar ESFR-1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ESFR-17 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231TM Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product STAR SIN S3400 SR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Pulsar S160QR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star StarMax S102 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem RFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL Royal Flush GB4-EC Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product RFII Series Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL ESFR-1 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL Omega Prohibitor QR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL A Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem G102 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL GB-LO 17/32 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL Omega EC-20A Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F892QR Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Tyco

Tyco CC3 Bedienungsanleitung

Reliable

Reliable F4FR Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Reliable

Reliable F1FR42 Series Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Tyco

Tyco TY-L Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-17 Bedienungsanleitung

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Bedienungsanleitung
