TypeS BT56485F Leitfaden
App View and Solar-Powered
Parking Sensor
Important, retain for future reference:
Read carefully
WP ITM. BT56485 / BT56485F
Care & Use Instructions
TABLE OF CONTENTS
1. Introduction ...............................................................................................................................................................................1
2. Package Contents ...................................................................................................................................................................2
3. Product Specications ..........................................................................................................................................................3
4. Installation Guide ....................................................................................................................................................................3
5. App Installation ........................................................................................................................................................................4
6. Instructions ................................................................................................................................................................................5
7. Product Usage ...........................................................................................................................................................................9
8. Important Safety Information ........................................................................................................................................ 10
9. Maintenance & Warranty ...................................................................................................................................................12
10. General Information ..........................................................................................................................................................16
1
Please read all of the installation instructions carefully before installing the product. Improper
installation will void manufacturer’s warranty. The installation instructions do not apply to all types
of vehicles, and are written as guidelines to assist in installing the system.
Consult an experienced technician if you are not comfortable installing the product. You can also
contact Winplus at 866.294.9244 to speak to one of our installation specialists if you have any
specic questions regarding the Parking Sensor.
BEFORE using the Parking Sensor, please read the safety information provided in this user
manual. ALWAYS use the product as outlined in this user manual.
Please make sure to read and understand all local laws and regulations regarding Parking Sensor and
its use in a vehicle. Laws vary by state.
1. INTRODUCTION
2
1. App View and Solar-Powered
Parking Sensor
2. USB Charging Cable
3. Instruction Manual
4. Quick Install Guide
2. PACKAGE CONTENTS
1. 2.
3. 4.
3
1. Operating Voltage: DC 5V
2. Battery Capacity: 2000mAh
3. Weather Resistance: IP67 rating
4. Operating Temperature: 14ºF~122ºF (-10ºC~50ºC)
Note: Before installation, fully charge the Parking Sensor until the red indicator light is o.
1. Unscrew and remove your license plate.
2. Standing with the license plate in one hand and the Parking Sensor in the other hand, slide the
Parking Sensor along the top of the license plate in order to determine the placement. Best
placement is in the center of the license plate. If you have a rear hatch handle you may need to
remove the Parking Sensor bracket, turn the bracket upside down and reattach to the Parking
Sensor. You would then mount the Parking Sensor from the bottom of the license plate.
3. PRODUCT SPECIFICATIONS
4. INSTALLATION GUIDE
Stick on back of
license plate
4
3. Peel o the lining of the double-sided tape already attached to the Parking Sensor and press
rmly to the license plate to secure the Parking Sensor. Make sure the back of the license plate is
clean before attaching double-sided tape.
4. Press the license plate and the Parking Sensor mounting rmly to the car to secure and get full
contact between the license plate and the double-sided tape. Screw the license plate back onto
the rear of your vehicle.
Install TYPE S DRIVE APP on your smart device. Scan below QR code or search for the
TYPE S DRIVE APP in the APP Store or Google Play.
Once installed, open the APP and begin enjoying your Type S Drive APP.
5. APP INSTALLATION
TYPE S DRIVE
Compatible with phones with
Android™ 4.3 or higher.
Compatible with iPhone 4s and
higher, iPad3, iPad Mini, iPad Air
and higher, and iPod touch 5th
Generation and higher.
Requires iOS 7.0 or higher.
5
6. INSTRUCTIONS
1. Press and hold the power button for more than 2.5 seconds to turn on the Parking Sensor. Blue
indicator light will ash to indicate the Parking Sensor is in pairing mode.
Power Button
2. Open the Type S Drive App and choose
App View and Solar-Powered Parking Sensor.
6

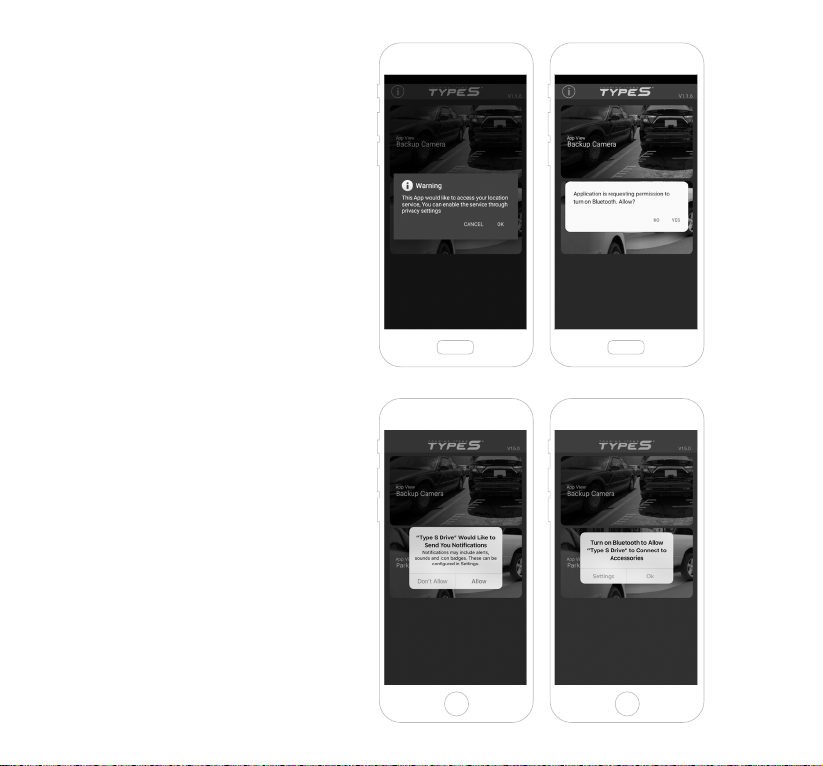

3. Turn on GPS and Bluetooth function
on your mobile device.
a. Android - Press OK / YES to allow the
App to turn on GPS and Bluetooth.
b. iOS - Turn on GPS and Bluetooth in
the Settings page.
Android
iOS
Android
iOS
RedRed YellowYellow GreenGreen
(0-60 cm)
0-1.9 ft
7
4. The App will prompt you to pair up with the
Parking Sensor. Press OK to conrm.
5. User MUST setup a new 4 digit password
(for example: 1234) and press CONFIRM. The
indicator light will change to solid blue if the
pairing is successful.
6. The Parking Sensor is ready to use now.
Refer to the below chart for approximate
sensing distance.
7. After you parked the car, the audio alert
will last for 10 seconds if you have your APP
opened on your background.
8. The Parking Sensor will auto-switch to
Power Saving Mode after 10 minutes away
from your smartphone. If you like to turn o
the Parking Sensor manually, press the power
button for 1 second.
Parking Sensor
Sensing Distance
(0-60 cm)
0-1.9 ft
(60-90 cm)(60-90 cm)
1.9-2.9 ft1.9-2.9 ft
(90-120 cm)
(90-120 cm)
2.9-3.9 ft
2.9-3.9 ft
8

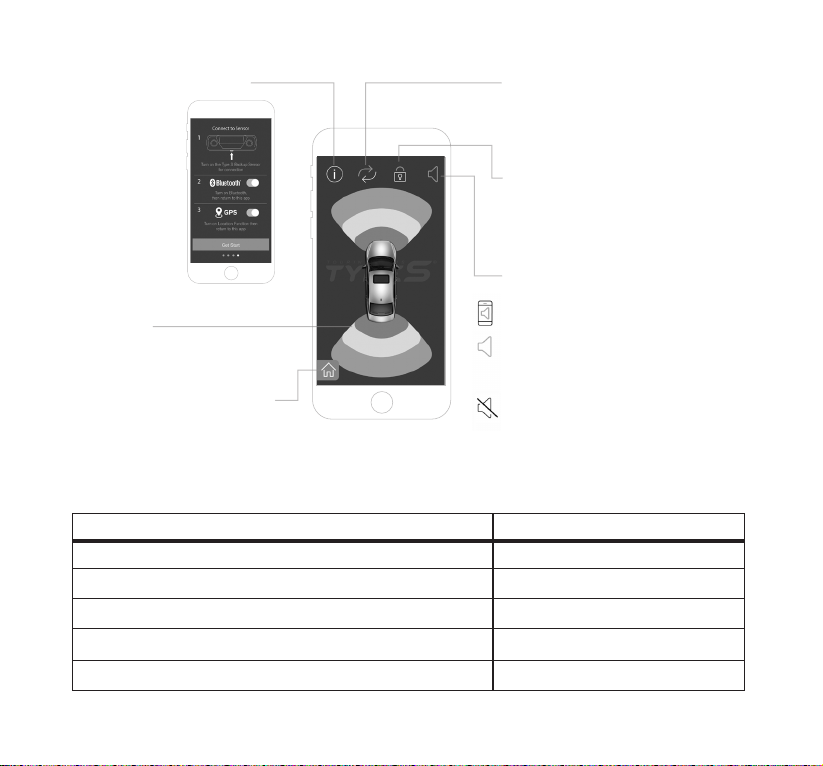

Main Interface
Main page
Tips
Alert signal
Alert signal will be divided into 4 areas:
front left, front right, rear left and rear right.
Turn On/O audio alerts
Alert is ON when the APP is open and MUTED
when running in the background.
Alert is always ON when the APP is open or
running in the background.
NOTE: The audio alert will last for 10 seconds if
the sensing distance remain unchange.
Mute
Lock/Unlock Parking
Sensor with Password
Switch between Front
and Rear Sensor
Note: Rear Sensor is the default setting in
the initial setup.
Parking Sensor Status Parking Sensor LED Light Indication
Power ON in Pairing Mode Flashing Blue
Power ON after paired Solid Blue
Power OFF LED o
Reset Password Flashing Blue rapidly
USB charging Solid Red
PARKING SENSOR LED LIGHT INDICATION
