YSC-8331
USER MANUAL
XI’AN TYPICAL INDUSTRIES CO.,LTD.
1
2
2
2
2
3
3
3
4
5
7
7
8
9
10
11
11
12
12
12
13
15
16
18
20
20
20
20
21
Contents Page
1 Notice
1.1 Work environment
1.2 Notice of installation
1.3 Notice of safety
2 Power Connection
2.1 Single phase 220V power connection
2.2 Three phase 380V power connection
3 Connector Diagram
4 Function of Operation Box
5 Operation of the Normal Function
5.1 Free sewing mode
5.2 Bar tacking mode
5.3 Program mode
5.4 Parameter setup
5.5 Parameter recover
5.6 Adjust LED lightness
6 General Parameter Table (part)
6.1 Speed parameter
6.2 Time parameter
6.3 Enable parameter
6.4 Degree parameter
6.5 Special parameter
6.6 Important parameter
6.7 Network parameter
6.8 USB parameter
6.9 Admin parameter
7 Measurement of Error
8 Signal Checking
2
1. Notice
YSC-8331 is used in system of industry sewing machine. For perfect
operation and safety, installation and operation must be supervised by
professional.
1.1 Work environment
▲Please use 220V AC in ±10% ranges.
▲To avoid the false operate, please keep the product away from the
high electromagnetic interference.
▲Please operate in the area which temperature is 5℃~45℃.
▲Please operate in the area which humidity is 80% or less.
▲Please keep the product away from the flammability and exploder.
1.2 Notice of installation
▲The control box should be installed correctly follow the instruction in
this manual.
▲Turn off the power and unplug the cord before installation.
▲The wire must not set to be near the wheel and other movable parts.
▲To avoid the static interference and current leakage, all grounding
must be done.
1.3 Notice of safety
▲Turn off the power before maintenance and repairs or raising the
machine arms, or changing needle, or threading needle.
▲Please don’t open the box except the professional.
▲When turn on the machine in the first time, use low speed to operate
and check the correct rotation direction.
▲During machine operation, don’t touch any moving parts.
▲All moving parts must use the protective device to avoid the body
contact and objects insertion.
▲When there is water or other liquid, or caustic material on box or
motor, you must stop operation and turn off the power.
▲All connector shouldn’t be plug and unplug when power on.
▲The connector should be plug and unplug in the correct method.
3
2. Power Connection
2.1 Single phase 220V power connection
Ground wire (green & yellow) must be grounding.
2.2 Three phase 380V power connection
4
3. Connector Diagram
Attention: for direct-driven is safety SW., and for belt-driven is
Synchronizer.
5
4. Function of Operation Box
P107 operation box diagram
Function Key Operation
Start Tacking
Selection
Double start tacking, A is the stitches of forth
sewing; B is the stitches of back sewing. They
are both in range 1~15.
Single start tacking, A is the stitches of forth
sewing; B is the stitches of back sewing. They
are both in range 1~15.
End Tacking
Selection
Double end tacking, C is the stitches of back
sewing; D is the stitches of forth sewing. They
are both in range 1~15.
Single end tacking, C is the stitches of back
sewing; D is the stitches of forth sewing. They
are both in range 1~15.
Bar Tacking
Sewing
▲Once the pedal is stepped forward, all the
seams of bar tacking, A, B, C, D sections will
be completed with E times, and the trimming
will be done automatically.
▲The pedal must be returned to balance for
next sewing.
6
Program
Sewing
▲Once the pedal is stepped forward, F, G
stitches will be completed with E times.
▲Constant-Stitch Sewing will perform the
number of segments and times as setting,
when the stitches are zero, machine will stop
immediately.
Free Sewing either or
enable
▲As the pedal is stepped forward, the start
tacking(if selected) will be done automatically,
then machine will start normal sewing. Once
the pedal returned to balance, machine will
stop immediately.
▲As the pedal stepped backward, the end
tacking, trimming and wiping(if selected) will
be done automatically.
Needle Up /
Needle
Down Select the stop position of needle.
Trimming
Enable Enable or disable the trimming.
Parameter
Function Enter or exit parameter function interface.
Escape
Function Cancel the last operation.
Setup
Function
[1]
Push wheel
button Confirm and save current value of parameter.
Increase
[1]
Turning wheel
button
clockwise
Value increase.
Decrease
[1]
Turning wheel
button
anticlockwise
Value decrease.
7
5. Operation of the Normal Function
5.1 Free sewing mode
¾If either or is enable, then the mode is free sewing.
¾Use or to enable or disable the start tacking.
¾Use or to enable or disable the end tacking.
¾Turning wheel button clockwise or anticlockwise to move the cursor,
push wheel button to twinkle the parameter want to modify, then
turning wheel button clockwise or anticlockwise to change parameter,
push wheel button to save the change, or push to cancel
change.
¾can be used in this mode to set the needle position after stop.
¾can be used in this mode to enable or disable the trimming
function.
8
5.2 Bar tacking mode
¾If is enable, then the mode is bar tacking.
¾Turning wheel button clockwise or anticlockwise to move the cursor,
push wheel button to twinkle the parameter want to modify, then
turning wheel button clockwise or anticlockwise to change parameter,
push wheel button to save the change, or push to cancel
change.
¾can be used in this mode to enable or disable the trimming
function.
9
5.3 Program mode
¾If is enable, then the mode is program mode.
¾Change “Seg” parameter to select the segment which wants to setup.
¾Each segment can use or to enable or disable the start
tacking.
¾Each segment can use or to enable or disable the end
tacking.
¾Each segment can change “Sti” parameter to set the stitch.
¾Each segment can use to set the needle position after stop.
¾Each segment can use to enable or disable the trimming
function.
¾Turning wheel button clockwise or anticlockwise to move the cursor,
push wheel button to twinkle the parameter want to modify, then
turning wheel button clockwise or anticlockwise to change parameter,
push wheel button to save the change, or push to cancel
change.
Inhaltsverzeichnis
Andere typical Nähmaschine Handbücher
typical
typical GC6-7D Bedienungsanleitung
typical
typical TC-1310G Bedienungsanleitung
typical
typical GC6280 Bedienungsanleitung
typical
typical GC0323 Bedienungsanleitung
typical
typical GC6180 Bedienungsanleitung
typical
typical GC6880 Gebrauchs- und Wartungshandbuch
typical
typical TW1-1245 Stücklistenhandbuch
typical
typical GC20606-D2 Technisches Handbuch
typical
typical GC0303D Bedienungsanleitung
typical
typical GC6-6 Bedienungsanleitung
typical
typical TW1-2B Technisches Handbuch
typical
typical GC6880 Bedienungsanleitung
typical
typical TW7-6BR Produkthandbuch
typical
typical TC3020GB Bedienungsanleitung
typical

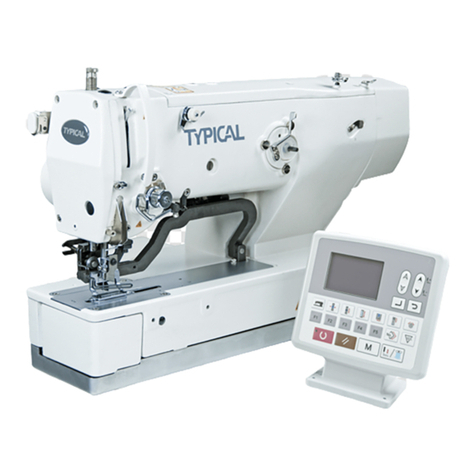

typical GT1790A Bedienungsanleitung
