U-Line SS1095FC Betriebsanleitung

ICE MAKER

Models SS1095FD, SS1095FC, SS1095NF

FEATURES BENEFITS

All specifications subject to change without notice.

KCC Printed in U.S.A.

1. Marine-grade stainless steel –

door, cabinet and grille

Offers a sharp, clean, elegant look and stands

up to the environment.

2. Three mounting flange options:

• SS1095FD –

flange flush to door

• SS1095FC –

flange flush to cabinet

• SS1095NF – no flange

Customize the installation and look that best fits

your needs.

3. Positive catch door latch Automatically engages when door is closed and

allows opening with one hand. Door can also be

propped open when not in use.

4. High ice production Produces up to 23 lbs. of ice per day and stores

12 lbs. of ice.

5. No drain required Allows for easy and convenient installation.

Only needs 1/4 in. outside diameter water line

connection.

6. Front vented – can be built-in

or freestanding

No need for extra fans, air space or special

venting to the outside of the cabin. Do not

obstruct front grille.

7. Conserves water Only 2-3/4 gallons of water required to produce

approximately 22 lbs. of ice.

8. Conserves energy Uses less electricity than a 75-watt light bulb.

9. Field reversible door with

zero clearance swing

Flexible installation options.

10. Corrosive resistant components Hinges and fasteners are stainless steel to

resist corrosion.

• Available in 110/115V 60 cycle or 220/230V 50/60 cycle

• Transparent, high-impact polycarbonate, removable

ice bucket

• Shipping weight: SS1095FD 66 lbs

SS1095FC 64 lbs

SS1095NF 62.5 lbs

• Manual defrost

• Running amps: 2.5

• Maximum start-up amps: 18.0

U-Line Corporation • 8900 N. 55th Street • Milwaukee, Wisconsin 53223 • (414) 354-0300 • FAX (414) 354-7905 • www.u-line.com Revised 08/08

SS1095FD

SS1095FC

SS1095NF

ADDITIONAL INFORMATION:

All specifications subject to change without notice.

KCC Printed in U.S.A. U-Line Corporation • 8900 N. 55th Street • Milwaukee, Wisconsin 53223 • (414) 354-0300 • FAX (414) 354-7905 • www.u-line.com Revised 08/08

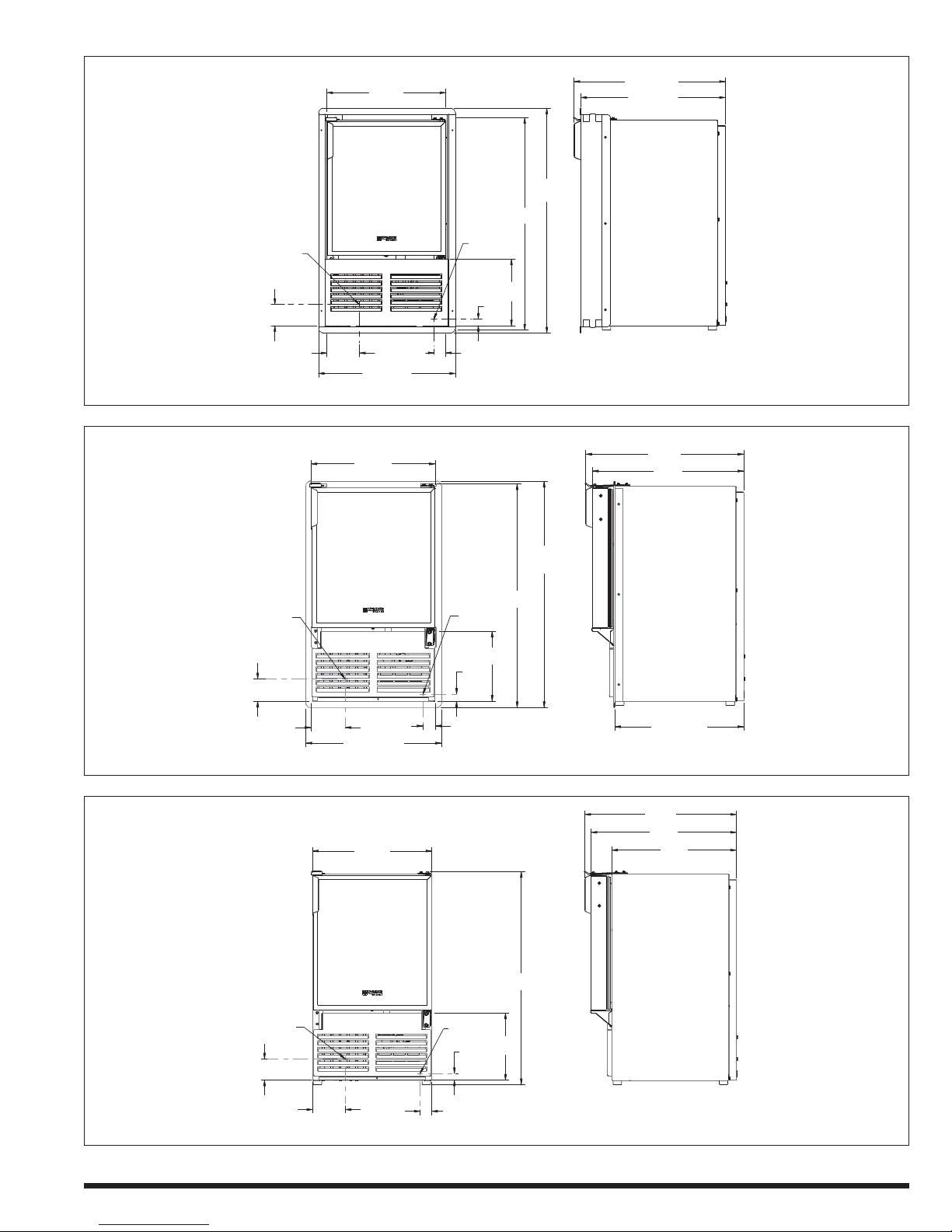

SS1095FD

13-15/16

(35.4)

2-1/2

(6.4)

*POWER

CORD

17-9/16 (44.6)

16-7/8(42.9)

FLANGE

*ON BACK OF UNIT

INCHES(CENTIMETERS)

ADD 1-1/2" (3.8) TO DEPTH

FOR WATER LINE CONNECTION

15-7/8(40.3)

W/FLANGE

3-13/16

(9.7)

1-5/16

(3.3)

24-3/4

(62.9)

26-1/8

(65.3)

W/FLANGE

*WATER INLET

3/4

(1.9)

7-3/4

(19.7)

*ON BACK OF UNIT INCHES(CENTIMETERS)

*WATER INLET

ADD 1-1/2" (3.8) TO DEPTH

FOR WATER LINE CONNECTION

SS1095FC

13-15/16

(35.4)

2-1/2

(6.4)

3-13/16

(9.7) 15-1/16 (38.3)

W/FLANGE

1-5/16

(3.3)

3/4

(1.9)

7-3/4

(19.7)

24-3/4

(62.9)

*POWER

CORD

25-1/4

(64.1)

W/FLANGE

17-9/16

(44.6)

16-7/8

(42.9)

14-3/8(36.5)

FLANGE

*ON BACK OF UNIT INCHES(CENTIMETERS)

*POWER

CORD

*WATER INLET

ADD 1-1/2" (3.8) TO DEPTH

FOR WATER LINE CONNECTION

SS1095NF

13-15/16

(35.4)

2-1/2

(6.4)

3-13/16

(9.7) 1-5/16

(3.3)

3/4

(1.9)

7-13/16

(19.8)

24-3/4

(62.9)

17-9/16

(44.6)

16-7/8

(42.9)

14-3/8

(36.5)
