USER GUIDE & SERVICE MANUAL

1 Class ●UHRE115 ●15” Refrigerator

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Cutout Dimensions

Grille Installation

Door Adjust

Interior Adjustments

Maintenance

Cleaning

Extended Non-Use

Operating Instructions

First Use

Ice

Service

Freezer Baskets

Wine Rack Installation

Parts

USER GUIDE u-line.com

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE u-line.com

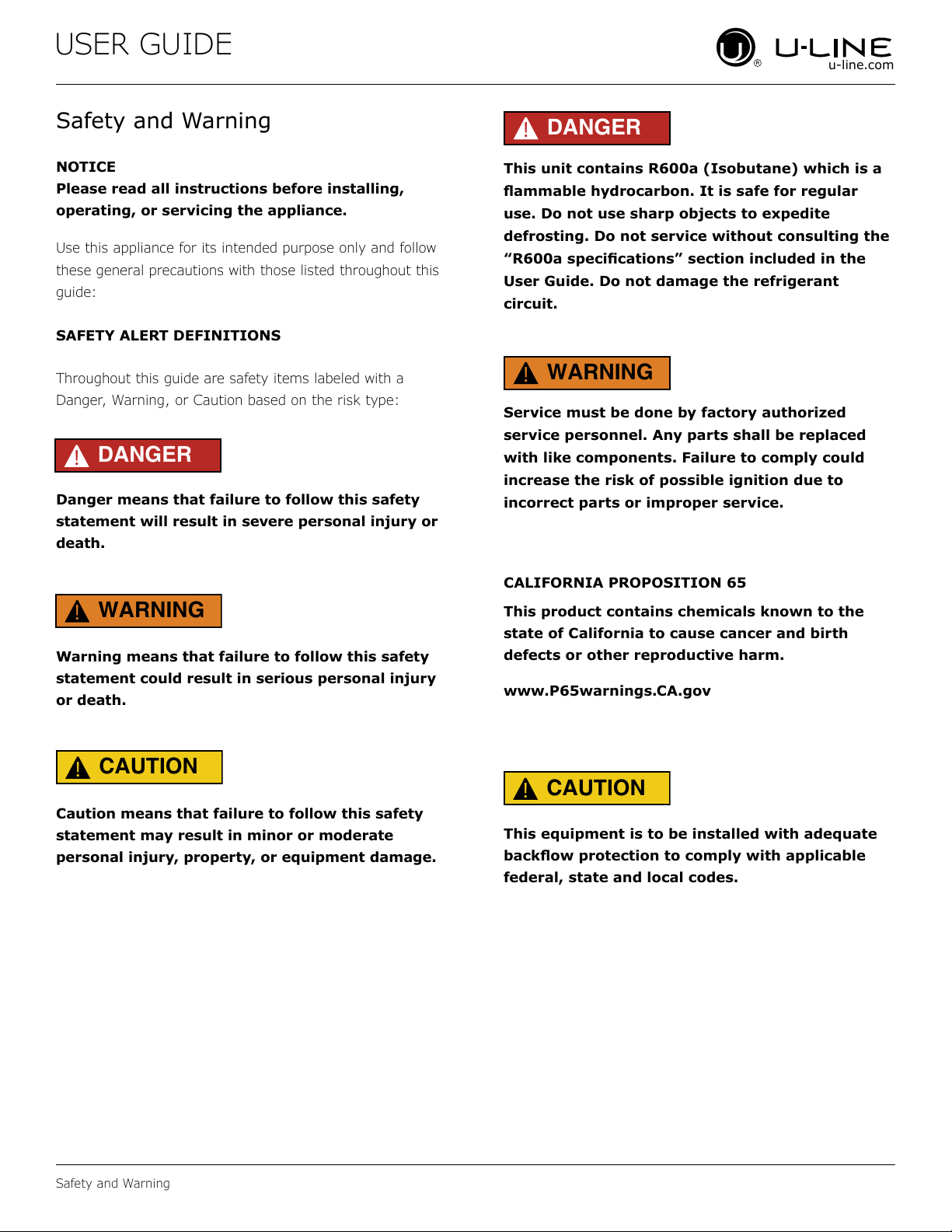

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE u-line.com

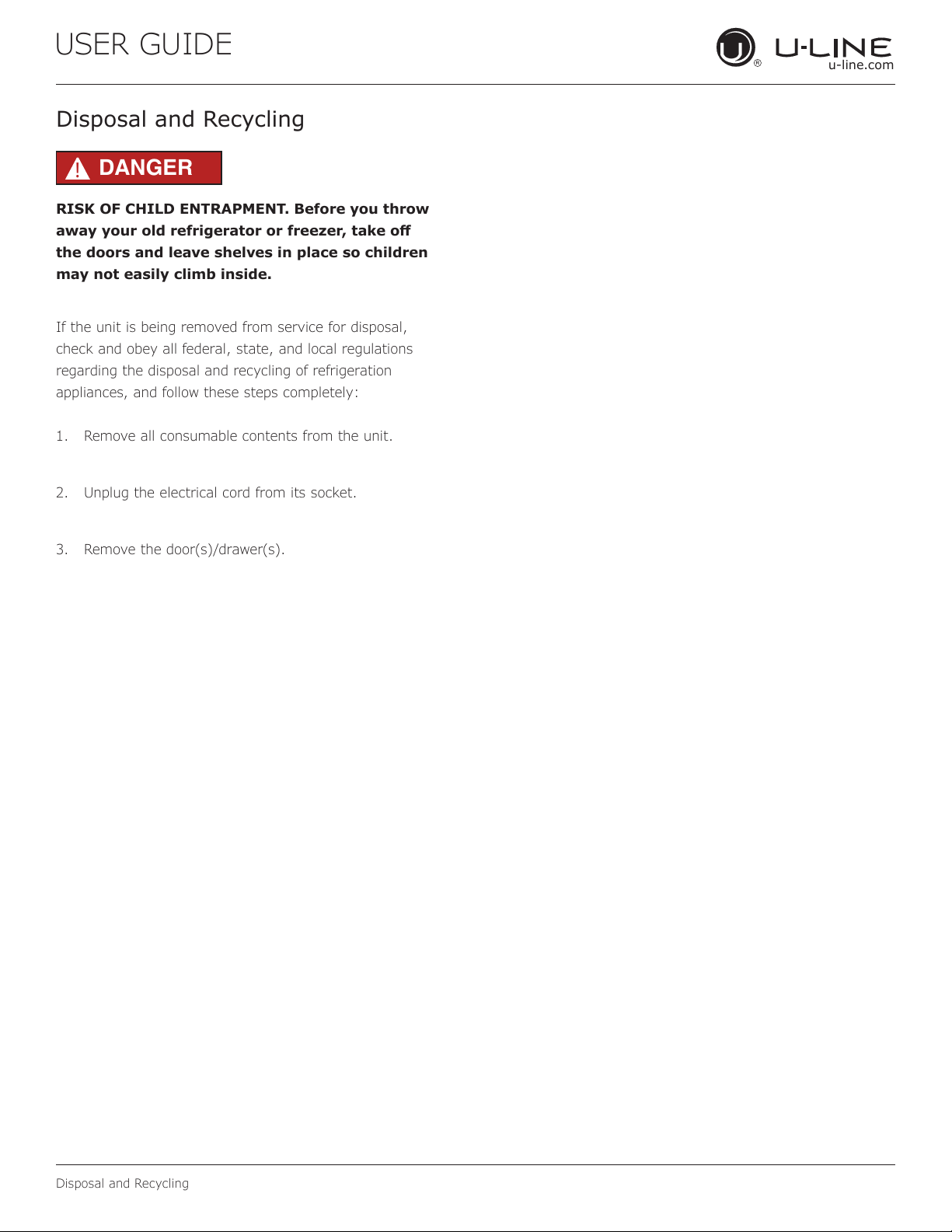

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

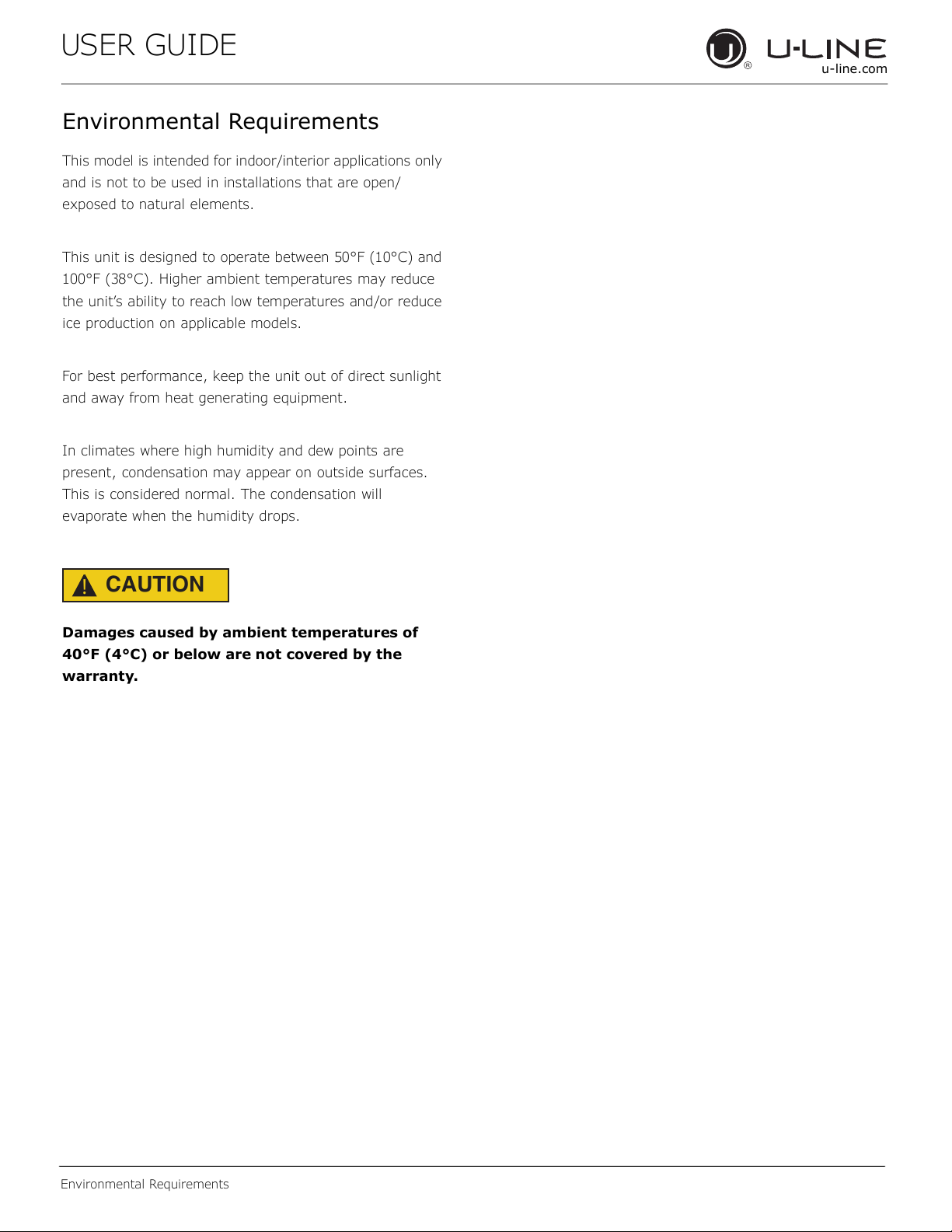

Environmental Requirements

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

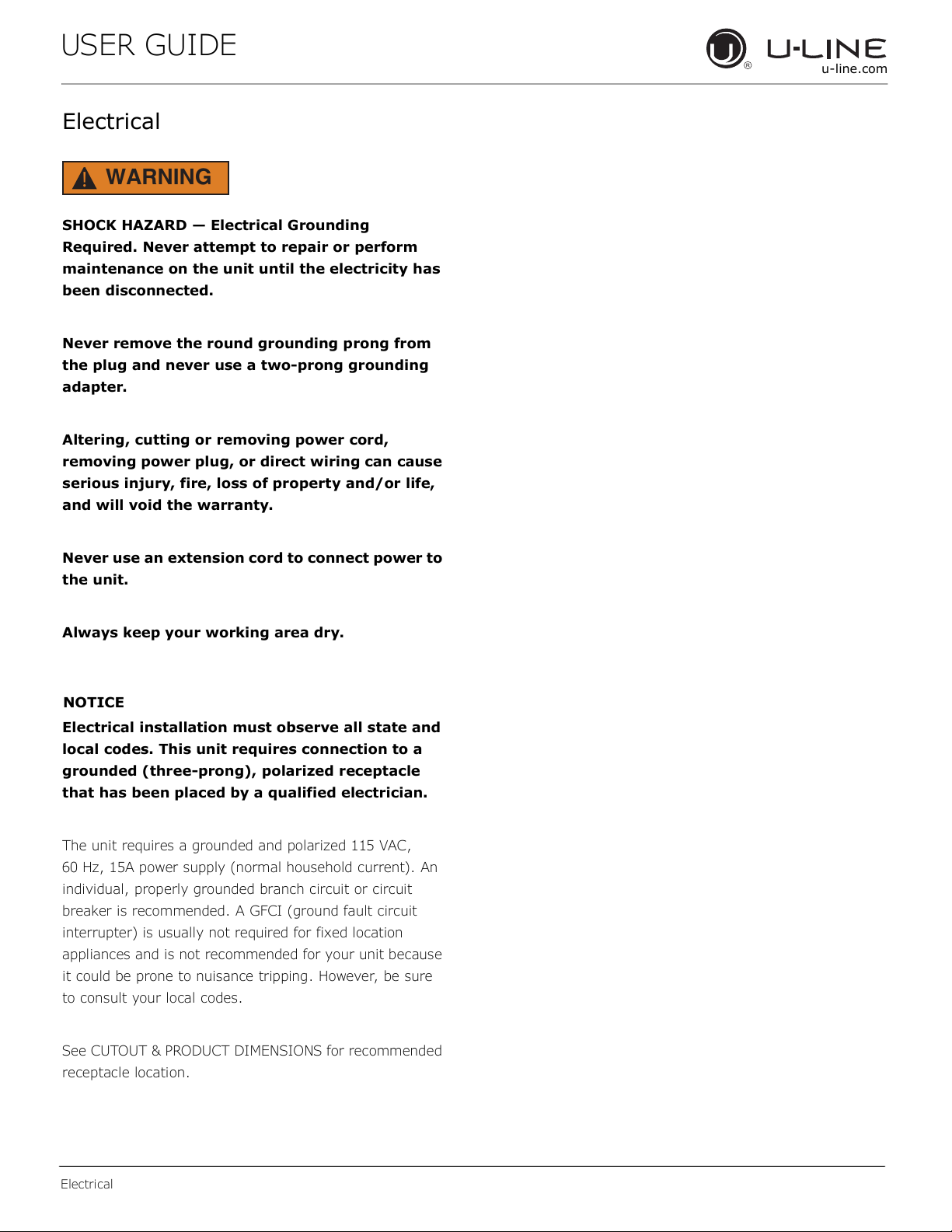

Electrical

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE u-line.com

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

*15” Cutout width sucient if door protrudes beyond

adjacent cabinetry

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

4" (102 mm)

(178 mm)

15 1⁄₄"

(387 mm)

34 1⁄₄"

(870 mm)

35 1⁄₄"

(889 mm)

Preferred location

for electrical outlet

is in an adjacent

cabinet.

24"

(610 mm)

5⁄8"

(16 mm)

Power Cord

6 ft (183 cm)

1 ½”

(38 mm)

3 ½”

(76 mm)

14 ⁄”

(379 mm)

3 ½”

(89 mm)

28”

(711 mm) 34 ⁄” to 35 ⁄”

(867 mm to

892 mm)

1 ⁄”

(48 mm)

11 ⁄”

(291 mm)

15 ½”

(394 mm)

20 ⁄”

(525 mm)

9 ⁄”

(232 mm)

18 ⁄”

(468 mm)

26 ¾”

(681 mm)

22 ¼”

(565 mm)

22 ¼”

(562 mm)

24 ⁄”

(613 mm)

1 “ (25 mm)

USER GUIDE

Cutout Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed exclusively for a

built-in installation. When built-in, your unit does not

require additional air space for top, sides, or rear.

However, the front grille must NOT be obstructed.

The product is designed and manufactured for seamless

integration in the specified cutout opening shown, which

requires precise measurements. The opening must be

square and plumb front to back. Although not required,

you may choose to increase the overall cutout width for

ease of installation.

The Modular 3000 Series units are engineered with a

variety of adjustment features to help ensure a seamless

installation. Adjustable doors, leveling legs and grille will

assist in fine tuning the installation.

All 3000 Series models fully integrate into overlay/face

frame, inset or European/frameless cabinet styles and

install seamlessly into standard 24" (610 mm) depth

cabinet base.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

Metric measurements rounded and optimized.

17-7/8"

(455 mm)

33-7/8"

(860 mm)

34-7/8"

(886 mm)

Preferred location

for drain, water

line and receptacle

is in adjacent

cabinet.

24"

(610 mm)

5/8"

(16 mm)

USER GUIDE u-line.com

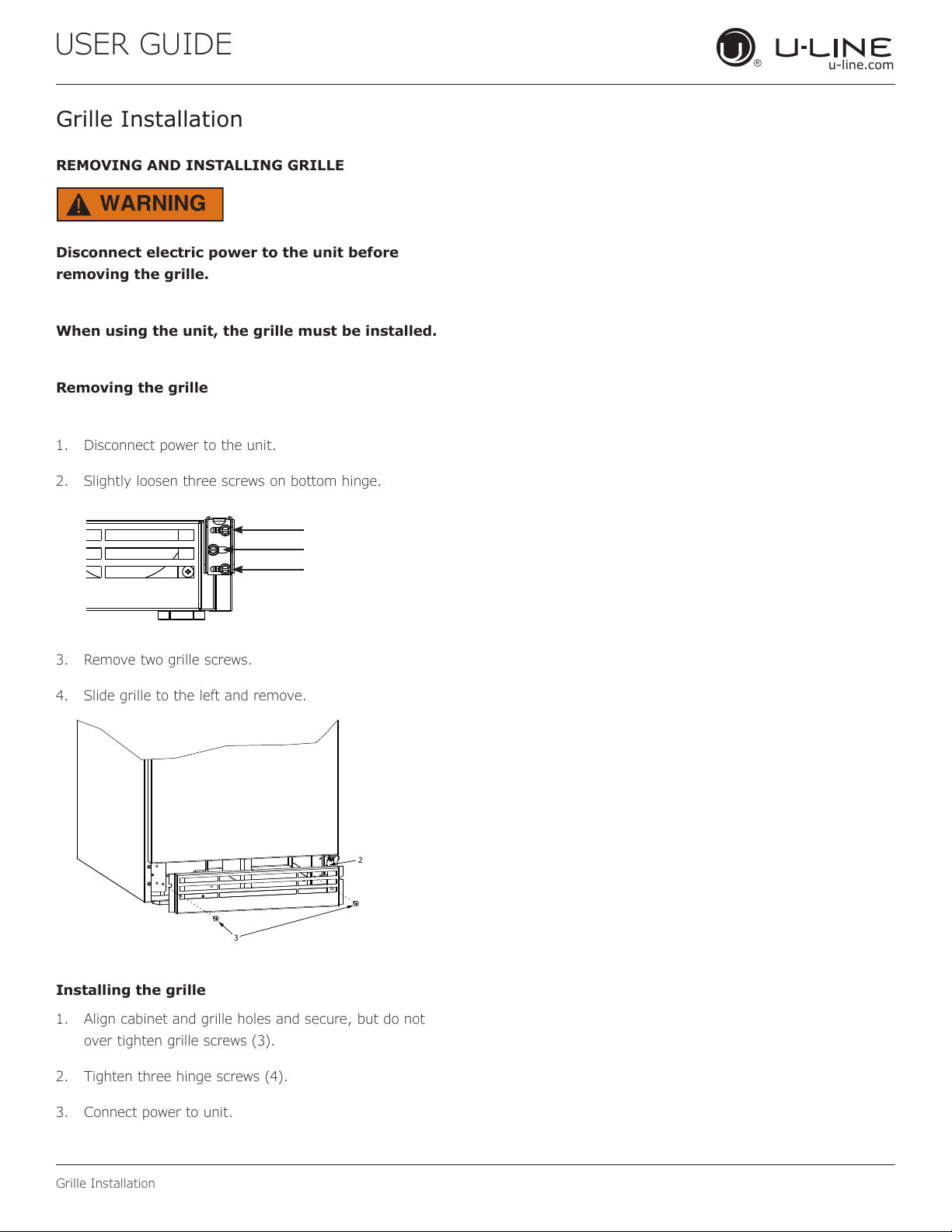

Grille Installation

REMOVING AND INSTALLING GRILLE

Disconnect electric power to the unit before

removing the grille.

When using the unit, the grille must be installed.

Removing the grille

1. Disconnect power to the unit.

2. Slightly loosen three screws on bottom hinge.

3. Remove two grille screws.

4. Slide grille to the left and remove.

Installing the grille

1. Align cabinet and grille holes and secure, but do not

over tighten grille screws (3).

2. Tighten three hinge screws (4).

3. Connect power to unit.

WARNING

Andere Handbücher für UHRE115

Inhaltsverzeichnis

Andere U-Line Kühlschrank Handbücher

U-Line

U-Line Combo CO2175DWR Bedienungsanleitung

U-Line

U-Line UHWC115BG01A Installationshandbuch

U-Line

U-Line CRE427 Installationshandbuch

U-Line

U-Line Commercial UCBR532-SG01A Installationshandbuch

U-Line

U-Line U-ADA24RS-13B Installationshandbuch

U-Line

U-Line U-2224RGLS-15B Installationshandbuch

U-Line

U-Line Combo CO29 Bedienungsanleitung

U-Line

U-Line Origins Series Bauanleitung

U-Line

U-Line U-1224KEGRSOD-00A Installationshandbuch

U-Line

U-Line Echelon Combo C2275DWR Konfigurationshandbuch

U-Line

U-Line U-2218RS-00B Installationshandbuch

U-Line

U-Line U-1215RB-00B Installationshandbuch

U-Line

U-Line UARI121-SS01A Installationshandbuch

U-Line

U-Line ADA24R Bedienungsanleitung

U-Line

U-Line Wine Captain UHWD524IS01A Installationshandbuch

U-Line

U-Line UHRE124BS01A Installationshandbuch

U-Line

U-Line U-ADA24R13B Installationshandbuch

U-Line

U-Line UMRI121-SS01A Installationshandbuch

U-Line

U-Line 2000 SERIES Bedienungsanleitung

U-Line

U-Line UCRE515 Installationshandbuch

U-Line

U-Line U-29RW-15A Bedienungsanleitung

U-Line

U-Line Origins 15R Handbuch

U-Line

U-Line UHRE524S Installationshandbuch

U-Line

U-Line CO29F Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
