U-Line 2175R Bedienungsanleitung

www.U-LineService.com

Phone (414) 354-0300 • FAX (414) 354-7905

Service & Parts Tech Lines Phone (800) 779-2547 • FAX (414) 354-5696

OnlineService@U-Line.com

08/2006

2175R Refrigerator

and

2175RF Refrigerator/Freezer

Installation Guide

www.U-LineService.com 208/2006

2175R Refrigerator and 2175RF Refrigerator/Freezer

Contents

Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Door Swing/Clearances Information . . . . . . . . . . . . . . 5

Reversing the Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6

Side-By-Side Installation Instructions . . . . . . . . . . . . . . 7

Custom 1/4'' Door Panel Insert . . . . . . . . . . . . . . . . . . . 7

Full Overlay Door Panel . . . . . . . . . . . . . . . . . . . . . . . . . 8

Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . . 12

Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . . 12

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 13

Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installation Tip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installation of the 2175R/2175RF . . . . . . . . . . . . . . . . . 14

Relocating the Shelves . . . . . . . . . . . . . . . . . . . . . . . . . 14

Installation Troubleshooting . . . . . . . . . . . . . . . . . . . . . 14

Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 15

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

IMPORTANT

PLEASE READ all instructions completely before

attempting to install or operate the unit.

• This unit requires connection to a grounded (three-

prong), polarized receptacle that has been placed by a

qualified electrician in accordance with applicable

electrical codes.

Safety Alert Definitions

Safety items throughout this guide are labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury,

or death.

CAUTION

Caution means that failure to follow this safety statement

may result in minor or moderate personal injury, property

or equipment damage.

1 Follow Safety Precautions

08/2006 3www.U-LineService.com

2175R Refrigerator and 2175RF Refrigerator/Freezer

General Precautions

Use this appliance for its intended purpose only and

follow these general precautions along with those listed

throughout this guide:

WARNING

SHOCK HAZARD — Electrical Grounding Required.

• Keep the unit unplugged throughout installation

except during testing.

• Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

• Never use an extension cord to connect power to

the unit.

• Always keep your working area dry.

CAUTION

• Use care when moving and handling the unit. Use

gloves to prevent personal injury from sharp edges.

• Do not lift the unit by the door or door handle.

• Do not install the unit behind closed doors or in any

way that would obstruct airflow to the front grille,

which may cause the unit to malfunction.

You have received a carton containing your 2175R

Refrigerator or 2175RF Refrigerator/Freezer with a

package inside containing a Use & Care Guide and a

Product Registration Card. Complete and mail the Product

Registration Card or register online at

www.U-LineService.com. Once your unit is installed, keep

the Use & Care Guide and this Installation Guide in a safe

place for future reference.

Your unit is Black, White or Stainless Steel. Black and

White units have a reversible door with a slightly

contoured handle across the top. They come with a flush

mounted door panel that, when removed, will accept a

custom 1/4-inch thick door panel or a 3/4-inch thick full

overlay door panel. Stainless Steel units are covered with

a protective coating and have been ordered left- or right-

hand hinged. The Stainless doors are not reversible and do

not accept custom panels. Please carefully follow the

directions that apply to your unit and your intended design.

Tools/Materials Required

• Screwdrivers — slotted and Phillips head

• 1/4-inch thick door panel material and cutting tools

(Black or White units) (If installing a 1/4” Panel Insert)

• Full Overlay Door Panel Kit (part number U-OL2175B —

Black or part number U-OL2175W — White), 3/4-inch

door panel overlay, cutting tools, drill and bits (Black or

White units) (If installing a 3/4” Full Overlay)

Inspection

Unwrap and inspect the unit on a flat, level surface

capable of supporting its entire weight.

Removing Protective Coating

(Stainless Steel Units Only)

When inspecting/installing a Stainless Steel unit, the

protective coating covering the unit must be removed

first. Start at a corner of the unit/door and pull back the

protective coating to remove it from the unit/door.

2 Inspect and Plan

www.U-LineService.com 408/2006

2175R Refrigerator and 2175RF Refrigerator/Freezer

After all the protective coating has been removed from

the unit/door, clean all Stainless Steel surfaces with Claire

Stainless Steel Polish and Cleaner or comparable product

or a mild detergent and warm water solution and soft

cloth. Do NOT use abrasive cleaning agents.

Note: If cleaning with mild detergent and warm water

solution and soft cloth, the unit MUST be treated with

Claire Stainless Steel Polish and Cleaner or comparable

product to prevent discoloration.

Exterior Cleaning

(As Required)

Black and White Models:

• The door, grille and cabinet may be cleaned with a mild

detergent and warm water solution. Do not use

solvent-based or abrasive cleaners. Use a soft sponge

and rinse with clean water. Wipe with a soft, clean

towel to prevent water spotting.

Stainless Steel Models:

• Stainless steel models can discolor when exposed to

chlorine gas, pool chemicals, salt water or cleaners with

bleach.

• Keep your stainless steel unit looking new by cleaning

with a good quality all-in-one stainless steel cleaner/

polish on a monthly basis. For best results use Claire

Stainless Steel Polish and Cleaner, which can be

purchased from U-Line Corporation. (The part number

is 173348.) Comparable products are acceptable.

Frequent cleaning will remove surface contamination

that could lead to rust. Some installations may require

cleaning on a weekly basis.

• Do not clean with steel wool pads.

• Do not use cleaners that are not specifically

intended for stainless steel (this includes glass,

tile and counter cleaners).

• If any surface discolors or rusting appears, clean it

quickly with Bon-Ami or Barkeepers Friend Cleanser

and a non-abrasive cloth. Always clean in the direction

of the grain. Always finish this process with Claire

Stainless Steel Polish and Cleaner or comparable

product to prevent further problems.

• Use of abrasive pads such as Scotchbrite will

cause the graining in the stainless to become

blurred.

• Rust that is allowed to linger can penetrate into the

surface of the stainless steel and complete removal of

the rust may not be possible.

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides or rear.

However, the front grille must NOT be obstructed and

clearance is required for electrical connection in the rear.

Note: Unit can NOT be installed behind a closed cabinet

door.

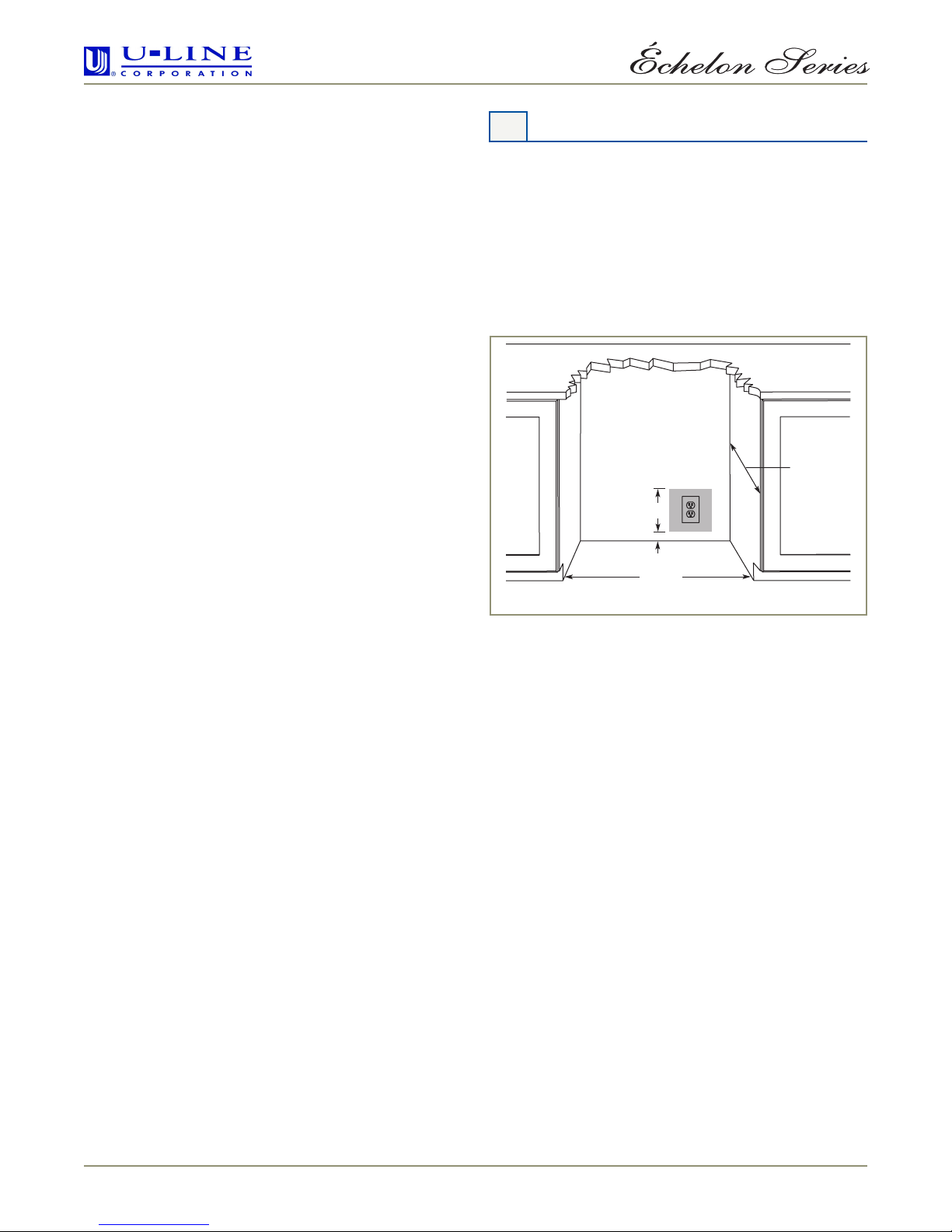

Cut-Out Dimensions

Follow the cut-out drawing in Figure 1. The 24-3/16"

width allows 1/4" for ease in installation and removal of

the unit. 24" is the cabinet depth in most installations.

The unit is 23-1/4" deep including the handle

on Black and White models and 23-1/4" deep including

the door and not the handle on Stainless Steel models

(see Figure 2).

3 Prepare Site

1-1/2"

23-1/4"

24-3/16"

Figure 1

08/2006 5www.U-LineService.com

2175R Refrigerator and 2175RF Refrigerator/Freezer

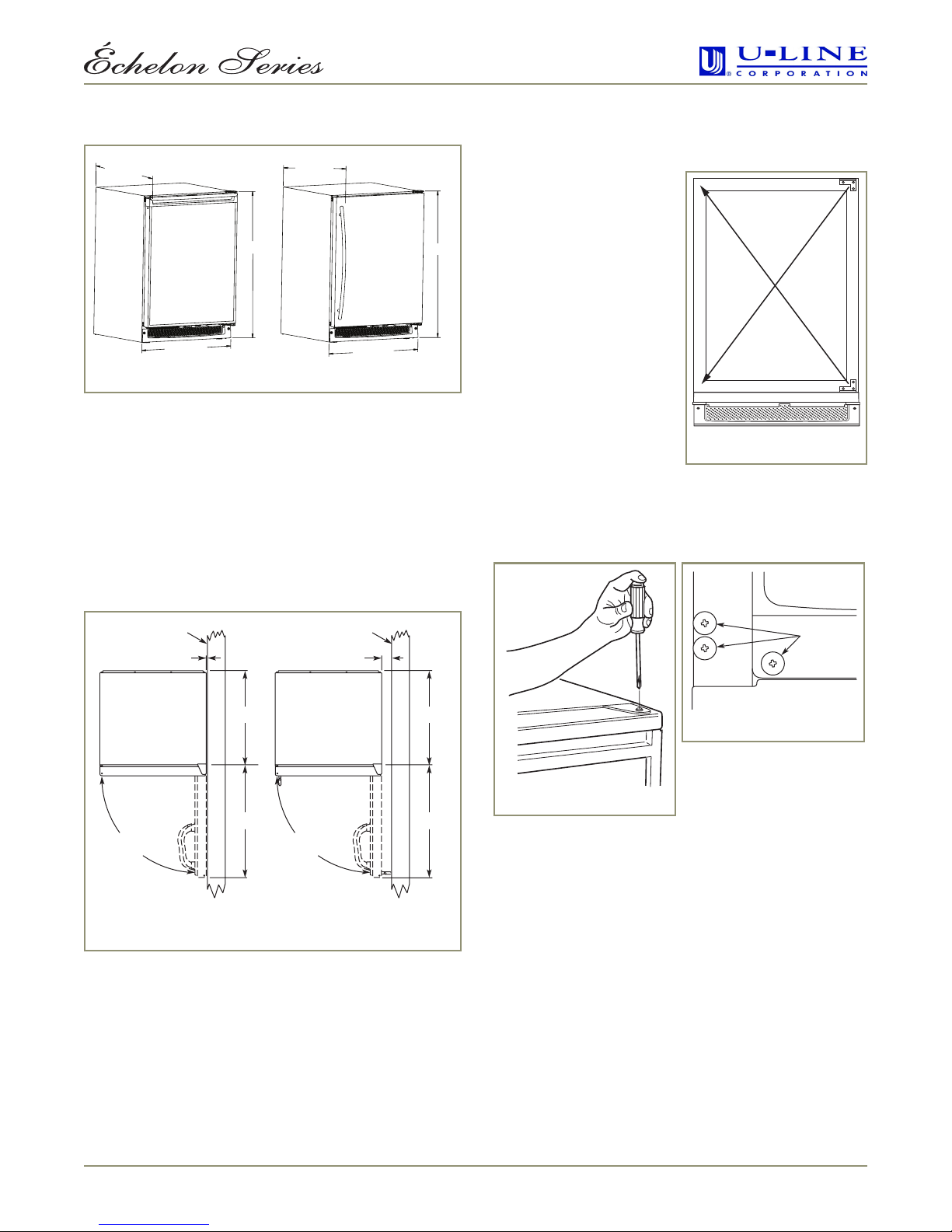

Product Dimensions

Please note that the unit has adjustable feet that can add

one additional inch to height during leveling or to match

adjacent cabinets (see Figure 33 on Page 13).

Door Swing/Clearances Information

Black and White units have a zero clearance for the door

to open 90° (see Figure 3). Stainless Steel models require

a minimum of 2-1/8" door clearance to accommodate the

handle if the unit is installed next to a wall or similar type

of structure.

Reversing the Door

(Black and White Units Only)

All U-Line units (except

Stainless Steel models) may

be left- or right-hand

opening. The door opening is

easily reversed by moving the

hinge hardware to the

opposite side. The top hinge

hardware will be used on the

bottom of the other side and

the bottom hinge hardware

will be used on the top of the

other side (see Figure 4).

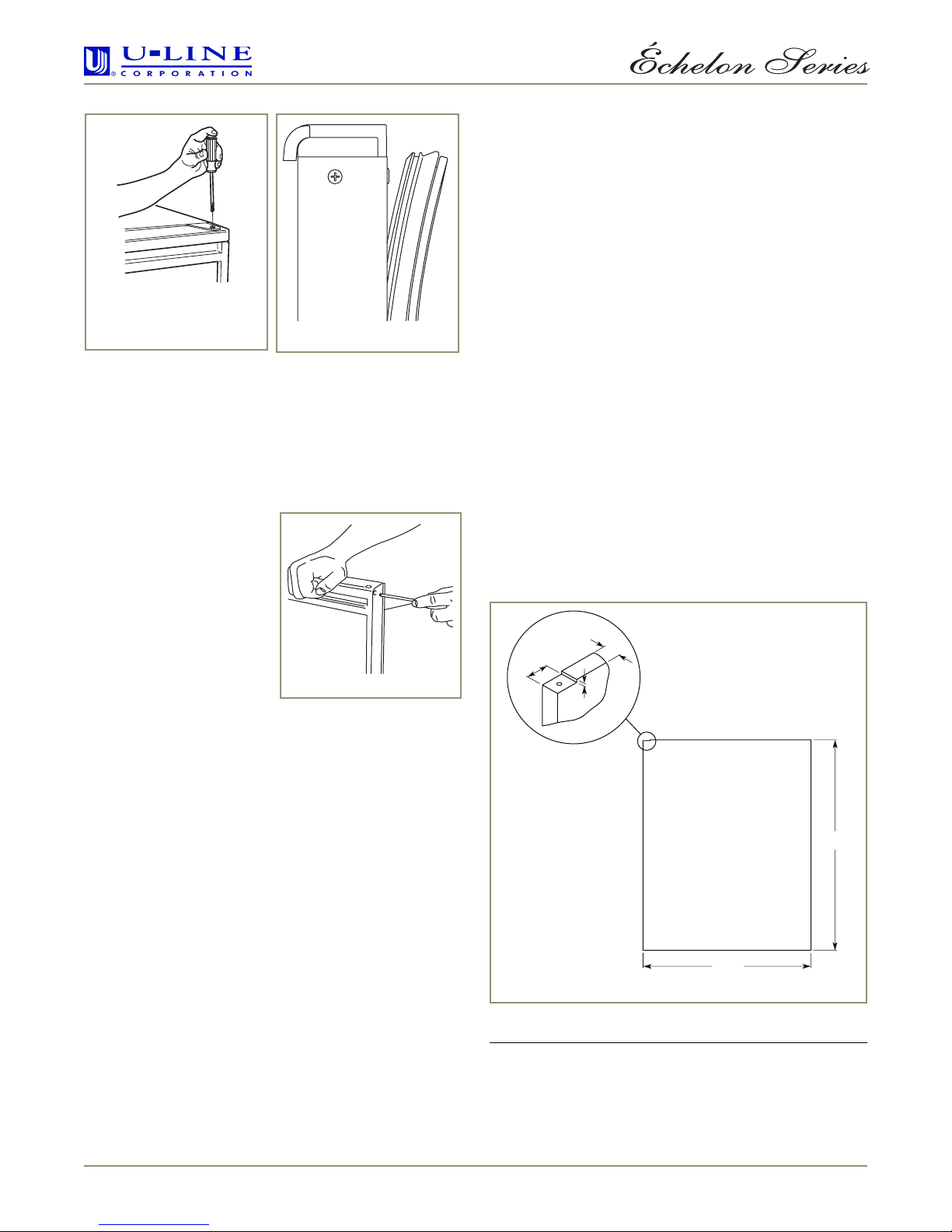

To reverse the door:

Remove top hinge screw

pin from door (Phillips

screwdriver) (see

Figure

Remove

door by tilting

forward and lifting off bottom hinge pin.

Remove plastic screw plugs (3 each, top and bottom)

from new hinge location. Do not discard (see

Figure 6

3. Remove top hinge (3 screws), reinstall hinge screw pin,

and remount on opposite side BOTTOM (see

Figure 7

23-1/4"

Including

Handle

34-1/8"

23-15/16"

Black and White Stainless Steel

23-15/16"

34-1/8"

25-3/8"

Including

Handle

Figure 2

1/4" Min.

Wall Wall

2-1/8" Min.

90°

Door Swing

Black and White Stainless Steel

90°

Door Swing

21"

25-1/2"

21"

25-1/2"

Figure 3

Figure 4

ULIN_0015_A

Screw Plugs

Figure 6

ULIN_0133_A

Figure 5

www.U-LineService.com 608/2006

2175R Refrigerator and 2175RF Refrigerator/Freezer

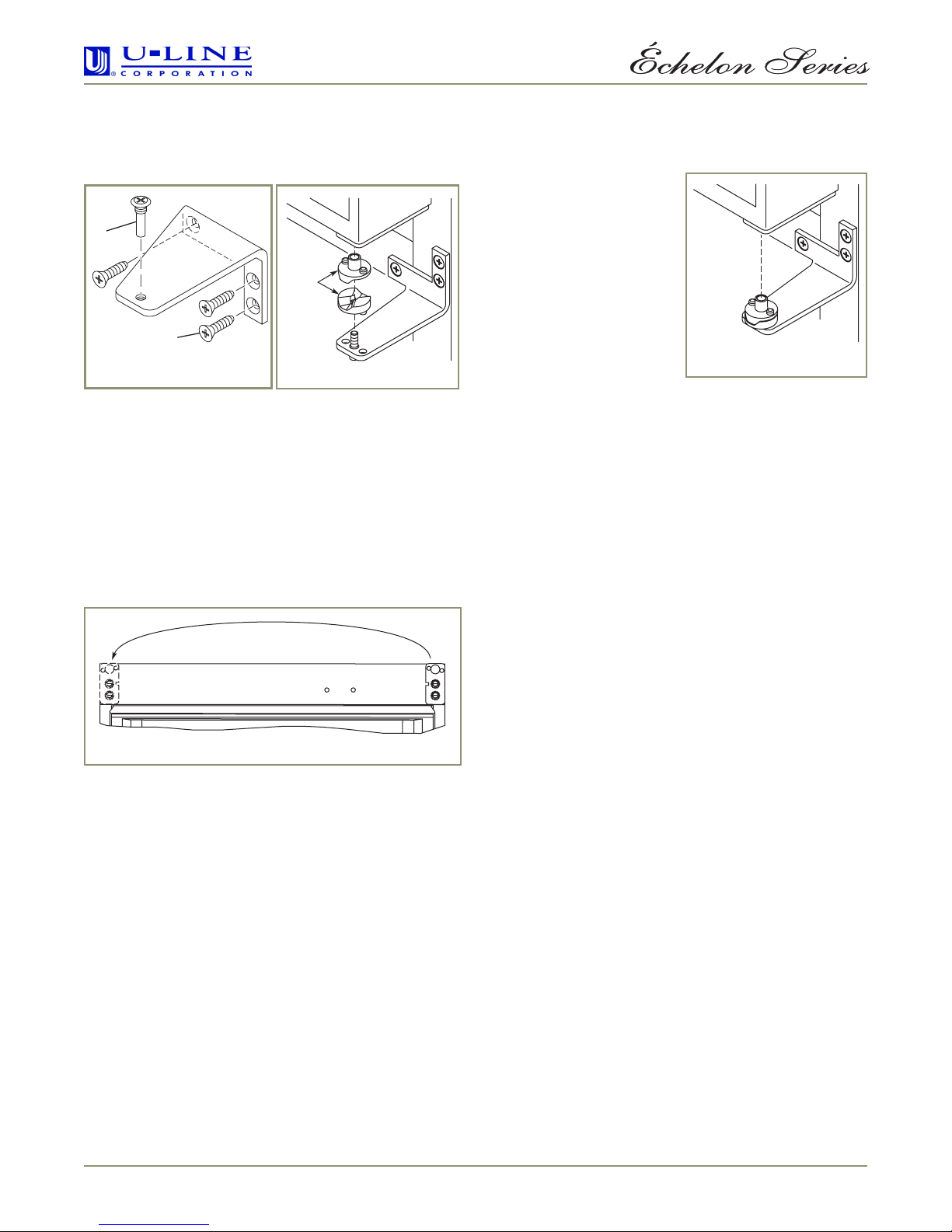

4. Remove the two door closer inserts from the existing

bottom hinge and install as shown on the new bottom

hinge (see

Figure 8

5. Remove existing bottom hinge (3 screws) and remount

on opposite side TOP. Remove hinge screw pin.

6. Remove the plastic hole plug from the top of the door

to allow the pivot pin to be inserted in the new

location. Install the plug into the vacated hole on the

opposite side.

7. With bottom of door facing up, remove pivot plate

(2 screws), flip over, and remount on opposite side of

door (see

Figure 9

). Be sure notch in plate faces center.

8. Holding door upright with top of door tilted forward,

place hole of door pivot plate on bottom hinge screw

pin (see

Figure 10

9. Tilt top of door into

position in top hinge and

install top hinge screw pin.

10. Install plastic screw plugs

removed in Step 2 in old

hinge holes (3 each, top

and bottom).

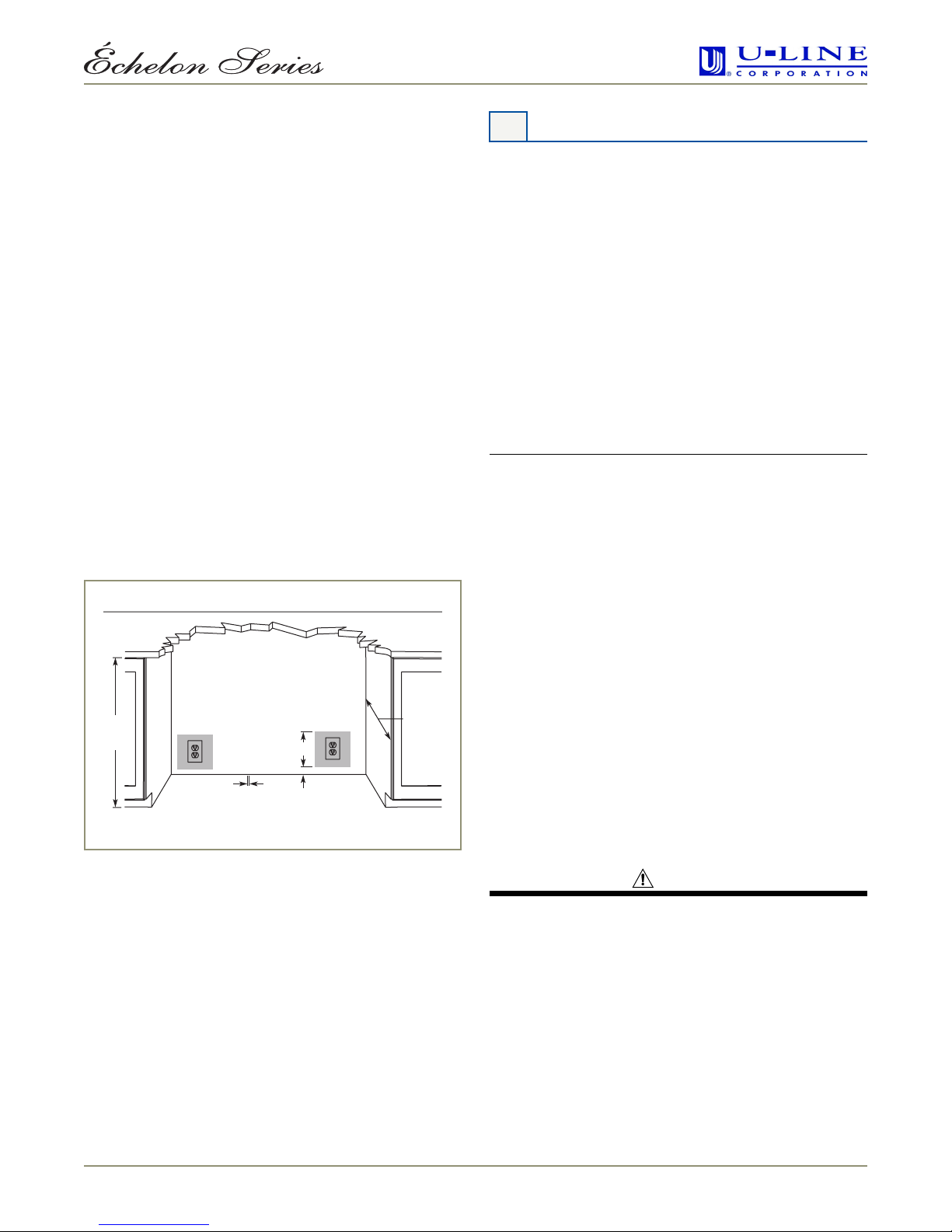

Other Site Requirements

Power Supply

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A circuit (normal household current). See

Electrical Specifications on Page 13.

Environmental Requirements

Many U-Line models are designed to operate in harsh

outdoor/marine environments. Special considerations

include the following:

• The units are designed to operate between 50°F (10°C)

and 110°F (40°C). High ambient temperatures (110°F

[40°C] or higher) may reduce the unit’s ability to reach

low temperatures and may also reduce the ice

production rate for those models with icemakers.

• If the ambient temperature is expected to drop below

45°F (7°C), drain all water from the unit to prevent

freezing damage not covered by the warranty.

• For best performance, keep the unit out of direct

sunlight and away from heat generating equipment.

• For best performance and life outdoors, place under a

counter or provide shelter of some kind.

• In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

disappear when the humidity drops.

Door

Closer

Inserts

Figure 8

ULIN_0003_A

Figure 7

Figure 9

Figure 10

08/2006 7www.U-LineService.com

2175R Refrigerator and 2175RF Refrigerator/Freezer

Side-By-Side Installation

Instructions

For a complete refreshment center, install your 2175R or

2175RF Model beside a U-Line Ice Maker, Combo or Wine

Captain Model (see Figure 11 for typical cut-out). Note

that each Side-By-Side Installation will be different.

• Cut-out width for a side-by-side installation is the total

of the widths listed under Cut-Out Dimensions in each

unit’s Installation Guide.

For example:

Placing a 2175R or 2175RF next to a 2115 series unit

would require a cut-out width of:

24-3/16" + 15-3/16" = 39-3/8"

Placing a 2175R or 2175RF next to a 2175 series unit

would require a cut-out width of:

24-3/16" + 24-3/16" = 48-3/8"

•

No trim kit is required. However, 1/4-inch space needs to

be maintained

between the units to ensure

unobstructed door swing.

• Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

Electrical Specifications.

(Black and White Units Only)

Two types of custom door panels can be installed on your

Black or White unit to harmonize with or accent the

surrounding décor: a Custom 1/4" Insert or a Full Overlay.

If no custom door panel is used, go on to 5 Adjust Door.

Custom 1/4'' Door Panel Insert

Door Panel Preparation

A custom door panel can be inserted into the doorframe.

Custom door panels can be flat or raised, as long as the

maximum panel thickness where inserted into the door

reveal (channel) is 1/4"-thick. For raised panels, the depth

of the reveal is 1/4" on all four sides.

IMPORTANT

Raised panels will reduce the door’s 90° swing/zero

clearance if the unit is installed next to a wall or similar

type of structure.

For 2175 models cut the panel insert to the following

dimensions.

Custom 1/4" Dimensions:

Width: 23-1/32"

Height: 27-11/16"

For 2115 & CLR2160 models cut the panel insert to the

following dimensions.

Custom 1/4" Dimensions:

Width: 14-1/32"

Height: 27-11/16"

The door panel must not weigh more than 20 lbs.

Door Panel Installation

Install the insert as follows:

CAUTION

Use care when handling the insert. Insert edges may be

sharp.

1. Remove top hinge screw pin (using a Phillips

screwdriver, see Figure 12). Remove door by tilting

forward and lifting off bottom hinge pin.

1-1/2"

34-1/4"

35-1/8"

1/4" Space

Between

Appliances

23-1/4"

Figure 11

Typical Side-By-Side Cut-Out

4 Prepare and Install Door Panel

www.U-LineService.com 808/2006

2175R Refrigerator and 2175RF Refrigerator/Freezer

2. Pull door gasket out of groove (top edge of door only).

Start in the middle and pull outward, moving toward

the edge (see

Figure 13

). This may take some force.

3. Remove two outside screws holding door handle.

Slightly separate door handle from door (see

Figure 14

4. Pull handle up and off.

5. Remove and discard

existing panel and

cardboard spacer.

6. Slide custom door panel

insert into 1/4-inch

channel in door front.

7. Holding door gasket out

of the way, replace handle

on door, making sure it is

seated properly on insert

and that screw holes line up.

8. Install two small screws removed in Step 3.

9. Starting at the corners and working inward, push door

gasket into place on door.

10. Place door on bottom hinge pin and install upper hinge

screw.

Full Overlay Door Panel

Door Panel Preparation

A full overlay door panel completely covers the

doorframe and handle to give a built-in appearance. See

your U-Line dealer for the optional Full Overlay Door

Panel Kit.

2175 Models:

P/N U-OL2175B -- Black

P/N U-OL2175W -- White

2115 & CLR2160 Models:

P/N U-OL2115B -- Black

P/N U-OL2115W --White

Appropriate hardware, Modified Handle, Replacement

Hinges and a copy of these instructions will be included in

the kit.

1. Cut the overlay to the following dimensions (see

Figure 15).

Full Overlay Dimensions:

2175 Models: 2115 & CLR2160 Models:

Width: 23-3/4" Width: 14-3/4"

Height: 29-3/4" Height: 29-3/4"

The door panel must not weigh more than 20 lbs.

IMPORTANT

Rear View of wood panel for right-hand hinge shown. Use

mirror image for left-hand hinges.

ULIN_0133a_

Figure 12 Figure 13

Figure 14

Height

Width

31/32"

Relief Notch

for Pivot Plate

Rear View

Wood Panel

3/4"

1/8"

ULIN_0400_A

Figure 15

08/2006 9www.U-LineService.com

2175R Refrigerator and 2175RF Refrigerator/Freezer

2. Create a relief (

Figure 15

) for pivot plate by cutting

notch in top corner of overlay panel. Refer to

Figure

for exact specifications.

Route notch in top corner of overlay panel as shown

(see Top and Side Views). Top of notch is entire depth

of panel, front to back.

Width: 31/32"

Depth: 1/8"

CAUTION

Be careful not to drill too deep! Drilling holes too deep

may destroy your door panel.

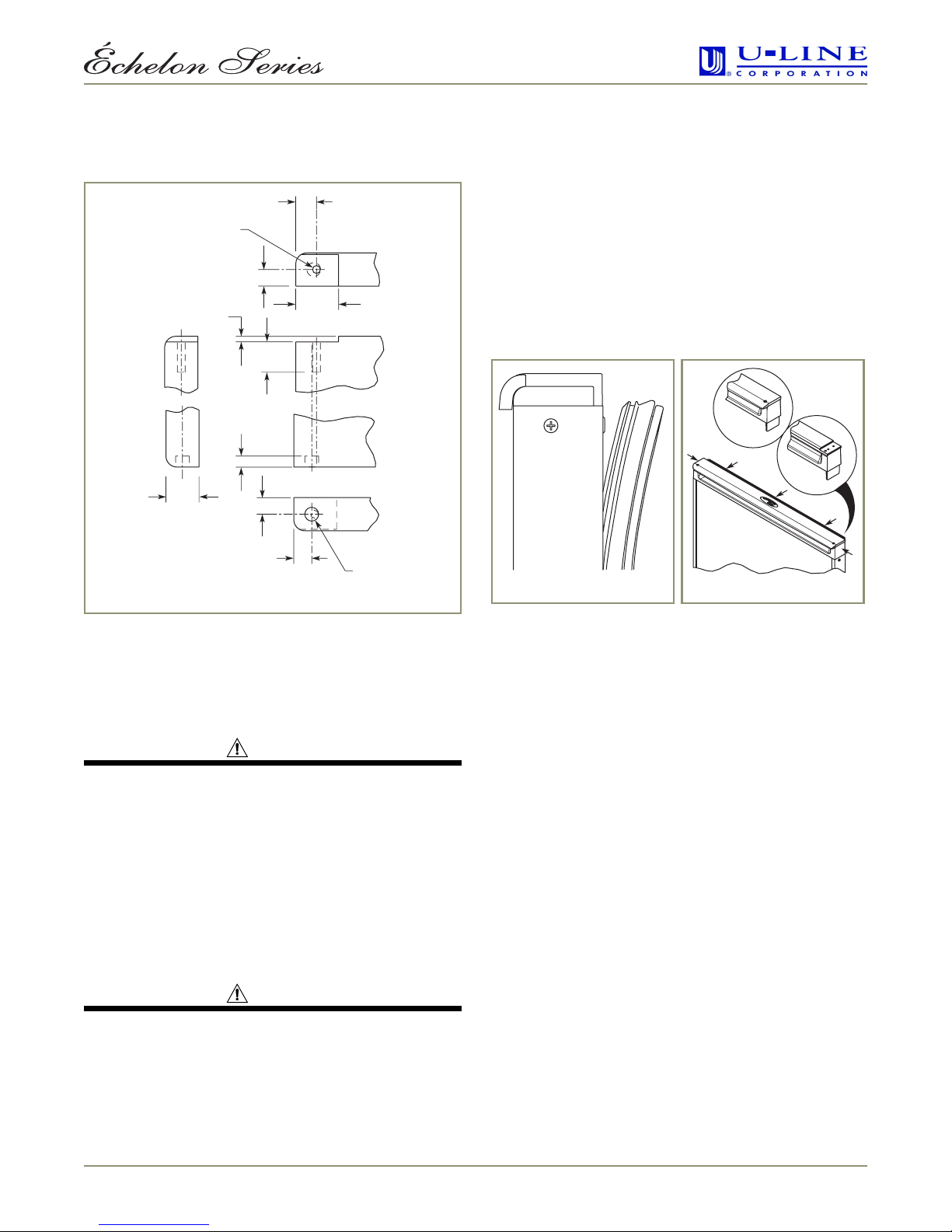

3. Drill hole for upper door hinge (top of panel) (see

Figure 16

, Top View).

0.177" diameter

(#16 drill) x 11/16" deep

4. Drill hole for lower door hinge (see

Figure 16

, Bottom

View).

5/16" diameter x 1/4" deep

CAUTION

It is important to ensure that all drilled holes are drilled to

the correct depth in order to avoid splits in the wood

when hardware is installed.

Installation Instructions

Removing Existing Door

1. Remove the door shelves by first pulling shelves up at

a 45° angle, then straight out.

2. Remove top hinge screw pin (Phillips screwdriver).

Remove the door by tilting forward and lifting off the

bottom hinge pin.

3. Pull door gasket out of the groove (top edge of door

only). Start in the middle and pull outward, moving

toward the edge (see

Figure 17

). This may take some

force.

4. Remove the two screws located on both sides of the

handle.

5. Remove the handle and discard. (This handle will be

replaced with the Overlay Handle included in the Full

Overlay Door Panel Kit.)

6. Slide the existing door panel out of the doorframe.

Attaching the Full Overlay Panel

1. Place and tape the existing door panel on the back of

the overlay panel (see Figure 19) and drill holes

through both panels according to Figure 20. Remove

tape adjoining the panels and enlarge the six holes in

the steel (black/white vinyl color) panel using a 0.201"

(#7) drill.

2. If a user-supplied cabinet handle will be used, attach its

hardware to the overlay panel at this time.

15/32"

3/8"

.125"

13/32"

31/32"

BOTTOM VIEW

BACK VIEW

SIDE VIEW

TOP VIEW

ø 0.177" (#16 Drill)

11/16" Deep

3/4" Min Ref

1/4" Ref

3/8"

11/16"

Ref

ø 5/16"

x1/4" Deep

Chamfer 1/32" x45°

ULIN_0401_A

Figure 16

New Handle

Old Handle

ULIN_0403_A

Figure 17 Figure 18

www.U-LineService.com 10 08/2006

2175R Refrigerator and 2175RF Refrigerator/Freezer

3. Attach the door panel to the overlay panel using #10 x

5/8" wood screws and nylon spacers. The nylon spacers

fit between the overlay panel and the door panel as

shown in

Figure 21

. The spacers

allow the original

door panel to slide back into the

1/4"-thick door

reveal (channel).

4. Remove the existing bottom pivot plate and replace

with the Full Overlay pivot plate (see

Figure 22

IMPORTANT

Door panel and overlay panel must be aligned properly or

the door will not operate correctly.

Assembling the Door

1. Install the assembled panel by sliding the original door

panel back into the doorframe.

2. Replace the Overlay Handle and secure with the two

screws removed in Step 4 under Removing Existing

Door.

3. Attach Overlay cap to door, opposite side of where

hinges will be (see

Figure 23

Removed

Door Panel

Top of

Wood Panel

Back of

Wood

Panel

Side of

Wood Panel

Tape

1-3/4" Top

3/8"

Both Sides

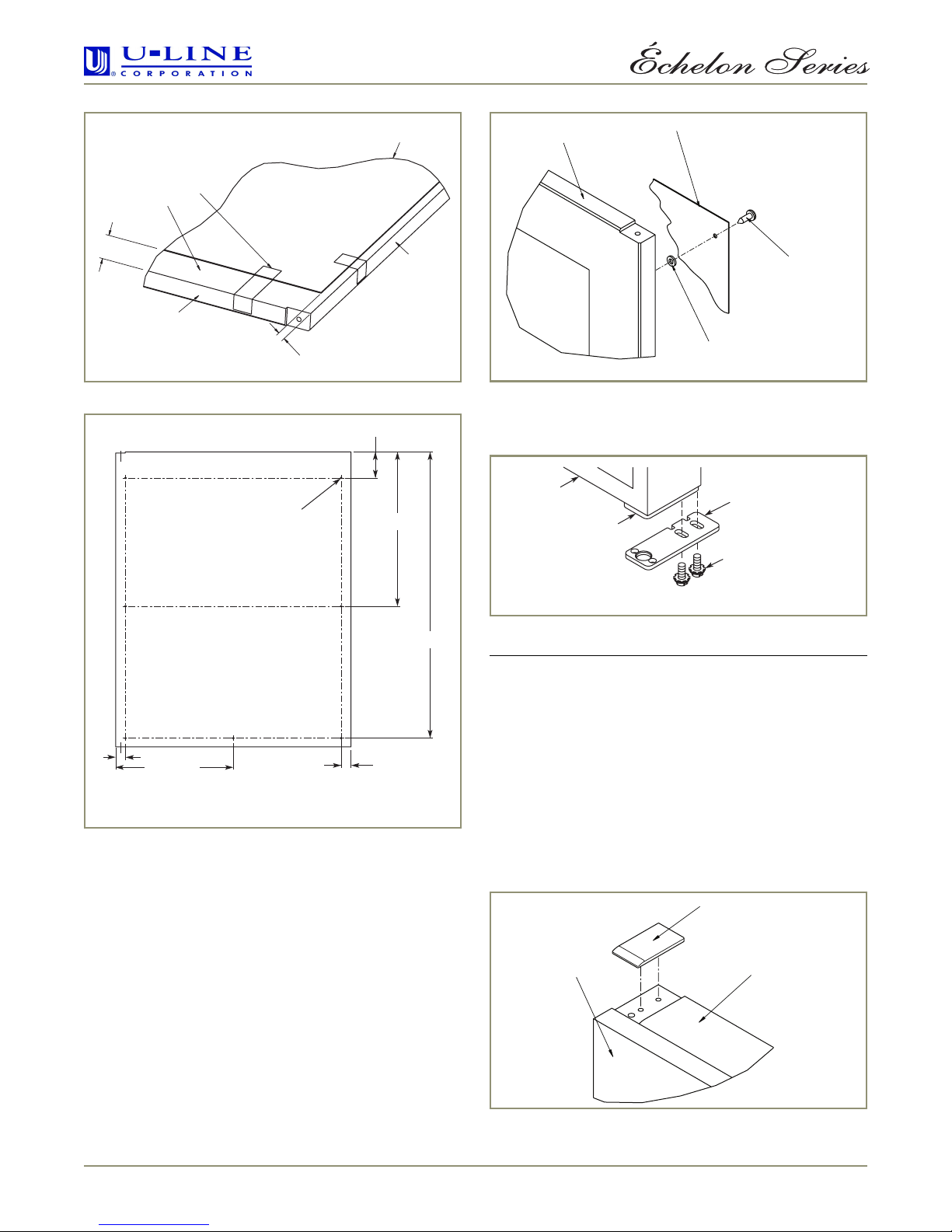

Figure 19

28-7/8"

±1/4"

15-9/16" ±1/4"

2-5/8" ±1/4"

Drill ø 5/32" x 3/8" Deep

7 Places Model 2175

6 places Model 2115 and CLR2160

For use with #10 x 5/8"

Wood Screw and Nylon Spacer

11-7/8±1/32

For use on

Model 2175 Only ULIN_0402_A

Figure 20

#10 x 5/8"

Round Head Screw

Seven Required

Typical

Wood Panel

Door Panel

Plastic Spacer

Seven Required

Figure 21

#8-32 x3/8" SEMS Hex Screw

Two Places

Wood Panel Bottom Pivot Plate

(5/8" Longer Than

Existing Bottom Pivot Plate,

Flush Side Facing Out)

Existing

Door

Existing Bottom Pivot Plate

(Remove and Discard)

Figure 22

3/4" Wood Panel

Overlay Cap

Replacement Handle

Figure 23

Andere Handbücher für 2175R

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere U-Line Kühlschrank Handbücher

U-Line

U-Line WINE CAPTAIN U-1075WCS-00 Bedienungsanleitung

U-Line

U-Line CLRCO2075 Betriebsanleitung

U-Line

U-Line WINE CAPTAIN 2115R Bedienungsanleitung

U-Line

U-Line Echelon CO2075FF Bedienungsanleitung

U-Line

U-Line U-2224RGLS-00A Installationshandbuch

U-Line

U-Line Echelon 2115RS00 Bedienungsanleitung

U-Line

U-Line UHRE124-WS01A Installationshandbuch

U-Line

U-Line Echelon CLRCO2175S01 Bedienungsanleitung

U-Line

U-Line Marine Series ULN-CO29B-03A Installationshandbuch

U-Line

U-Line UARI121-SS01A Installationshandbuch

U-Line

U-Line Overlay Drawer Panel Betriebsanleitung

U-Line

U-Line U-2224BEVINT-60A Installationshandbuch

U-Line

U-Line WINE CAPTAIN 2115R Bedienungsanleitung

U-Line

U-Line WINE CAPTAIN 2275DWRCOL Bedienungsanleitung

U-Line

U-Line Combo U-CO1224FINT-00A Installationshandbuch

U-Line

U-Line 1000 SERIES Bedienungsanleitung

U-Line

U-Line UHRE124BS01A Installationshandbuch

U-Line

U-Line 2224RS00B Bedienungsanleitung

U-Line

U-Line Echelon Combo C2275DWR Bedienungsanleitung

U-Line

U-Line Echelon CO2075FF Bedienungsanleitung

U-Line

U-Line U-CLR1215S-00A Bedienungsanleitung

U-Line

U-Line 1224KEGRSOD Installationshandbuch

U-Line

U-Line UHRE124-IG81A Installationshandbuch

U-Line

U-Line Echelon 2075DWRRSS Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
