C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

C165+ OVERVIEW

Sensors

Fitted:

CO NO

CO-H

2CO

Serial No.

UEi TEST INSTRUMENTS

www.ueitest.com

Tel: 1-800-547-5740

T2 T1

P2 P1

F. P.

[Top View]

[Bottom View]

A. On/ Off (Power) Button

B. 6 Line Backlit Display

• Press any button to turn Back light on (backlight duration can be set in Menu/

Screen/Backlight)

C. UP/DOWN Button

• Short press to navigate “UP” or “DOWN”

D. Pump Toggle button: Long press to pump on/off, short press holds the readings

and the screen ﬂashes

E. ENTER Button

• Short press select current option displayed

F. Rotary Dial

G. Protective Rubber Boot With Magnets

H. Printing and log button: Long press to saving logs and Short press to print on/off

I. Water Trap (under Protective Boot)

J. Particle Filter (inside water trap)

K. LED Water Trap Indication: LED is active while the pump is on to bring user

awareness to any condensate building up in the water trap

L. Grip Indentation: Indentation for ﬁngers to grip analyzer

M. Water Trap Drain Plug: (Red plug; take caution NOT to damage plug when

removing protective boot)

N. Serial Number QR Code

O. Sensors Fitted: (label under Protective Boot) Indication of sensors installed when

shipped (CO, CO-H2, CO2, NO, O2)

P. Battery Compartment (under Protective Boot)

Q. Infrared Printer Port

R. Battery Charge USB Adapter Connection

S. Temperature Connections

• Flue Probe Temperature: T1

• Inlet Temperature: T2

T. Flue Gas Inlet Connection

U. Pressure Connections

• Pressure: P1

• Differential Pressure: P2

[Bottom View]

Press ”Power” Button for 2 seconds. The analyzer

will perform a 10 second purge. This should be done in

fresh air.

Rotate Selector Dial to MENU to set up or customize

your settings.

Selected parameter are highlighted with Display Line

Lights on either side.

Use and ARROW BUTTONS to scroll menu

options.

Press Button to edit a parameter.

Press and ARROW BUTTONS to change

contents of ﬁeld.

Press Button to enter content and move to next

ﬁeld.

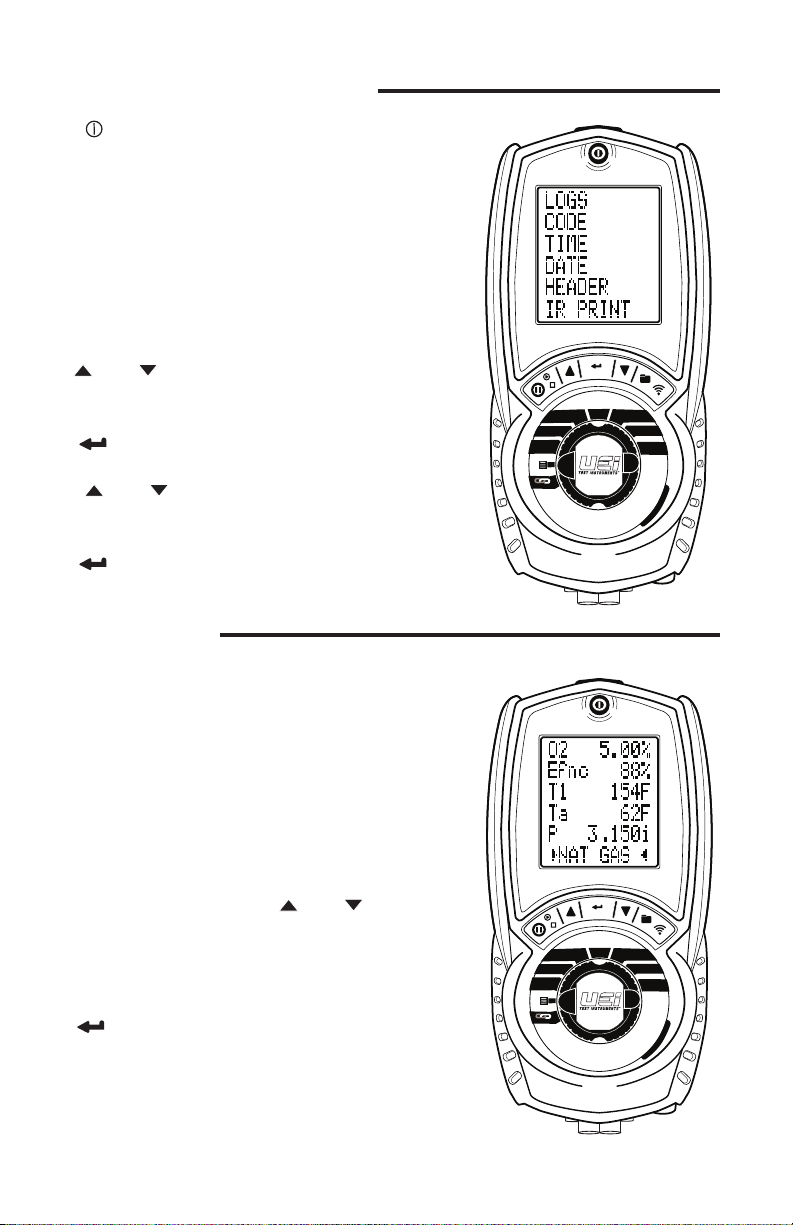

MENU SCREEN - C165+ START UP

STATUS SCREEN

Rotate Selector Dial to STATUS to view parameters

ATM

CAL

DATE

TIME

BATTERY LEVEL

Change Fuel Type

With the ﬁrst line selected press and ARROW

BUTTONS to change currently selected Fuel. (NAT

GAS, H OIL, PELLETS, mmHG, PSI, kPA, PA, mmH2O,

mBar)

Press Button to select.

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

BEFORE TESTING

Remove the rubber boot and red

drain plug. Allow the water to

drain out. Re-insert the rubber

plug and replace boot cover.

Remove protective rubber boot.

Remove water trap from analyzer.

Remove particle ﬁlter from water

trap and replace with new one.

Reattach trap and boot.

CHECKLIST

oClean particle ﬁlter

oWater trap and probe line are

free of condensate

oAll hose and thermocouple

connections are properly

secured

oWater trap is ﬁtted correctly

oPower on and zero

oFlue gas probe is sampling

ambient FRESH air

AUXILIARY SCREEN

The AUX screen allows you

to assign any of the following

parameters on any display line.

CO2, CO, NO (if ﬁtted), NOx

(if ﬁtted), O2, TF, Ti, Ta, Delta

T, Loss, EFg, Xair, Ra (CO/CO2

Ratio), PI, Fuel Type, PRS or

Blank.

To customize the settings

displayed on screen.

Rotate dial to .

Scroll or to SCREEN.

Press .

Scroll or to AUX.

Press .

Scroll or to select

the line to change.

Press .

Highlighted line shows

current selection.

Scroll or to change

parameters.

Press to select.

Scroll or to select

another line to customize

and repeat.

When ﬁnished, scroll or

to BACK.

Press .

When performing a

combustion Test.

Rotate function rotary dial to

AUX to Test while viewing

custom parameters that you

selected.

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

BASIC CO/COMBUSTION ANALYSIS

Insert Flue probe into stack.

Adjust cone so end of the

probe is approximately at the

center of the stack.

NOTE: You will have to drill a

hole at least 3/8”. Use appropriate

sealing method after testing.

Rotate selector dial to O2/Eff

to view:

CO2

Efgc

(Status Bar - NAT GAS)

Fuel type can be changed via

or STATUS setting

Rotate selector dial to CO/

CO2 to view:

COa

LOSS

XAIR O2++

(Status Bar - NAT GAS)

Fuel type can be changed via

or STATUS setting.

Make any adjustments as

needed for proper

combustion and wait for

analyzer to display change

in readings. (Repeat as

necessary).

T2 T1

P2 P1

Once complete, remove probe from stack, allow analyzer to purge in fresh air until CO sensor

readings return to ZERO (0) and O2readings reading return to 20.9%.

Continue to the next test or power analyzer off by pressing , if ﬁnished.

NOTE: Print and store functions may be used at any time during testing.

T2 T1

P2 P1

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

Rotate the selector dial to

PRS/TEMP.

Press to Zero Pressure

sensor. No connections

when zeroing pressure.

Connect true draft hose to P1.

Connect second probe to P2

for differential pressure.

Place combustion probe or

true draft probe tip in the

ﬂue to measure draft.

Connect static pressure

hose to measure differential

pressure.

T2 T1

P2 P1

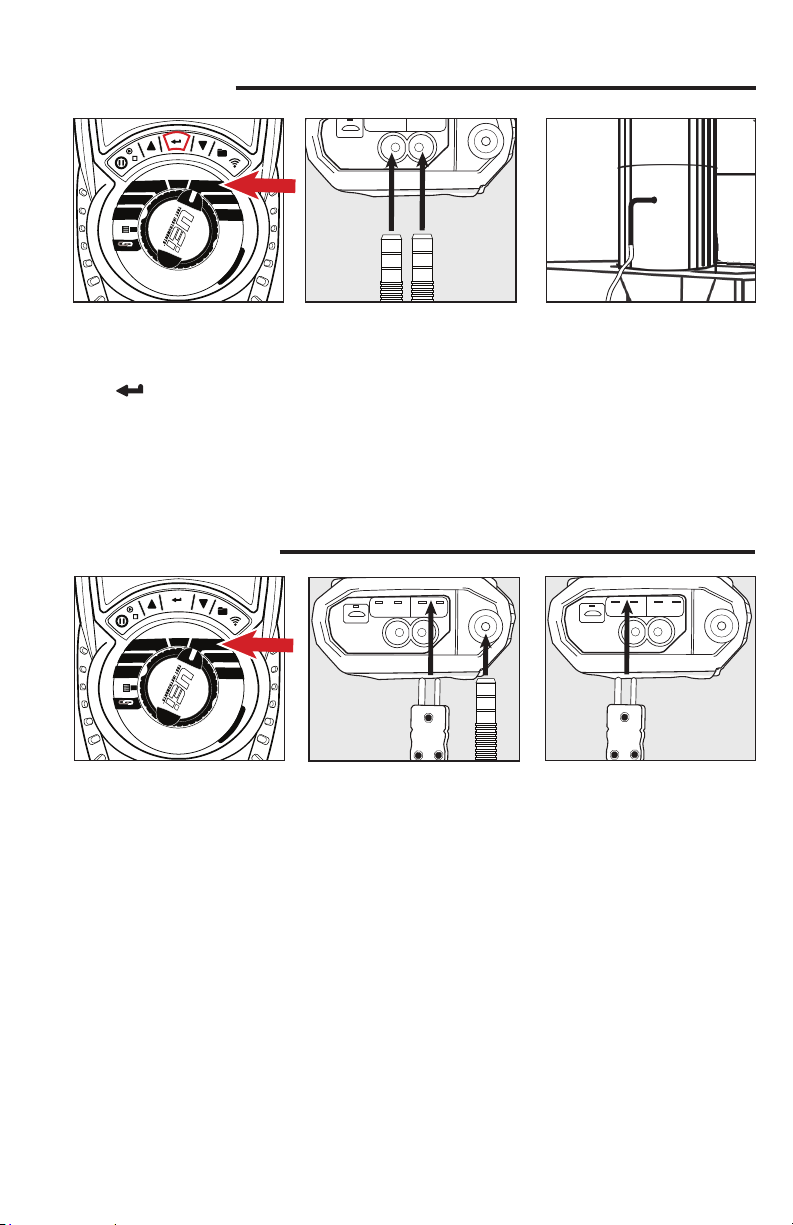

PRESSURE TEST

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

TEMPERATURE TEST

Rotate the selector dial to

PRS/TEMP

T2 T1

P2 P1

T2 T1

P2 P1

Connect probe to T1.

Compatible with any K-Type

thermocouple probe or clamp.

Connect second probe to T2.

Compatible with any K-Type

thermocouple probe or clamp.

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

HEAT EXCHANGER TEST

Rotate dial to EXCH TEST.

Press to start.

The analyzer will wait 60

seconds and then record the

Post-Blower values for CO,

02and Excess Air.

Scroll or to select

FUELTYPE.

Press

Test results and LOG number

will display when done.

Press to print the results.

This LOG will be stored in

REPORTS/EXCHANGE in the

MENU screen.

Call for heat on the system.

Observe and wait for O2

readings to stabilize.

After the blower turns on,

press the to start the

Post-Blower test

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO

ROOM CO TEST

No probes or hose

connections required for

this test.

Rotate dial to ROOM CO.

Press to select

GENERAL test type.

CO reading will be logged

every minute for 30 minutes.

Readings will be stored

once the 30 minute test is

completed.

Test results and LOG number

will display when done.

Press to print the results.

This LOG will be stored in

REPORTS/ROOM CO in the

MENU screen.

PRINTING AND LOGGING

Align Printer in line above

analyzer.

Press or Buttons

to select Log number of that

type of Report.

Scroll or to PRINT.

Rotate rotary dial to Menu.

Press or Buttons to

select Report.

Press Button to select

Report.

Press Button to print

Report Log Number.

Press or Buttons to

view types of Reports.

Press Button to select

Report type.

Press Button to View.

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

ExchTest

ROOMCO

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

ExchTest

ROOMCO

Download the full

Owners Manual at

UEiTEST.COM or

SCAN THIS CODE

SETUP USER FUEL

POST TESTING

BATTERIES

The analyzer is ﬁtted with 3 (AA)

size rechargeable batteries.

Observe correct polarity when

replacing.

Always check operation

immediately after battery

replacement.

Do not leave batteries in unit for

extended periods of non-use.

WARNING

Do not recharge with Alkaline

batteries ﬁtted. Alkaline batteries

are not rechargeable. Attempting

to recharge alkaline batteries

may result in product damage

and create a ﬁre risk.

Time and Date will need to be

reset after changing batteries.

Always dispose batteries using

approved disposal methods that

protect the environment.

Remove the probe from the ﬂue

and allow analyzer to purge with

fresh air until readings return to

zero. O2to 20.9%

CAUTION: probe tip will be HOT.

POWERING OFF

When you power off the C165+, there is a 10 second purge.

CAUTION

Make sure you do not exceed the analyzer’s operating speciﬁcations.

• Do not exceed the ﬂue probes maximum temperature (1112˚F)

• Do not exceed the analyzer’s internal temperature range 112°F (50°C)

• Do not put the analyzer on a hot surface

• Do not exceed the water trap’s level

• Do not let the particle ﬁlter become dirty and blocked

Rotate dial to Menu UNITS shows press to

proceed.

C165+

Status

LINK

Aux

O2/Eff CO/CO2 Temp

Exch Test

ROOM CO
