PRODUCT USER GUIDE
IP-04 Weatherproof Enclosure
PLEASE READ THIS USER GUIDE BEFORE INSTALLING, OPERATING
OR PERFORMING MAINTENANCE ON THE ENCLOSURE.
Rev: C1
INTRODUCTION
IP-04 WEATHERPROOF ENCLOSURE USER GUIDE
2
Thank you for purchasing this UFO weatherproof enclosure which is fitted with an LED light
source unit.
To ensure the enclosure is mounted and connected correctly please read this user guide before
installing and operating or performing any maintenance on the enclosure. To ensure that the
light source within the enclosure is set up optimally and gives a long service life, please read the
light source user guide supplied with the enclosure before installing operating or performing
any maintenance on the unit.
Please keep both these guides for future reference.
This user guide is laid out in 3 sections:
Introduction - information on the enclosure and its light source.
Installation - details on how to install and power up the enclosure
(supplements the light source guide).
Maintenance - maintenance log, troubleshooting guide, technical specification.
IMPORTANT
This product must be installed in accordance with the applicable installation code, by a person
familiar with the construction and operation of the product, and the hazards involved. When
used in the USA or Canada, cables connected to this enclosure must be UL listed and not only
suitable for functional purposes but also for the environment/location in which the enclosure is
installed.
Type Y Attachment: If the external flexible cable or cord of this luminaire or associated
PSU/driver is damaged, it shall be exclusively replaced by the manufacturer or his service agent
or a similar qualified person to avoid a hazard.
Location: This enclosure must be located out of direct sunlight and away from areas prone to
flooding.
Circulation: It is imperative that a gap of at least 300mm is le around the unit and it is located
away from any other heat source. This is to allow air to circulate and prevent overheating. The
location must have free ventilation and must not have an ambient temperature higher than
that specified for the unit.
Mounting: This enclosure should be fixed upright to a vertical surface only, with suicient gap
at the front to allow the enclosure lid to be opened the full 130° for internal access.
Seal Integrity: Always close and secure the enclosure door aer access.
MODEL VARIATIONS
The UFO IP-04 enclosure is available in two power source variants:
1. DC supply (48V DC) denoted by the model number having the suix DC. Only Comet is
available in a DC version. This version has the light source DC PSU mounted remotely external
to the enclosure and the unit is powered from the DC supply to a terminal block inside the en-
closure. For this version, the PSU can be supplied by UFO or the customer. For the USA and
Canada, if supplied by the customer the PSU must be UL listed and not only suitable in terms of
correct voltage and wattage but also suitable for the environment/location in which the PSU is
to be installed.
2. Mains supply (240V 50 Hz) denoted by the model number having the suix AC. For Comet this
version has the light source 48V DC PSU mounted inside the enclosure. Because Quasar is only
mains powered, only a mains supply version is available. For this enclosure version, the unit is
powered from a mains supply to a fused terminal block inside the enclosure.
Four IP-03 enclosure variants are shown in the examples on the followng pages.
Figures 1 and 2 are schematics of the 48V light source version using a UFO Comet light source as
an example. For DC supply voltages more than 12V a DC-to-DC converter is used to power the
12V DC fan.
Figure 3 is a schematics of the Quasar AC (mains) powered light source.
INTRODUCTION
3
UFO LIGHTING
INTRODUCTION
FIGURE 1- AC SCHEMATIC USING COMET LIGHT SOURCE
IP-04 WEATHERPROOF ENCLOSURE USER GUIDE
4
INTRODUCTION
FIGURE 2- 24VDC SCHEMATIC USING COMET LIGHT SOURCE
5
UFO LIGHTING
INTRODUCTION

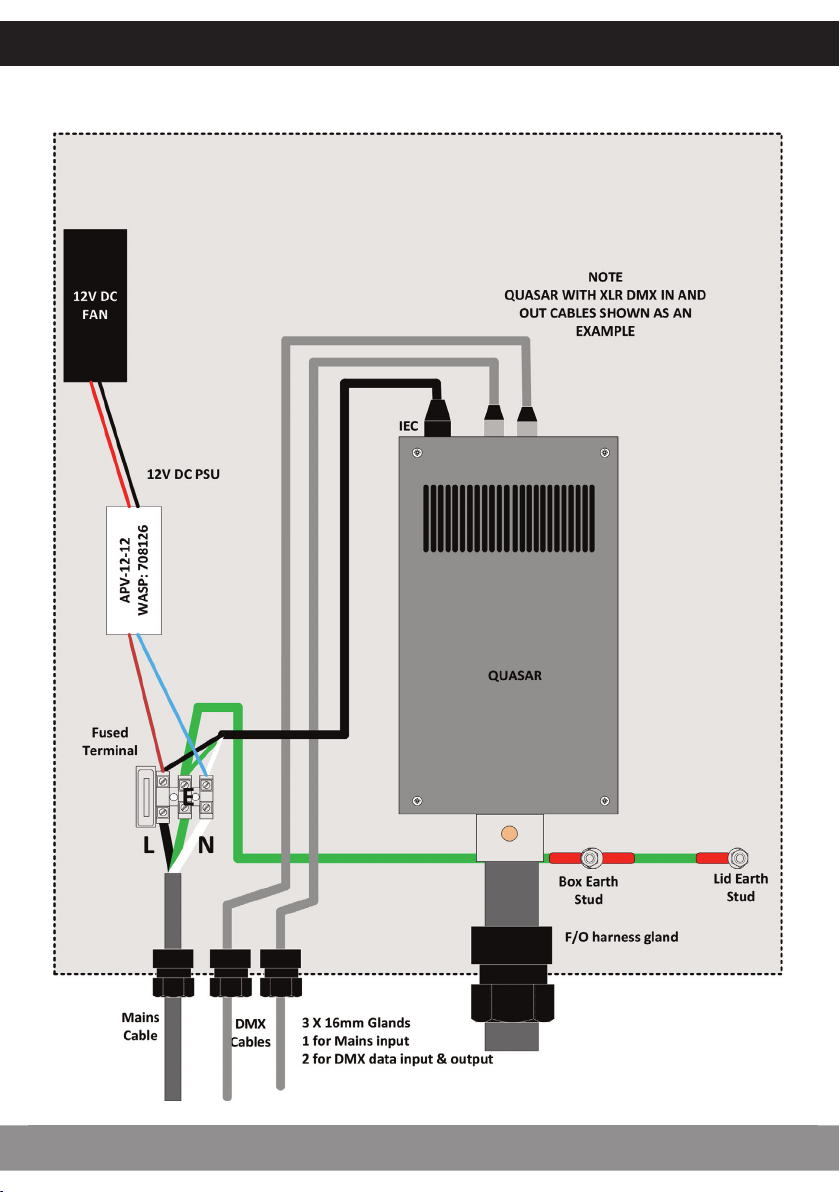

FIGURE 3- AC SCHEMATIC USING QUASAR LIGHT SOURCE
IP-04 WEATHERPROOF ENCLOSURE USER GUIDE
6
INTRODUCTION
7
UFO LIGHTING

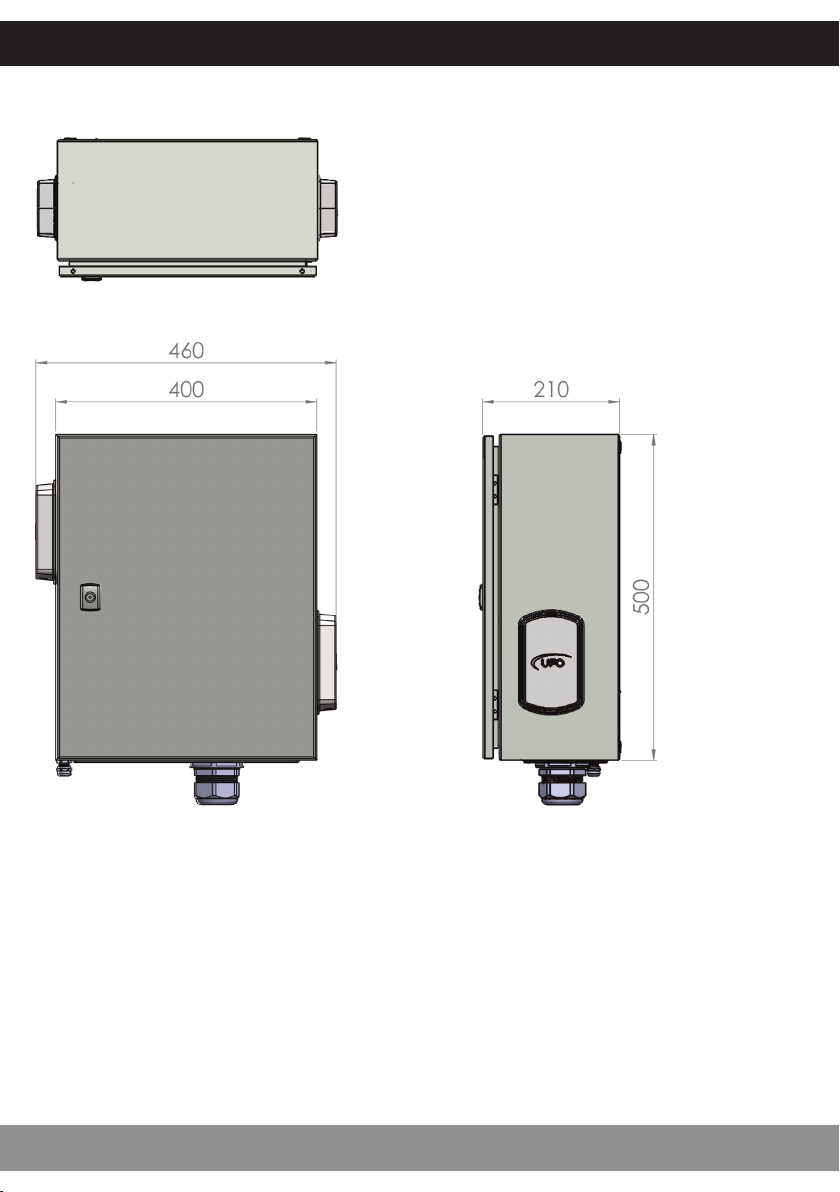

DIMENSIONS
Note that dimensions are shown in mm.
MODEL INFORMATION
INTRODUCTION
8IP-04 WEATHERPROOF ENCLOSURE USER GUIDE
COMET PRODUCT CODES
Ordering Code Control Opons Power Variant Total Power
UFO IP04COM50DMXAC Manual, DMX, 010V, 110V 240VAC 50Hz 60W
UFO IP04COM50DMXDC Manual, DMX, 010V, 110V 48V DC 60W
UFO IP04COM50DMXDAC As above + Dali with
interface 240VAC 50Hz 60W
UFO IP04COM50DMXDDC As above + Dali with
interface 48V DC 60W
Ordering Code Control Opons Power Variant Total Power
UFO IP04QUACT180XAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT290XAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT180EAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT290EAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
CT1 in product code is used to designate white colour temperature @ 80CRI - 30 (3000K), 40 (4000K),
50 (5000K), 57 (5700K) or 65 (6500K)
CT2 in product code is used to designate white colour temperature @ 90CRI - 30 (3000K), 40 (4000K),
50 (5000K) or 57 (5700K)
QUASAR WHITE LIGHT PRODUCT CODES
INTRODUCTION
5
UFO LIGHTING 9
Ordering Code Control Opons Power Variant Total Power
UFO IP04QUACT180CAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT290CAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT180TAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT290TAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT180CFAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
UFO IP04QUACT290CFAC Manual, DMX, 010V, 110V 240VAC 50Hz 150W
COMET PRODUCT CODES
CT1 in product code is used to designate white colour temperature @ 80CRI - 30 (3000K), 40 (4000K),
50 (5000K), 57 (5700K) or 65 (6500K)
CT2 in product code is used to designate white colour temperature @ 90CRI - 30 (3000K), 40 (4000K),
50 (5000K) or 57 (5700K)
INSTALLATION
10 IP-04 WEATHERPROOF ENCLOSURE USER GUIDE
MOUNTING THE ENCLOSURE
The IP55 certification of these weatherproof enclosures is only valid if the enclosure is
wall mounted in the orientation detailed below.
The enclosure must be located out of direct sunlight and there must be a minimum of
300mm (12”) of space around all sides to allow for air circulation and to prevent
overheating.
Mounting the enclosure in any other way will invalidate the IP rating and the product
warranty.
UFO will accept no responsibility for any loss or damage that occurs due to incorrect
mounting.
