Ultafly RADIX 3D Bedienungsanleitung
請注意
．組裝前請先閱讀使用說明書
．初學無任何組裝經驗者請與經驗較豐富的高階玩家一同組裝
．請在孩童拿不到零件的環境下組裝以確保安全
．請保留本說明書方便您日後的快速查閱
www.ultraflymodel.com
M O D E L S
INSTRUCTION MANUAL
ＲＡＤＩＸ
ＲＡＤＩＸ

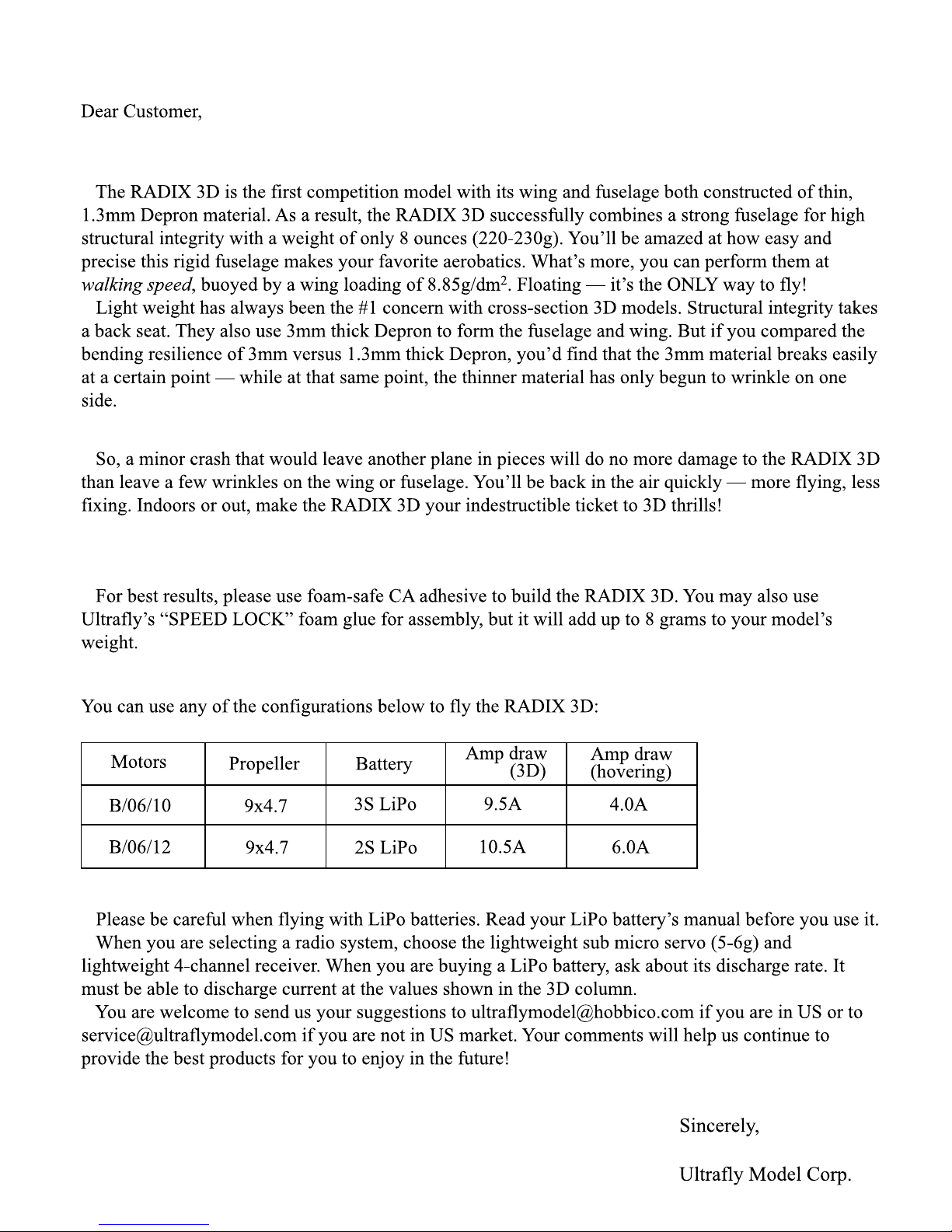

-------INDEX
●1.Parts index．零件表________________________________
●2.Tools and radio required for assembly．組裝前注意事項____
●3..Fuselage assembly．機身的組裝______________________
●4.Tail assembly．水平尾與垂直尾組裝___________________
●5.Power system．動力組組裝 _________________________
●6.Airframe．機身架構的組裝__________________________
●7.Receiver assembly．接收機線路的組裝________________
●8.Landing Gear．起落架的組裝________________________
●9.CG:Control Surface set-up & Test Flying_______________
For Advance Flyers．適合進階玩家
Length (全長)
Wing Span (翼展)
Wing Area (翼面積)
Radio Requirement
Flying weight(全備重)
760 mm 30.1 In
720 mm
230 g 8 oz
28.3 In
20.2 Dm2313.1 Sq In
4 Channel 4動作
重心及注意事項
1
2
3
5
7
8
9
11
12
PRECAUTION
．Please read through the entire instruction manual before you start .
．First time builders if not familiar with the processes in the manual,
please find an experienced builder to help with assembly.
．Always keep children away from the assembly area due to small parts
and glue which are dangerous to children.
．Please save this instruction manual for future repair or parts ordering
purposes.
1
Carbon Rod 1*320mm x 2pcs
碳纖推拉桿
Carbon Rod 1*290mm x 4pcs
Carbon Rod 1*180mm x 4pcs
Carbon Rod 1*170mm x 2pcs
Carbon Rod 1*75mm x 4pcs
Carbon Rod 1.5*700mm x 2pcs
Carbon Rod 1.5*220mm x 2pcs 20mm
Carbon Rod 1.5*120mm x 1pce.
Carbon Rod 1.5*100mm x 2pcs
Carbon Rod 2*170mm x 2pcs
Heat-Shrinkable Tube
Heat-Shrinkable Tube
Carbon Rod 3*120mm x 1pce.

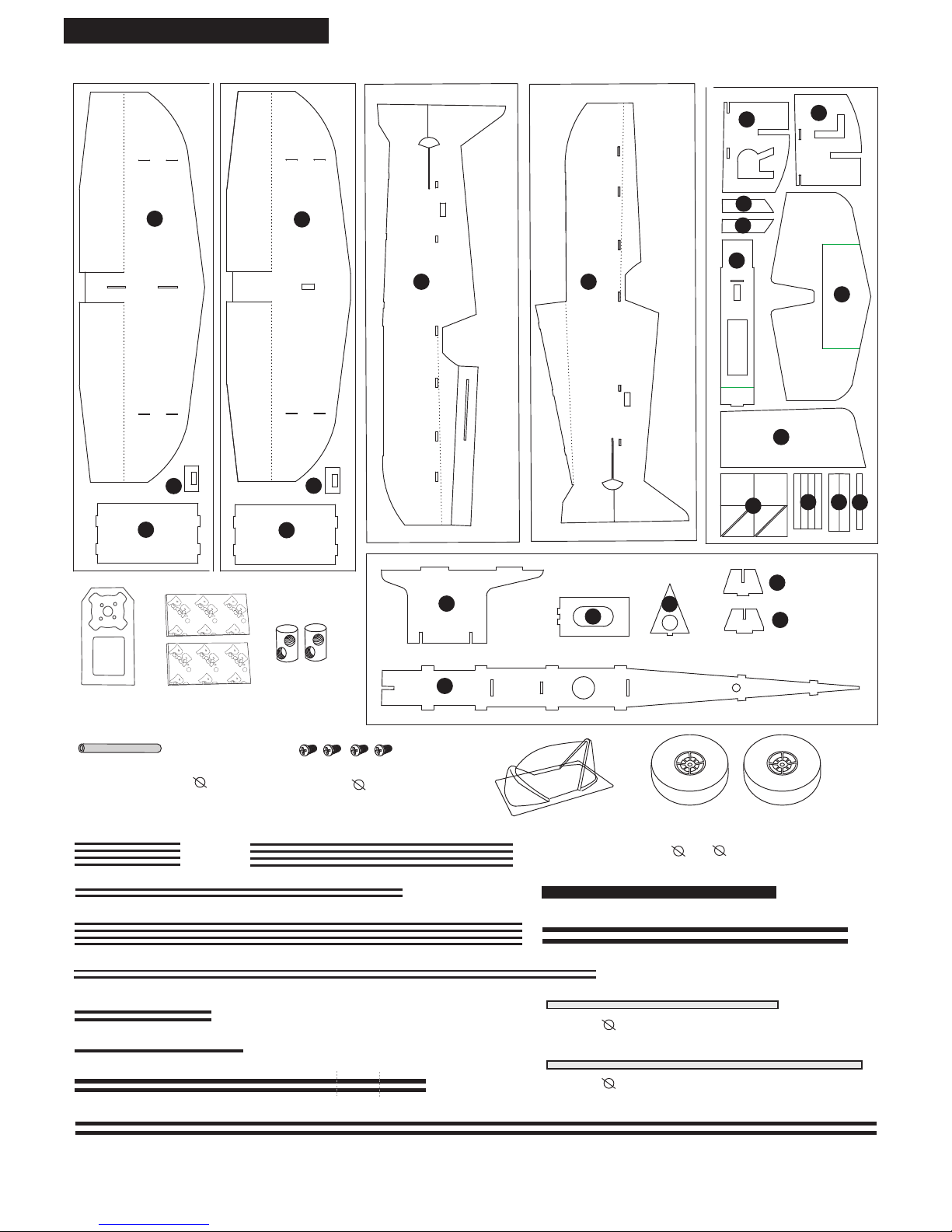

INCLUDED PARTS
20mm
無刷擋火牆
Firewall
熱縮套管 1.5*100m m x 1pce.
熱縮套管 4*250m m *1 x 1pce.
輪擋套管
Wheel Stop Tube 1.4*20mm
自攻螺絲
Light Weight Wheel
泡棉輪胎
1.6* 35*T9mm x 2pcs
R
R
R
R
R
R
魔鬼氈
Velcro
腳架轉接頭
Landing gear
adapter
座艙罩
Canopy x 1pce.
Screws 2.06*8mm
x 4pcs
x 2pcs
x 2pcs
x 1pce.
x 1pce.
2
4
5
3
13 12
10
11
9
78
6
1
17
25
16
14
15
20
19
18
24
23
2122
Airframe Depron 珍珠板機身

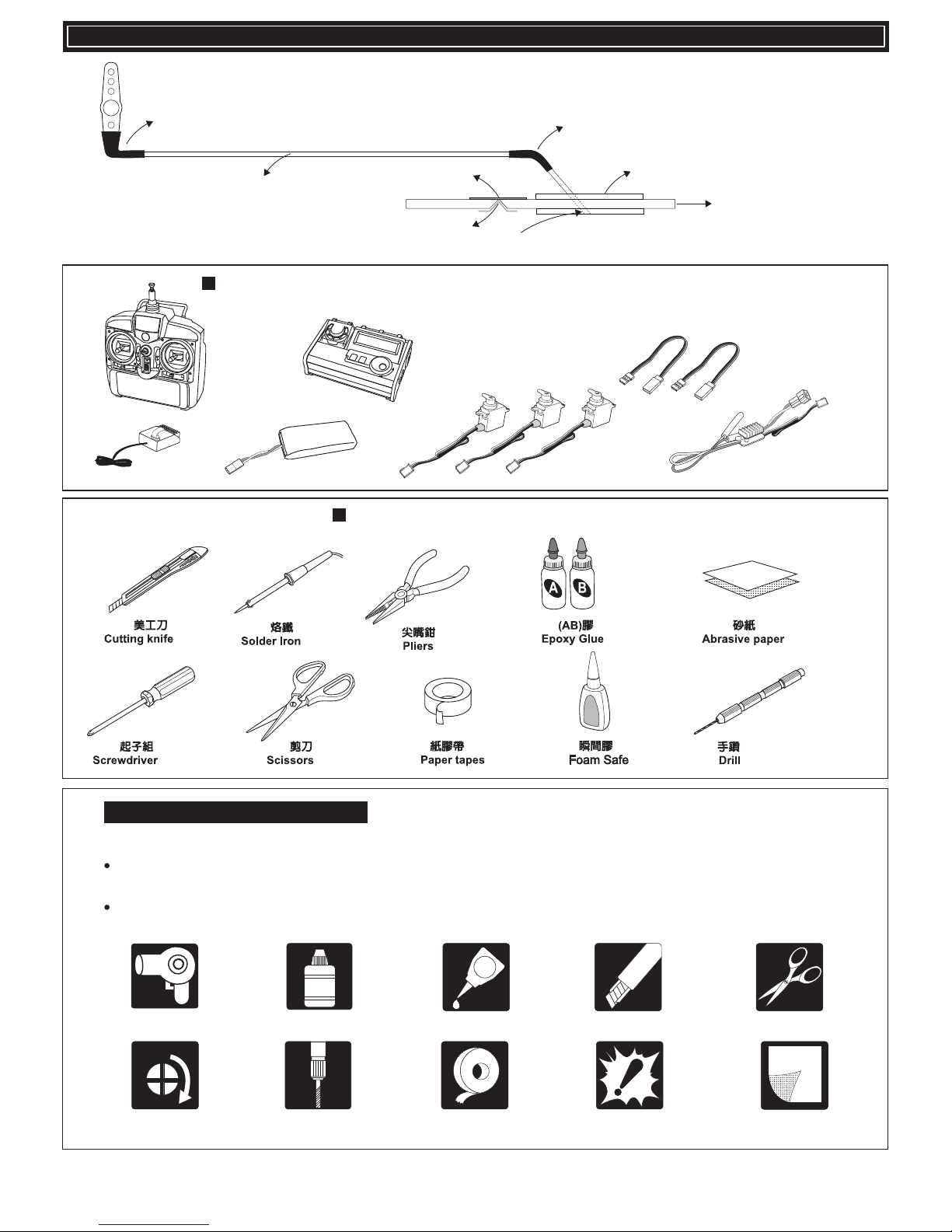

TOOLS REQUIRED 主裝必須工具
CA
Glue
Receiver
接收機 Micro servos x 3
伺候器 x 3
4~8 Channel
transmitter
4 動作以上發射機 Extension x 2
延長線 x 2
Brick type
電池 Electronic speed controller
電子變速器
Battery charger
充電器
REQUIRED FOR OPERATTION ( Not included in kit ) 另購裝備
INCLUDED PARTS
BEFORE YOU BEGIN
<組裝注意事項>
Read through the manual before you begin,so you will have an overall idea of what to do.
組裝前請詳閱說明書
Symbols used thoughout the instruction manual.
請依符號指示組裝
C.A
Foam Safe C.A
使用瞬間膠
Cutting knife
使用美工刀
Use scissors
使用剪刀
Use screwdriver
Fan heater
使用起子組
Use drill
使用手鑽
Important
重點
Pliers
使用紙膠帶
Abrasive paper
砂紙
Foam
Safe
CA
Apply foam glue
使用保麗龍膠
2
吹風機
Battery
black heat shrink tube!
1.5mm Carbon Rod Tape
1.5mm Carbon Rod
black heat shrink tube!
2mm depron
control surface
Tape
Foam
Safe
CA
Foam
Safe
CA
Foam
Safe
CA
Foam
Safe
CA
Foam
Safe
CA
3

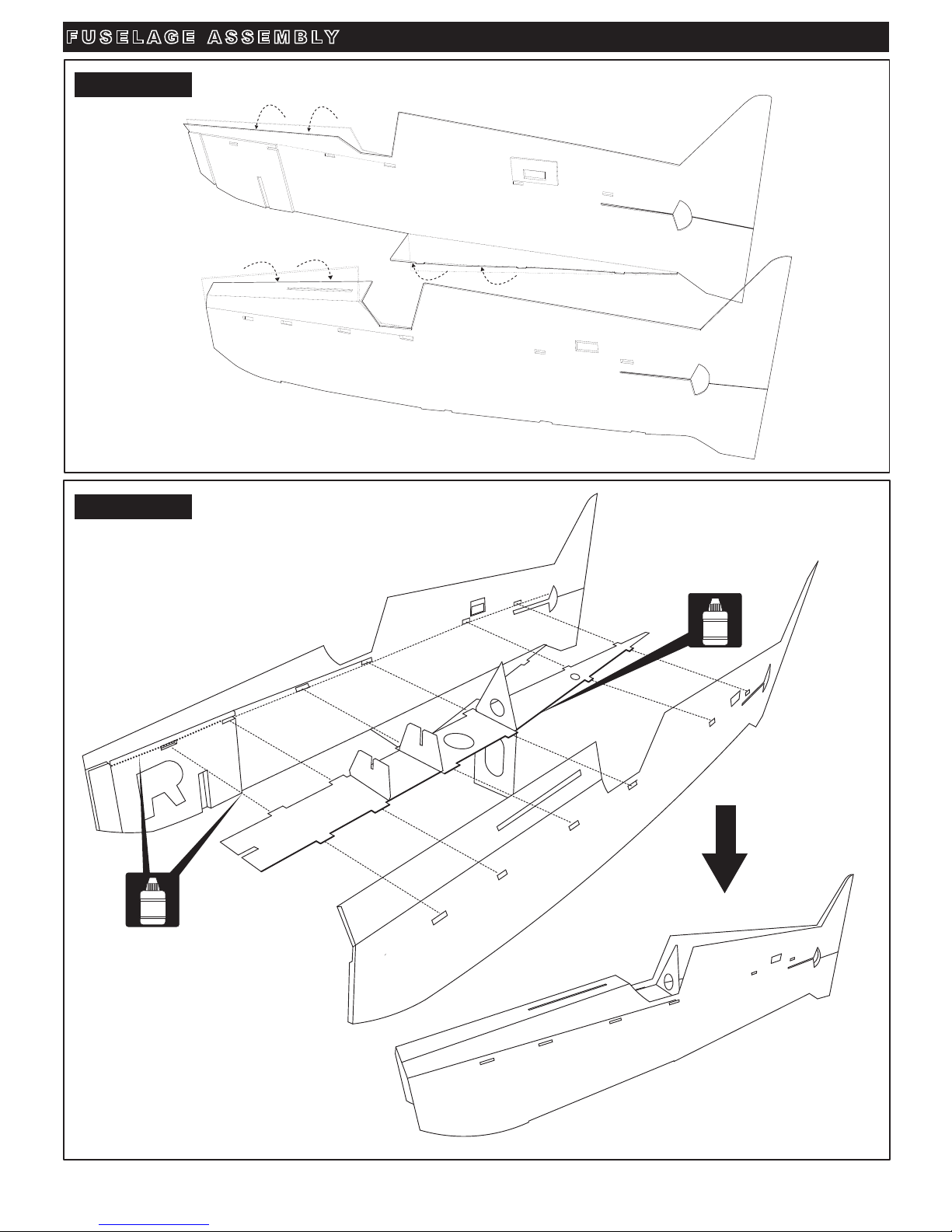

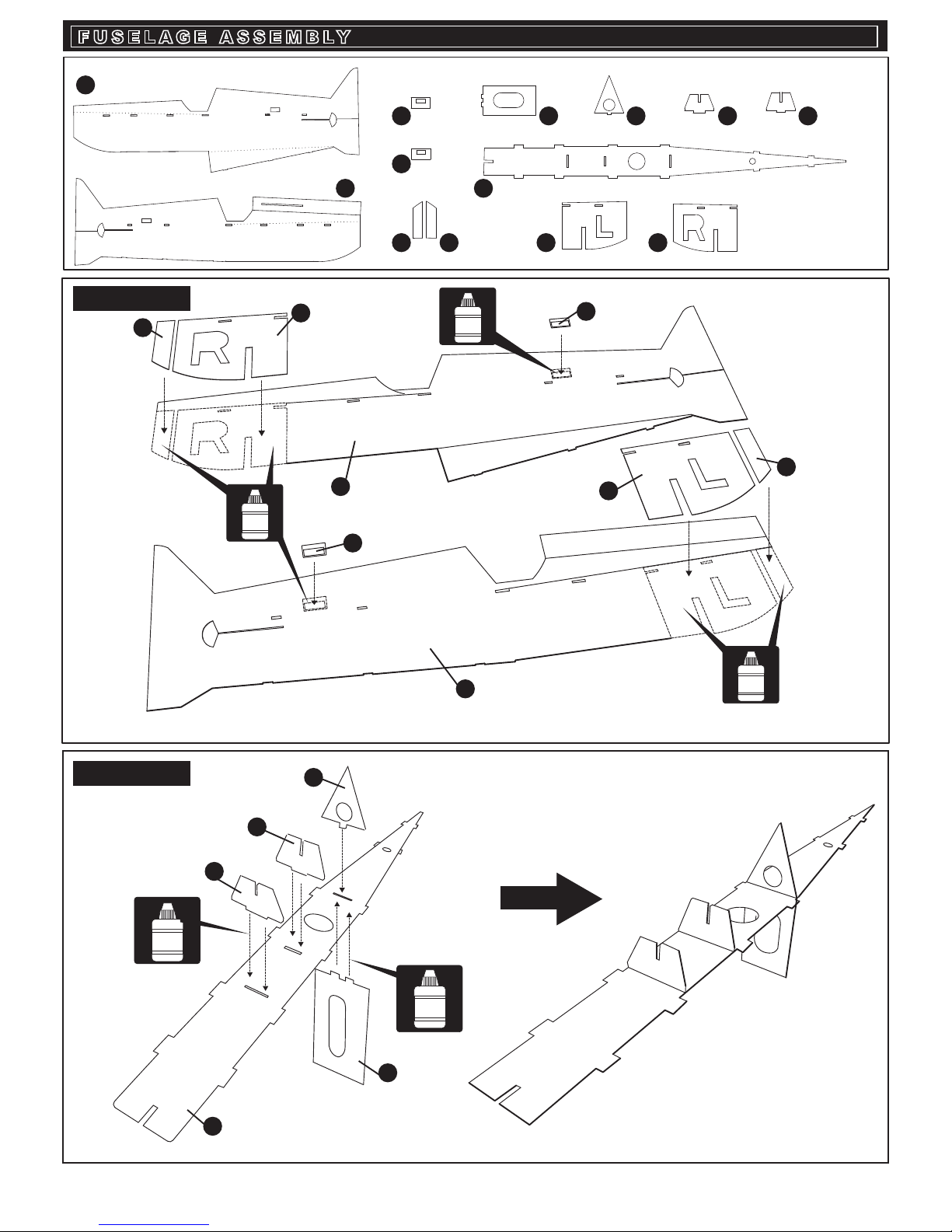

F U S E L A G E A S S E M B L Y
Procedure 1
Procedure 2
1
2
453
13 12 10 11
9
7
8
6
56
1
8
4
3
2
7
13
12
10
11
9
4
Procedure 3
Procedure 4
Foam
Safe
CA
Foam
Safe
CA
F U S E L A G E A S S E M B L Y
Foam
Safe
CA
Foam
Glue
C.A
Use paper tapes
使用紙膠帶
Use paper tapes
使用紙膠帶
Use paper tapes
使用紙膠帶
Abrasive paper
砂紙
5
TAIL ASSEMBLY
Procedure 1 Procedure 2
Procedure 3 Procedure 4
Procedure 5 Procedure 6
16
Carbon Rod
碳纖推拉桿
Carbon Rod 3*120mm
碳纖推拉桿
15
14 19 17 18
20
17 15
16 17
18
19
20
21 22
Foam
Safe
CA
Foam
Safe
CA
16
Foam
Safe
CA
C.A
C.A
５０
1.5*700mm x 2 pcs
6
Foam
Safe
CA
Foam
Safe
CA
Foam
Safe
CA
Procedure 7
Procedure 8

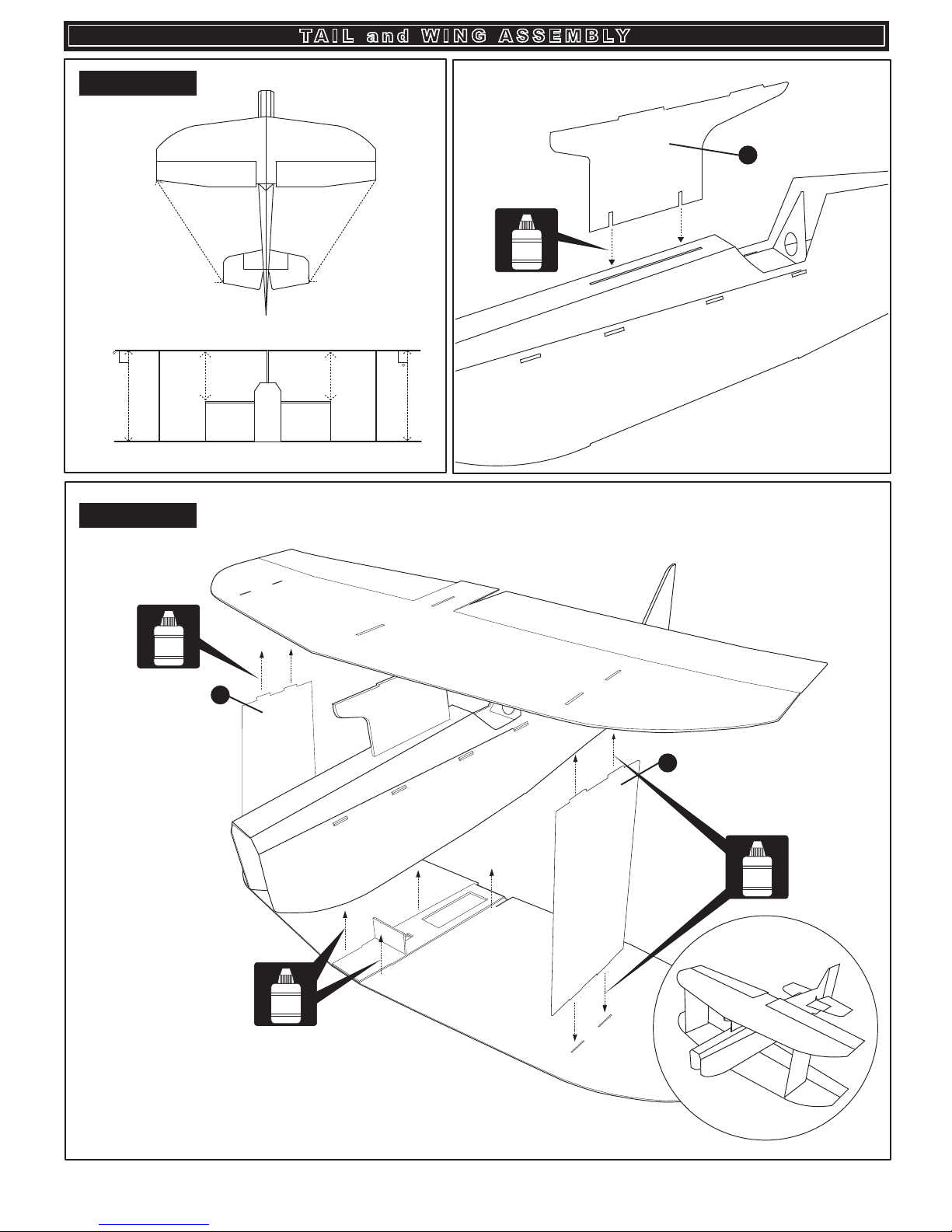

T A I L a n d W I N G A S S E M B L Y
Foam
Safe
CA
14
dfg c
ab
ab
=
c d
=
fg
=
90
90
21
22
自攻螺絲
Screws 2.06*8mm
Firewall
無刷擋火牆
POWER SYSTEM
Procedure 1 Procedure 2
Procedure 3
7
Foam
Safe
CA
x 1 pce.
x 4 pcs
Carbon Rod 1*320mm
碳纖推拉桿 x 2 pcs
1
2
1
1
2
3
3
8
3
Carbon Rod 1*180mm
碳纖推拉桿 x 2 pcs
Carbon Rod 1*290mm
碳纖推拉桿 x 4 pcs
2
Carbon Rod 1*170mm
碳纖推拉桿 x 2 pcs
4
4
4
Foam
Safe
CA
Foam
Safe
CA
Foam
Safe
CA

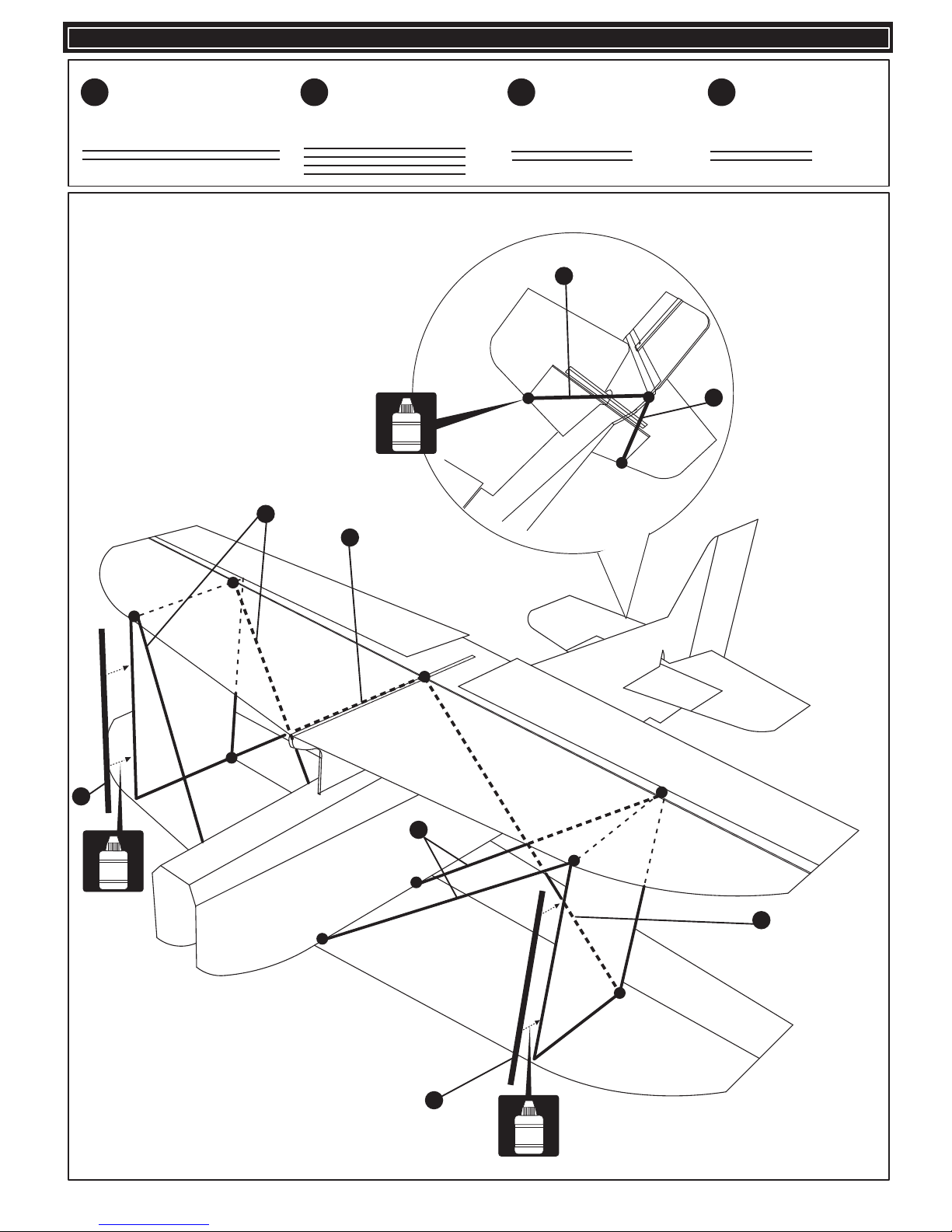

AIRFRAME
