UniGuard UT01 Bedienungsanleitung
UniGuard Technology Limited
GPS/GPRS/GSM Vehicle Tracker
User Manual
UT01
Fast to setup device online via SMS command
A000000,022,104.243.132.242,5500,1,APN
(Call your SIM provider to get correct APN)
UniGuard Technology Limited
-- www.uniguardgps.com
1
1 System Function Introduction
This vehicle tracker has combined GPS and GSM（GPRS）
functions. Location information will be send by SMS or GPRS. You can enquiry
where the vehicle is on Google map and its history. You can control the vehicle the
engine remotely by SMS or internet.
UniGuard Technology Limited
-- www.uniguardgps.com
2

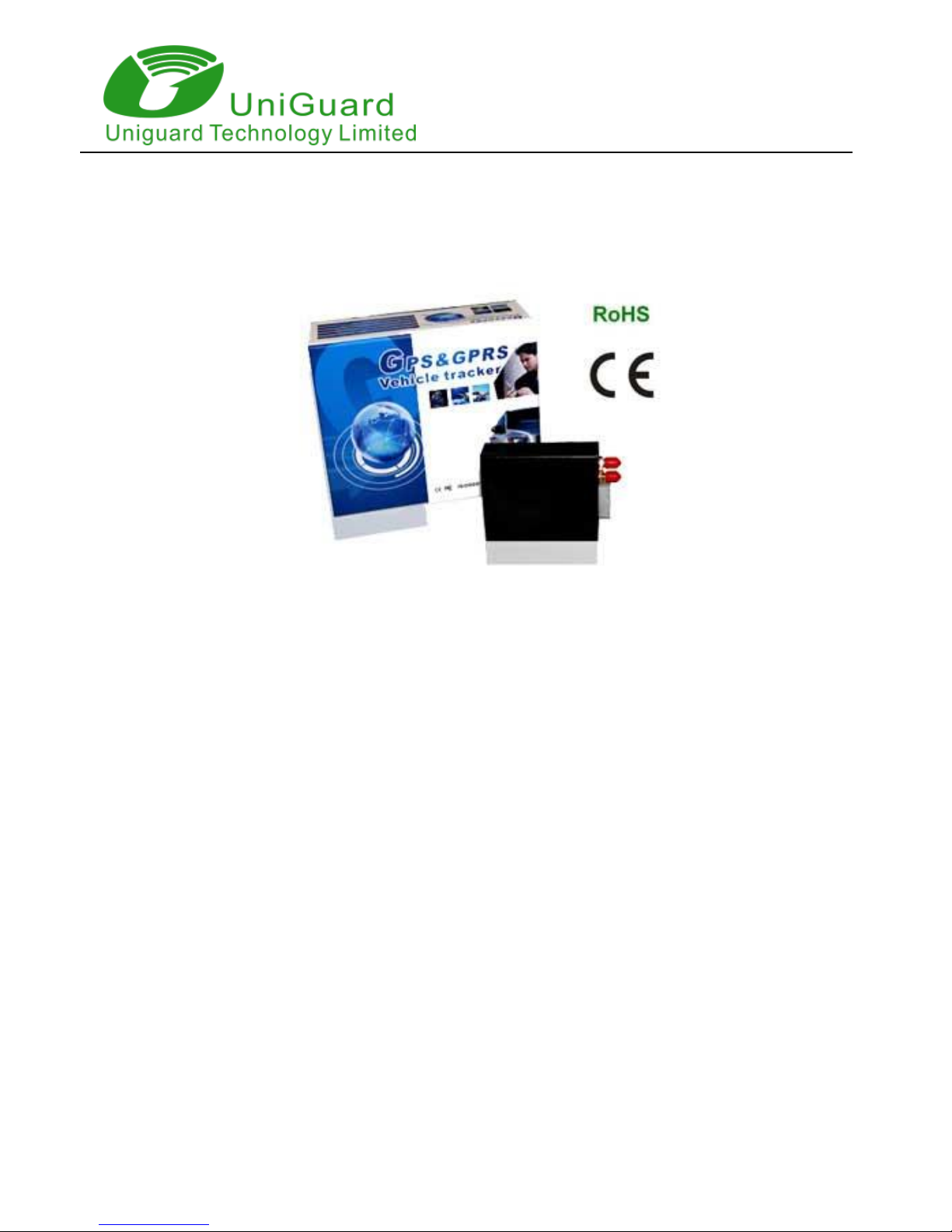

2 Product Description
2.1 Specification
GSM module:
Band:850/900/1800/1900MHz
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
GPS module:
GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Battery:
Voltage:3.7V
Charge:<4.2V
UniGuard Technology Limited
-- www.uniguardgps.com
3
Li-ion: 450mAh
Input Voltage: DC 6~36V
Operating Temperature:-45~65 ℃
2.2 Features:
1. Use Google map, Global free
2. Real-time locating / inquiry
3. SOS button/Power-cut Alarm
4. Listen by telephone
5. E-fence/Over-speed Alarm
6. Compatible original anti-theft
7. Remote control engine
3 Installation Instructions
3.1 Interface
The One side:
1109876 5432 GPS GSM
RES
UniGuard Technology Limited
-- www.uniguardgps.com
4
No.
Description
No.
Description
1
DC+ (6~36V)
6
GND
2
Extend port0
7
SOS button
3
GND
8
Extend port1
4
ACC
9
Extend port2
5
Engine cut_off control
10
Extend port3

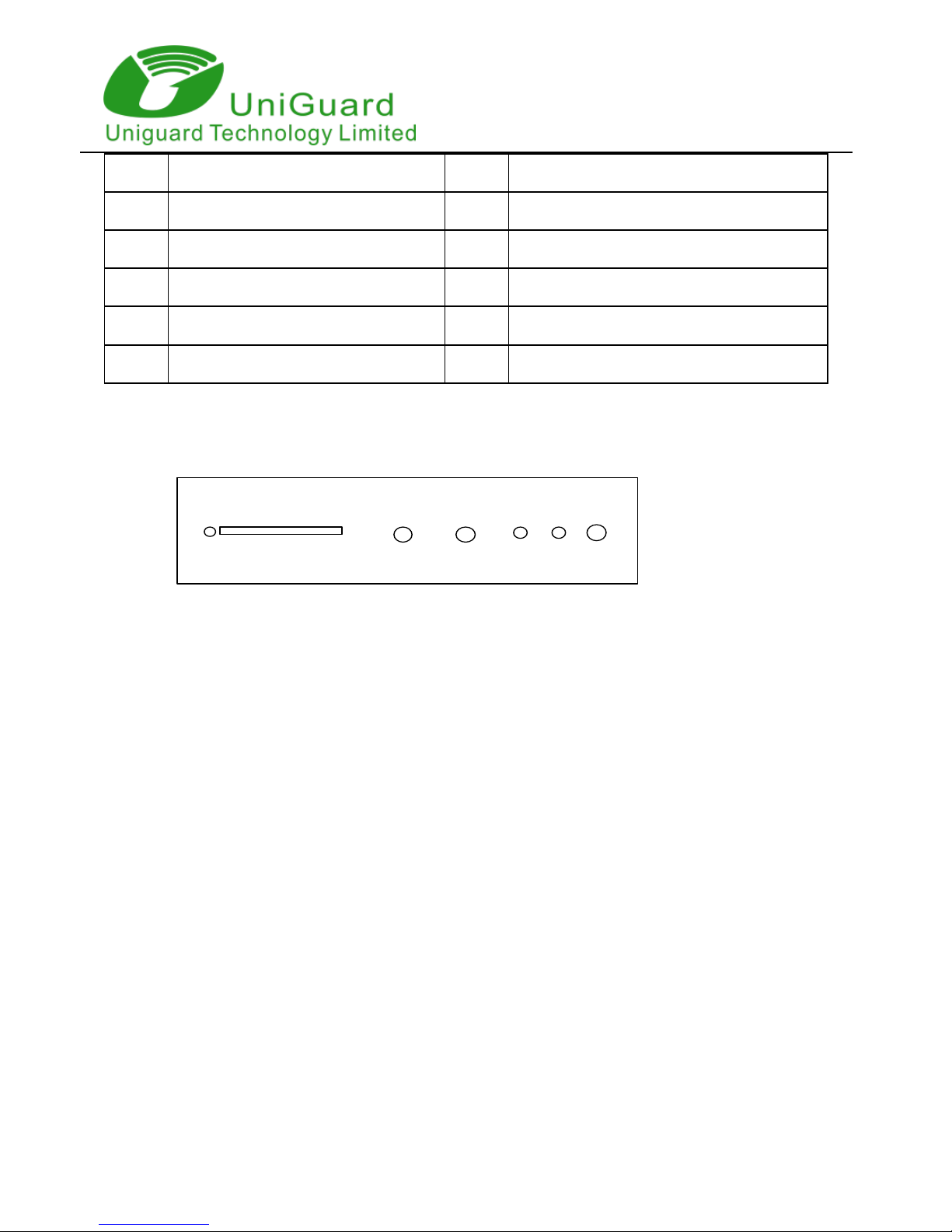

The other side
SIM MIC
PHONE LED1 ResetLED2
1、SIM: Port for SIM card
2、PHONE: Connect to Microphone
3、MIC: Connect to earphone
4、LED1: Power light
5、LED2: Status light
6、Reset
UniGuard Technology Limited
-- www.uniguardgps.com
5
3.2 Installation Figure
GPS GSM
12345
6 7 8 9 10
ANT
blue
Oil Line
pOff
DC(12V)
Oil Line
blue
SOS
ACC
Extern
Port
GND
DC（12V）
3.3 Installation and Test:
Please test after installation. If you don’t need some functions, you can
disconnect corresponding interface. Please make sure ACC, DC, GND installed
correctly. Otherwise, the device cannot work. Please check the device status
through signal light after power on:
LED1 is off which indicates there is no power.
LED2 flashes for one second which indicates GSM registers successfully.
LED2 flashes three seconds once which indicates GPS is obtaining
orientation
UniGuard Technology Limited
-- www.uniguardgps.com
6
LED2 is on which indicates work successfully that GSM has registered and
GPS has obtained the orientation.
If LED 2 is on 0.1 second then off 0.1 second for more than 3 minutes,
please make sure SIM card inserts well. Without SIM card, the device
cannot work.
4 SMS Operation Instruction
SMS Format: A******,cmd,param1,param2…
1. ******is the password, Initial Password is 000000
2. cmd is the command ID.
3. Param is the command parameter. Different cmd use different parameters.
All the parameters must use half-angle symbol. Wrong SMS format or wrong
password, it will not respond.
4.1 Location Inquiry (000/100)
Google Map reply Message format: A******,000
e.g. A000000,000
Reply: http://maps.google.com/maps?q=22.54079,113.93923 09-10-20 17:38:30
Speed:20 you can just open the link from your cell to view the map.
UniGuard Technology Limited
-- www.uniguardgps.com
7
4.2 Change Password (001)
Message format: A******,001,New Password
e.g. A000000,001,123456
Note:000000 is the old password ,123456 is the new password.
Reply: Set Password OK!
4.3 Real-time return setting (002)
Message format: A******,002,XXX
XXX=0 is for STOP, value of XXX is within [15~64800] seconds.
e.g. A000000,002,30
Message replied after successful setting: Set time interval (30) OK! Message
contains position information will be sent in every 30 seconds after successful
setting.
4.4 SOS/Listen Telephone Number setting
Message format: A******,003,P,TelNumber
P=1 is for SOS and listen
P=2 or 3 is the second\ the third listen number.
e.g. A000000,003,1,136xxxxxxxx
Message replied after successful setting: Set Telephone OK!
Keep pressing SOS button for 2 seconds. The device will send emergency SMS
and dial the number you set as SOS number.
Reply: SOS Pos: Longitude E114.04577 Latitude N22.32405 08-10-20
UniGuard Technology Limited
-- www.uniguardgps.com
8
17:38:30,
If you dial with your listen number, it can be connected automatically after the 7th
ring. Then you can listen the voice in the vehicle.
4.5 Over-speed Alarm Setting (005)
Message format: A******,005,XXX
XXX=[000,200] (unit: km/h)XXX=00 is close the function.
e.g. A000000,005,020
Message replied after successful setting: Set Over speed (20) KM OK!
If the vehicle is over speed you set, it will send alarm SMS to SOS mobile number.
20 KM/H Over speed!
4.6 e-Fence Setting(006)
Message format: A******,006,XX
XX =[00-50] (Unit:100m) .
When XX=0, e-Fence is OFF. And the maximum limited value of XX is
50*100=5000m. e.g. A000000,006,10
Reply: Set Distance (1000)M OK! When user is out of the bound region (e.g.
1020m), a prompt message will be sent to the user: 1020m is further than
1000m!
4.7 Cut-off the Vehicle Engine (007)
Message format: A******,007,X
UniGuard Technology Limited
-- www.uniguardgps.com
9
X=0 cut off engine, x=1 resume engine, For security, this command will
execute when the speed less than 20Km / h or the ACC is off.
e.g. A000000,007,0
5 GPRS Communication Settings
5.1 Set APN (APN(Access Point NAME))
Message format: A******,012,APN
Length of APN is limited within 100 characters, E.g:A000000,012,cmnet
“cmnet” is the APN of China Mobile
5.2 Set the IP and Port
Message format: A******,010,IP,PORT
e.g. A000000,010,104.243.132.242,5500
104.243.132.242 is the IP of GPRS_server, 5500 is the port
5.3 Open GPRS function
Message format: A******,011,X
(note: x=1 open GPRS, X=0 close GPRS)
e.g. A000000,011,1
GPRS function will be open, and Vehicle tracker will send data to internet, users
can turn off this function though send SMS: A000000,011,0
