INSTALLATION MANUAL UNIMI-1BASE ECO PLASTIC TM
www.unimisolution.com Copyright © 2021 Unimi Solutions AB Reg pat: EP2668063B
US9376831B2

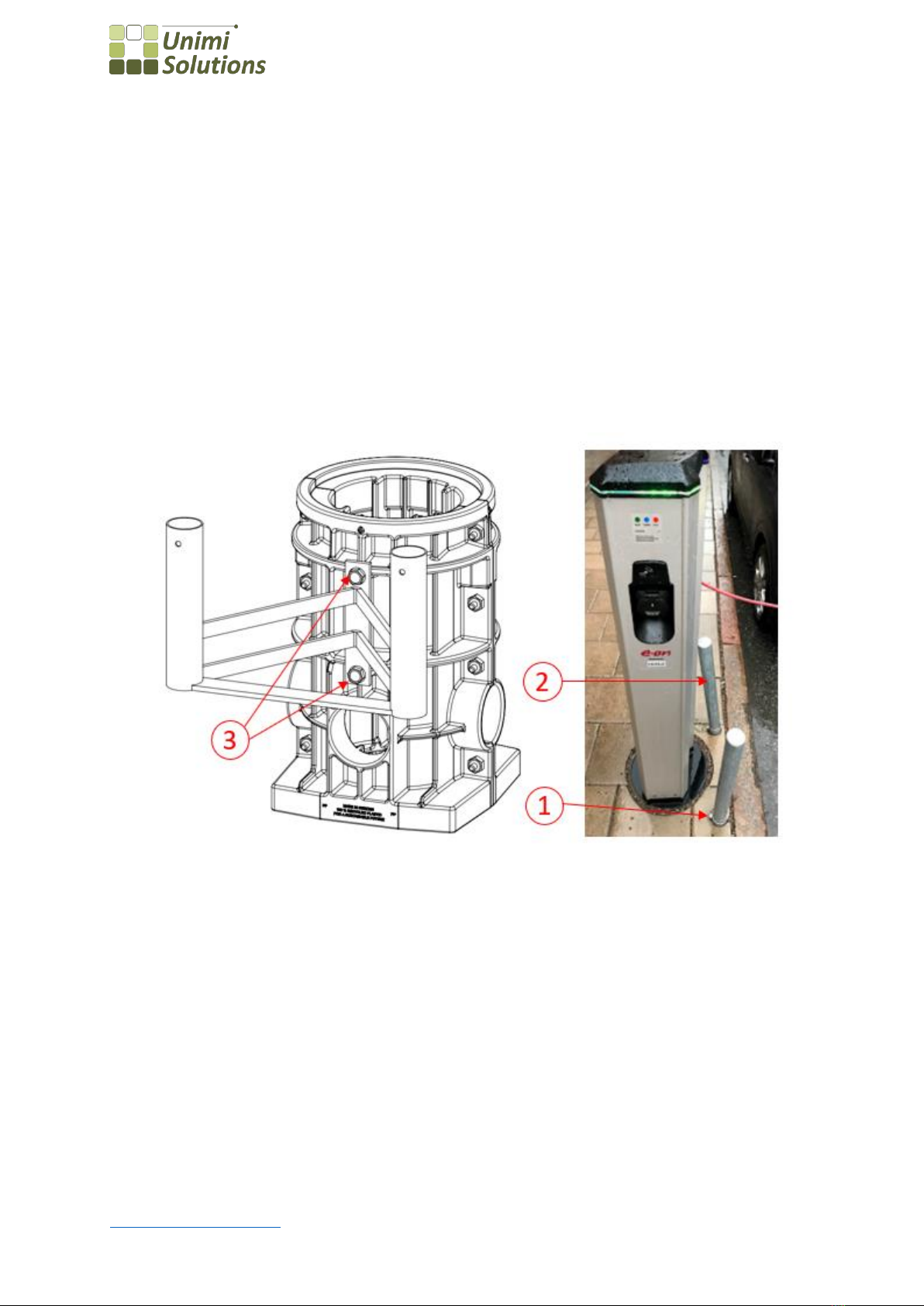

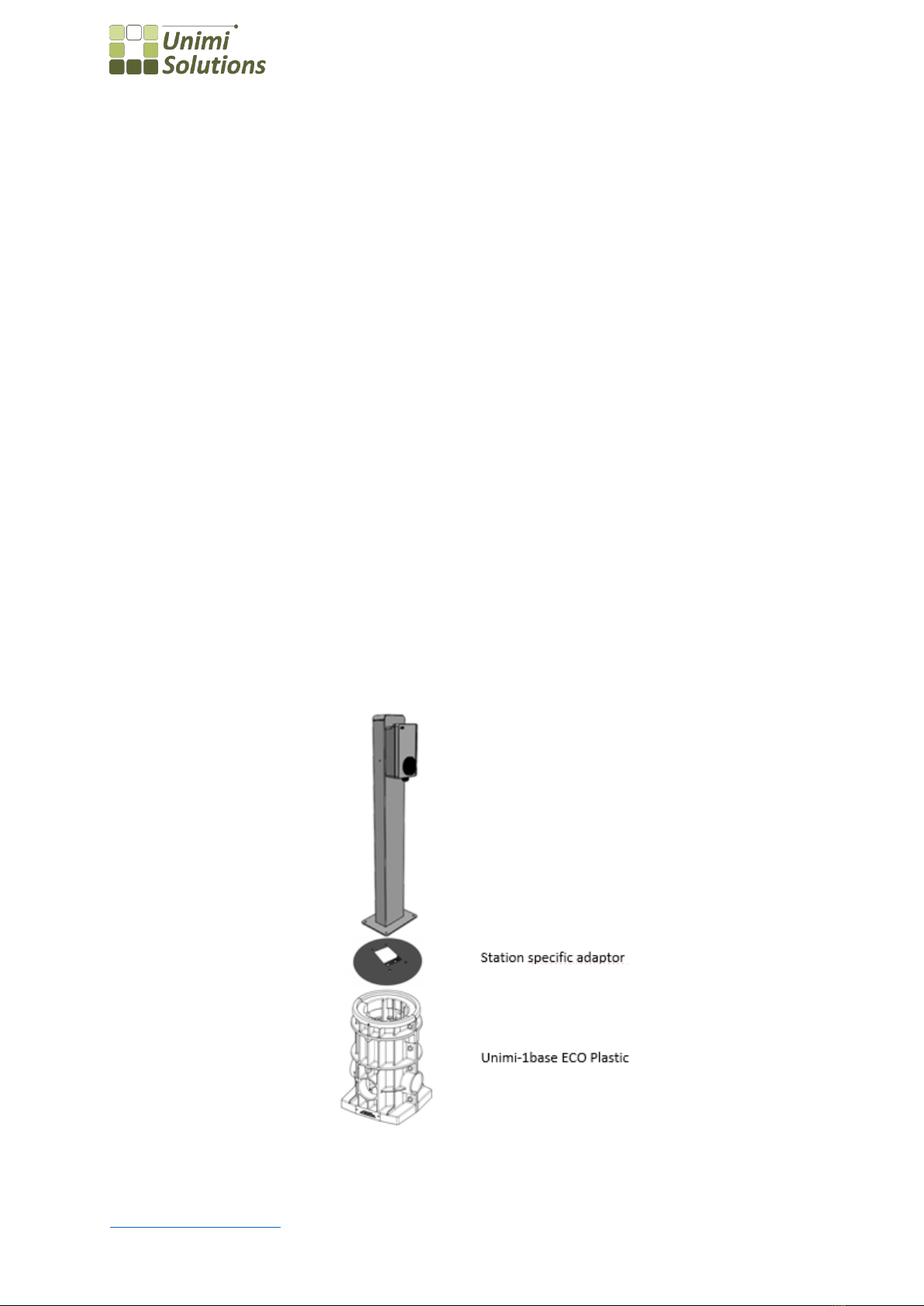

•The Unimi-1Base ECO PlasticTM foundation is designed for anchoring of EV charging stations in
the ground, predominantly in the outdoor public environment.
•This installation manual serves as guidelines and function alongside any local building codes.
If in conflict, the local building codes supersede these instructions.
•The foundation is equipped with 4x110 mm (4 inch) cable conduit inlets positioned in 90-
degree angles from one another allowing easy multiple cable entry. Unused entry holes shall
be covered with the supplied plastic conduit covers.
•The foundation needs to be placed in a cavity large enough so that the excavated ground
masses can be trampled/vibrated both underneath and on the sides of the foundation. Ensure
that the masses are packed thoroughly so that they fill the compartments of the foundation
ensuring a stable installation result.
•Recommended min cavity dimensions are 800x800x800 mm depending on ground

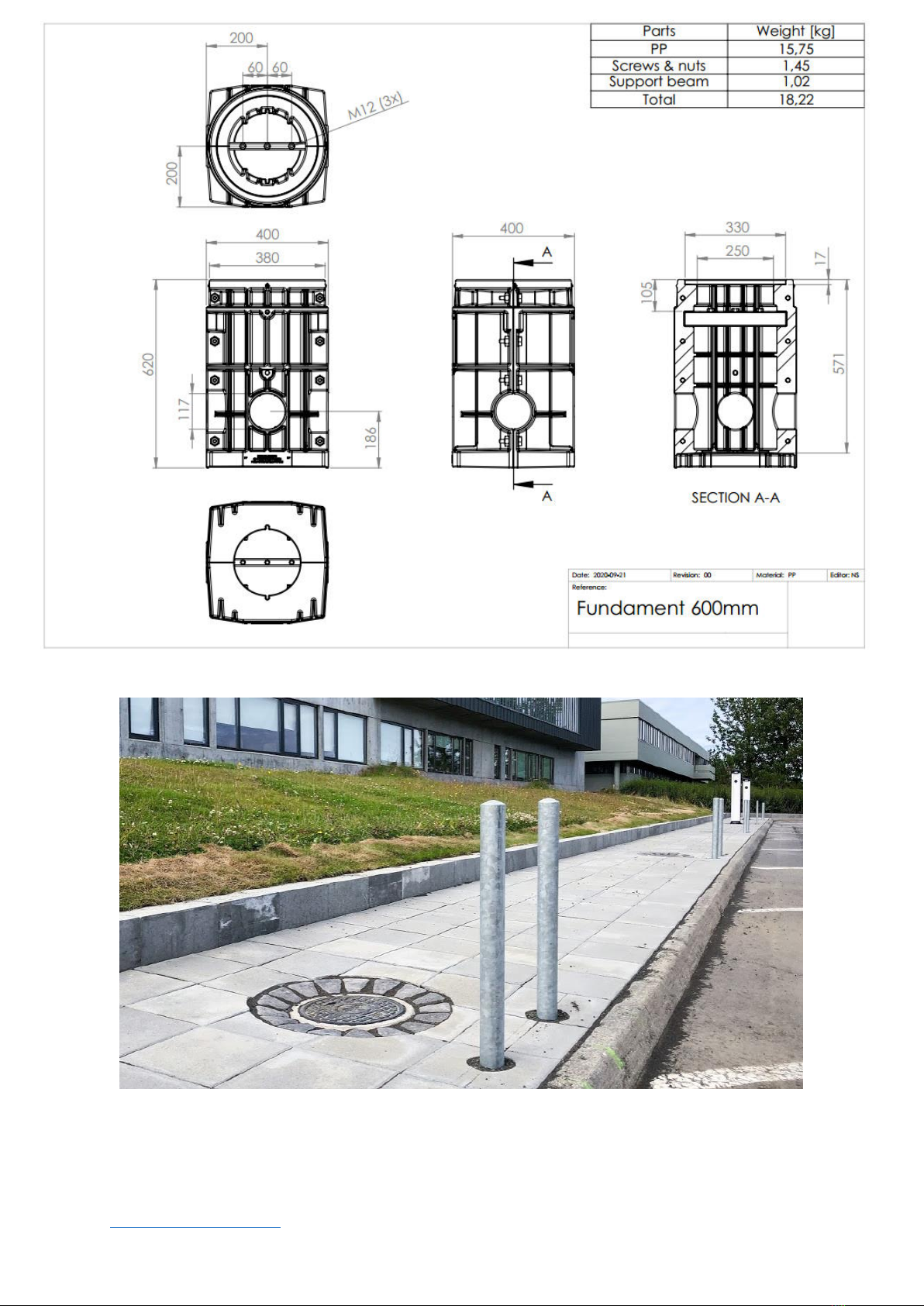

stomp/vibrator used. (Please refer to foundation specs at the last page of this manual)
•It is further recommended that the surrounding masses are of self-draining material such as
mixed stone gravel or macadam with packable characteristics.
•The top of the foundation shall be flush with the final ground surface level, allowing
pedestrians and lighter traffic to pass over it without the foundation constituting a tripping or
driving hazard if the foundation is installed in “dormant” mode with a manhole cover over it.
(Manhole cover supplied separately)
